Viribus Electric Tricycle for Adults (Model AAE-L1AB-AG) - Instruction Manual

1. Коопсуздук маалыматы

Before operating your Viribus Electric Tricycle, please read this manual thoroughly to ensure safe and correct usage. Failure to follow these instructions may result in injury or damage to the tricycle.

Жалпы коопсуздук эрежелери

• Always wear a helmet that meets safety standards when riding.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, battery charge, and all fasteners.
• Бардык жергиликтүү жол мыйзамдарына жана эрежелерине баш ийиңиз.
• Ичкиликтин же баңгизаттын мас абалында минүүгө болбойт.
• Ensure the tricycle is suitable for your height and weight. Recommended user height is 5'3" to 6'1". The maximum weight recommendation is 330 pounds.
• Avoid riding in adverse weather conditions such as heavy rain, snow, or ice.
• Айланаңыздагыларга жана башка жол колдонуучуларына көңүл буруңуз.

Батареянын коопсуздугу

• Use only the charger provided with your Viribus Electric Tricycle.
• Do not expose the battery to extreme temperatures or direct sunlight for extended periods.
• Avoid puncturing, dropping, or otherwise damaging the battery.
• Батареяны балдардан жана үй жаныбарларынан алыс кармаңыз.
• Эгерде батарейканын бузулуу же ысып кетүү белгилери байкалса, колдонууну дароо токтотуп, кардарларды колдоо кызматына кайрылыңыз.

2. Продукт бүтүп калдыview

The Viribus Electric Tricycle is designed for comfortable and stable riding, featuring electric pedal assist and throttle modes. This section provides an overview анын негизги компоненттери жана өзгөчөлүктөрү.

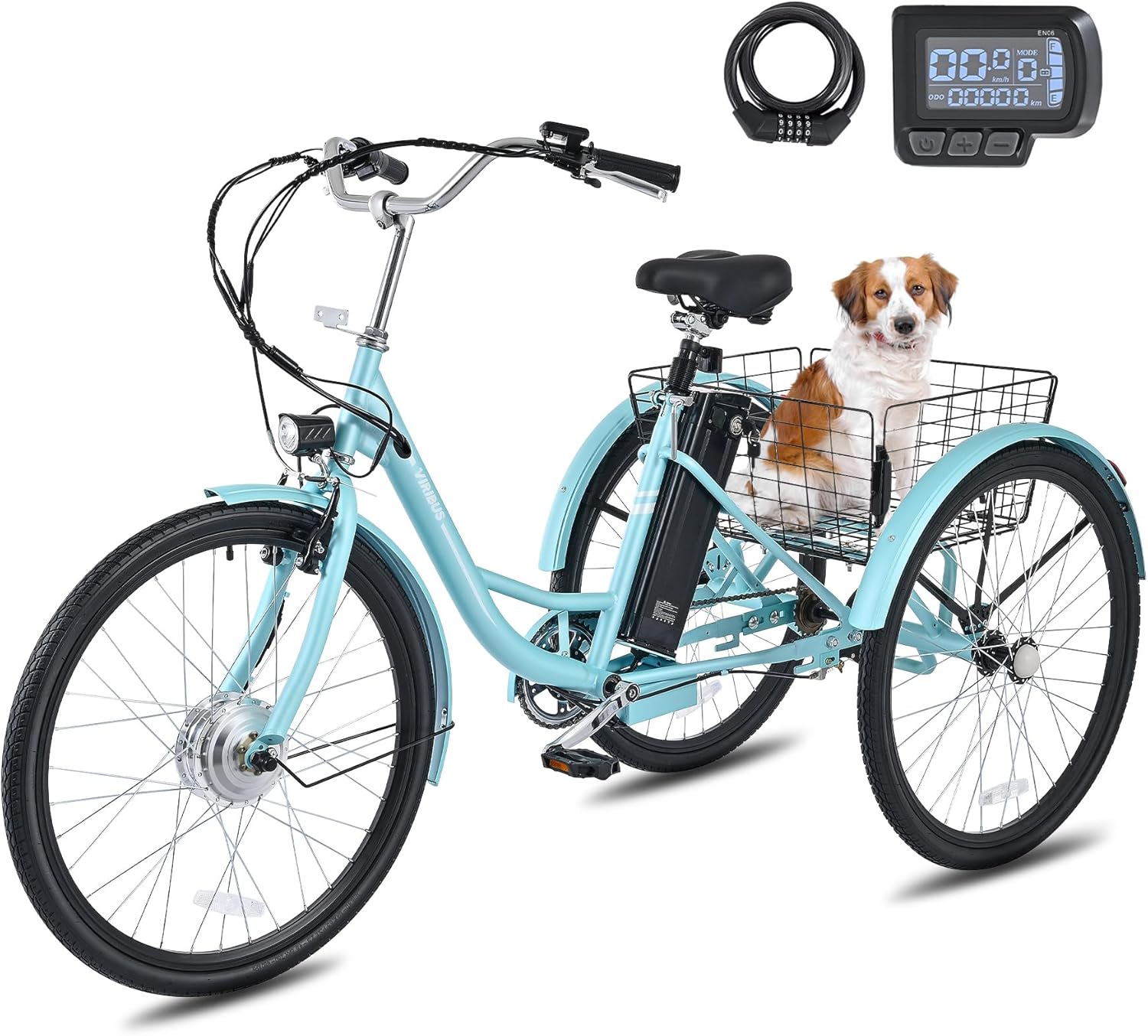

Image: The Viribus Electric Tricycle, showcasing its design and rear basket.

Негизги өзгөчөлүктөрү

• Мотор: Powerful 250W (Peak 500W) front hub motor for assisted riding.
• Батарея: Removable 36V 13Ah (468Wh) lithium-ion battery, UL2271 certified for safety, providing a range of up to 31 miles on full throttle.
• Айдоо режимдери: Three modes of operation: Manual, Pedal Assist (5 levels), and Full Throttle.
• Дисплей: Intuitive LCD display showing battery level, speed, odometer, and pedal assist level.
• Комфорт: 1.95-inch wide tires with double-layer aluminum alloy hubs and a spring suspension saddle for a smooth ride.
• кадр: Durable carbon steel step-through frame for easy mounting and dismounting.
• Сактагыч: Spacious rear basket capable of holding up to 110 pounds.
• Тормоздор: Reliable Drum and Linear Pull brake system.
• Коопсуздук өзгөчөлүктөрү: High-intensity LED headlight and instant-response horn.

Камтылган компоненттер

• 1x Adult Electric Tricycle
• 1x Front Light
• 2x Zip галстуктары
• 2x Long Bolts & Nuts
• 6x Short Bolts & Nuts
• 2x Rear Reflectors
• 1x заряддагыч
• 1x Кубат Сымы
• 1x Screwdriver
• 3x Wrenches
• 3x алты бурчтуу ачкычтар
• 1x Instructions Manual
• Себет
• Horn
• Кулпу
• Tool Kit

3. Орнотуу жана чогултуу

The Viribus Electric Tricycle requires assembly upon arrival. Please follow the detailed instructions provided in the separate assembly guide included in your package. Ensure all components are present and undamaged before beginning assembly.

Монтажга чейинки текшерүү тизмеси

• Unpack all components carefully and verify against the included components list.
• Ensure you have the necessary tools (a basic tool kit is provided).
• Read the assembly instructions completely before starting.

Key Assembly Steps (Refer to separate guide for details)

1. Attach the front wheel and fender.
2. Install the handlebars and adjust their position.
3. Mount the seat post and saddle, adjusting height for comfort.
4. Педалдарды орнотуңуз.
5. Assemble and attach the rear basket.
6. Connect the battery and ensure all electrical connections are secure.
7. Perform a final check of all bolts and nuts to ensure they are tightened correctly.

4. Иштөө нускамалары

This section details how to operate your electric tricycle safely and efficiently.

Батареяны заряддоо жана орнотуу

Image: The removable battery pack, showing its position on the tricycle frame.

• Заряддоо: Connect the charger to the battery charging port and then to a standard wall outlet. The indicator light on the charger will show charging status. Charge fully before first use.
• Орнотуу: Slide the charged battery into its designated slot on the tricycle frame until it clicks securely into place. Use the key to lock the battery for security.
• Алып салуу: Unlock the battery with the key and slide it out for off-tricycle charging or storage.

Control жана дисплей

Image: The tricycle's handlebars with the LCD display and control buttons.

• LCD дисплей: Provides real-time information including:
  • Battery Meter: Indicates current charge level.
  • Speedometer: Displays current speed in MPH.
  • PAS Level: Shows the selected pedal assist level (1-5).
  • Odometer: Tracks total distance traveled.
• Жарыкты башкаруу: Button on the handlebars to turn the LED headlight on/off.
• дроссель башкаруу: Twist grip throttle for smooth acceleration in throttle mode.
• Horn Control: Button to activate the horn for signaling.

Айдоо режимдери

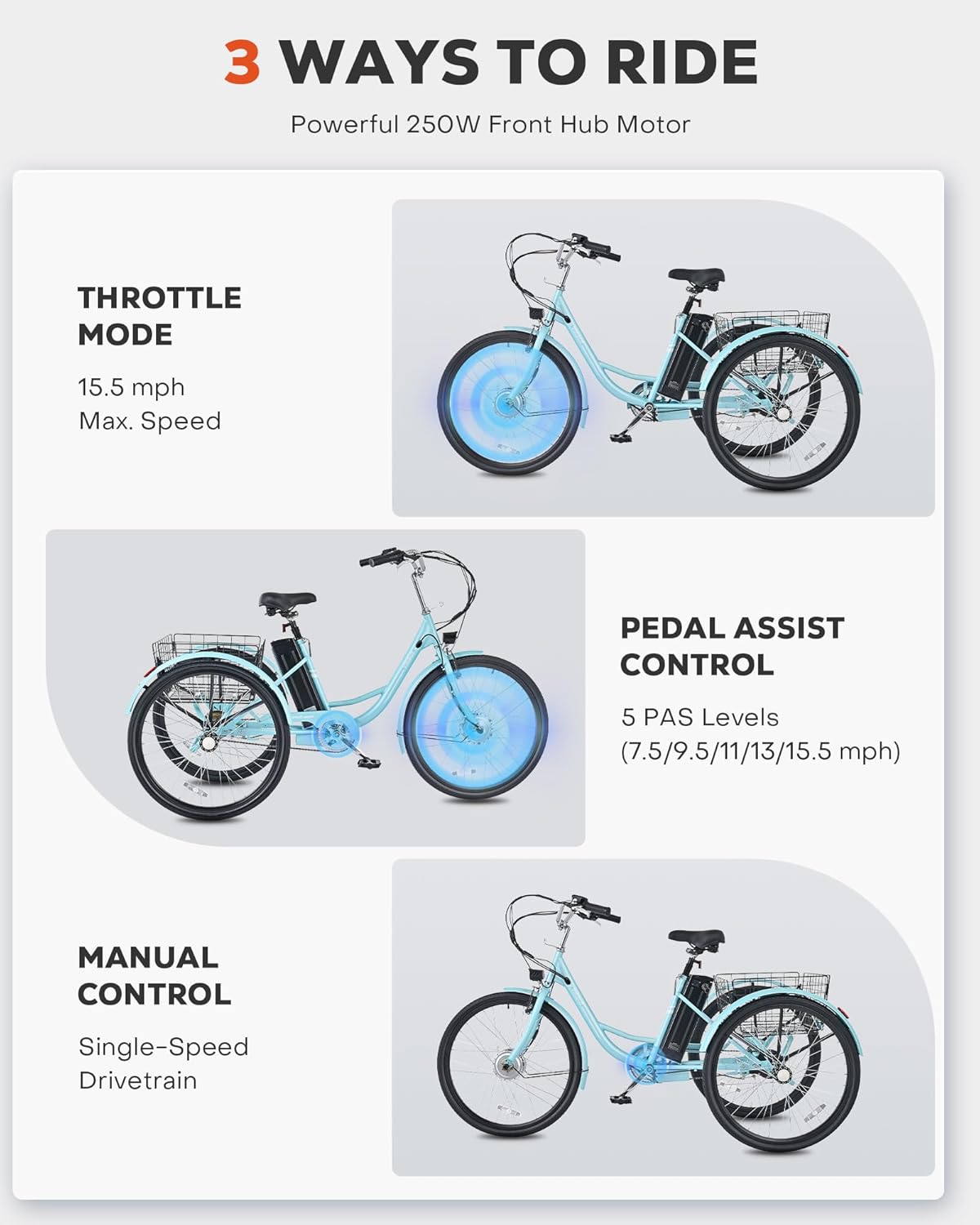

Image: Visual representation of the three available riding modes.

• Кол менен башкаруу: Operate the tricycle like a traditional single-speed bicycle by pedaling without electric assistance.
• Pedal Assist Control (PAS): Engage the electric motor by pedaling. Use the controls on the handlebars to select one of five assistance levels. Higher levels provide more motor power.
• дроссель режими: Use the twist throttle to engage the motor without pedaling. The tricycle can reach a maximum speed of 15.5 mph in this mode.

Тормоздоо

The tricycle is equipped with Drum and Linear Pull brakes. Apply both brake levers simultaneously for effective and controlled stopping. Test brakes before each ride.

5. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your Viribus Electric Tricycle.

Батареяга кам көрүү

• Батарейканын ден соолугун сактоо үчүн колдонулбаса да, аны үзгүлтүксүз заряддап туруңуз.
• Батареяны салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
• Батареяны бат-баттан толук кубаттап калуудан алыс болуңуз.

Шиналар

• Check tire pressure before each ride and inflate to the recommended PSI (usually indicated on the tire sidewall).
• Inspect tires for wear, cuts, or punctures regularly.

Тормоздор

• Regularly check brake levers for proper tension and responsiveness.
• Inspect brake pads for wear and replace as necessary.

General Cleaning and Lubrication

• Үч велосипедди жарнама менен үзгүлтүксүз тазалаңызamp кездеме. Жогорку басымдагы шайбаларды түздөн-түз электрдик тетиктерге колдонуудан алыс болуңуз.
• Lubricate the chain and other moving parts periodically to ensure smooth operation and prevent rust.

6. Кыйынчылыктарды

This section addresses common issues you might encounter with your electric tricycle.

Жалпы маселелер жана чечимдер

• Tricycle not powering on:
  • Check if the battery is fully charged and properly installed/locked.
  • Бардык электр байланыштары коопсуз экенин текшериңиз.
• Мотор жардам бербейт:
  • Батареянын заряды жетиштүү экенин текшериңиз.
  • Check the selected PAS level on the LCD display.
  • Ensure the throttle is not stuck or damaged.
• Brakes feel loose or ineffective:
  • Inspect brake cables for fraying or stretching.
  • Check brake pads for wear and adjust or replace as needed.
• Иш учурунда адаттан тыш үндөр:
  • Чынжырды туура майлоону жана чыңалууну текшериңиз.
  • Check for loose components or debris caught in moving parts.

For issues not covered here or if problems persist, please contact Viribus Customer Service for assistance.

7. Техникалык шарттар

Detailed technical specifications for the Viribus Electric Tricycle (Model AAE-L1AB-AG).

Image: Key dimensions and recommended height for the tricycle.

8. Кепилдик жана колдоо

Viribus is committed to providing excellent customer service and support for your electric tricycle.

Кепилдик маалымат

• 30 күндүк кайтаруу: For quality issues.
• 12 айлык кепилдик: Covers manufacturing defects.
• Өмүр бою техникалык колдоо: Assistance with product usage and troubleshooting.

Кардарларды тейлөө кызматы менен байланышыңыз

• Call Center: +1 (320) 377-3106 (Monday – Friday, 9:00 AM – 5:00 PM PST)
• Электрондук почта колдоо: support@viribusbikes.com
