LIDER Programmable Digital Timer Switch User Manual

1. Киришүү

Thank you for choosing the LIDER Programmable Digital Timer Switch. This 7-day timer switch is designed to provide automated control for your lights, fans, and motors, enhancing convenience, energy efficiency, and home security. It features up to 18 ON/OFF settings, a user-friendly interface, and a random mode for added security. This manual provides detailed instructions for installation, operation, programming, and troubleshooting to ensure optimal performance of your device.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Электр тогуна урунуу коркунучу бар. Орнотуу жогорку вольт менен иштөөнү талап кылатtage wiring. Always turn off power at the circuit breaker before installation or servicing. If you are unsure about any part of these instructions, consult a qualified electrician.

• Бул аппарат имараттын ичинде гана колдонуу үчүн.
• Do not exceed the maximum electrical ratings of the switch (15A resistive, 1200W tungsten, 1200W ballast, 1/2 HP motor).
• Ensure the ground wire is securely connected for proper operation and safety.
• Do not install in wet locations or where it may be exposed to water.
• Балдарды электр шаймандарынан алыс кармаңыз.

3. Пакеттин мазмуну

• LIDER Programmable Digital Timer Switch (1 unit)
• Монтаждоо бурамалар
• Wire Nuts
• Instruction Manual

4. Продукциянын өзгөчөлүктөрү

• Automated Control and Energy Efficiency: Take full control of your indoor and outdoor lights, fans, and appliances with this 7-day programmable timer, ensuring energy savings and enhanced convenience and home security.
• Customizable Scheduling with 36 Programs: Set up to 18 ON/OFF timer settings, allowing you to schedule lights, motors, and fans to turn on and off at precise times, reducing energy waste and improving home security.
• User-Friendly Interface with Manual Override: Effortlessly program schedules using the intuitive control panel, and enjoy added flexibility with manual override and daylight savings adjustment.
• Random Mode for Security: The random mode feature deters intruders by turning lights on/off at varying times when you are on vacation leave.
• Reliable Performance & Electrical Specifications: This timer switch operates at 120V, 60Hz with a capacity of 15A resistive, 1200W tungsten, 1200W ballast, and 1/2 HP motor. No neutral wire required, ground wire required for easy installation.

5. Орнотуу боюнча колдонмо

5.1 Орнотуудан мурун

• Электр кубатын өчүрүү: Locate the circuit breaker that controls the light switch you are replacing and turn it OFF. Verify the power is off by attempting to turn on the light.
• Check Circuit Type: Verify if GFCI/AFCI are present. GFCI circuits might disrupt normal operation.
• Lamp Күч: Ensure the total bulb wattage exceeds 5W for proper operation.

Сүрөт: бүттүview of installation preparation, timer installation, warm-up, and troubleshooting tips.

5.2 Электр өткөргүч схемасы

This timer switch is designed for 1-pole applications and does not require a neutral wire. A ground wire is required for proper operation.

Image: A modern house with exterior lights illuminated, emphasizing that the timer switch does not require a neutral wire, making it ideal for older homes.

5.3 Этап-этабы менен орнотуу

1. Кубатты өчүрүү: At the circuit breaker, turn off the power to the switch location.
2. Эски которгучту алып салуу: Carefully remove the existing wall plate and unscrew the old switch from the wall box. Disconnect the wires from the old switch, noting which wire is connected to the line (power in) and which is connected to the load (to the light fixture).
3. Зымдарды туташтыруу:
   • туташтыруу кара зым from the timer switch to the линия (ысык) зым дубал кутучасынан.
   • туташтыруу кызыл зым from the timer switch to the жүктөө зымы (to the light fixture).
   • туташтыруу green ground wire from the timer switch to the bare copper or green ground wire дубал кутучасында.
   Бардык туташуулардын зым гайкаларын колдонуп, бекем орнотулганын текшериңиз.
4. Которгучту орнотуу: Gently push the wired timer switch into the wall box. Secure it with the provided mounting screws.
5. Дубал плитасын бекитүү: Install the new or existing wall plate over the timer switch.
6. Күчтү калыбына келтирүү: Электрди өчүргүчтөн кайра күйгүзүңүз.

6. Initial Setup and Warm-Up

After installation and restoring power, the device requires a warm-up period. The LCD screen may not immediately display. Please wait 1-2 minutes for the device to warm up and the display to become active.

Image: An illustration showing the timer switch connected to an aquarium, with a 'WARM-UP' notification indicating a 1-2 minute warm-up period after installation.

7. Операция

7.1 Дисплейди түшүнүү

Сүрөт: ачык фронт view of the LIDER Programmable Digital Timer Switch, showing its digital display and sleek design.

The LCD display shows the current day, time, and operating mode (ON, OFF, AUTO). The small door at the bottom of the switch can be opened to reveal the programming buttons.

7.2 Кол менен башкаруу

You can manually override the programmed settings at any time.

Image: The LIDER timer switch with its lower cover open, revealing the 'MODE/RCL', 'HOUR/DST', 'DAY', 'MAN', 'PROG', 'MIN/RND', and 'ON/OFF' buttons for manual and programming control.

• Open the cover to access the manual buttons.
• басыңыз АДАМ (Manual) button to cycle through ON, OFF, and AUTO modes.
• In ON mode, the light/appliance will stay on.
• In ӨЧҮРҮҮ mode, the light/appliance will stay off.
• In АВТО mode, the timer will follow the programmed schedule.

8. Таймерди программалоо

8.1 Учурдагы убакытты жана күндү орнотуу

1. басыңыз СААТ button (often combined with MODE/RCL).
2. Басыңыз КҮН жуманын учурдагы күнүн коюу.
3. Басыңыз HOUR учурдагы саатты (AM/PM) орнотуу үчүн.
4. Басыңыз MIN учурдагы мүнөттү коюуга.
5. Басыңыз СААТ орнотуу режиминен чыгуу үчүн кайра.

8.2 Creating ON/OFF Programs (Up to 18 Settings)

1. басыңыз ПРОГ баскычын басыңыз. Дисплейде "1 ON" көрсөтүлөт.
2. Басыңыз КҮН to select the day(s) for this program (e.g., MO, TU, WE, TH, FR, SA, SU, or combinations like MO-FR, SA-SU, etc.).
3. Басыңыз HOUR каалаган КҮЙГҮЗҮҮ саатын коюу үчүн.
4. Басыңыз MIN каалаган КҮЙГҮЗҮҮ МҮНӨТҮН коюу үчүн.
5. Басыңыз ПРОГ кайрадан. Дисплейде "1 OFF" көрсөтүлөт.
6. Repeat steps 2-4 to set the desired OFF time for this program.
7. Басыңыз ПРОГ to move to the next program number (e.g., "2 ON"). Repeat the process for up to 18 ON/OFF programs.
8. Программалоо режиминен чыгуу үчүн баскычты басыңыз СААТ баскычы.

8.3 Random Mode

The random mode feature provides enhanced security by turning lights on and off at irregular intervals, simulating occupancy when you are away.

• To activate Random Mode, press the RND button (often combined with MIN). The display will show 'RND'.
• When active, the timer will randomly adjust your programmed ON/OFF times by a few minutes.
• Өчүрүү үчүн басыңыз RND кайра баскычын.

9. Тиркемелер

The LIDER Programmable Digital Timer Switch is versatile and can be used for various applications to automate your home or office.

Image: A home's front entrance at dusk, with the LIDER timer switch visible on the wall, demonstrating its use for controlling porch and exterior lights.

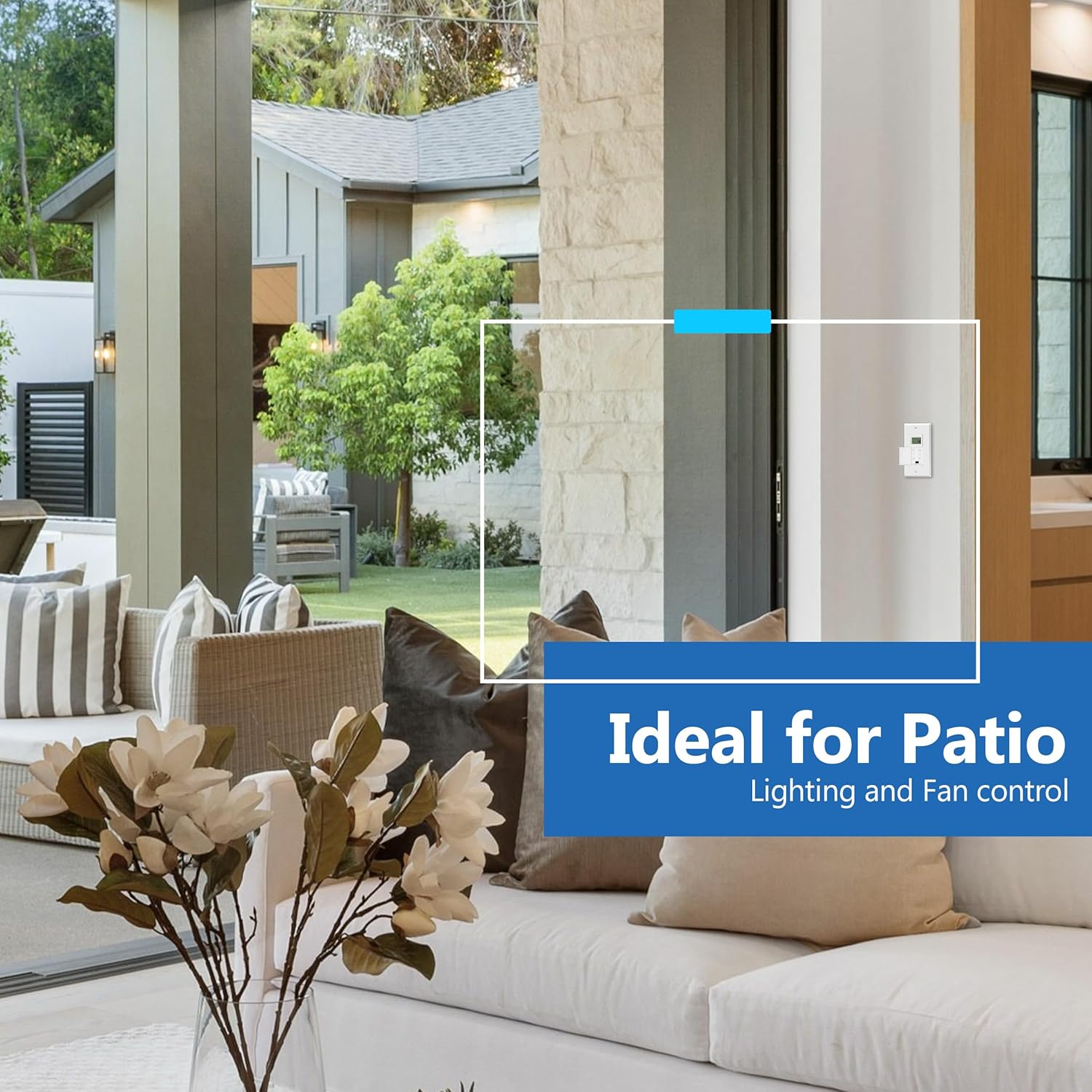

Image: A comfortable outdoor patio area with the LIDER timer switch on the wall, highlighting its suitability for controlling patio lighting and fans.

• Ички жарыктандыруу: Автоматташтыруу лamps, overhead lights, and holiday decorations.
• Тышкы жарыктандыруу: Control porch lights, landscape lighting, and security lights.
• Күйөрмандар: Schedule bathroom fans or ceiling fans to operate at specific times.
• Моторлор: Suitable for small motors like those found in pool pumps or irrigation systems (within specified electrical ratings).

10. Техникалык тейлөө

The LIDER Programmable Digital Timer Switch requires minimal maintenance. To ensure longevity and proper function:

• Бетти жумшак, кургак чүпүрөк менен тазалаңыз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Коммутатордун ашыкча нымдуулукка же өтө жогорку температурага дуушар болбогонун текшериңиз.
• Periodically check the wiring connections to ensure they remain secure.

11. Кыйынчылыктарды

If you encounter issues with your LIDER Programmable Digital Timer Switch, refer to the table below for common problems and solutions.

12. Техникалык шарттар

13. Кепилдик жана колдоо

LIDER products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official LIDER webсайт.

If you require technical assistance, troubleshooting, or have questions about your LIDER Programmable Digital Timer Switch, please contact LIDER customer support through the following channels:

• Онлайн колдоо: Visit the LIDER Store on Amazon for FAQs and product information.
• Электрондук почта колдоо: Refer to your product packaging or the LIDER Store page for contact email.

Please have your product model number (B0DX5G1F67) and purchase date ready when contacting support.
