1. Киришүү
The TP-Link TL-MR110-Outdoor is a robust 4G LTE Wi-Fi router specifically designed for outdoor use. It provides reliable internet connectivity in various environments, from gardens to construction sites or remote areas. This manual provides essential information for the proper installation, configuration, and operation of your device.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- IP65 Certified: Weather-resistant casing, protected against dust and water.
- 4G LTE Cat 4: Download speeds up to 150 Mbps for stable internet.
- 300 Mbps Wi-Fi (2.4 GHz): Fast wireless connection for up to 32 devices simultaneously.
- Кең температура диапазону: Operates reliably from -30 ℃ to +60 ℃.
- Өркүндөтүлгөн коргоо: 6 kV lightning protection and 15 kV electrostatic discharge (ESD) protection.
- Ийкемдүү энергия менен камсыздоо: Supports 12 V DC, passive PoE (48 V), and 802.3af PoE (44-57 V).
- Оңой монтаждоо: Can be installed on a pole, wall, or window.
- Тетер колдонмосу: Convenient management via smartphone (iOS/Android).

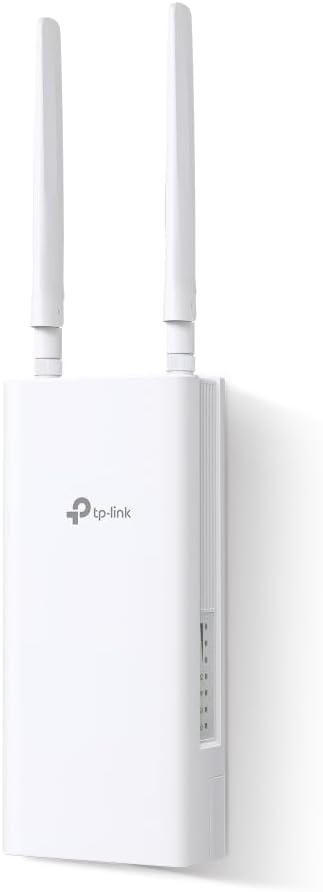

Image 1.1: TP-Link TL-MR110-Outdoor 4G LTE Router, front view with antennas.
2. Пакеттин мазмуну
Пакетиңизде төмөнкү заттар бар экенин текшериңиз:
- 1 x TL-MR110-Outdoor Unit
- 1 x 10m RJ45 Ethernet Cable
- 1 x PoE адаптери
- 1 x Кубат кабели
- 1 x Ыкчам орнотуу колдонмосу
- Mounting Kits (for Window/Pole/Wall)
3. Физикалык бүтүрүүview
The TL-MR110-Outdoor features a durable, weather-resistant casing designed for outdoor deployment. It includes external antennas for optimal signal reception and transmission. The device typically has a SIM card slot, an Ethernet port (for PoE and data), and a power input port.
Image 3.1: TL-MR110-Outdoor router mounted outdoors, illustrating fast 4G Wi-Fi and stable connection.
4. Орнотуу
4.1 SIM картаны орнотуу
- Аппараттын өчүрүлгөнүн текшериңиз.
- Locate the SIM card slot cover on the device.
- Open the cover and insert your 4G SIM card into the slot until it clicks into place.
- Close the SIM card slot cover securely to maintain IP65 protection.
4.2 Монтаждоо параметрлери
The TL-MR110-Outdoor offers versatile mounting options:
- Уюлду орнотуу: Use the provided pole mounting kit to attach the device to a pole.
- Дубалга орнотуу: Use the provided wall mounting kit to secure the device to a wall.
- Window Mounting: Use the provided window mounting kit for installation on a window.
Choose a location that provides optimal 4G signal reception and Wi-Fi coverage.
Image 4.1: Versatile mounting options for the TL-MR110-Outdoor.
4.3 Аппаратты кубаттоо
The router supports flexible power options:
- PoE (Power over Ethernet): Connect the router to the PoE adapter using the Ethernet cable. The PoE adapter then connects to a power outlet. This is the recommended method for outdoor installations as it simplifies cabling.
- DC кубаттуулугу: Connect the provided power cable to the DC input port on the router and then to a power outlet.
Image 4.2: Flexible power options: PoE, DC, and solar compatibility.
4.4 Баштапкы конфигурация
The TL-MR110-Outdoor is designed for quick Plug & Play setup with a SIM card, often requiring no complex configuration. However, for advanced settings, you can use the Tether app or the web башкаруу интерфейси.
5. Маршрутизаторду иштетүү
5.1 Түзмөктөрдү туташтыруу
Once powered on and connected to the 4G network, the router will broadcast a Wi-Fi signal. You can connect devices via:
- Wi-Fi: Издөө the router's Wi-Fi network name (SSID) on your devices and enter the password (found on the product label).
- Ethernet: Connect devices directly to the router's Ethernet port using an RJ45 cable.
The router supports up to 32 simultaneous wireless connections.

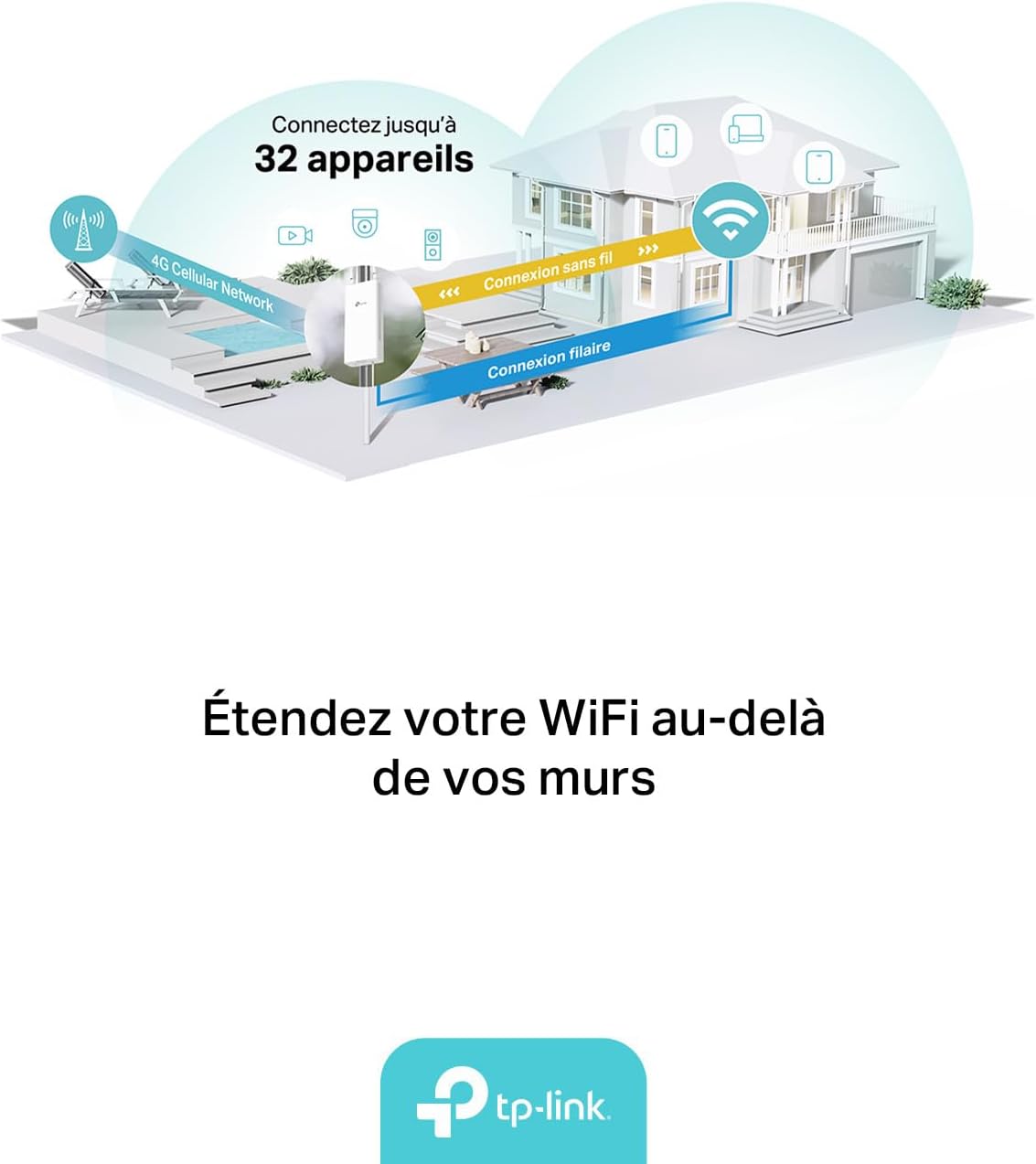

Image 5.1: Router distributing Wi-Fi and wired internet to multiple devices.
5.2 Managing the Router
You can manage your TL-MR110-Outdoor using the TP-Link Tether app or a web браузер.
- Тетер колдонмосу: Download the TP-Link Tether app from the App Store (iOS) or Google Play Store (Android). The app allows for easy setup, network management, parental controls, and more.
- Web Башкаруу интерфейси: Connect a device to the router's Wi-Fi or Ethernet. Open a web браузер жана демейки IP дарегин киргизиңиз (адатта
192.168.0.1ortplinkwifi.net) to access the management page.
Image 5.2: TP-Link Tether app for smartphone management.
For more information on the Tether app, visit: TP-Link Mother App
6. Техникалык тейлөө
6.1 Айлана-чөйрөнү коргоо
The TL-MR110-Outdoor is designed for harsh outdoor conditions:
- IP65 рейтинги: Ensures protection against dust ingress and low-pressure water jets from any direction.
- Температура диапазону: Operates effectively between -30 ℃ and +60 ℃.
- Чагылган жана ESD коргоо: Built-in 6 kV lightning protection and 15 kV ESD protection safeguard the device from electrical surges.
Image 6.1: Robust outdoor design features.
6.2 Тазалоо
Periodically inspect the device for any dirt or debris accumulation. Clean the exterior with a soft, dry cloth. Do not use liquid cleaners or aerosols.
6.3 Микропрограмма жаңыртуулары
TP-Linkти дайыма текшерип туруңуз website or the Tether app for available firmware updates to ensure optimal performance and security.
7. Кыйынчылыктарды
7.1 Интернет байланышы жок
- SIM карта туура салынганын жана активдүү экенин текшериңиз.
- Check the signal strength indicators on the device or via the Tether app.
- Verify that the router is powered on and all cables are securely connected.
- Роутерди жана туташкан түзмөктөрдү өчүрүп күйгүзүңүз.
- Confirm your SIM card has an active data plan.
7.2 Wi-Fi Not Visible or Connectable
- Ensure the Wi-Fi function is enabled (check via Tether app or web интерфейс).
- Wi-Fi тармагынын атын (SSID) жана сырсөзүн текшериңиз.
- Сигналдын күчүн жакшыртуу үчүн роутерге жакыныраак жылыңыз.
- Reset the router to factory defaults if issues persist (refer to the Quick Installation Guide for instructions).
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | TP-Link |
| Модель аты | TL-MR110-Outdoor |
| Операция системасы | TP-Link Firmware |
| Байланыш технологиясы | Ethernet, Wi-Fi 2.4 GHz |
| Зымсыз байланыш стандарты | 802.11n |
| Жыштык тилкесинин классы | Жалгыз тилкелүү |
| 4G LTE ылдамдыгы | Up to 150 Mbps (Cat 4) |
| Wi-Fi ылдамдыгы | 300 Мбит/сек чейин (2.4 ГГц) |
| Шайкеш түзмөктөр | Жеке компьютер, ноутбук, смартфон, планшет |
| Өзгөчөлүктөр | IP65 Casing, PoE/DC Power, Operating Temperature -30 ℃ to +60 ℃, 6 kV Lightning Protection, 15 kV ESD Protection |
| Электр камсыздоо | 12 V DC, Passive PoE (48 V), 802.3af PoE (44-57 V) |
| Сунушталган Колдонуулар | Сыртта |
| Камтылган компоненттер | TL-MR110 Outdoor Unit, 10m RJ45 Ethernet Cable, PoE Adapter, Power Cable, Quick Installation Guide, Mounting Kits |
Image 8.1: Key features summary of the TL-MR110-Outdoor.
9. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат, техникалык колдоо жана кошумча ресурстар үчүн расмий TP-Link сайтына кириңиз. website or contact their customer support. Details regarding warranty periods and service procedures are typically provided with your product documentation or on the manufacturer's webсайт.
Өндүрүүчү: TP-Link
Келип чыккан өлкө: Кытай
