PHILIPS SFL3153 Rechargeable Headlamp User Manual

Introduction

Thank you for choosing the PHILIPS SFL3153 Rechargeable Headlamp. This manual provides detailed instructions for the safe and efficient use of your headlamp. Please read it thoroughly before operation and retain it for future reference.

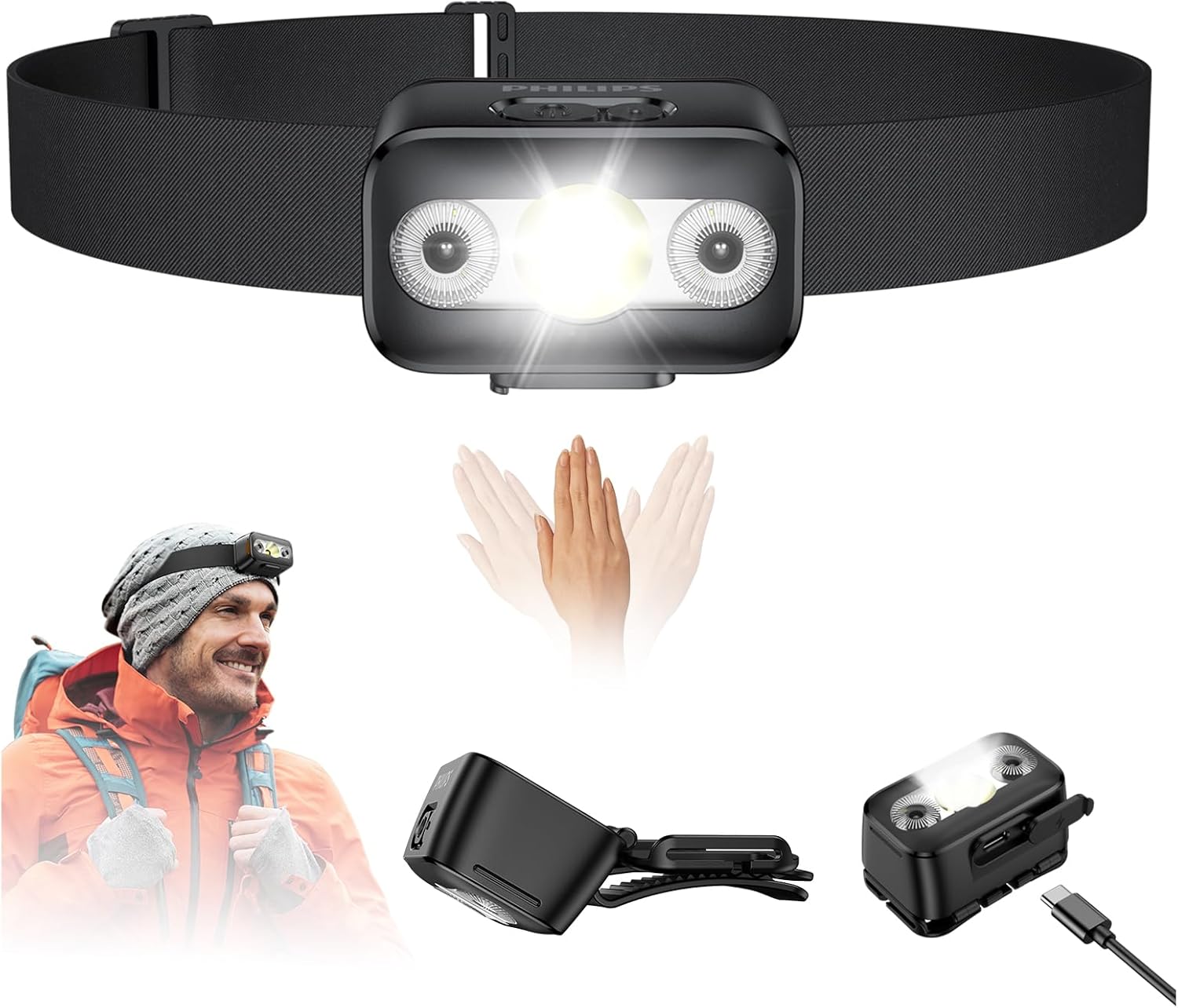

Image: The PHILIPS SFL3153 Rechargeable Headlamp, showing its main unit, adjustable headband, and hat clip attachment.

Маанилүү коопсуздук маалыматы

• Do not look directly into the LED light when it is on, as this may cause temporary vision impairment.
• Балдар жетпеген жерде сактаңыз.
• Башты ажыратпаңыз, өзгөртпөңүз же оңдоого аракет кылбаңызamp. Бул кепилдикти жокко чыгарып, коопсуздук коркунучун жаратышы мүмкүн.
• Башты ачыкка чыгаруудан алыс болуңузamp узак мөөнөткө экстремалдык температурага же түз күн нуруна.
• Сууга туруштук берүү үчүн кубатталбай жатканда кубаттоочу порттун капкагы бекем жабылганын текшериңиз.
• Charge the product in a timely manner. Do not allow the battery to fully deplete before charging, as this can shorten battery life.

Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• Кайра заряддалуучу LED башamp x 1
• Hat Clip x 1
• USB Charging Cable (Type-C) x 1
• Adjustable Light Strip (Headband) x 1

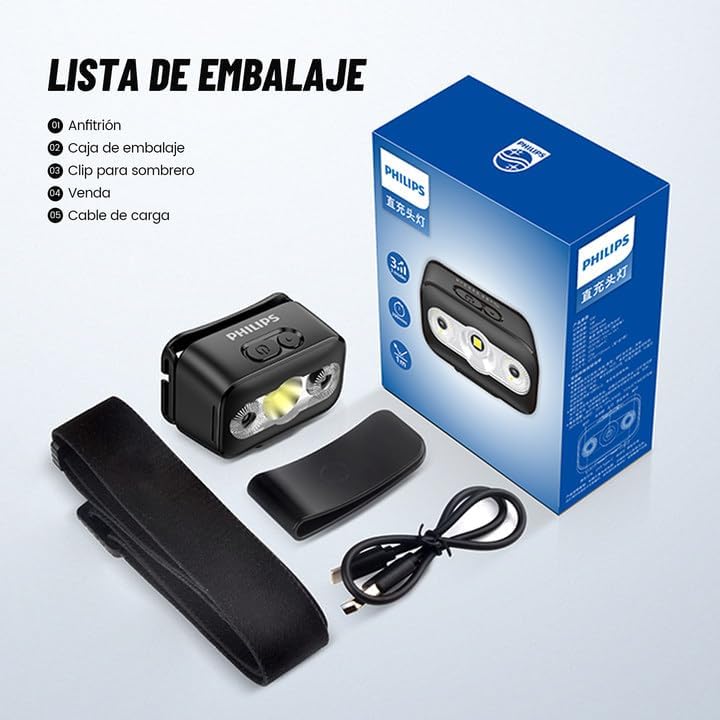

Image: All components included in the PHILIPS SFL3153 Headlamp package: the headlamp unit, headband, hat clip, and USB-C charging cable.

Продукт бүттүview

The PHILIPS SFL3153 headlamp features a compact design with multiple lighting options and user-friendly controls.

Сүрөт: Жакын план view баштынamp's top, highlighting the power button and the sensor switch for hands-free operation.

Сүрөт: Төрт деталдуу views of the headlamp, illustrating the enlarged power button, symmetrical design, injection-molded top housing, and high-gloss trim.

Негизги компоненттер:

• Негизги жарык: Central high-power LED for focused illumination.
• Auxiliary Lights: Two side lights for broader illumination or specialized modes.
• Кубат баскычы: For manual control of light modes.
• Sensor Switch: Activates infrared motion sensing for hands-free operation.
• Жөнгө салынуучу баш боосу: Elastic and non-slip for comfortable wear.
• Шляпа клипи: Allows attachment to the brim of a hat.
• USB-C заряддоо порту: For convenient recharging.

Жайгашуу

1. Башты кубаттооamp

Биринчи колдонуудан мурун, башты толук заряддаңызamp. The built-in 1000mAh lithium battery requires approximately 3 hours for a full charge.

1. Баштын капталындагы USB-C заряддоо портун табыңызamp.
2. Берилген USB-C кабелин баш жагына туташтырыңызamp and the other end to a standard USB power adapter (not included) or a computer USB port.
3. The battery indicator will show charging status.
4. Once fully charged, disconnect the cable and ensure the charging port cover is sealed.

Сүрөт: башamp being charged via a USB-C cable, with an illustration of the intelligent battery reminder showing different charge levels (100%, 30%, 9%).

2. Wearing the Headlamp

• With Headband: Башты бекитиңизamp unit to the adjustable elastic headband. Place the headband around your head and adjust for a comfortable, secure fit.
• With Hat Clip: For use with a hat, detach the headlamp from the headband and secure it to the brim of your hat using the provided hat clip. Ensure it is firmly attached and does not obstruct your vision.

Иштөө нускамалары

1. Power Button Operation (Manual Mode)

The power button controls the main and auxiliary light modes.

Image: An illustration detailing the 10 light modes available via the power button and the dimensions of the headlamp (59mm x 41mm).

• Single Click (Main Light):
  • First click: Low brightness
  • Second click: Medium brightness
  • Third click: High brightness
  • Fourth click: Off
• Single Click (Auxiliary Light):
  • Press and hold the power button to switch to auxiliary light modes.
  • Single click: White light on
  • Single click again: Red light on
  • Single click again: Red strobe light
  • Single click again: Red and blue flashing alternatively (slow)
  • Single click again: Red and blue flashing alternatively (fast)
  • Single click again: Off
• Эки жолу басуу: Activates SOS mode. Double click again to return to the previous state.
• Өчүрүү: If the light has been on for more than 10 seconds, a single click will turn it off directly.

2. Sensor Mode Operation (Hands-Free)

The intelligent infrared sensing device allows for hands-free control.

Сүрөт: башamp highlighting its smart detection feature, showing a hand waving in front of it to activate the sensor.

1. Press the sensor switch (separate button from power button) to activate sensor mode. A small indicator light (often the main light flashing once) confirms activation.
2. Once activated, wave your hand within 20cm of the sensor to turn the light on or off.
3. To exit sensor mode, press the sensor switch again.

3. Adjusting Lighting Direction

Башчыamp unit can be gently rotated up to 140° to adjust the lighting angle as needed.

Техникалык тейлөө

• Тазалоо: Башын сүртүңүзamp жумшак менен, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Сактагыч: Башты сактаңызamp колдонбогондо, күн нурунан алыс салкын, кургак жерде.
• Батареяга кам көрүү: To prolong battery life, avoid completely draining the battery before recharging. If storing for an extended period, charge the battery every 3-6 months.
• Суу каршылык: Башчыamp has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction. It is not designed for submersion. Ensure the USB-C port cover is closed to maintain water resistance.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official PHILIPS webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
