JOROTO MD65 жөнгө салынуучу салмак отургучу үчүн колдонмо

1. Коопсуздук маалыматы

Before using the JOROTO MD65 Adjustable Weight Bench, please read and understand all instructions. Retain this manual for future reference.

• Максималдуу Салмак сыйымдуулугу: This bench is designed to safely support up to 600 kg (1700 lbs) including the user's weight and any weights being lifted. Do not exceed this limit.
• Ден соолукту текшерүү: Жаңы көнүгүү программасын баштоодон мурун, медициналык адис менен кеңешиңиз.
• Туура колдонуу: Use the bench only for its intended purpose as a weight training and exercise bench.
• Туруктуу бети: Always place the bench on a flat, stable, and non-slip surface.
• Аймакты тазалоо: Ensure adequate clear space around the bench during use to prevent accidents.
• Текшерүү: Before each use, inspect the bench for loose parts, damage, or wear. Do not use if any components are compromised.
• Балдар жана үй жаныбарлары: Иштөө учурунда балдарды жана үй жаныбарларын отургучка жакын алып барбаңыз.
• Түзөтүүлөр: Ensure all adjustment pins and locking mechanisms are securely engaged before beginning an exercise.

2. Пакеттин мазмуну

Чогултуудан мурун бардык компоненттердин бар экенин текшериңиз. Эгерде кандайдыр бир тетиктер жок болсо же бузулуп калса, кардарларды колдоо кызматына кайрылыңыз.

• Негизги кадрдык жыйын
• Арткасы
• Seat Pad
• Adjustable Leg Support Assembly
• Fast Lock Pull Pins (for adjustments)
• Аппараттык комплект (болт, шайба, гайкалар, шаймандар)
• User Manual

3. Орнотуу жана чогултуу

The JOROTO MD65 bench is designed for quick assembly, typically within 10 minutes. Follow these general steps:

1. Бардык компоненттерди таңгактан чыгарып, аларды таза, тегиз бетке жаткызыңыз.
2. Attach the main support legs to the bench frame using the provided hardware. Ensure all bolts are tightened securely.
3. Mount the backrest pad and seat pad to their respective frames.
4. Install the adjustable leg support assembly.
5. Insert the Fast Lock Pull Pins into the designated adjustment points for the backrest, seat, and leg support.
6. Verify that all connections are tight and stable before first use.

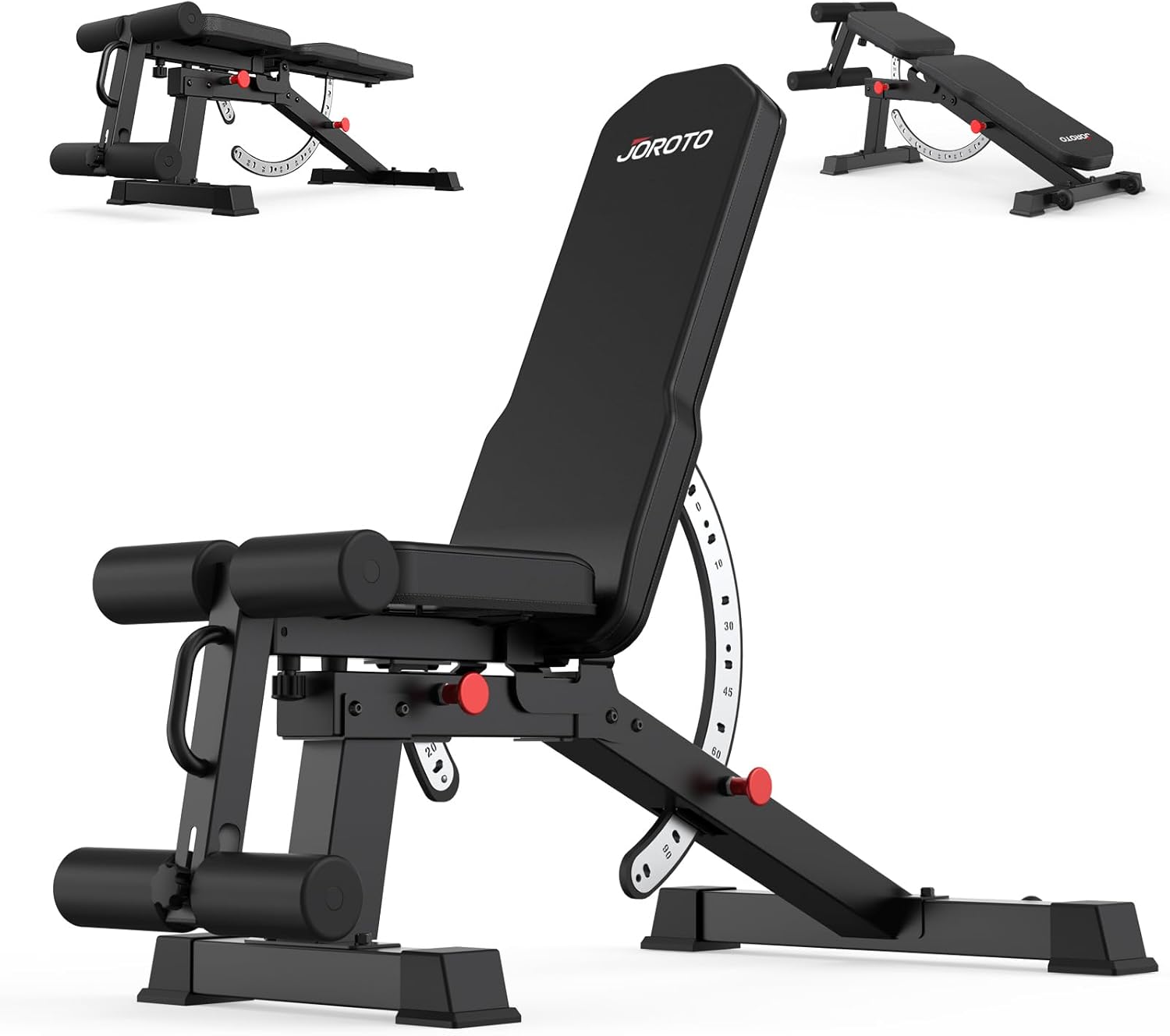

Image: The JOROTO MD65 Adjustable Weight Bench shown in flat, incline, and decline positions, illustrating its versatility.

4. Иштөө нускамалары

4.1 Отургучту жөндөө

The JOROTO MD65 offers multiple adjustment options for a full-body workout. Always ensure the Fast Lock Pull Pins are fully engaged after making adjustments.

• Артканы тууралоо: The backrest features 9 adjustable angles, ranging from decline to upright positions. To adjust, pull the Fast Lock Pull Pin located on the side of the backrest support, move the backrest to the desired angle, and release the pin to lock it into place.
• Орундукту жөндөө: The seat offers 3 adjustable levels. To adjust, pull the Fast Lock Pull Pin under the seat, move the seat to the desired position, and release the pin to lock it.
• Leg Support Adjustment: The removable leg support has 3 length settings for personalized comfort and stability. To adjust, pull the pin on the leg support, slide it to the desired length, and release the pin. The leg support can also be completely removed for certain exercises.

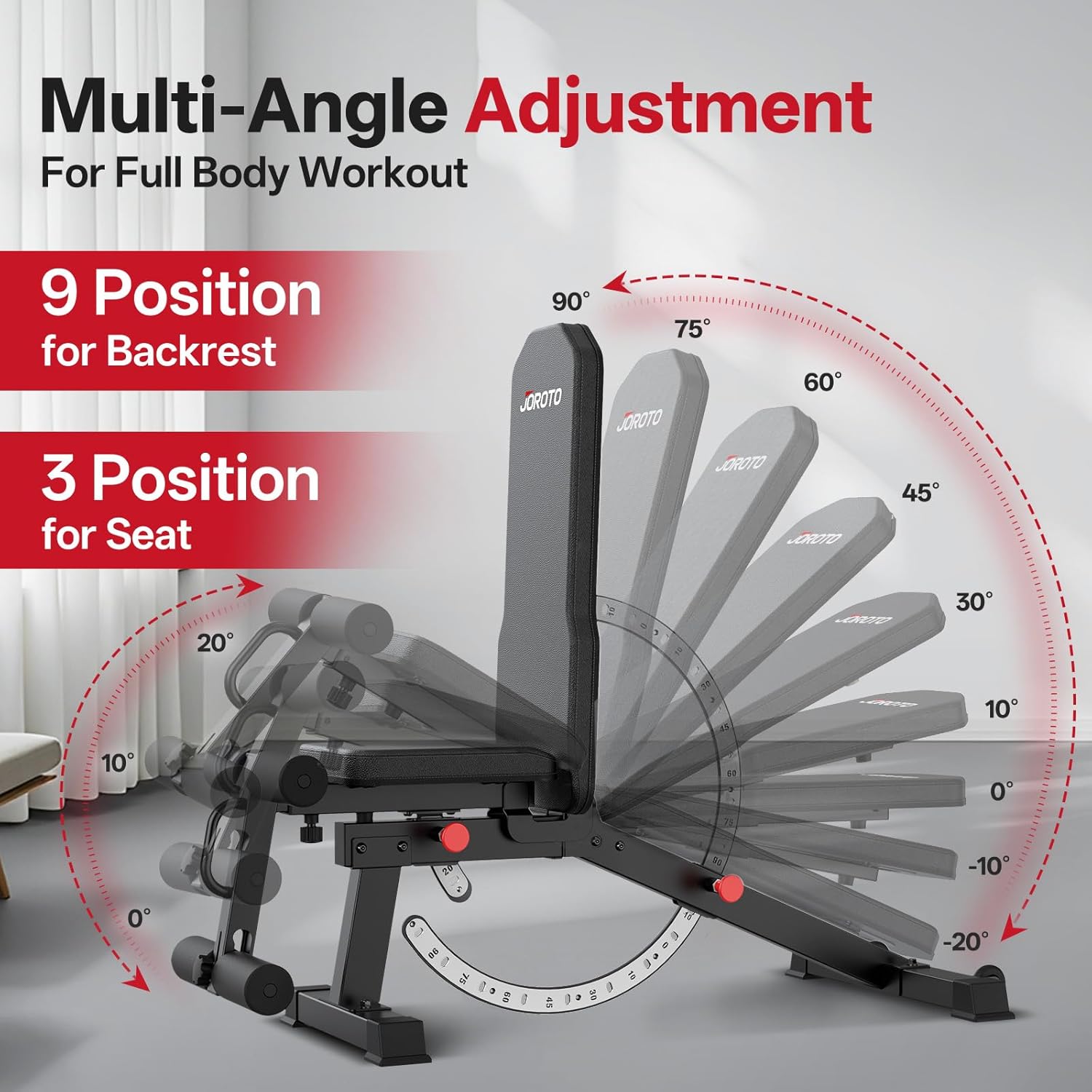

Image: A diagram illustrating the 9 adjustable backrest positions (from -20° to 90°) and 3 adjustable seat positions (from 0° to 20°).

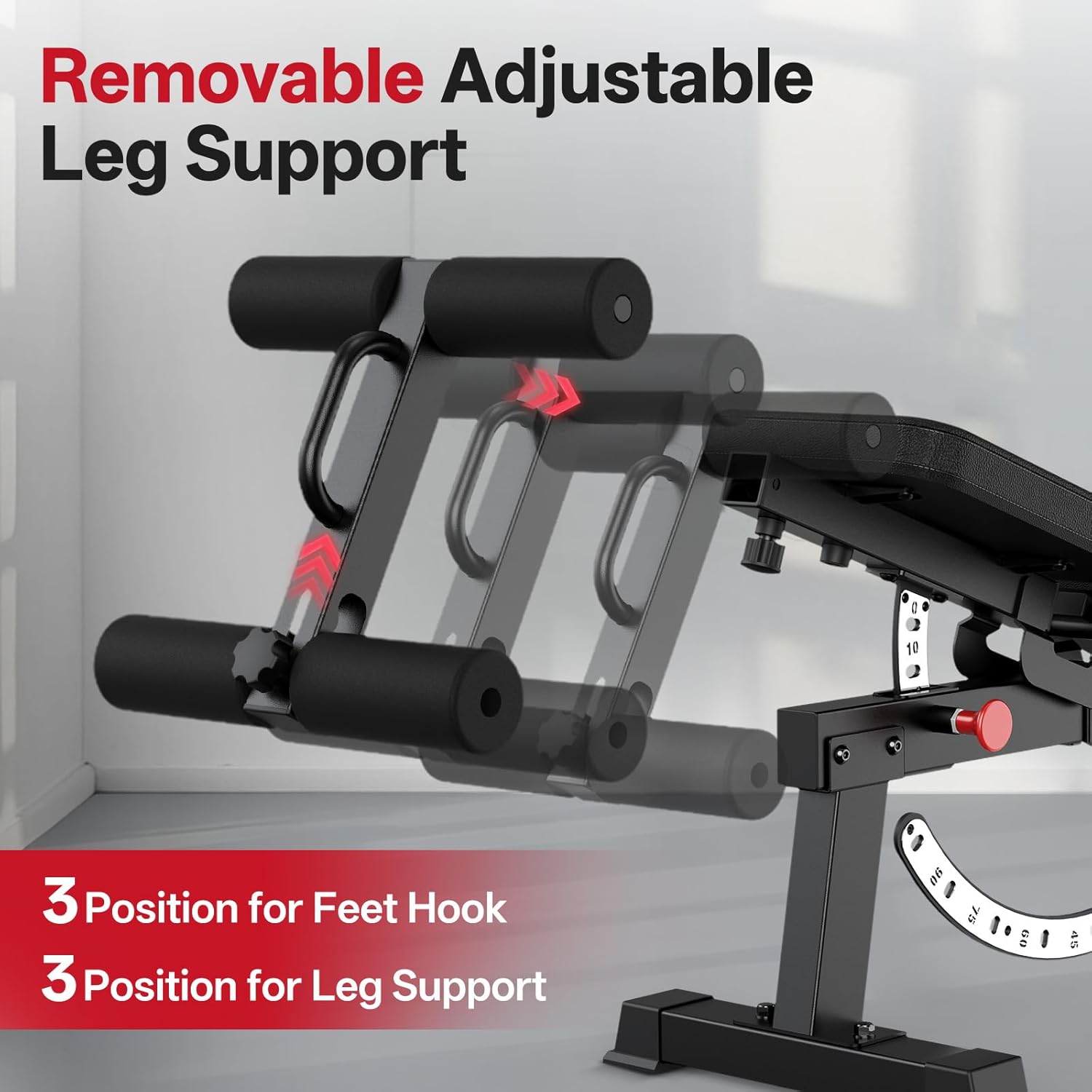

Сүрөт: жакын план view of the removable and adjustable leg support, highlighting its three length settings for foot hooks and overall leg support.

Сүрөт: деталдуу view of the Fast Lock Pull Pin mechanism, demonstrating how to pull and release the pin for one-second adjustments and auto-locking.

4.2 Отургучту жылдыруу

The JOROTO MD65 is equipped with transport wheels and a front handle for easy relocation and storage.

1. Ensure the bench is in a stable, folded, or flat position for transport.
2. Lift the bench using the front handle.
3. Tilt the bench onto its transport wheels.
4. Roll the bench to the desired location.

Image: A man demonstrating how to easily move the JOROTO MD65 weight bench using its integrated front handle and dual transport wheels.

4.3 Көнүгүү позициялары

The adjustable design supports various exercises for a full-body workout:

• Жалпак отургуч: Ideal for dumbbell presses, flyes, and rows.
• Жантайыңкы отургуч: Targets upper chest and shoulders for exercises like incline presses and front raises.
• Баш тартуу үчүн отургуч: Focuses on lower chest for decline presses and sit-ups.
• Upright/Seated: Suitable for shoulder presses, bicep curls, and tricep extensions.

Image: A collage showing a user performing exercises in flat, decline, upright, and incline positions, demonstrating the bench's versatility for whole-body muscle workouts.

5. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your JOROTO MD65 Adjustable Weight Bench.

• Тазалоо: Стулдун жаздыкчаларын жана алкагын жарнама менен сүртүңүзamp Ар бир колдонгондон кийин терди жана кирди кетирүү үчүн чүпүрөктү сүртүңүз. Абразивдүү тазалоочу каражаттардан алыс болуңуз.
• Текшерүү: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners.
• Кийүү жана эскирүү: Inspect the upholstery for any tears or excessive wear. Check the frame for any signs of damage or corrosion.
• Сактагыч: Складды кургак, таза жерде, күндүн түз тийген нурларынан жана өтө жогорку температурадан алыс сактаңыз.

6. Кыйынчылыктарды

If you encounter issues with your JOROTO MD65 Adjustable Weight Bench, refer to the following common solutions:

• Бенд туруксуз сезилет: Ensure all assembly bolts are securely tightened. Check that the bench is placed on a flat, even surface. Verify that all adjustment pins are fully engaged.
• Difficulty adjusting positions: Ensure the Fast Lock Pull Pins are fully retracted before attempting to move the backrest, seat, or leg support. Check for any obstructions in the adjustment mechanism.
• Чыйылдаган үндөр: Inspect all connection points and tighten any loose bolts. Applying a small amount of silicone lubricant to pivot points may help.

If problems persist, please contact JOROTO customer support for assistance.

7. Техникалык шарттар

Image: A diagram showing the key dimensions of the JOROTO MD65 weight bench, including length, width, and height, for home fitness planning.

Image: The JOROTO MD65 bench highlighting its heavy-duty commercial steel construction and 1700LB weight capacity, with a 70mm wider support frame.

Сүрөт: деталдуу views of the JOROTO MD65 bench construction, showing the 70mm wider support frame, 1.5mm commercial steel, non-slip foot mats, and high-density PU leather foam.

Image: A cross-section diagram illustrating the 50mm thickened 5-layer construction of the seat and backrest, including tear-resistant leather, anti-collapse sponge, thickened support board, high-density sponge, and wrapped leather.

8. Кепилдик жана колдоо

JOROTO stands by the quality of its products.

• Кепилдик: The JOROTO MD65 Adjustable Weight Bench comes with a 1-year replacement parts warranty.
• Кардарларды колдоо: For any questions, concerns, or warranty claims, please contact JOROTO customer support.

Байланыш маалыматы:
Электрондук почта: support@jorotofitness.com
