Introduction
Thank you for choosing the Uthfy 26-Inch Wall Mount Oscillating Industrial Fan. This manual provides essential information for the safe and efficient operation of your new fan. Please read it thoroughly before installation and use, and retain it for future reference.
Image: The Uthfy 26-inch wall mount oscillating industrial fan in operation, demonstrating powerful airflow.
Коопсуздук маалыматы
- Always ensure the fan is securely mounted to a structurally sound wall or stud.
- Do not use for dry wall mounting without appropriate anchors.
- Иштеп жатканда манжаларыңызды жана башка буюмдарды желдеткичтин калактарынан жана торчосунан алыс кармаңыз.
- Тазалоодон же тейлөөдөн мурун желдеткичти розеткадан сууруп алыңыз.
- Желдеткичти шнур же сайгыч бузулган менен иштетпеңиз.
- Бул желдеткич үйдүн ичинде колдонууга ылайыкталган.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Вентилятордун мотору
- Дубалга орнотуу кашаасы
- Желдеткичтер (3)
- Алдыңкы жана арткы торчолор
- Орнотуу жабдуулары (бурамалар, шайбалар, гайкалар)
- Instruction Manual
Орнотуу жана орнотуу
Follow these steps for proper assembly and mounting of your Uthfy fan:
- Дубал кронштейнди орнотуу:
- Select a suitable location on a concrete wall or wood stud that can support the fan's weight and vibration.
- Position the wall mounting bracket and mark the drilling points.
- Drill holes and securely fasten the bracket to the wall using the provided hardware.
- Assembling the Motor to the Bracket:
- Attach the motor's swivel bracket to the wall mounting bracket using the provided screws, washers, and nuts. Ensure all connections are tight.
- Adjust the tilt angle of the fan as needed using the triangular nut.
- Attaching the Fan Grilles and Blade:
- Remove the four sets of half-round washers, spring washers, and flat nuts from the motor shaft.
- Set the rear grille onto the motor, aligning the grille port to the four bolts. Affix the washers and nuts, tightening them securely.
- Assemble the fan blade onto the motor shaft by tightening the two screws. Ensure the screws are tightly secured.
- Attach the front grille to the rear grille, ensuring all clips are securely fastened.
Image: Detailed diagram illustrating the fan's components and assembly points, including the rust-resistant grille, tilt-angle head, 3-speed settings, and fixed bracket.
Installation Video Example
Video: A seller-provided video demonstrating the installation process of a 20-inch wall mount fan, including mounting the bracket, assembling the motor, and attaching the fan components.
Иштөө нускамалары
Your Uthfy fan is designed for ease of use with dual pull cord controls.
- Ылдамдык тандоо: Pull the chain to adjust between Low, Medium, and High-speed settings. The fan offers 9200 CFM on high, 8400 CFM on medium, and 7300 CFM on low.
- Термелүүнү башкаруу: Pull the second chain to start or stop the oscillation function. The fan provides wide-angle vertical and horizontal oscillation to distribute air evenly.
- Ийилген бурч: Manually adjust the fan head's tilt angle by loosening the triangular nut on the swivel bracket, setting the desired angle, and then re-tightening the nut.
Image: Visual representation of the fan's three speed settings (Low, Medium, High) and their corresponding Cubic Feet Per Minute (CFM) airflow capacities.

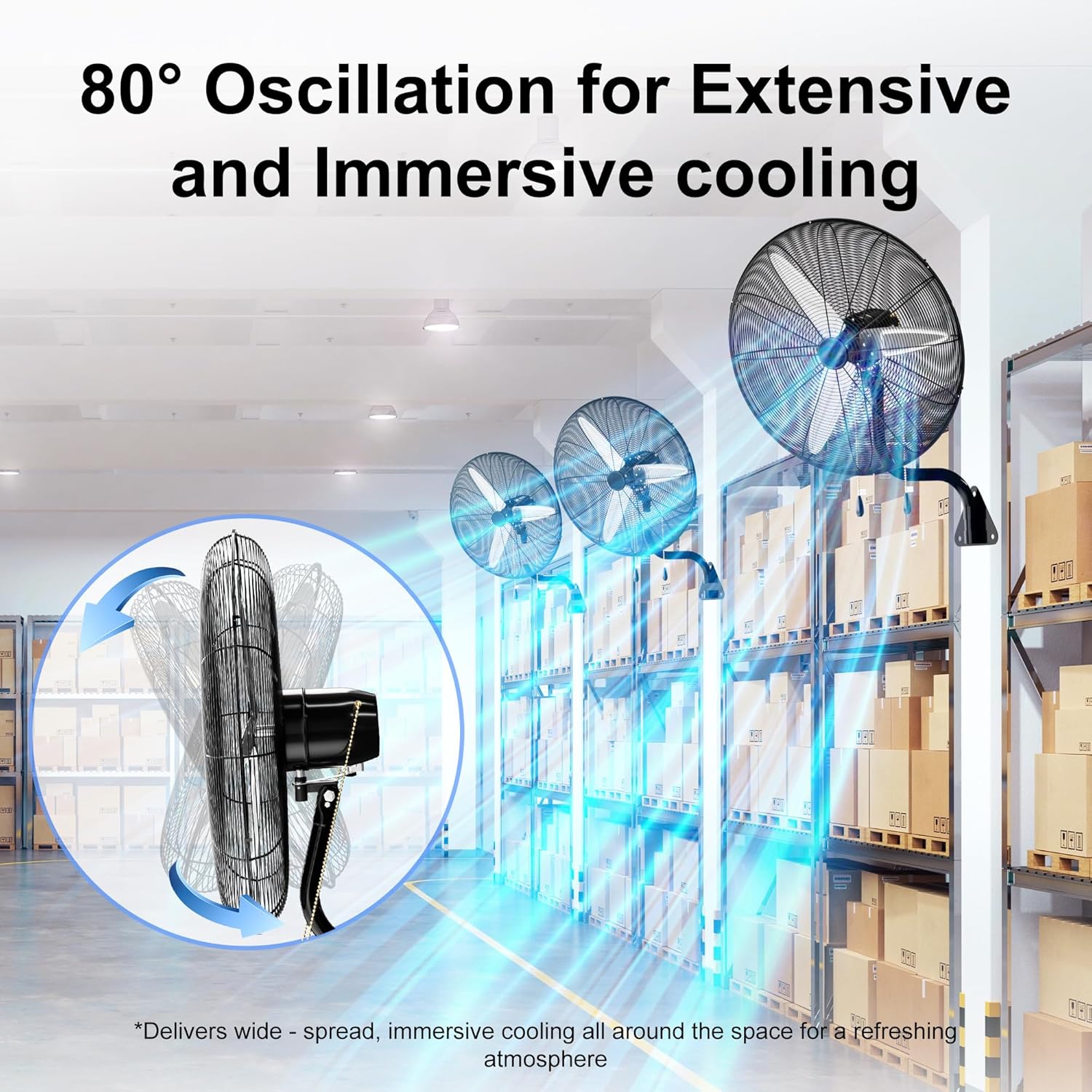

Image: Several Uthfy wall-mounted fans demonstrating 80° oscillation for extensive cooling in a large industrial space.
Operation Video Examples
Video: A seller-provided video showcasing the oscillation feature of an 18-inch wall mount fan.
Video: A seller-provided video demonstrating the general operation of a 24-inch wall mount fan.
Техникалык тейлөө
- Тазалоо: Regularly wipe down the fan's exterior and blades with a soft, damp кездеме. Тазалоодон мурун желдеткичтин розеткадан ажыратылганын текшериңиз.
- Грильди тазалоо: The front grille can be removed for deeper cleaning of the blades. Follow the assembly instructions in reverse to remove and reattach.
- Сактагыч: If storing the fan for an extended period, clean it thoroughly and store it in a dry, cool place.
Проблемаларды чечүү
- Желдеткич күйбөйт:
- Электр шнурунун иштеген розеткага бекем сайылганын текшериңиз.
- Ensure the pull cord for speed is engaged.
- Алсыз аба агымы:
- Increase the speed setting using the pull cord.
- Clean the fan blades and grilles to remove dust buildup.
- Fan is not oscillating:
- Ensure the oscillation pull cord is engaged.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Uthfy |
| Модель аты | FB-26 |
| Өлчөмү | 26 дюйм |
| Түс | Кара |
| Power Source | AC |
| Ватtage | 180 ватт |
| Тtage | 120 вольт |
| Аба агымынын кубаттуулугу | Мүнөтүнө 9200 куб фут |
| Ызы-чуу деңгээли | 30 децибел |
| Кубат деңгээли саны | 3 |
| Өзгөчө өзгөчөлүк | жабылуучу |
| Орнотуу түрү | Дубалга орнотуу |
| Элемент Салмагы | 15.65 фунт |
| Продукциянын өлчөмдөрү | 25.59"D x 40.94"W x 20.87"H |
Кепилдик жана колдоо
For warranty information or technical support, please refer to the product packaging or contact Uthfy customer service directly. Keep your purchase receipt as proof of purchase.
