1. Киришүү
This instruction manual provides essential information for the safe and effective use of Caroma K1-K5 and P1-P7 series electric scooter accessories. It covers installation, operation, maintenance, and troubleshooting. Please read this manual thoroughly before using your accessory to ensure proper function and longevity.
To ensure compatibility, always verify the accessory model matches your specific Caroma electric scooter model (K1-K5 or P1-P7 series) before purchase and installation. This manual uses the K5 battery as a primary example for accessory instructions.
2. Продукт бүтүп калдыview: K5 Lithium-Ion Battery
The Caroma K5 Lithium-Ion battery is designed as a replacement or spare power source for compatible Caroma electric scooters within the K1-K5 and P1-P7 series. It provides reliable power for outdoor use.
Figure 2.1: Caroma K5 Lithium-Ion Battery mounted on an electric scooter frame. This image illustrates the general appearance and mounting position of the battery accessory.
3. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Бул коопсуздук көрсөтмөлөрүн аткарбоо өрткө, электр тогуна урунууга, жаракат алууга же продуктуга же мүлккө зыян келтирүүгө алып келиши мүмкүн.
- Always use the original or a certified compatible charger for the battery. Using an incompatible charger can cause damage or fire.
- Do not expose the battery to extreme temperatures (above 60°C / 140°F or below -10°C / 14°F), direct sunlight, or open flames.
- Do not disassemble, puncture, or modify the battery. This can lead to dangerous situations.
- Keep the battery away from water and moisture. If the battery gets wet, do not use it.
- Батареяны колдонбогондо салкын, кургак жерде сактаңыз.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Dispose of the battery according to local regulations for lithium-ion batteries. Do not dispose of in household waste.
4. Орнотуу: Батареяны орнотуу
This section outlines the general procedure for installing the K5 battery into a compatible Caroma electric scooter. Specific steps may vary slightly depending on your scooter model.
- Өчүрүү: Ensure your electric scooter is completely powered off before beginning installation.
- Батарея бөлүмүн табыңыз: Identify the battery compartment on your scooter frame. This is typically located along the main frame tube.
- Кулпуну ачуу (эгер бар болсо): If replacing an existing battery, use the provided key to unlock and remove the old battery. The K5 battery features a key-operated lock mechanism.
- Жаңы батареяны салыңыз: Carefully align the K5 battery with the mounting rails in the scooter's battery compartment. Slide the battery into place until it is fully seated.
- Коопсуз Батарея: Use the key to lock the battery into the scooter frame. Ensure the battery is securely fastened and does not wobble. Remove the key after locking.
- Connect Cables (if separate): Some scooter models may require manual connection of power cables after the battery is seated. Refer to your scooter's main manual for specific instructions.

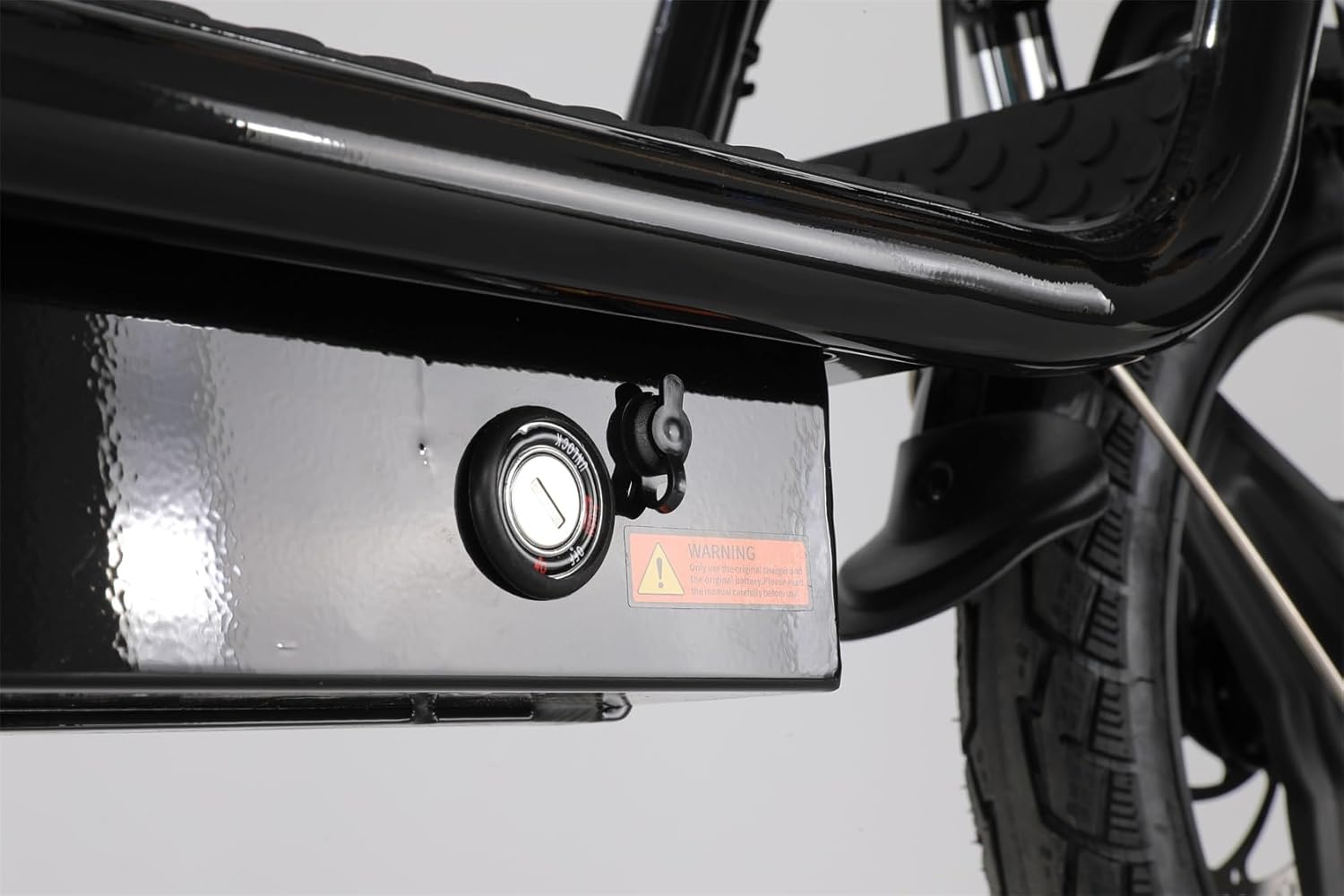

Сүрөт 4.1: Жакын пландан view of the K5 battery's key lock and charging port. The key is used to secure and release the battery from the scooter frame.
5. Operating: Charging and Usage
5.1. Батареяны заряддоо
Before first use, fully charge the battery. Regular charging helps maintain battery health.
- Заряддагычты туташтыруу: Plug the charger into a standard wall outlet. Then, connect the charger's output plug to the charging port on the K5 battery. The charging port is typically located near the lock mechanism (refer to Figure 4.1).
- Монитордун заряддоо көрсөткүчү: The charger will have an indicator light (usually red for charging, green for fully charged). Refer to your charger's manual for specific indicator meanings.
- Толук заряд: Allow the battery to charge until the indicator light shows a full charge. This typically takes several hours. Do not overcharge the battery by leaving it connected for extended periods after it's full.
- Ажыратуу: Once fully charged, disconnect the charger from the battery first, then from the wall outlet.
5.2. Батареяны колдонуу
- Ensure the battery is securely locked into the scooter before riding.
- Monitor the battery level indicator on your scooter's display during operation.
- Avoid completely draining the battery. It is recommended to recharge before the battery level drops below 20%.
- If the scooter will not be used for an extended period, charge the battery to approximately 50-60% before storage.
6. Техникалык тейлөө
- Тазалоо: Wipe the battery exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure charging ports and contacts are clean and free of debris.
- Сактагыч: When storing the scooter or battery for extended periods, keep the battery charged to approximately 50-60%. Store in a cool, dry place, away from direct sunlight and extreme temperatures. Recharge every 1-2 months to prevent deep discharge.
- Текшерүү: Periodically inspect the battery casing for any signs of damage, swelling, or leaks. If any damage is observed, discontinue use immediately and contact support.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Батарея заряддалбай жатат. | Charger not connected properly; faulty charger; damaged battery; power outlet issue. | Ensure charger is securely plugged into both the wall and battery. Test the outlet with another device. Try a different compatible charger if available. If problem persists, contact support. |
| Scooter not powering on with battery installed. | Battery not fully charged; battery not securely installed; loose connections; faulty battery. | Ensure battery is fully charged and securely locked in place. Check all connections. If the issue continues, the battery or scooter may require service. |
| Reduced range or short battery life. | Battery degradation over time; improper charging habits; extreme operating temperatures. | Ensure proper charging practices (avoid deep discharge, don't overcharge). Operate and store the battery within recommended temperature ranges. Battery capacity naturally decreases over its lifespan. |
8. Specifications: Caroma K5 Lithium-Ion Battery
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | K5 |
| Батарея түрү | Литий ион |
| Батареялардын саны | 1 (required for operation) |
| Сунушталган колдонуу | Сыртта |
| Бирдик саны | 1.0 Сан |
| Өндүрүүчү | TIANJIN KELIN VEHICLE CO., LTD. |
Note: Specific voltage, amperage, and capacity details are not provided in the product data. Refer to your scooter's manual or the battery label for full electrical specifications.
9. Кепилдик жана колдоо
For warranty information regarding your Caroma K5 battery or other accessories, please refer to the documentation provided with your original electric scooter purchase or contact Caroma customer support directly.
Өндүрүүчү: TIANJIN KELIN VEHICLE CO., LTD.
For technical assistance, troubleshooting beyond this manual, or to inquire about compatible accessories, please visit the official Caroma website or contact their customer service department. Always provide your product model number (e.g., K5) and your scooter's model number when seeking support.
Көбүрөөк маалымат жана байланыш маалыматын төмөнкү дарекке кирип таба аласыз Caroma Store on Amazon.
