Scosche BTAXS3

Scosche BTAXS3 Hands-Free Audio Kit User Manual

Model: BTAXS3 | Brand: Scosche

Introduction

This manual provides comprehensive instructions for the proper use and maintenance of your Scosche BTAXS3 Hands-Free Audio Kit. This device allows you to upgrade your car stereo with Bluetooth capabilities for wireless music streaming and hands-free calling via your vehicle's 3.5mm AUX input.

Кутуда эмне бар

  • Scosche BTAXS3 Bluetooth Receiver
  • 4 Ft. USB-C to USB-C Charging Cable
Contents of the Scosche BTAXS3 package, showing the Bluetooth receiver and a USB-C charging cable.
Image: The Scosche BTAXS3 Bluetooth receiver and its included 4-foot USB-C to USB-C charging cable.

Негизги өзгөчөлүктөрү

  • Universal AUX Compatibility: Easily adds wireless music streaming and hands-free calls to any car radio with a 3.5mm auxiliary port.
  • Колсуз чалууларды так аткаруу: Features advanced DPS Echo cancellation and noise-filtering technology for crystal-clear audio during calls and navigation commands.
  • Үн жардамчысы даяр: Supports Siri and Google Assistant for hands-free messaging, playlist selection, and calls via simple voice commands.
  • Батареянын узак иштөө мөөнөтү: Provides up to 6 hours of talk/music time and 180 hours of standby time on a single charge. Conveniently recharges via the USB-C port.
  • Эң кыйынчылыксыз орнотуу: Plugs directly into your car's AUX port for immediate wireless audio and hands-free convenience.
  • Low Latency Encoding: Ensures smooth and stable Bluetooth audio streaming.
Diagram of the Scosche BTAXS3 showing its components: Built-in Mic, Rechargeable Battery, Multi-function/Voice Assistant Activation button, USB-C Charging Port, and 3.5 mm AUX-in connector.
Сүрөт: деталдуу view of the BTAXS3 highlighting its key components and their functions.
The Scosche BTAXS3 plugged into a car's AUX port, with a smartphone displaying music playback and showing compatibility with Siri and Google Voice.
Image: The BTAXS3 enabling music playback and calls through a car stereo, compatible with voice assistants.
The Scosche BTAXS3 in a car interior, illustrating its low latency encoding for stable Bluetooth audio streaming and listing supported protocols: EDR, HSP, HFP, A2DP, and AVRCP.
Image: The BTAXS3 ensures smooth and stable Bluetooth audio streaming with support for various protocols.

Орнотуу колдонмосу

  1. Аппаратты заряддоо: Before first use, fully charge your BTAXS3 using the provided USB-C to USB-C charging cable. Connect the cable to the device's USB-C port and a compatible USB power source. The LED indicator will show charging status.
  2. Plug into AUX Port: Locate your vehicle's 3.5mm AUX input port. Plug the BTAXS3 directly into this port.
  3. Күйгүзүү: Press and hold the multi-function button on the BTAXS3 until the LED indicator lights up, indicating the device is powered on and in pairing mode.
  4. Түзмөгүңүз менен жупташтыруу: On your smartphone or other Bluetooth-enabled audio device, go to Bluetooth settings and select "Scosche BTAXS3" from the list of available devices to pair. Once paired, the LED indicator will change to a solid blue.
  5. Select AUX Input on Car Stereo: Set your car stereo's input source to AUX.

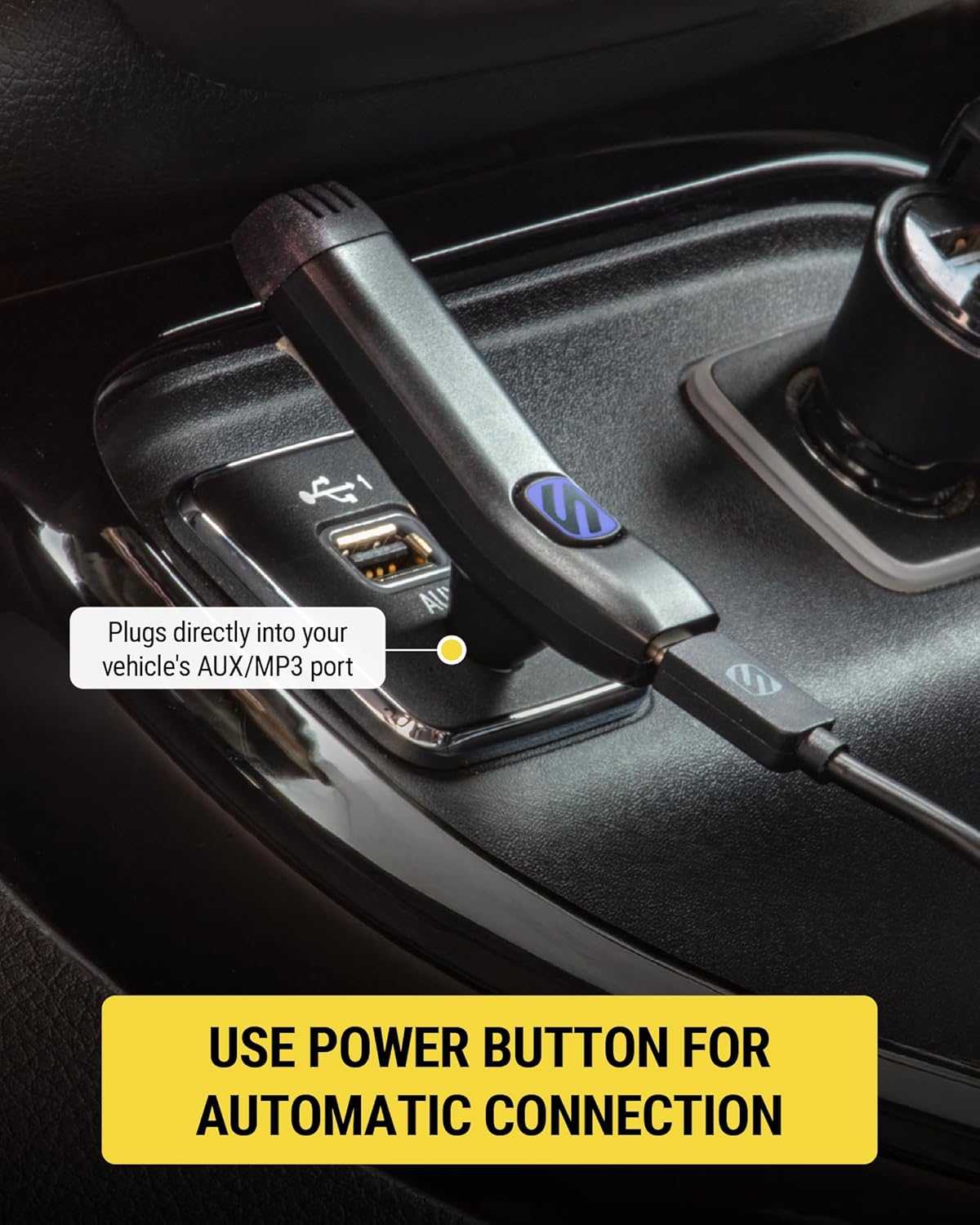

The Scosche BTAXS3 being plugged into a car's AUX/MP3 port, with a caption indicating to use the power button for automatic connection.
Image: Plugging the BTAXS3 into your vehicle's auxiliary input for immediate use.

Иштөө нускамалары

Музыканы ойнотуу

  • Once paired, audio from your connected device will stream wirelessly to your car stereo via the AUX input.
  • Use your smartphone or car stereo controls to manage music playback (play, pause, skip tracks, adjust volume).

Hands-Free Чалуу

  • Чалууларга жооп берүү / аяктоо: Press the multi-function button once to answer an incoming call. Press it again to end a call.
  • Чалууларды четке кагуу: Press and hold the multi-function button for 2 seconds to reject an incoming call.
  • Үн жардамчысын жандыруу: Double-press the multi-function button to activate Siri or Google Assistant on your connected smartphone. You can then issue voice commands for navigation, messaging, or making calls.
The Scosche BTAXS3 positioned near a smartphone displaying a call screen, emphasizing its built-in microphone for hands-free calls and commands.
Image: The built-in microphone facilitates clear hands-free calls and voice commands.

Техникалык тейлөө

  • Тазалоо: Аппаратты тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалагычтарды же аэрозолдорду колдонбоңуз.
  • Сактагыч: Узак мөөнөткө колдонулбаганда, аспапты кургак, салкын жерде, тике күндүн нурунан жана өтө температурадан алыс сактаңыз.
  • Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, түзмөктү тез-тез толук зарядсыздандырбаңыз. Аны үзгүлтүксүз колдонбосоңуз да, үзгүлтүксүз заряддап туруңуз.

Проблемаларды чечүү

КөйгөйМүмкүн себепЧечим
Аудио чыгышы жок.Device not paired, car stereo not on AUX, low battery, volume too low.Ensure device is paired and powered on. Set car stereo to AUX input. Charge the BTAXS3. Increase volume on both the device and car stereo.
Смартфон менен жупташтыруу мүмкүн эмес.Түзмөк жупташтыруу режиминде эмес, телефондо Bluetooth өчүк, жупташтырылган түзмөктөр өтө көп.Ensure BTAXS3 is in pairing mode (flashing LED). Turn Bluetooth off and on again on your phone. Forget previous pairings on your phone and try again.
Poor call quality / Noise.Interference, microphone obstruction.Ensure the microphone is not obstructed. Move away from strong electromagnetic interference sources.
Батареянын иштөө мөөнөтү кыска.Device not fully charged, aging battery.Ensure the device is fully charged before use. If battery life significantly degrades, contact support.

Техникалык шарттар

  • Модель номери: BTAXS3
  • Байланыш технологиясы: Bluetooth, USB
  • Өзгөчөлүктөр: Орнотулган микрофон, колсуз чалуулар, ызы-чууну жокко чыгаруу
  • Түсү: Кара
  • Элемент Салмагы: 5.6 унция
  • Пакеттин өлчөмдөрү: 6.15 x 3.5 x 1.69 дюйм
  • Кубат булагы: Электр зымдары (заряддоо үчүн)

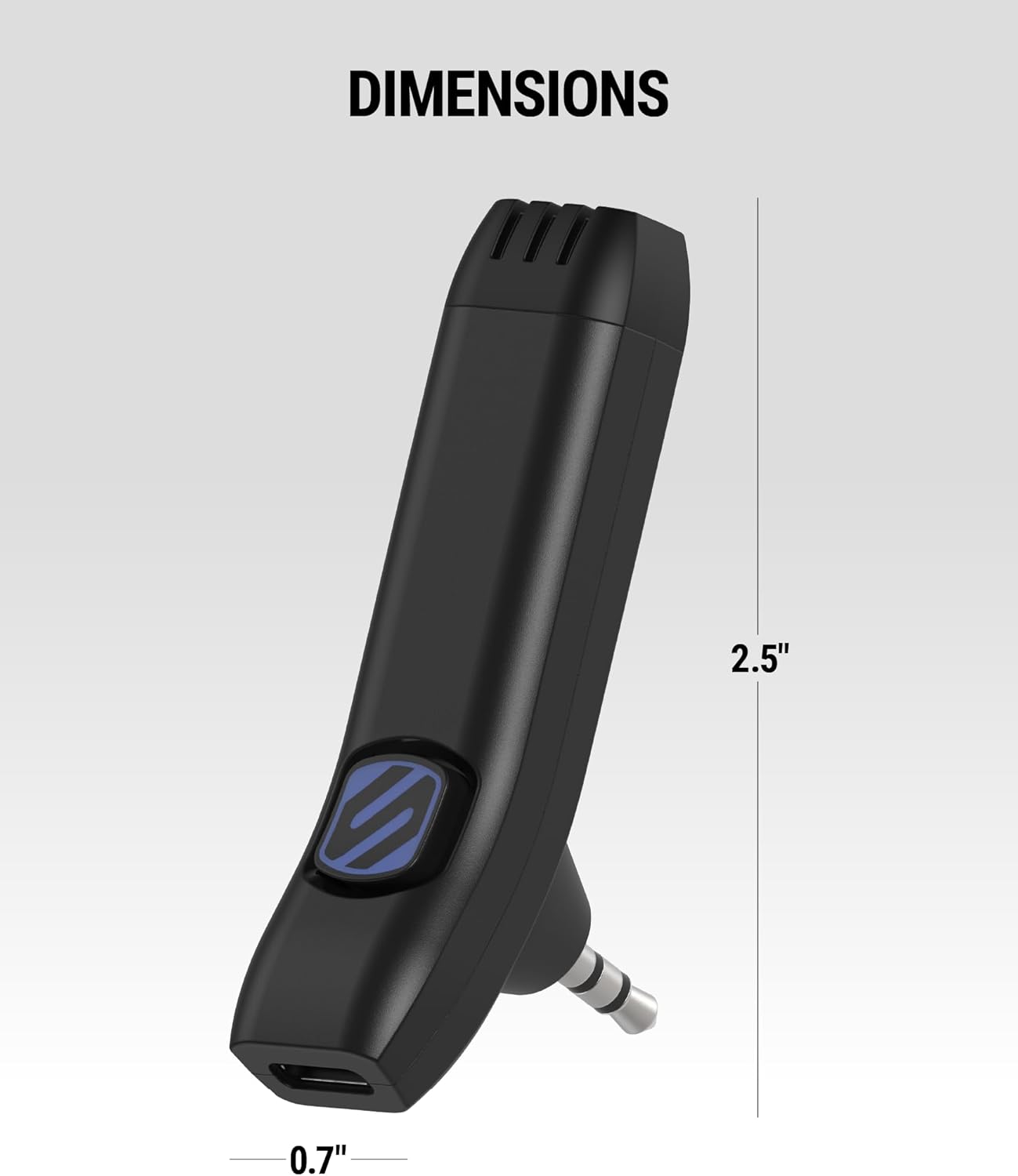

Diagram showing the dimensions of the Scosche BTAXS3 Bluetooth receiver: 2.5 inches in length and 0.7 inches in width.
Image: Physical dimensions of the BTAXS3 device.

Кепилдик жана колдоо

The Scosche BTAXS3 Hands-Free Audio Kit is backed by Scosche's Limited 3-Year Warranty. For technical assistance or warranty claims, please contact Scosche customer support.

Scosche Customer Support:

  • Lifetime Tech Support: Scosche provides lifetime technical support for this product.
  • Visit the official Scosche webбайланыш маалыматы жана кошумча колдоо булактары үчүн сайт: www.scosche.com
