ATOMSTACK P1 Dual Laser Engraver User Manual

1. Киришүү

The ATOMSTACK P1 Dual Laser Engraver is a versatile and safe engraving and cutting solution designed for both beginners and experienced users. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your ATOMSTACK P1 device, including the R8 and R6 rotary roller sets.

• Кош лазердик система: Features a 5W diode laser (455nm) for cutting and a 1.2W infrared laser (1064nm) for engraving metals and plastics.
• Өркүндөтүлгөн коопсуздук: FDA/Class 1 certified with a 7200 fully enclosed design and visual observation window, eliminating the need for goggles. Includes automatic tilt and safety lock detection.
• Кеңири материалдык шайкештик: Supports over 300 materials including wood, leather, acrylic, stainless steel, and more.
• Rotary Engraving: Includes R8 and R6 rotary rollers for precise engraving on cylindrical and irregular objects.

2. Коопсуздук маалыматы

2.1 Лазердик коопсуздук чаралары

The ATOMSTACK P1 is designed with safety in mind, being FDA/Class 1 certified. However, it is crucial to follow all safety guidelines to prevent injury or damage.

• Тиркелген дизайн: The 7200 fully enclosed design with a visual acrylic observation window allows for safe viewing without additional goggles. Do not operate the machine with the enclosure open or damaged.
• Automatic Safety Stop: The machine will automatically cease operation if it is tilted excessively or if the safety lock is not properly closed. Ensure the machine is on a stable, level surface.
• Вентиляция: Always ensure adequate ventilation when operating the engraver, especially when working with materials that produce fumes. Consider using an air purifier (sold separately) for optimal air quality.
• Көзөмөл: Иш учурунда машинаны кароосуз калтырбаңыз.
• Шашылыш токтотуу: Familiarize yourself with the location of the emergency stop button and how to use it.

Image: The ATOMSTACK P1 features a 7200 fully enclosed design with a visual observation window, ensuring FDA/Class 1 laser safety during operation. An optional D3 Air Purifier can be used for improved air quality.

3. Компоненттер жана пакеттин мазмуну

3.1 Кутуда эмне бар

Your ATOMSTACK P1 Dual Laser Engraver package includes the following items:

• 1 x ATOMSTACK P1 Dual Laser Engraver Unit
• 1 x Rotary Roller Set R8
• 1 x Rotary Roller Set R6
• Кубаттуу адаптер жана кабелдер
• Колдонуучунун Колдонмосу (бул документ)
• Necessary tools and accessories for initial setup

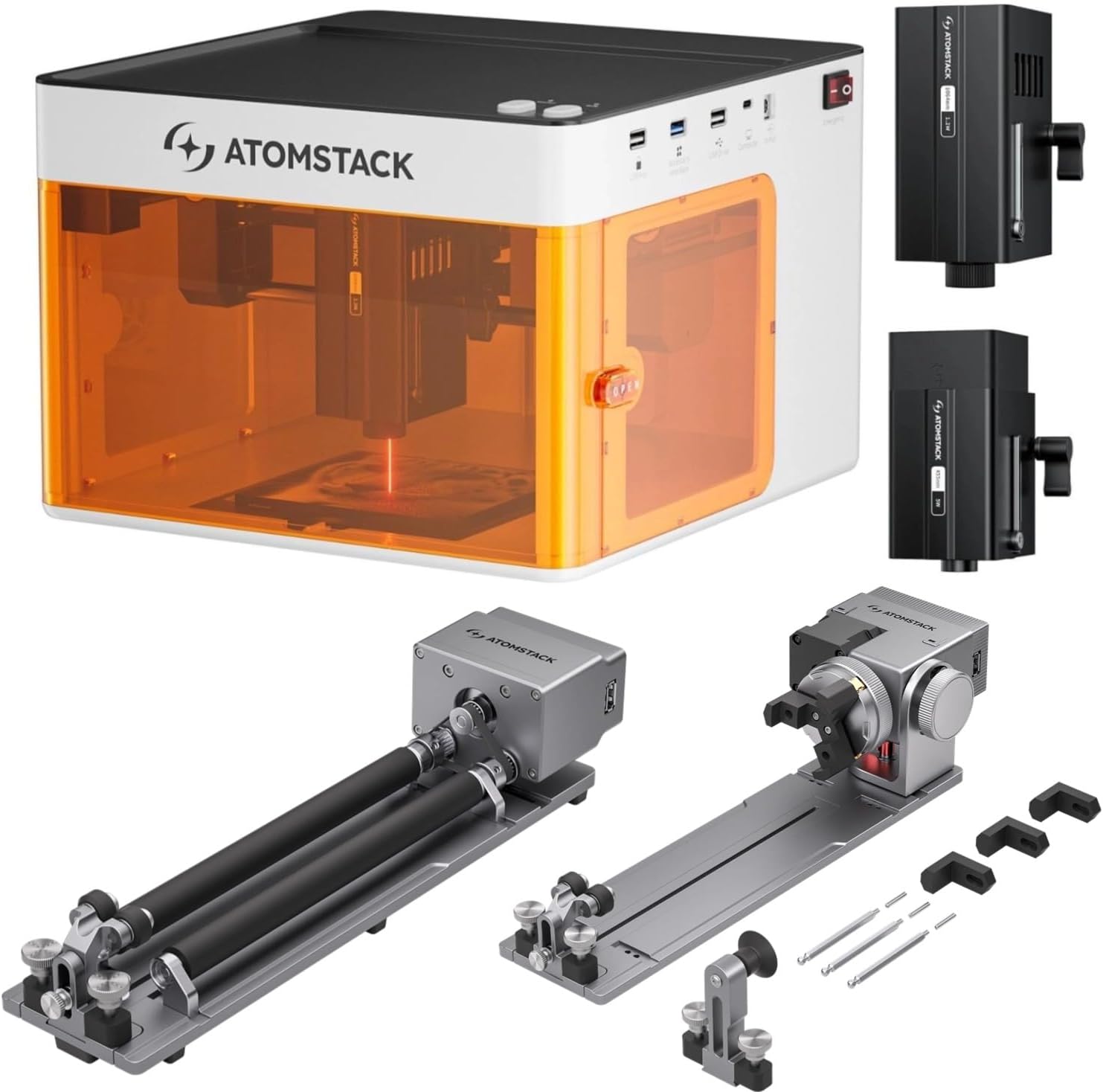

Сүрөт: бүттүview of the ATOMSTACK P1 Dual Laser Engraver, including the main unit, two laser modules, and the R8 and R6 rotary roller sets.

4. Орнотуу жана чогултуу

4.1 Initial Setup of the Engraver

1. Unpack all components from the box and verify against the package contents list.
2. Place the ATOMSTACK P1 engraver on a stable, level, and heat-resistant surface. Ensure there is adequate space around the machine for ventilation.
3. Connect the power adapter to the engraver and then to a suitable power outlet.
4. Ensure the safety lock on the enclosure is properly closed before powering on.

4.2 Rotary Roller Installation (R8 & R6)

The upgraded rotary rollers (R8 and R6) require no complex assembly. They are designed for easy integration with the P1 engraver.

1. To use the rotary roller, you will need to replace the Y-axis terminal connection on the engraver. Refer to the specific instructions provided with the rotary roller for detailed connection steps.
2. Adjust the roller distance as needed for your object without requiring additional tools.

Image: Diagram illustrating the dimensions and key components of the ATOMSTACK P1, including the 5W Diode Laser and 1.2W Infrared Laser, and the integration with the AtomStack Rotary Chuck R8.

5. Иштөө нускамалары

5.1 Laser Engraving and Cutting

The ATOMSTACK P1 features two distinct laser modules for various applications:

• 5W Diode Laser (455nm): Ideal for cutting materials such as 3mm basswood plywood and acrylic in a single pass. Also suitable for engraving wood, leather, bamboo, paper, cardboard, cork, felt, fabric, MDF, coated ceramic, and some dark opaque acrylic.
• 1.2W Infrared Laser (1064nm): Specifically designed for engraving metals (e.g., stainless steel, aluminum, brass, iron, gold, silver, platinum, titanium), plastics, and other hard, non-transparent materials (e.g., metal thermos cups, rings, wireless charging case logos).

The P1 supports engraving on over 300+ materials. Always refer to the software's material settings for optimal results.

Image: The ATOMSTACK P1 enables precision engraving on over 300+ materials, showcasing the capabilities of both the 1.2W IR Laser and the 5W Diode Laser for different material types.

5.2 Rotary Engraving with R8 and R6

The ATOMSTACK Rotary Rollers (R8 and R6) are designed for engraving a wide range of cylindrical and irregular objects, offering up to 1800 angle adjustment and 3600 rotation.

• R8 Rotary Chuck: Ideal for irregular items such as balls, rings, spherical objects, and cups with handles.
• R6 Rotary Roller: Suitable for regular cylindrical objects like tumblers, bottles, and pens.

Ensure the object is securely mounted on the rotary attachment to prevent movement during engraving, which can affect accuracy.

Image: The ATOMSTACK Rotary Roller (R8) is designed for engraving a wide range of irregular cylindrical objects, providing flexibility for various shapes.

Сүрөт: Мисample of engraving on regular cylindrical objects like tumblers and cans using the ATOMSTACK R8 rotary attachment.

Сүрөт: Мисamples of engraving on irregular cylindrical objects such as wine bottles and uniquely shaped containers using the ATOMSTACK R8 rotary attachment.

5.3 Laser Module Replacement

The ATOMSTACK P1 allows for quick and easy replacement of laser modules, typically within 3 minutes.

1. Ensure the engraver is powered off and disconnected from the power source.
2. Carefully unclip or unscrew the current laser module from its mounting bracket.
3. Gently slide out the module.
4. Insert the new laser module, ensuring it clicks or screws securely into place.
5. Reconnect the power and power on the device.

Image: A four-step visual guide demonstrating the quick change and focusing process for the laser module, which can be accomplished in approximately 3 minutes.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your ATOMSTACK P1 engraver.

• Тазалоо: Regularly clean the engraving area and the laser lens to prevent debris buildup, which can affect engraving quality. Use a soft, lint-free cloth and appropriate cleaning solutions for the lens.
• Майлоо: Periodically check and lubricate moving parts as recommended in the detailed product guide (if applicable).
• Сактагыч: Колдонулбай турган учурда, гравюраны таза, кургак жерде, күндүн түз нурунан жана өтө жогорку температурадан алыс сактаңыз.

7. Кыйынчылыктарды

If you encounter issues with your ATOMSTACK P1, refer to the following common troubleshooting tips. For more complex problems, please contact customer support.

• Engraver Not Powering On: Check power connections, ensure the power adapter is securely plugged in, and verify the power outlet is functional.
• Гравюранын сапаты начар: Ensure the material is properly focused, the laser lens is clean, and the correct power/speed settings are used for the material.
• Rotary Engraving Inaccuracy: Verify the object is securely mounted on the rotary roller and that the roller's distance is correctly adjusted for the object's diameter.
• Программалык камсыздоого туташуу маселелери: Ensure the USB cable is securely connected and that the correct drivers are installed on your computer.

8. Техникалык шарттар

9. Кепилдик жана колдоо

ATOMSTACK is committed to providing excellent customer service and support for your product.

• Кепилдик: Your ATOMSTACK P1 Dual Laser Engraver comes with a 1-year warranty.
• Техникалык колдоо: Lifetime technical support is available for all ATOMSTACK products. Our professional technical and support teams are available 24/7 to answer any questions or concerns you may have.
• Алмаштыруучу бөлүктөрү: Replacement parts are available to ensure the continued functionality of your device.

For assistance, please refer to the contact information provided with your product or visit the official ATOMSTACK support webсайт.
