1. Киришүү
The SEAFLO SFSL-2700Y-02B is a high-performance, remote-controlled LED searchlight designed for marine, RV, and various outdoor applications. This robust unit provides comprehensive directional control with 360° horizontal rotation and 60° vertical tilt. It emits a powerful 2700-lumen warm white beam (2700K) capable of illuminating distances up to 1,312 feet (400 meters).
Constructed from durable ASA plastic, the searchlight is resistant to corrosion and oxidation, making it suitable for harsh environments. It features an IP65 waterproof rating, protecting it from rain, splashing, and wind-driven moisture. This model includes a wireless remote control for convenient operation from up to 164 feet (50 meters) away, eliminating the need for direct cable management.
This manual provides essential information for the proper installation, operation, and maintenance of your SEAFLO searchlight.
2. Продукциянын өзгөчөлүктөрү
- 360° горизонталдуу айлануу: Allows for full panoramic light coverage.
- 60° Вертикалдуу кыйшаюусу: Provides precise vertical aiming of the light beam.
- Жогорку жарыктык: 2700 Lumens with a 2700K Warm White color temperature.
- Узун нурдун аралыгы: Projects light up to 1,312 feet (400 meters).
- Зымсыз алыстан башкаруу: Operates from up to 164 feet (50 meters) for convenience.
- Туруктуу курулуш: Made from ASA plastic, resistant to corrosion and oxidation.
- IP65 суу өткөрбөйт рейтинги: Ensures protection against water ingress.
- Автоматтык абалга келтирүү функциясы: Automatically returns the light to a central position.
- Wide Voltage диапазону: Compatible with 10-30V DC power systems.
Image: Key features of the SEAFLO searchlight, including IP65 waterproof rating, corrosion resistance, and UV resistance.
Image: Illustration of the searchlight's 360-degree horizontal rotation and 60-degree vertical sweep capabilities.
3. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель номери | SFSL-2700Y-02B |
| Тtage | 10-30В DC |
| Күч | 28 Вт |
| Жарыктык | 2700 Lumens |
| Түс температурасы | 2700K жылуу ак |
| Beam Distance | 984–1,312 фут (300–400 м) |
| Суу өткөрбөйт рейтинги | IP65 |
| Турак жай материалы | ASA Plastic (Black) |
| Control | Wireless Remote (164 ft / 50 m Range) |
| Продукциянын өлчөмдөрү | 7.4"L x 6.7"W x 8.3"H |
| Элемент Салмагы | 4.4 фунт |
Image: Technical specifications and dimensional drawing of the searchlight.
4. Кутуда эмне бар
- SEAFLO SFSL-2700Y-02B Searchlight Unit
- Зымсыз алыстан башкаруу
- Колдонуучу үчүн көрсөтмөлөр (бул колдонмо)
- 4 жылдык Кепилдик картасы
5. Орнотуу жана орнотуу
The SEAFLO searchlight is designed for easy installation on any flat surface. Ensure the mounting location is stable and provides a clear line of sight for optimal light projection and remote control signal.
- Монтаждоо ордун тандоо: Select a flat, secure surface on your boat, RV, truck, or other vehicle. Consider the desired coverage area and potential obstructions.
- Кубат туташуу: The searchlight operates on 10-30V DC. Connect the power cables to a suitable power source, ensuring correct polarity. It is recommended to use appropriate gauge wiring and an inline fuse for protection.
- Кабель багыттоо: The power cable exits from the base of the unit. For a flush mount, a hole will need to be drilled through the mounting surface to accommodate the cable and its plug end. Ensure the hole is large enough for the plug to pass through.
- Коопсуз орнотуу: Use appropriate fasteners (not included) to securely attach the searchlight base to the chosen surface.
- Алыстан башкарууну орнотуу: The wireless remote control is pre-paired with the searchlight. No additional setup is typically required.
Image: The SEAFLO searchlight unit shown with its wireless remote control, illustrating the product's overall design.
6. Иштөө нускамалары
The SEAFLO searchlight is controlled using the provided wireless remote. Familiarize yourself with the remote's buttons for optimal operation.

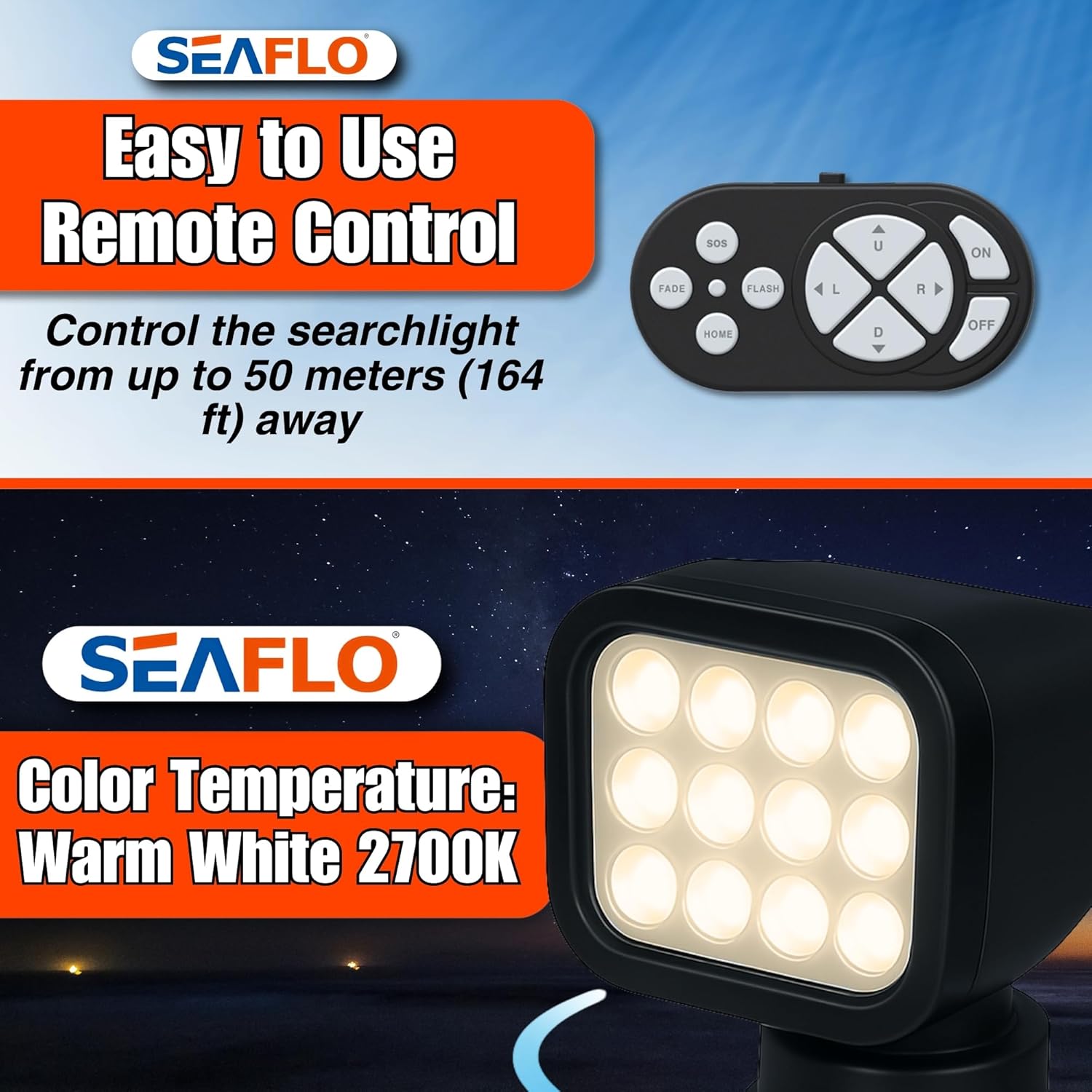

Image: The wireless remote control, highlighting its various function buttons.
Алыстан башкаруу функциялары:
- КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Press to turn the searchlight on or off.
- Багыттуу жебелер (өйдө, ылдый, солго, оңго): Use these buttons to control the horizontal rotation and vertical tilt of the light head.
- ФЛЕШ: Activates a flashing light mode.
- ӨЧҮП: Activates a fading light mode.
- SOS: Activates an SOS signal mode for emergency situations.
- ҮЙ: Returns the searchlight to its default, centered position.
Видео демонстрация:
Video: A demonstration of the SEAFLO LED Searchlight's features and remote control operation, including movement and light modes.
7. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your SEAFLO searchlight.
- Тазалоо: Линзаны жана корпусту мезгил-мезгили менен жумшак, d менен тазалап туруңузamp cloth. Avoid abrasive cleaners or solvents that could damage the ASA plastic or lens coating.
- Текшерүү: Regularly inspect the mounting hardware and electrical connections for any signs of wear, corrosion, or looseness. Tighten connections as necessary.
- Суу өткөрбөс бүтүндүгү: While the unit is IP65 rated, ensure that the housing remains free from cracks or damage that could compromise its waterproof seal.
- Алыстан башкаруу: Replace batteries in the wireless remote control as needed to maintain reliable operation.
Сүрөт: Жакын план view emphasizing the durable and corrosion-resistant ASA material used in the searchlight's construction.
8. Кыйынчылыктарды
If you encounter issues with your SEAFLO searchlight, refer to the following common troubleshooting steps:
- Жарык күйбөйт:
- Check power connections to ensure they are secure and receiving 10-30V DC.
- Алыстан башкаруу пультунун батареялары түгөнүп калбаганын текшериңиз.
- Inspect the fuse in the power line (if installed) for continuity.
- Light Not Responding to Remote:
- Ensure you are within the 164 ft (50 m) operating range of the wireless remote.
- Check for any obstructions between the remote and the searchlight.
- Алыстан башкаруунун батареяларын алмаштырыңыз.
- Movement Issues (Stuck or Limited):
- Ensure no physical obstructions are impeding the light head's rotation or tilt.
- The unit features an auto-reset function; if it overheats, it may temporarily cease movement to protect components. Allow it to cool down.
- Кыскартылган жарыктык:
- Clean the lens surface to remove dirt or debris.
- Verify stable power supply within the specified voltage диапазону.
If problems persist after following these steps, please contact SEAFLO customer support.
9. Кепилдик жана колдоо
The SEAFLO SFSL-2700Y-02B Searchlight is backed by a 4 жылдык Чектелген Кепилдик, ensuring dependable operation and peace of mind. Please refer to the included warranty card for full terms and conditions.
For technical assistance, warranty claims, or further inquiries, please visit the official SEAFLO store or contact their customer support channels.
Official SEAFLO Store: https://www.amazon.com/stores/SEAFLO/page/7FBE919D-E1B4-48F0-984D-B1F1BF1629EB
