1. Киришүү
The AstroAI P8 4000A Jump Starter is a versatile and powerful device designed to provide reliable jump-starting for vehicles, act as a portable power bank, and offer emergency lighting. This manual provides essential information for safe and effective use of your device.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Бул продуктуну колдонуудан мурун бардык коопсуздук эскертүүлөрүн жана нускамаларын окуп чыгыңыз. Эскертүүлөр жана нускамаларды аткарбоо электр тогуна урунууга, өрткө жана/же олуттуу жаракат алууга алып келиши мүмкүн.
- This car starter includes 10 built-in comprehensive protections for enhanced safety. These safety features include reverse polarity, overcurrent, overcharge, overdischarge, high & low temperature protection, reverse connection, over voltage, overload, short circuit, and spark-proof clamps.
- Do not attempt to jump start any engine that exceeds the maximum displacement supported by the jump starter (10L Gas or 8L Diesel).
- Do not crank the engine for more than 3 seconds at a time. Allow the jump starter to cool down for at least 1 minute between each start attempt.
- Ensure the device has at least 50% charge before use.
- Балдар жетпеген жерде сактаңыз.
- Продукцияны жамгыр же нымдуу шарттарга дуушар кылбаңыз.
- Продукцияны ажыратпаңыз.
Image: AstroAI P8 Jump Starter highlighting its 10 safety protections including reverse polarity, overcurrent, overcharge, overdischarge, high & low temperature protection, reverse connection, over voltage, overload, short circuit, and spark-proof clamps.
3. Пакеттин мазмуну
- AstroAI P8 Jump Starter Unit
- Smart Jumper кабелдери
- USB-C заряддоо кабели
- User Manual
- Сактоочу баштык
Image: The AstroAI P8 Jump Starter, smart jumper cables, USB-C charging cable, user manual, and a storage bag, laid out on a dark background.
4. Продукциянын өзгөчөлүктөрү
- Powerful Jump Starting: 4000A peak current for 10L gas and 8L diesel engines. Compatible with motorbikes, cars, SUVs, lawnmowers, tractors, and motorboats.
- Multifunctional Power Bank: USB-A output Port works with 5V⎓3A, 9V⎓2A, 12V⎓1.5A (QC 3.0). Serves as a reliable backup power source for electronic devices.
- Компакттуу жана көчмө: Size 7.20in*3.45in*1.53in (183mm*88mm*39mm) for easy carrying and storage in glove boxes and door pockets.
- Multi-Mode LED Flashlight: Provides 3 modes: illumination, SOS, and strobe for convenient lighting in various scenarios.
- Комплекстүү коопсуздук: 10 built-in protections for enhanced safety, including reverse polarity, overcurrent, overcharge, overdischarge, high & low temperature protection, reverse connection, over voltage, overload, short circuit, and spark-proof clamps.
Image: The AstroAI P8 Jump Starter demonstrating its three main functions: jump starter, power bank, and LED flashlight.
5. Продукт бүтүп калдыview (Компоненттер)
The AstroAI P8 features a robust design with clearly marked ports and indicators for ease of use.
- Кубат баскычы: Activates the device and checks battery level.
- Батарея деңгээлинин көрсөткүчү: Displays the remaining charge.
- Jumper кабелинин порту: Акылдуу секирүү кабелдерин туташтыруу үчүн.
- USB-A Output Ports (QC 3.0): Тышкы түзмөктөрдү кубаттоо үчүн.
- USB-C киргизүү/чыгаруу порту: For charging the jump starter and external devices.
- LED фонарик: Multi-mode light for illumination, SOS, and strobe.

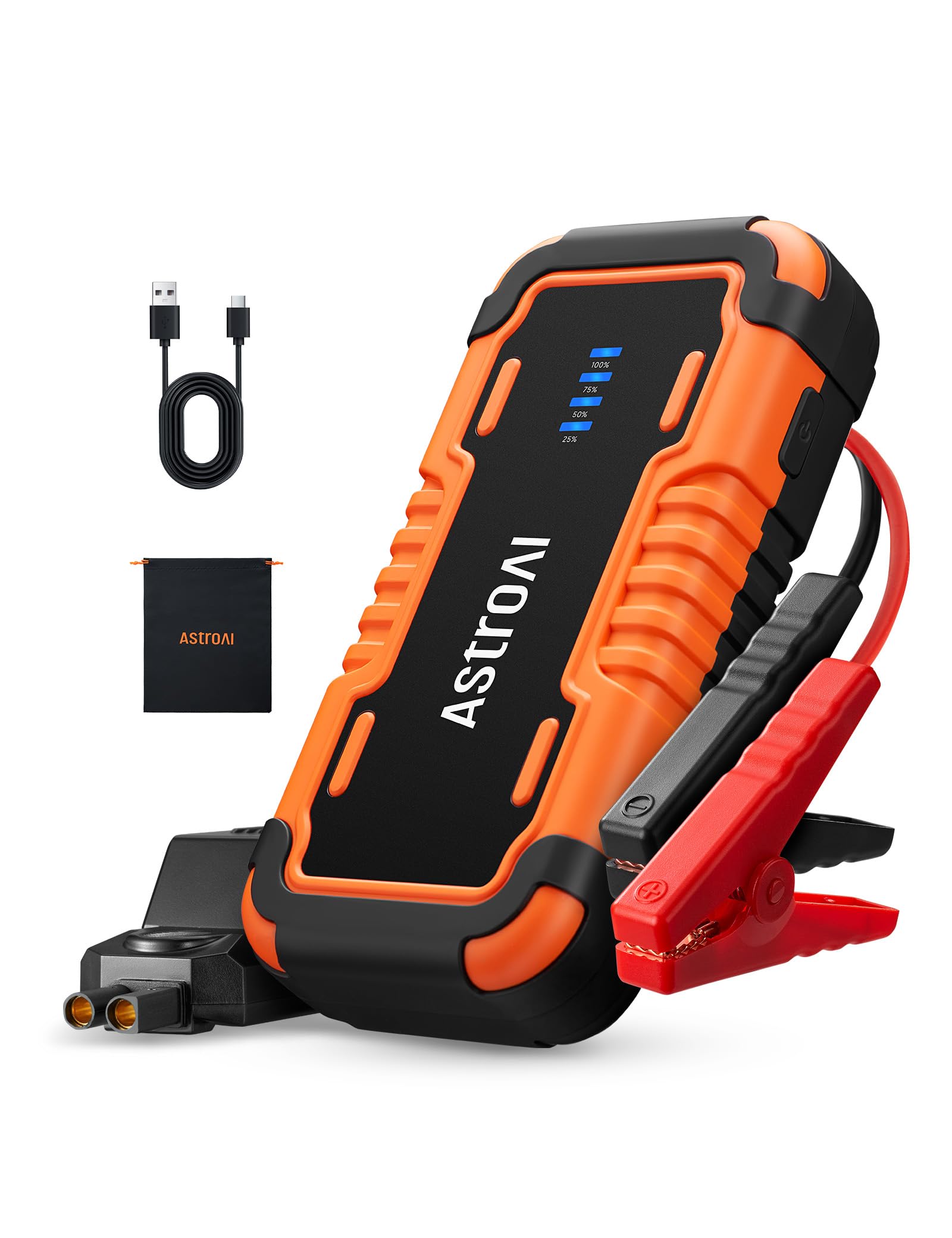

Image: The AstroAI P8 Jump Starter with its smart jumper cables connected, ready for use.
6. Стартерди кубаттоо
Before first use, fully charge the AstroAI P8. It is recommended to recharge the unit after each use to maintain battery health.
- Connect the provided USB-C charging cable to the USB-C input/output port on the jump starter.
- Plug the other end of the USB-C cable into a compatible USB wall adapter (not included) or car charger.
- The battery level indicator lights will illuminate and flash, indicating the charging progress. All lights will be solid when fully charged.
Image: The AstroAI P8 Jump Starter connected via USB-C to charge a smartphone and a tablet, demonstrating its power bank functionality.
7. Иштөө нускамалары
7.1. Унааны баштоо
- Ensure the jump starter is sufficiently charged (at least 50%).
- Connect the smart jumper cables to the jump starter's port. Ensure a secure connection.
- кызыл clamp унаанын аккумуляторунун оң (+) терминалына.
- Кара clamp унаанын аккумуляторунун терс (-) терминалына.
- Check the indicator light on the smart jumper cable. A solid green light indicates a correct connection and readiness to jump start. If it's flashing or red, check connections or refer to troubleshooting.
- Start the vehicle's engine. If it doesn't start immediately, wait at least 1 minute before trying again. Do not crank for more than 3 seconds per attempt.
- Once the vehicle starts, immediately remove the black clamp from the negative terminal, then the red clamp from the positive terminal.
- Disconnect the smart jumper cables from the jump starter.
Image: A person connecting the AstroAI P8 Jump Starter to a car battery, illustrating the process of jump starting a vehicle.
7.2. Power Bank катары колдонуу
The AstroAI P8 can charge various electronic devices.
- Connect your device's USB charging cable to one of the USB-A output ports or the USB-C port on the jump starter.
- Секирип баштоочу түзмөгүңүздү автоматтык түрдө кубаттай баштайт.
7.3. Светодиоддук кол чыракты колдонуу
The built-in LED flashlight offers multiple modes for different situations.
- Press and hold the power button for 3 seconds to turn on the flashlight (illumination mode).
- Press the power button once to switch to SOS mode.
- Press the power button again to switch to strobe mode.
- Press the power button once more to turn off the flashlight.
Image: A person using the AstroAI P8 Jump Starter's multi-mode LED flashlight under the hood of a car at night.
8. Техникалык тейлөө
- Стартерди салкын, кургак жерде, күндүн түз тийген нурларынан жана өтө жогорку температурадан алыс сактаңыз.
- Recharge the unit every 3-6 months, even if not used, to maintain battery health.
- Сыртын жумшак менен тазалаңыз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Кабелдерди жана кабелдерди текшериңизampар бир колдонуудан мурун зыян үчүн текшерип алыңыз.
9. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Унаа башталбайт. | Low charge on jump starter, incorrect connection, or vehicle battery completely dead. | Ensure jump starter is at least 50% charged. Recheck clamp connections. If battery is extremely dead, allow jump starter to connect for a few minutes before attempting to start. |
| Smart jumper cable indicator is red or flashing. | Reverse polarity, short circuit, or other safety protection activated. | Ажыратуу clamps and re-attach them correctly (red to positive, black to negative). If issue persists, check for short circuits or other battery issues. |
| Стартер заряддалбай жатат. | Бузулган кубаттоочу кабель же адаптер. | Башка USB-C кабелин жана дубал адаптерин колдонуп көрүңүз. Туташуулардын коопсуз экенин текшериңиз. |
10. Техникалык шарттар
- Модел: P8
- Жогорку ток: 4000 Amps
- Мотор шайкештиги: 10 литрге чейин бензин же 8 литр дизель
- Тtage: 12 вольт
- Батарея түрү: Литий полимери (кошулган)
- USB-A чыгышы (QC 3.0): 5V⎓3A, 9V⎓2A, 12V⎓1.5A
- USB-C Киргизүү/Чыгуу: 5V⎓3A, 9V⎓2A
- Өлчөмдөрү: 183 мм x 88 мм x 39 мм (7.20 дюйм x 3.45 дюйм x 1.53 дюйм)
- Элемент Салмагы: 710 г
- Келип чыккан өлкө: Кытай
11. Кепилдик жана колдоо
AstroAI products come with a manufacturer's warranty. For detailed warranty information, product support, or to register your product, please visit the official AstroAI webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
Өндүрүүчү: Astro AI
Байланыш: Support@astroai.com
