TODAAIR Outdoor WiFi Extender AC1200 Instruction Manual

1. Продукт бүтүп калдыview

The TODAAIR Outdoor WiFi Extender AC1200 is a dual-band WiFi repeater designed to extend wireless network coverage in outdoor environments. It features IP65 weatherproofing, ensuring reliable performance in various weather conditions. This device supports both 2.4 GHz and 5 GHz frequency bands, providing stable and high-speed internet access for multiple devices across a wide area.

Image 1.1: The TODAAIR Outdoor WiFi Extender AC1200, a white rectangular device, is shown mounted on a pole in an outdoor setting, extending Wi-Fi coverage to a house and pool area.

2. Пакеттин мазмуну

Орнотууну улантуудан мурун, таңгактагы бардык буюмдардын бар экендигин текшериңиз.

• TODAAIR Outdoor WiFi Extender AC1200 Unit
• Кубат адаптери (DC 12V)
• Installation Accessories (e.g., cable ties, mounting screws)
• User Manual

3. Продукциянын өзгөчөлүктөрү

• Кош тилкелүү туташуу: Supports 2.4 GHz and 5 GHz for flexible network options.
• Жогорку ылдамдык: Up to 1200Mbps wireless speed (AC standard).
• Кеңири камтуу: Designed to cover large outdoor areas, up to 3440 sq. ft.
• IP65 аба ырайы: Resistant to dust and water, suitable for outdoor use in various weather conditions.
• Бир нече иштөө режимдери: Functions as an Access Point (AP) or Repeater.
• Ethernet порту: Includes a LAN port for wired connections to devices like cameras or computers.
• Түзмөктүн кубаттуулугу: Can support connections for up to 30 devices simultaneously.

Image 3.1: The TODAAIR Extender showcasing its 1200Mbps dual-band speed (2.4G+5G) and 300ft coverage, indicating enhanced Wi-Fi experience.

Image 3.2: The TODAAIR Extender demonstrating its IP65 weatherproof capabilities, showing resistance to various weather conditions like sun, rain, snow, thunder, wind, and frost.

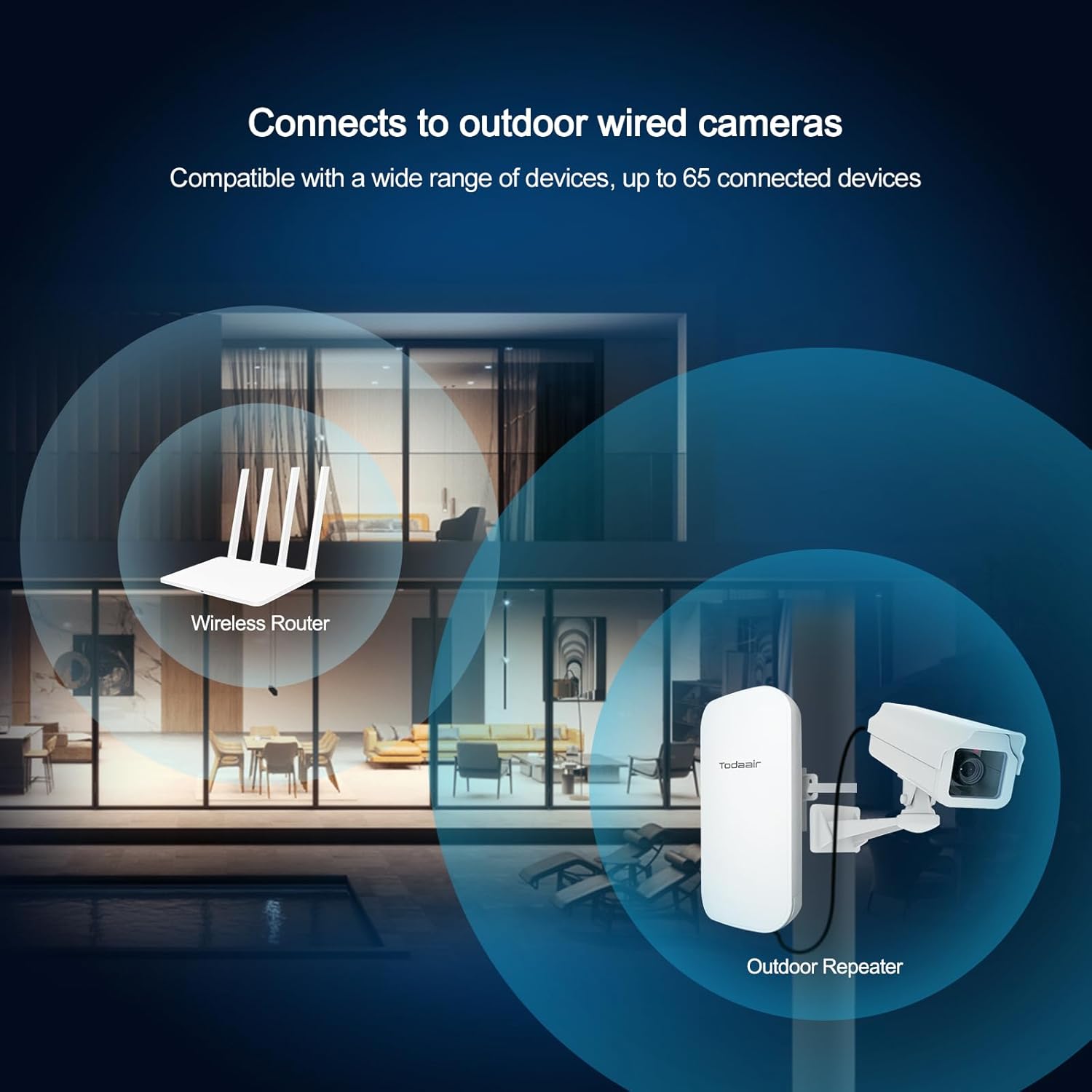

Image 3.3: The extender shown connecting to an outdoor wired camera, illustrating its compatibility with various devices.

Image 3.4: An illustration highlighting the extender's capacity to connect up to 30 devices, providing stable network connections even outdoors.

Image 3.5: This image displays various outdoor usage scenarios for the Wi-Fi extender, including yards, swimming pools, farms, and outdoor security camera setups.

4. Орнотуу нускамалары

Follow these steps for initial setup and configuration of your TODAAIR Outdoor WiFi Extender.

4.1. Физикалык байланыш

1. Open the protective cover of the extender.
2. Connect the provided DC 12V power adapter to the DC Power port.
3. (Optional) For wired connections, connect an Ethernet cable to the LAN port.
4. Close the protective cover, ensuring the power supply is protected.
5. After powering on, wait approximately 20 seconds for the device to start detection. The indicator lights will flash, signaling it is ready for pairing.

Сүрөт 4.1: деталдуу view of the extender's ports, including the Reset button, LAN port, and DC Power input, with examples of connecting a computer or camera.

4.2. Initial Pairing and Configuration (via Mobile Device)

For optimal pairing success, perform the initial setup near your main router. The connection process typically involves three main steps:

1. Connect to Extender's Network: Connect your mobile phone or computer to the extender's default Wi-Fi network, usually named "TDair".
2. Кирүү конфигурация барагы: ачуу а web browser. The system will automatically redirect you to the configuration page. If not, manually enter the default IP address (e.g., 192.168.34.1) in your browser. Enter the administrator password (default is "admin").
3. Configure Repeater Settings: On the configuration page, select the "Survey" option to scan for available Wi-Fi networks. It is recommended to select the 5G band for scanning first. Choose your home Wi-Fi network (SSID) from the list and enter its password. Set the SSID and password for the extender's 2.4G and 5G frequency bands. For simplicity, these can be the same as your router's Wi-Fi password. Click "Confirm" to apply the settings. The extender will reboot.
4. Кайра туташуу: Reconnect your device to the newly configured extender's Wi-Fi network (e.g., "TDair5g" or "TDair2.4g") using the password you just set.

Image 4.2: Visual steps for configuring the extender via a mobile phone, showing connection to the extender's network, entering the administrator password, and setting up the new Wi-Fi network.

5. Иштөө режимдери

The TODAAIR Outdoor WiFi Extender supports two primary operating modes:

• Кайталоо режими: Extends the existing Wi-Fi signal range from your main router, eliminating dead zones.
• Кирүү чекити (AP) режими: Converts a wired internet connection into a wireless network, ideal for areas without existing Wi-Fi coverage.

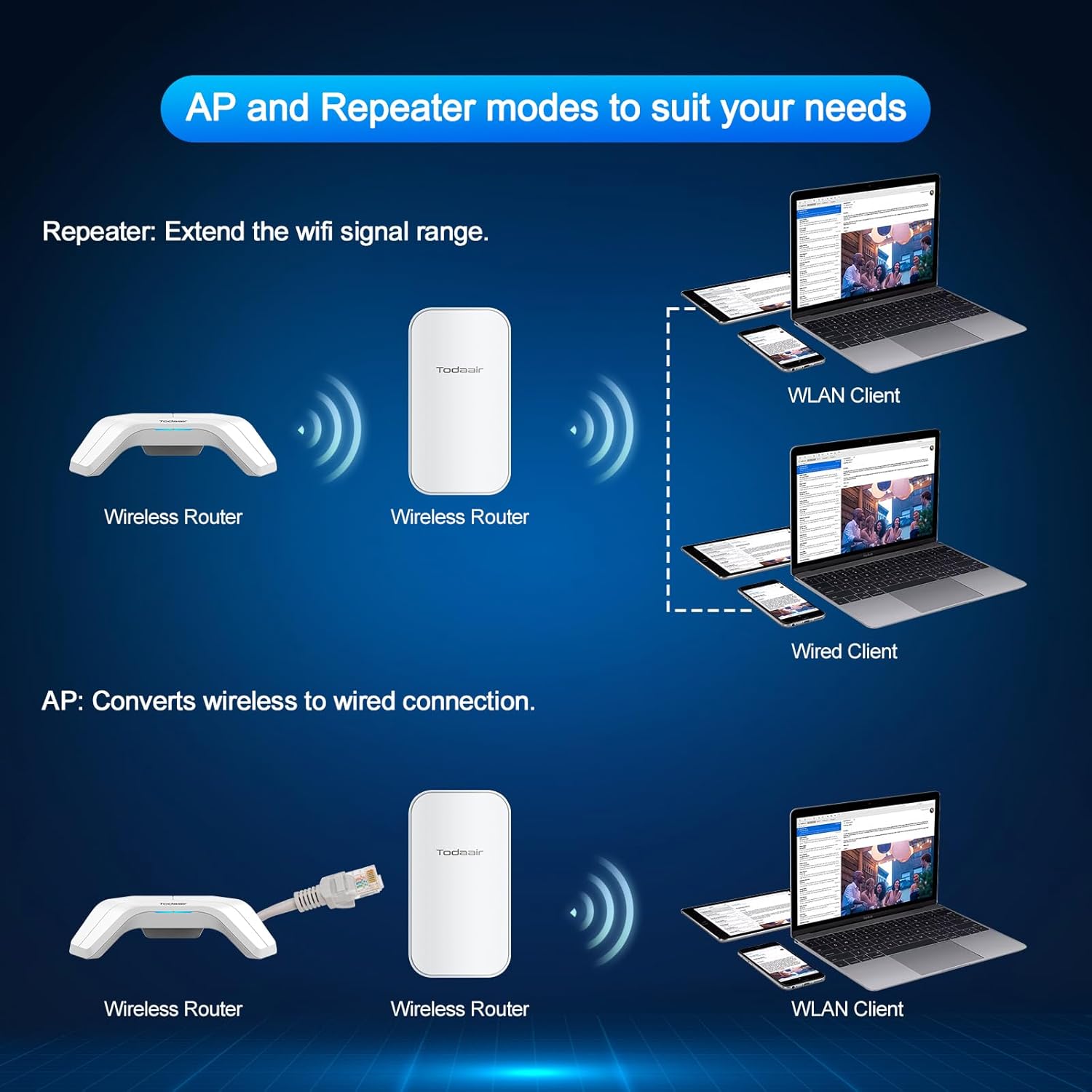

Image 5.1: A visual explanation of the Repeater mode, extending Wi-Fi from a wireless router, and AP mode, converting a wired connection to wireless.

6. Орнотуу боюнча көрсөтмөлөр

Proper placement is crucial for maximizing the performance of your WiFi extender.

• Оптималдуу аралык: Place the extender within the strong signal range of your main router. Avoid placing it too far, which results in a weak signal, or too close, which limits its effectiveness.
• Көрүү сызыгы: For best results, ensure a clear line of sight between the extender and your main router, minimizing obstructions like thick walls or large metal objects.
• Бийиктиги: Mounting the extender at a higher elevation can improve signal propagation, especially in outdoor environments.
• Directional Coverage: The extender provides directional coverage. Orient it towards the area where you need extended Wi-Fi.

Image 6.1: A diagram showing different installation scenarios for a Wi-Fi extender, illustrating invalid placements (too far, too close) and a correct installation for successful signal extension.

7. Техникалык шарттар

8. Кыйынчылыктарды

Эгер көйгөйлөргө туш болсоңуз, төмөнкү чечимдерди колдонуп көрүңүз:

• Байланыш жок:
  • Ensure the extender is powered on and indicator lights are flashing.
  • Verify that your device is connected to the extender's Wi-Fi network.
  • Check if the password for your main router's Wi-Fi was entered correctly during setup. Incorrect passwords require a device reset and re-pairing.
  • Кеңейткичтин негизги роутериңиздин диапазонунда экенин текшериңиз.
• Алсыз сигнал:
  • Relocate the extender to a more central position between your router and the desired coverage area.
  • Minimize physical obstructions (walls, metal objects) between the extender and your devices.
  • Adjust the orientation of the extender for optimal directional coverage.
• Configuration Page Not Accessible:
  • Ensure your device is connected to the extender's default Wi-Fi network ("TDair") before attempting to access the configuration page.
  • Браузериңиздин кэшин тазалап көрүңүз же башка браузерди колдонуп көрүңүз.
• Аппаратты баштапкы абалга келтирүү: If issues persist, use the "RES" button (Reset) on the device to restore factory settings. This will require re-configuring the extender.

9. Техникалык тейлөө

To ensure the longevity and optimal performance of your TODAAIR Outdoor WiFi Extender:

• үзгүлтүксүз тазалоо: Periodically wipe the exterior of the device with a soft, dry cloth to remove dust and debris. Do not use liquid cleaners.
• Программалык камсыздоонун жаңыртуулары: Өндүрүүчүнү текшериңиз website for any available firmware updates to ensure the device has the latest features and security enhancements.
• Кабелдин бүтүндүгү: Inspect power and Ethernet cables regularly for any signs of wear or damage. Replace damaged cables immediately.
• Коргоочу капкак: Always ensure the protective cover over the ports is securely closed to maintain the IP65 weatherproofing.

10. Кепилдик жана колдоо

For warranty information, technical support, or further assistance, please refer to the contact details provided in the product packaging or visit the official TODAAIR webсайт.
