ZSUS X79 VG2 Motherboard Bundle User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your ZSUS X79 VG2 Motherboard Bundle. This bundle includes the ZSUS X79 VG2 Motherboard, an Intel Xeon E5 2689 C2 processor, and 16GB of DDR3 1600MHz ECC RAM. Please read this manual thoroughly before proceeding with installation to ensure proper setup and optimal performance.

2. Продукт бүтүп калдыview

The ZSUS X79 VG2 Motherboard is designed to support LGA2011 V1/V2 series processors, offering a robust platform for demanding computing tasks. It features dual-channel DDR3 memory support, NVMe M.2 storage capabilities, and multiple expansion slots.

2.1. Негизги компоненттер

• ZSUS X79 VG2 Motherboard: Features an LGA2011 socket, H61 chipset, 4 DDR3 memory slots, 2 PCIe x16 slots, 1 PCIe x1 slot, 1 NVMe M.2 port, and 4 SATA2.0 ports.
• Intel Xeon E5 2689 C2 CPU: An 8-core, 16-thread processor with a base frequency of 2.6GHz (up to 3.6GHz turbo), 20MB L3 Cache, and LGA2011 socket compatibility.
• 16GB DDR3 1600MHz ECC RAM: High-performance Error-Correcting Code (ECC) memory, suitable for server and workstation environments, ensuring data integrity.

2.2. Motherboard Layout

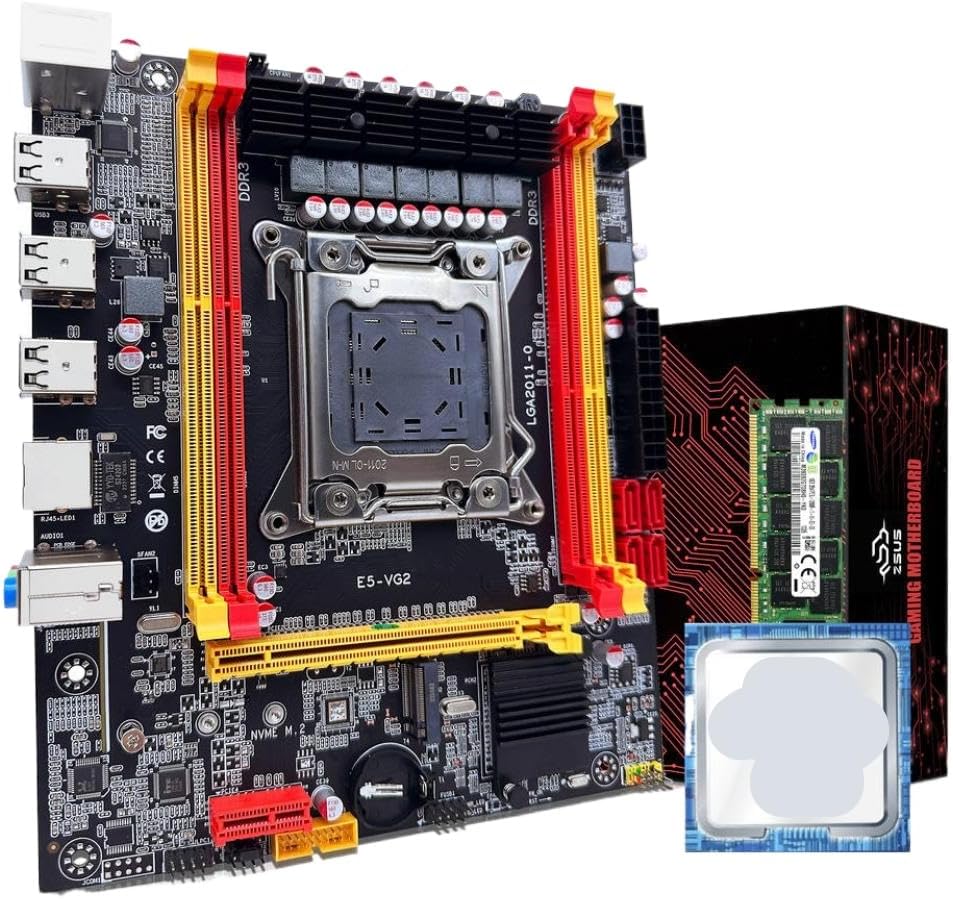

1-сүрөт: ZSUS X79 VG2 Motherboard Bundle. This image displays the motherboard with its LGA2011 CPU socket, four DDR3 RAM slots, PCIe slots, and various connectors. The included Xeon E5 2689 C2 CPU and 16GB DDR3 ECC RAM module are also visible alongside the product packaging.

Familiarize yourself with the various components and connectors on the motherboard before installation. Key areas include the CPU socket, RAM slots, PCIe expansion slots, SATA ports, M.2 slot, and I/O panel connectors.

3. Орнотуу жана орнотуу

Before beginning installation, ensure your workspace is clean, well-lit, and free of static electricity. Use an anti-static wrist strap if available. Handle components by their edges to avoid touching sensitive contacts.

3.1. CPU орнотуу

1. Сокетти даярдаңыз: Gently lift the CPU retention lever on the LGA2011 socket. Open the metal load plate.
2. CPU киргизүү: Carefully align the Intel Xeon E5 2689 C2 CPU with the LGA2011 socket. Ensure the triangular marker on the CPU matches the marker on the socket. Lower the CPU straight down without forcing it.
3. Коопсуз CPU: Close the metal load plate and push the retention lever back into its locked position until it clicks.
4. Термикалык пастаны колдонуу: Apply a small amount of thermal paste (not included) to the center of the CPU's integrated heat spreader (IHS).
5. CPU Cooler орнотуу: Mount a compatible LGA2011 CPU cooler (not included) according to its manufacturer's instructions. Ensure it makes firm contact with the CPU.

3.2. RAM орнотуу

1. Open Latches: Open the retention clips at both ends of the DDR3 memory slots.
2. Align RAM: Align the 16GB DDR3 1600MHz ECC RAM module with a memory slot, ensuring the notch on the module matches the key in the slot. For dual-channel operation, refer to the motherboard's silkscreen for recommended slot pairing (typically alternating slots).
3. RAM салыңыз: Press down firmly on both ends of the RAM module until the retention clips snap into place.
4. Текшерүү: Ensure both clips are fully closed and the RAM module is securely seated.

3.3. NVMe M.2 SSD Installation (Optional)

1. M.2 уячасын табыңыз: Identify the NVMe M.2 slot on the motherboard.
2. Remove Standoff Screw: Unscrew the small standoff screw from the M.2 slot.
3. M.2 SSD салыңыз: Insert your NVMe M.2 SSD (not included) into the slot at a 30-degree angle, ensuring the gold contacts are fully seated.
4. Коопсуз SSD: SSDди акырын ылдый түртүп, аны бурма менен бекитиңиз.

3.4. SATA Device Installation (Optional)

1. Connect Data Cable: Connect one end of a SATA data cable (not included) to a SATA2.0 port on the motherboard and the other end to your SATA hard drive or SSD (not included).
2. Кубат кабелин туташтыруу: Connect a SATA power cable from your power supply (not included) to the SATA device.

3.5. Энергия менен камсыздоо байланыштары

• 24-пин ATX күчү: Connect the main 24-pin ATX power connector from your power supply to the corresponding port on the motherboard.
• 8-pin EPS/CPU Power: Connect the 8-pin EPS (CPU) power connector from your power supply to the 1x8PIN port near the CPU socket.

3.6. Алдыңкы панель жана перифериялык байланыштар

• Алдыңкы панелдин туташтыргычтары: Connect the power switch, reset switch, HDD LED, and power LED cables from your PC case to the front panel header on the motherboard. Refer to the motherboard's silkscreen for correct pin assignments.
• USB аталыштары: Connect front panel USB 2.0 cables to the USB 2.0 headers on the motherboard.
• Аудио аталышы: Connect the front panel audio cable to the audio header.
• Кеңейтүү карталары: Install any PCIe expansion cards (e.g., graphics card, network card) into the available PCIe x16 or PCIe x1 slots.

4. Иштөө нускамалары

After completing all hardware installations, you can proceed with powering on your system.

1. Баштапкы күйгүзүү: Ensure all cables are securely connected. Connect your monitor, keyboard, and mouse. Turn on the power supply switch, then press the power button on your PC case.
2. BIOS/UEFI Орнотуу: During startup, repeatedly press the designated key (commonly DEL, F2, же F10) to enter the BIOS/UEFI setup utility. Here you can configure boot order, system time, and other hardware settings.
3. Операциялык системаны орнотуу: Insert your operating system installation media (USB drive or DVD) and follow the on-screen prompts to install your preferred operating system.
4. Драйверди орнотуу: After OS installation, install all necessary drivers for the motherboard chipset, network, audio, and any other installed components. Drivers are typically available on the manufacturer's webсайт.

5. Техникалык тейлөө

Regular maintenance helps ensure the longevity and stable operation of your system.

• Чаңды тазалоо: Periodically clean dust from inside your PC case, especially from CPU coolers, case fans, and heatsinks, using compressed air. Ensure the system is powered off and unplugged before cleaning.
• BIOS/Firmware Updates: Өндүрүүчүнү текшериңиз website for updated BIOS/firmware versions. Follow their instructions carefully when performing updates.
• Драйвер жаңыртуулары: Шайкештикти жана оптималдуу иштөөнү камсыз кылуу үчүн системаңыздын драйверлерин жаңыртып туруңуз.
• Кабелдик башкаруу: Аба агымын жакшыртуу жана тоскоолдуктарды болтурбоо үчүн ички кабелдердин тыкан өткөрүлүшүн текшериңиз.

6. Кыйынчылыктарды

Көйгөйгө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:

• Кубат жок:
  • Check if the power supply is switched on and properly connected to the motherboard (24-pin and 8-pin connectors).
  • Ensure the front panel power switch cable is correctly connected to the motherboard header.
• Дисплей жок:
  • Verify that the monitor is connected to the graphics card (if installed) or the motherboard's integrated graphics port (if applicable and CPU supports it).
  • Reseat the RAM modules. Incorrectly seated RAM is a common cause of no display.
  • Ensure the graphics card is properly seated in its PCIe slot and has adequate power connections.
• Системанын туруксуздугу/бузуулар:
  • CPU жана GPU температураларын текшериңиз. Ашыкча ысып кетүү туруксуздукка алып келиши мүмкүн.
  • Ensure RAM modules are compatible and correctly installed.
  • RAM каталарын текшерүү үчүн эстутум диагностикалык куралдарын иштетиңиз.
  • Бардык кубат туташуулары коопсуз экенин текшериңиз.
• Иштетүү системасы жүктөлбөй жатат:
  • Check BIOS/UEFI settings for correct boot order.
  • Ensure the storage drive (SSD/HDD) containing the OS is properly connected and detected.
  • If using an NVMe M.2 drive, ensure it is correctly installed and recognized in BIOS.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the manufacturer, TJKTSLVA, directly. Keep your proof of purchase for warranty claims.

Manufacturer: TJKTSLVA
