Anker SOLIX F3000 Portable Power Station and BP3000 Expansion Battery Instruction Manual

Introduction and Overview

This manual provides essential information for the safe and efficient operation of your Anker SOLIX F3000 Portable Power Station and BP3000 Expansion Battery. Designed for reliable home backup, outdoor adventures, and emergency power, this system offers substantial energy capacity and versatile charging options.

• Massive 3,600W Pass-Through Charging: Recharge with a 120V generator while simultaneously powering your appliances without interruption.
• Less Power Waste, Longer Backup Time: Featuring ultra-low idle power consumption, the F3000 achieves 125 hours of AC idle standby time or can run a 190W fridge for 42 hours.
• Ultra 2,400W Solar Recharging: Charge quickly outdoors using compatible portable and rigid solar panels via dedicated 165V or 60V ports.
• Powerful 120/240V Output: Operate all your essential appliances at 120V, or pair two F3000 units for a robust 240V output to handle higher-demand appliances.
• 6kWh Starting Capacity: Keep essential appliances powered for approximately 20 hours. Expand the system with additional batteries to achieve up to 24kWh, providing up to 80 hours of outage-proof energy.
• Hyper-Fast 6,000W Recharging: In emergency situations, achieve industry-leading input at 6,000W by combining a fuel generator and solar input for rapid recharging.
• Power Smarter, Save More: Optimize energy usage by automatically storing free solar energy or low-cost off-peak electricity when integrated with the optional Bi-Directional Inlet Box and Smart Meter.

Кутуда эмне бар

• Anker SOLIX F3000 көчмө электр станциясы
• Anker SOLIX BP3000 кеңейтүү батарейкасы
• AC кубаттоочу кабель
• Жогорку томtage Күн заряддоо кабели
• User Manual
• Эскертүү
• Кепилдик картасы

Note: The F3000 Portable Power Station and BP3000 Expansion Battery are shipped separately. Please await the arrival of all items.

Жайгашуу

Баштапкы орнотуу жана туташуу

Upon receiving your Anker SOLIX F3000 and BP3000, ensure both units are fully charged before first use to preserve battery lifespan. Connect the BP3000 Expansion Battery to the F3000 Portable Power Station using the provided expansion cable. The F3000 is designed for portability with built-in wheels and a retractable handle for easy movement.

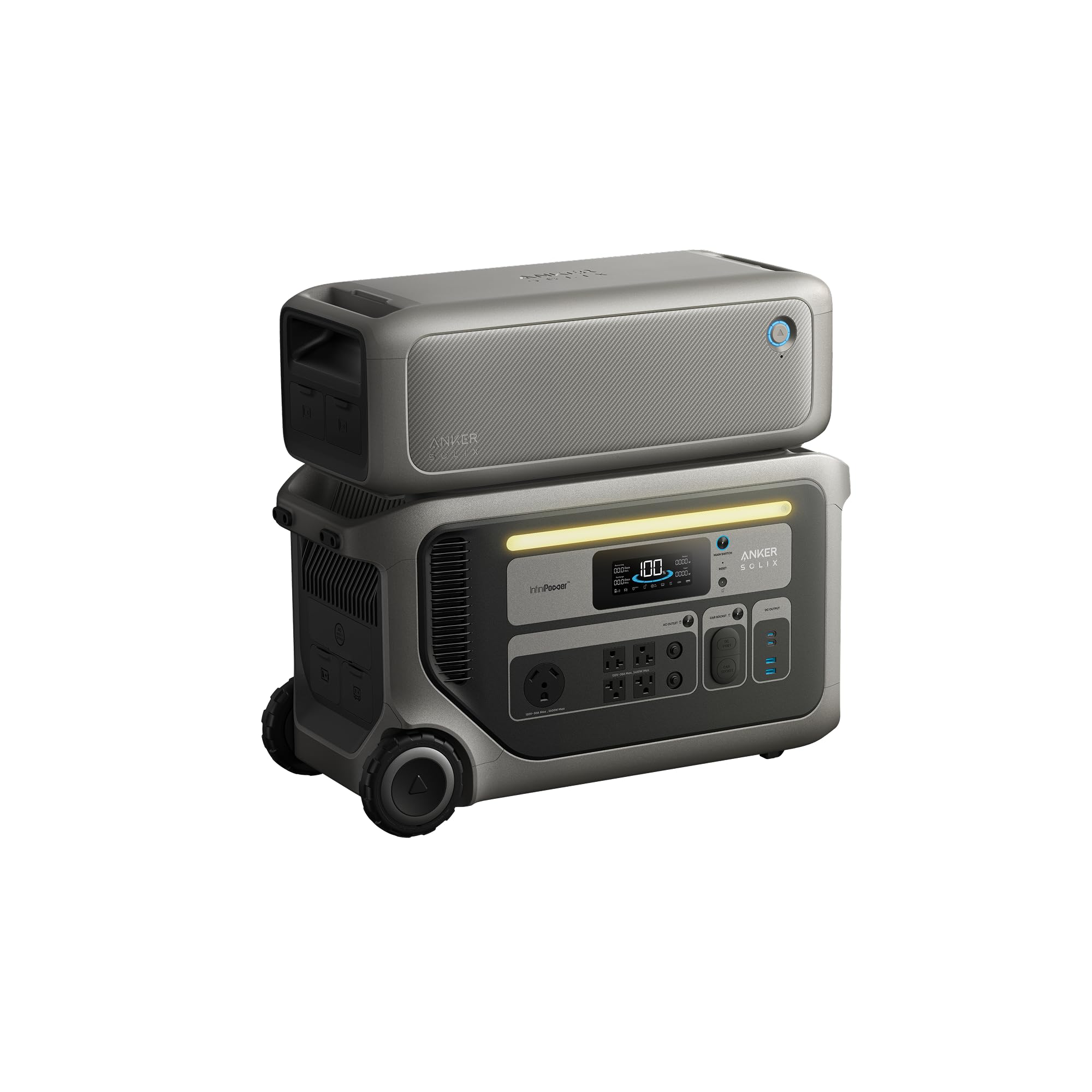

Image: Anker SOLIX F3000 Portable Power Station with BP3000 Expansion Battery stacked. This image shows the main F3000 unit with a BP3000 expansion battery stacked on top, illustrating the modular design.

Заряддоо ыкмалары

The Anker SOLIX F3000 offers multiple flexible recharging options:

• AC заряддоо: Use the included AC charging cable to connect to a standard wall outlet. The F3000 supports super-fast 3,600W AC recharging.
• Күн кубаты: Connect compatible portable or rigid solar panels to the 165V or 60V solar input ports. The system supports up to 2,400W of solar input.
• Генератор заряддоо: Connect to a 120V generator for massive 3,600W pass-through charging, allowing you to power appliances while recharging. Combine with solar for Hyper-Fast 6,000W Recharging.
• EV Station Charging: The F3000 can be charged at EV stations, providing up to 3,600W input.

Image: Anker SOLIX F3000 recharging options. This image illustrates various methods to recharge the F3000, including generator + solar, EV station, AC generator, solar, AC outlet, and alternator charger.

Иштөө нускамалары

Электр жабдыктары

The F3000 provides reliable power for a wide range of devices. Use the multiple AC outlets for standard appliances. For high-power needs, two F3000 units can be paired to deliver 240V output.

Image: Anker SOLIX F3000 powering various home appliances. This image shows the F3000 connected to and powering multiple household items like a space heater, microwave, fridge, and TV, demonstrating its versatility.

Колдонмо интеграциясы

Monitor and control your Anker SOLIX F3000 via the dedicated smartphone app. The app allows you to view real-time power consumption, remaining battery life, and adjust charging settings. It also enables smart energy management features when connected to a Bi-Directional Inlet Box and Smart Meter.

RV and EV Use

The F3000 is equipped with an Anderson port and TT-30R AC output port, making it ideal for RV life. It can also deliver up to 3,600W to charge your EV, providing power for approximately 12 miles of emergency driving.

Техникалык тейлөө

The Anker SOLIX F3000 utilizes LFP (Lithium Iron Phosphate) battery cells, designed for long-term durability. These batteries are built to last through 4,000+ cycles, ensuring power every day for 10 years. For optimal battery health, recharge your power station to 100% every 3 months if storing for extended periods.

Image: Anker SOLIX F3000 LFP battery cells with 4000 cycles. This image visually represents the durable LFP battery cells, highlighting their 4,000+ cycle lifespan and 10-year durability.

Проблемаларды чечүү

Жалпы маселелер үчүн төмөнкүгө кайрылыңыз:

• Power Outage Узактыгы: The F3000 has a 3kWh capacity. One F3000 can power a 190W fridge for 42 hours. Adding a gas generator can power your home indefinitely with fuel.
• Solar Panel Compatibility: The F3000 features two PV inputs supporting 2,400W. High PV supports panels between 11-165V (up to four 400W solar panels in series for 1,600W). Low PV supports panels between 11-60V (two 400W solar panels in parallel for 800W).
• 3,600W Pass-Through Charging with Gas Generator: The F3000 works with most 120V gas generators if it has a TT-30 plug or adapter. Pass-through charging allows simultaneous charging and discharging, avoiding power interruptions. Use the Anker app to set the generator's power rating.
• 240V чыгышы: The F3000 provides 120V output by itself. For 240V output, connect two F3000s together with a double voltagэ хаб.
• Reducing Electricity Bills: The F3000 features self-locking outlets and a smart meter to prioritize solar power for daily use. Enable TOU (Time-of-Use) mode to charge when prices are low and power when prices are high. The F3000 has two PV inputs supporting 2,400W of solar for appliances.

Техникалык шарттар

Кепилдик жана колдоо

The Anker SOLIX F3000 Portable Power Station and BP3000 Expansion Battery come with a 5 жылдык кепилдик. For detailed information, please refer to the included warranty card and user manual. For further assistance, contact Anker customer support.
