MINIX NR774 Mini PC User Manual

1. Киришүү

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your MINIX NR774 Mini PC. Please read this guide thoroughly before using the device to ensure proper functionality and longevity.

Сүрөт 1.1: Алдыңкы view of the MINIX NR774 Mini PC, showcasing its compact design and accessible front ports.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x MINIX NGC NR774 Mini PC
• 1 x VESA монтаждоо бурамалар менен
• 1 x Power Adapter with US/EU/UK Plug
• 1 х Колдонуучунун колдонмосу (бул документ)

3. Продукт бүтүп калдыview

The MINIX NR774 Mini PC is a compact desktop computer designed for various applications, from home office tasks to gaming and multimedia. It features a robust AMD Ryzen 7 8745HS processor, 32GB DDR5 RAM, and a 1TB PCIe 4.0 SSD, running on Windows 11 Pro.

3.1. Port Layout

Familiarize yourself with the available ports for connecting peripherals and network devices.

Image 3.1: Detailed diagram illustrating the front and rear port configurations of the MINIX NR774 Mini PC.

• Алдыңкы порттор: Power Button, USB-A 3.2 Gen2 (x2), USB-C 4.0/PD 3.0 (x2), 3.5mm Audio Input/Output Combo Jack, Reset Hole.
• Арткы порттор: DC IN Port, USB-A 2.0 (x2), HDMI, DP (DisplayPort), 2.5G RJ-45 Ethernet Port (x2).

4. Орнотуу колдонмосу

Follow these steps for initial setup of your Mini PC.

4.1. Перифериялык түзүлүштөрдү туташтыруу

1. Дисплейди туташтыруу: Use an HDMI or DisplayPort cable to connect your monitor to the corresponding port on the rear of the Mini PC. For 8K resolution, ensure your monitor and cable support 8K@60Hz and connect via a single USB-C 4.0 port.
2. Баскычтоп менен чычканды туташтыруу: USB клавиатураңызды жана чычканыңызды каалаган жеткиликтүү USB-A портторуна сайыңыз.
3. Туташуу кубаты: Connect the power adapter to the DC IN port on the rear of the Mini PC, then plug the adapter into a power outlet.

4.2. Күйгүзүү

Press the power button located on the front of the Mini PC. The device will boot up, and the operating system will begin loading.

4.3. Initial Windows 11 Pro Setup

Upon first boot, you will be guided through the Windows 11 Pro setup process. Follow the on-screen instructions to configure language, region, network, and user accounts.

4.4. Multi-Display Configuration

The MINIX NR774 supports up to four displays simultaneously via HDMI, DisplayPort, and two USB-C 4.0 ports. To configure multiple displays:

1. Connect additional monitors to the available video output ports.
2. Once connected, right-click on the desktop and select 'Display settings' (Windows).
3. From the display settings, you can arrange your monitors, set their resolution, and choose display modes (e.g., Extend, Duplicate).

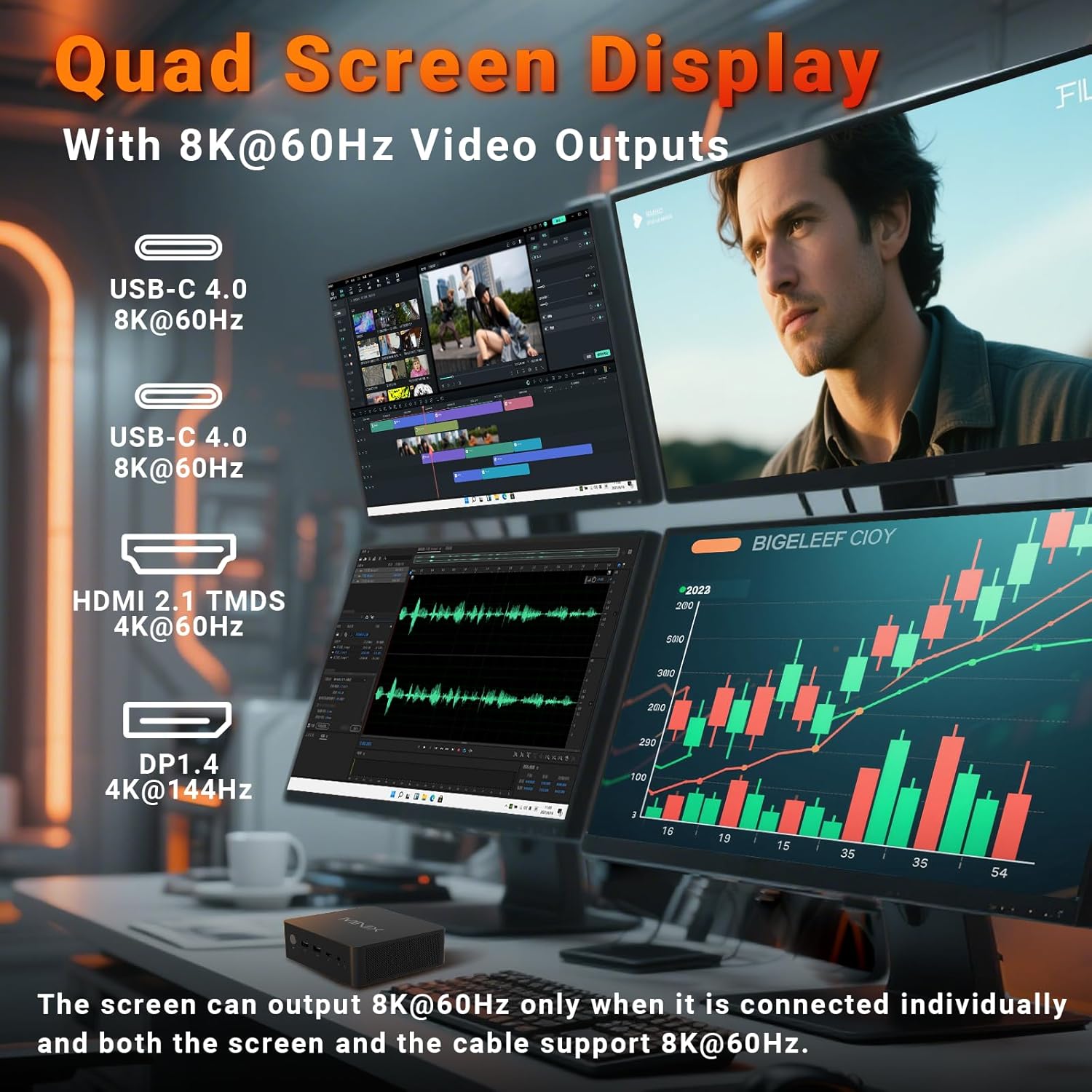

Image 4.1: The Mini PC supporting a quad-display setup, demonstrating its capability for enhanced productivity and immersive viewтажрыйбаларды.

5. Иштөө нускамалары

5.1. Негизги операция

The MINIX NR774 functions as a standard Windows 11 Pro desktop computer. Utilize the connected keyboard and mouse for navigation and interaction with the operating system and applications.

5.2. Network Connectivity

• Wi-Fi 6E: For wireless internet access, connect to your Wi-Fi network through Windows settings. The device supports 2.4GHz, 5GHz, and 6GHz bands for high-speed wireless communication.
• Dual 2.5G LAN: For wired network connections, plug Ethernet cables into the two 2.5G RJ-45 ports on the rear. This provides stable and high-speed multi-gigabit networking.
• Bluetooth 5.2: Pair Bluetooth devices such as headphones, speakers, or game controllers through Windows Bluetooth settings.

Сүрөт 5.1: Арткы view of the Mini PC highlighting the dual 2.5G Ethernet ports, alongside other connectivity options.

5.3. USB4.0 Functionality

The two USB-C 4.0 ports on the front support data transfer speeds up to 40Gbps and can be used for external GPUs, high-speed storage, or additional display output (up to 8K@60Hz).

5.4. Diverse Applications

The MINIX NR774 is suitable for various uses, including:

• Офис иши: Efficiently handle productivity applications and multitasking.
• Үй кинотеатры: Enjoy high-resolution streaming and media playback.
• Видеону түзөтүү: Process and render video content with its powerful processor and ample эскерүү.
• Оюн: Capable of running many games, especially at 1080p or 720p resolutions with appropriate settings.

Image 5.2: A user engaged in gaming, demonstrating the Mini PC's capability for entertainment.

6. Техникалык тейлөө

Regular maintenance helps ensure the optimal performance and longevity of your Mini PC.

6.1. Жалпы кам көрүү

• Түзмөктү таза, кургак жерде, күн нуру түз тийген жерлерден жана өтө жогорку температурадан алыс кармаңыз.
• Avoid blocking the ventilation holes to ensure proper airflow.
• Сыртын жумшак, кургак чүпүрөк менен тазалаңыз. Суюк тазалоочу каражаттарды колдонбоңуз.

6.2. Storage and Memory Upgrades

The Mini PC supports upgrades for both RAM and SSD. It features two M.2 slots for storage and two DDR5 memory slots.

• RAM: The device comes with 32GB DDR5 memory and can be upgraded up to 256GB (not included). For optimal performance, especially in gaming, ensure dual-channel memory configuration.
• SSD: A 1TB PCIe 4.0 SSD is pre-installed. Storage can be expanded up to 8TB (not included) using additional M.2 PCIe 4.0 SSDs.

Consult a qualified technician for hardware upgrades to avoid damaging the device or voiding the warranty.

Сүрөт 6.1: Ички view of the Mini PC, illustrating the dual DDR5 RAM slots and M.2 PCIe 4.0 SSD slots for potential upgrades.

6.3. Муздатуу системасы

The Mini PC incorporates an advanced dual-fan cooling system with a heatsink to maintain optimal operating temperatures and minimize noise.

Image 6.2: Diagram showcasing the active cooling design of the Mini PC, featuring dual fans for efficient heat dissipation.

7. Кыйынчылыктарды

If you encounter issues with your MINIX NR774 Mini PC, refer to the following common solutions:

• Дисплей жок:
  • Ensure the monitor is powered on and the correct input source is selected.
  • Check that video cables (HDMI, DisplayPort, USB-C) are securely connected to both the Mini PC and the monitor.
  • Жабдуунун бузулушун жокко чыгаруу үчүн башка видео кабелди же мониторду колдонуп көрүңүз.
• Кубат жок:
  • Verify the power adapter is correctly plugged into the Mini PC and a working power outlet.
  • Кубат баскычы бекем басылганын текшериңиз.
• Тармакка туташуу маселелери:
  • For Wi-Fi, check if the Wi-Fi adapter is enabled in Windows settings and ensure you are connected to the correct network.
  • For wired LAN, ensure Ethernet cables are properly connected and your router/modem is functioning.
  • Роутериңизди/модемиңизди жана мини-компьютериңизди өчүрүп-күйгүзүңүз.
• Windows Not Loading/Operating System Issues:
  • If Windows fails to load, try restarting the device.
  • If issues persist, consider using Windows recovery options (accessible during boot by pressing F8 or Shift + Restart).
  • Бардык айдоочулар жаңыртылганын текшериңиз.
• Ашыкча ысып кетүү:
  • Ensure the Mini PC's ventilation holes are clear and not obstructed.
  • Аппаратты жакшы желдетилген жерде иштетиңиз.

If these steps do not resolve the issue, please contact MINIX customer support.

8. Техникалык шарттар

Detailed technical specifications for the MINIX NR774 Mini PC.

9. Кепилдик маалыматы

MINIX products typically come with a standard manufacturer's warranty. For specific details regarding the warranty period and terms for your MINIX NR774 Mini PC, please refer to the warranty card included in your product packaging or visit the official MINIX webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

10. Кардарларды колдоо кызматы

For technical assistance, troubleshooting, or any inquiries regarding your MINIX NR774 Mini PC, please use the following contact methods:

• Онлайн колдоо: Log in to your Amazon account, navigate to 'Your Orders', and select 'Ask Product Question' for the MINIX NR774.
• Официалдуу Webсайт: Visit the official MINIX website for offline maintenance services and additional support resources.
