GHB ABM780 7 дюймдук 1080P IPS бала мониторунун колдонуучу колдонмосу

1. Киришүү

Thank you for choosing the GHB ABM780 7-inch 1080P IPS Baby Monitor. This device is designed to provide reliable and secure monitoring of your baby, offering high-definition video and audio transmission. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

Image 1.1: GHB ABM780 Baby Monitor components and packaging.

2. Продукт бүтүп калдыview

2.1 Пакеттин мазмуну

• 1 x Baby Monitor (Parent Unit)
• 1 x Ымыркай камерасы (Ымыркай блогу)
• 2 x Power Adapters (USB-C cables included)
• 1 x User Manual
• Mounting Screws and Wall Plugs (for camera)

2.2 Негизги өзгөчөлүктөрү

• 7-inch 1080P IPS Display: Provides a clear, stable, and flicker-free image with a wide viewбурч.
• Узартылган батареянын иштөө мөөнөтү: 5000mAh battery offers approximately 10 hours of continuous monitoring or up to 360 hours in VOX mode.
• HD түнкү көрүнүш: Infrared night vision allows clear monitoring in low-light conditions without disturbing the baby.
• Pan-Tilt-Zoom (PTZ) Camera: Camera can be rotated 350° horizontally and 100° vertically, with 2x and 4x digital zoom.
• Эки тараптуу аудио: Communicate with your baby remotely through the monitor.
• VOX режими: Sound-activated mode conserves battery by turning off the screen until sound is detected.
• Температура мониторинги: Built-in sensor displays room temperature on the monitor.
• Бесик ырлары: 8 pre-programmed lullabies to soothe your baby.
• Multi-Camera Support: Connect up to two cameras to the monitor (additional cameras sold separately).
• Secure 2.4 GHz FHSS Connection: Ensures a private and interference-free connection without Wi-Fi or app requirements.
• Сүрөт тартуу: Supports capturing still images to a TF card (up to 32GB, not included). Video recording is not supported.

3. Орнотуу

3.1 Мониторду заряддоо

Before first use, fully charge the parent unit (monitor) using the provided USB-C cable and power adapter. The camera unit must always be connected to a power source to function.

Image 3.1: The monitor features a USB-C port for charging its 5000mAh battery.

3.2 Camera Placement and Installation

Place the baby camera in a location that provides a clear view of your baby. Ensure it is out of reach of children and away from any cords that could pose a strangulation hazard. The camera can be placed on a flat surface (tabletop) or mounted to a wall.

• Столдун үстүнө жайгаштыруу: Simply place the camera on a stable, flat surface.
• Дубалга орнотуу: Use the included screws and wall plugs to securely mount the camera to a wall. Ensure the camera is positioned to capture the desired viewаймак.
• Tripod орнотуу: The camera base includes a 1/4-inch screw hole, allowing it to be attached to a compatible tripod or mounting bracket (not included).

Image 3.2: The system supports connecting up to two cameras for comprehensive monitoring.

3.3 Баштапкы туташуу

The monitor and camera are pre-paired at the factory. To establish a connection:

1. Connect the camera to a power outlet using its adapter.
2. Turn on the monitor by pressing and holding the power button.
3. The monitor should automatically display the camera's video feed. If not, refer to the troubleshooting section for pairing instructions.

4. Иштөө нускамалары

4.1 Монитордун башкаруу элементтери

The monitor features intuitive buttons for navigation and control:

• Кубат баскычы: Press and hold to turn on/off. Short press to turn screen on/off.
• Багыттоочу баскычтар (Өйдө/Төмөн/Сол/Оң): Navigate menus and control camera pan/tilt.
• OK баскычы: Тандоолорду ырастаңыз.
• Меню баскычы: Орнотуулар менюсуна кирүү.
• VOX баскычы: Activate/deactivate VOX mode.
• Микрофон баскычы: Activate two-way audio.
• Lullaby Button: Play/stop lullabies.
• Чоңойтуу баскычы: Toggle 2x/4x digital zoom.

4.2 Camera Pan, Tilt, and Zoom

Use the directional buttons on the monitor to remotely adjust the camera's viewing angle. Press the 'Up' or 'Down' buttons to tilt the camera vertically (100° range), and 'Left' or 'Right' buttons to pan horizontally (350° range). Press the 'Zoom' button to cycle through 2x and 4x digital zoom levels.

Image 4.1: Control the camera's pan, tilt, and zoom functions directly from the monitor.

4.3 Эки тараптуу аудио

To speak to your baby, press and hold the Microphone button on the monitor. Release the button to listen to your baby. The monitor will display a microphone icon when two-way audio is active.

Image 4.2: Engage in two-way communication with your baby using the monitor's microphone function.

4.4 VOX режими (Үн менен башкарылган алмашуу)

VOX mode helps conserve battery life by turning off the monitor screen when no sound is detected. The screen will automatically turn on when the camera detects sound above a set sensitivity level. Press the VOX button to activate or deactivate this mode. You can adjust the VOX sensitivity in the monitor's settings menu.

Image 4.3: VOX mode activates the screen only when sounds are detected, saving battery.

4.5 Түнкү көрүнүш

The camera automatically switches to infrared night vision in low-light conditions, providing a clear black-and-white image on the monitor. This feature ensures continuous monitoring without the need for additional lighting.

Image 4.4: The 7-inch 1080P IPS display provides clear images day and night, including automatic night vision.

4.6 Бешик ырлары

To play lullabies, press the Lullaby button on the monitor. You can cycle through the 8 available melodies or stop playback using the same button or through the menu.

4.7 Температуранын мониторинги

The monitor displays the ambient temperature of the baby's room, detected by a sensor on the camera. You can set temperature alerts in the menu to be notified if the room temperature goes outside a comfortable range.

4.8 Сүрөт тартуу

The monitor supports capturing still images. Insert a TF card (up to 32GB, FAT32 format, not included) into the monitor's card slot. Refer to the menu for options to capture images. Note that video recording is not supported.

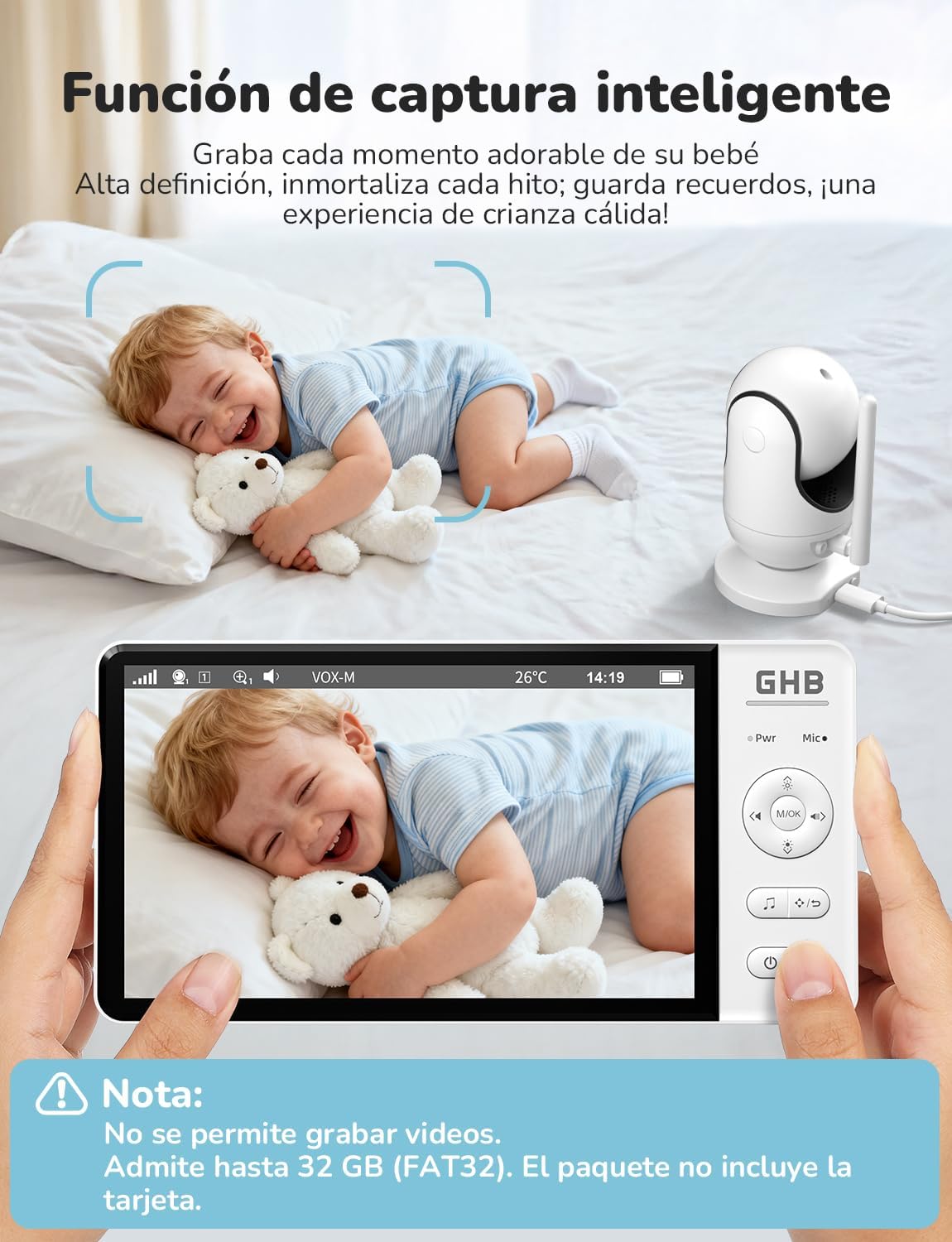

Image 4.5: The smart capture function allows you to save precious moments as still images.

5. Техникалык тейлөө

• Тазалоо: Use a soft, dry cloth to clean the monitor and camera. Do not use abrasive cleaners or solvents.
• Батареяга кам көрүү: To prolong battery life, avoid fully discharging the monitor frequently. Charge it regularly. If storing for an extended period, charge the battery to about 50% and store in a cool, dry place.
• Сактагыч: Store the device in a dry place, away from extreme temperatures and direct sunlight.

6. Кыйынчылыктарды

7. Техникалык шарттар

Image 7.1: Physical dimensions of the GHB ABM780 Baby Monitor components.

8. Кепилдик жана колдоо

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or contact GHB customer support. If you encounter any issues not covered in the troubleshooting section, please contact GHB customer service for assistance.

Contact information for support can typically be found on the product packaging or the official GHB webсайт.
