KaiDi KDYJT006-20 Power Lift Recliner кыймылдаткычын алмаштыруу боюнча колдонмо

1. Киришүү

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your KaiDi KDYJT006-20 Power Lift Recliner Actuator Motor. Please read this manual thoroughly before installation and retain it for future reference.

2. Коопсуздук маалыматы

• Always disconnect power to the recliner before attempting any installation, maintenance, or repair.
• Ensure all connections are secure and correctly oriented to prevent electrical hazards.
• Do not operate the actuator beyond its specified load capacity (Max Load 800N).
• Avoid operating the actuator continuously beyond its rated duty cycle (2 minutes ON, 18 minutes OFF, 10%).
• Use only the specified KD Power Supply.
• Иштөө учурунда колдоруңузду жана кенен кийимдериңизди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу техникке кайрылыңыз.

3. Кутуда эмне бар

• 1 x KaiDi KDYJT006-20 Power Lift Recliner Actuator Motor

Note: Power supply and remote control are typically sold separately or are part of the existing recliner system.

4. Орнотуу жана орнотуу

Маанилүү: Before proceeding, ensure the recliner is unplugged from the power outlet.

1. Identify the Old Actuator: Locate the existing actuator motor under your recliner. Note how it is mounted and connected.
2. Disconnect Power and Remote: Carefully disconnect the 2-pin round power connector and the 5-pin remote port connector from the old actuator.
3. Эски кыймылдаткычты алып салуу: Unbolt or unclip the old actuator from its mounting points on the recliner frame. Keep any mounting hardware.
4. Compare Actuators: Compare the new KaiDi KDYJT006-20 actuator with the old one. Verify that the stroke length (266mm) and mounting points are compatible.
5. Жаңы кыймылдаткычты орнотуу: Mount the new actuator into the recliner frame using the original hardware or suitable replacements. Ensure it is securely fastened.
6. Connect Power and Remote:
   • туташтыруу 2-pin round power connector from your power supply to the corresponding port on the new actuator.
   • туташтыруу 5-pin remote port connector from your hand control to the corresponding port on the new actuator.
7. Кабелдик башкаруу: Route all cables safely to prevent pinching or damage during recliner operation.

Figure 1: KaiDi KDYJT006-20 Actuator Motor with its power and remote connectors. This image shows the overall appearance of the actuator and its wiring.

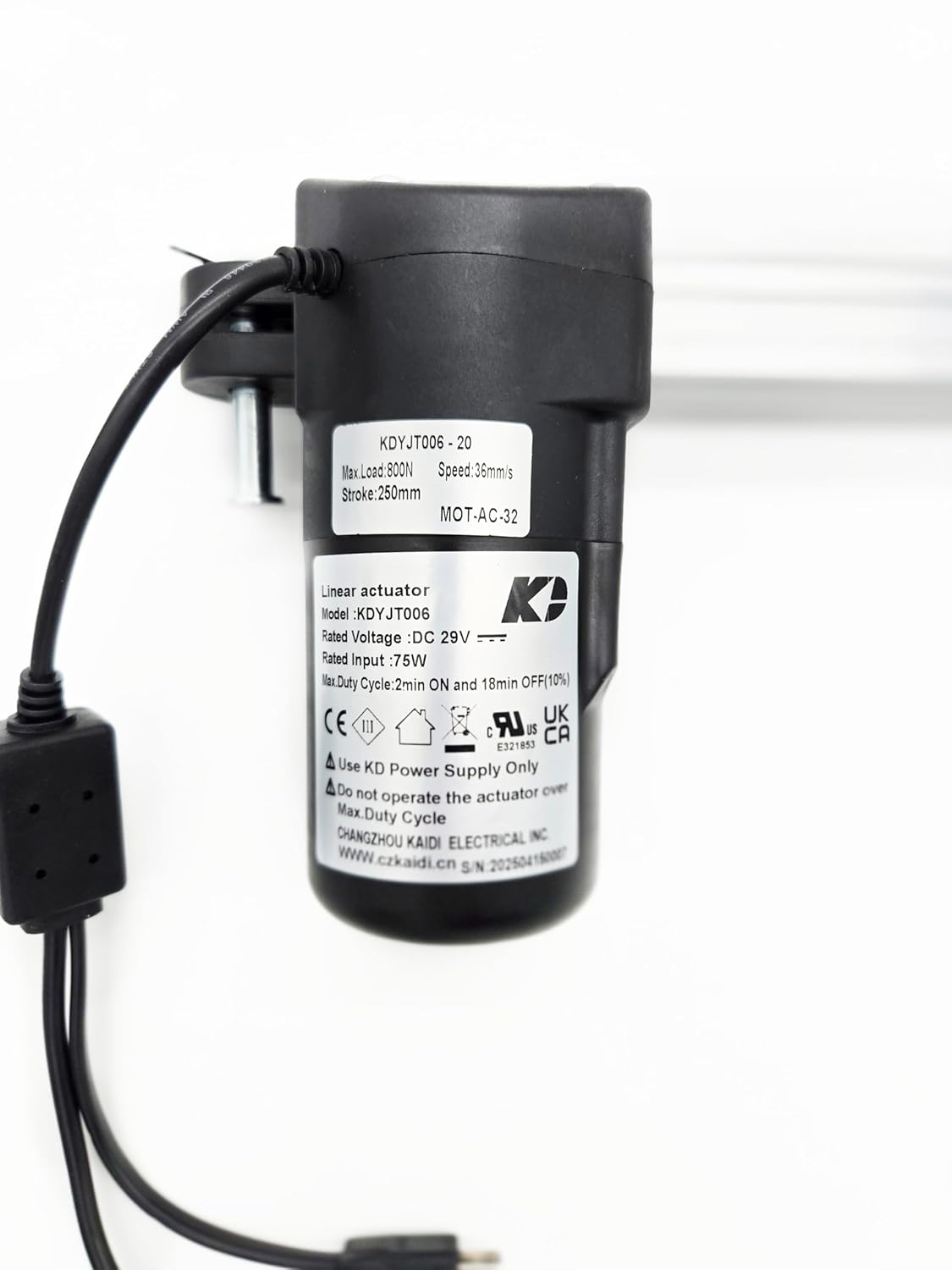

Сүрөт 2: Жакын пландан view of the product label on the KaiDi KDYJT006-20 actuator, displaying model number, specifications, and safety warnings. Verify these details match your requirements.

3-сүрөт: Детальдуу view of the 5-pin remote control connector and the 2-pin round power connector. Ensure these match your existing recliner's connections.

5. Иштөө нускамалары

1. Күйгүзүү: Once the actuator is securely installed and all connections are made, plug the recliner's power cord into a wall outlet.
2. Сыноо операциясы: Use the recliner's hand control to slowly extend and retract the actuator. Observe for smooth movement and listen for any unusual noises.
3. Full Range of Motion: Test the recliner through its full range of motion to ensure the actuator operates correctly and does not bind or interfere with any parts of the recliner mechanism.
4. Милдеттик цикл: Remember the duty cycle of 2 minutes ON and 18 minutes OFF. Avoid continuous operation to prevent overheating and damage.

6. Техникалык тейлөө

• Үзгүлтүксүз текшерүү: Periodically inspect the actuator and its mounting points for any signs of wear, damage, or loose connections.
• Тазалоо: Keep the actuator free from dust and debris. Wipe with a dry cloth. Do not use liquid cleaners directly on the motor or electrical components.
• Майлоо: The actuator is generally maintenance-free regarding internal lubrication. Do not attempt to lubricate internal components unless specifically instructed by the manufacturer.
• Кабель текшерүү: Ensure all cables are intact and not frayed or pinched.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation provided with your original recliner or contact the retailer from whom you purchased this replacement actuator. Ensure you have your model number (KDYJT006-20) and purchase details available when contacting support.

For further assistance, you may visit the KaiDi Store on Amazon: KaiDi Store
