Маанилүү коопсуздук маалыматы
This product is designed for children aged 3 years and up. Adult supervision is required at all times. Ensure all safety belts are securely fastened before operation. Do not operate near roads, steep inclines, or bodies of water. Always follow local regulations regarding ride-on toy usage.
Maximum load capacity: 110 lbs (50 kg). Only one child aged 4-8 or two children aged 3-4 should ride at a time. This product is certified with ASTM and CPSIA standards for safety.
Продукт бүттүview
The Hetoy 24V 2 Seater Ride on UTV is an electric vehicle designed for children, offering both manual operation and parental remote control. It features a robust design with powerful motors, spring suspensions, and various entertainment options.

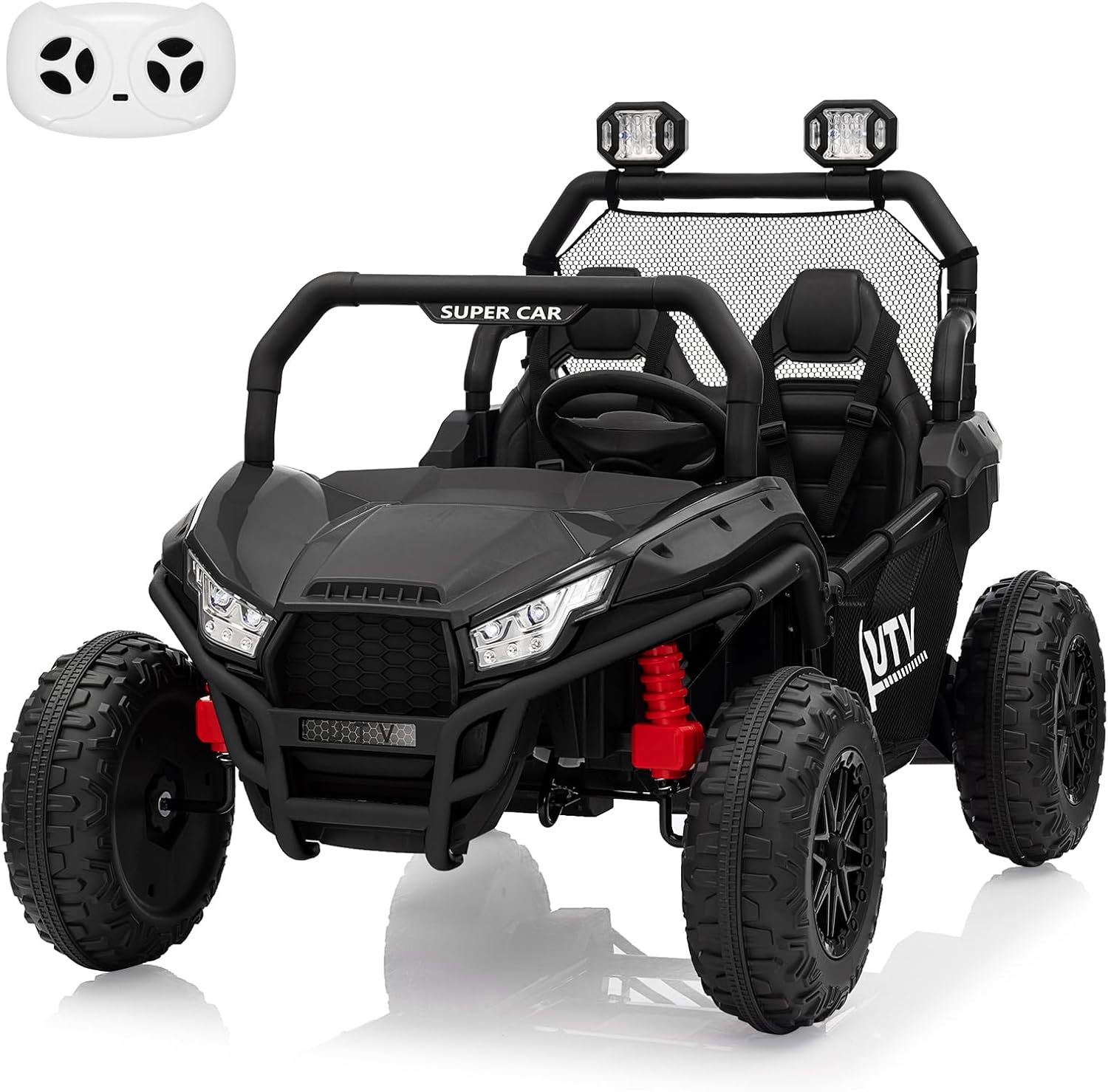

Image: The Hetoy 24V 2 Seater Ride on UTV Kids Car in black, showcasing its robust design and remote control.
Негизги өзгөчөлүктөрү:
- Electric UTV with Parent Remote Control: Offers two driving modes for different age groups, allowing parents to control for younger children or children to operate independently.
- Spacious 2-Seater Design: Features real 20-inch seats with adjustable safety belts, accommodating one child aged 4-8 or two children aged 3-4.
- 24V 400W Powerful Performance: Equipped with a 24V 7AH battery and 2x200W motors, providing up to 50 minutes of ride time and a max speed of 4.35 mph. Includes 4 spring suspensions for smooth riding.
- Multifunctional Control Console: Easy one-button start, music playback, LED headlights & rear pathfinder lights, high/low speed function, and Bluetooth connectivity for playing music or stories.
- Anti-Skid Enlarged Wheels: Designed for various terrains, including asphalt, country roads, board roads, sand beaches, and mountain roads.
Кутуда эмне бар
Пакетти ачкандан кийин, бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- 1 x 24V Kids UTV
- 1 x Алыстан башкаруу
- 1 х заряддагыч
- 1 х Колдонуучунун колдонмосу (Бул документ)
- Монтаждоо жабдуулары (буроолор, шайбалар ж.б.)
Монтаждоо көрсөтмөлөрү
Assembly typically takes approximately 2 hours. It is recommended to assemble the UTV in a spacious, well-lit area. Refer to the included assembly diagram for detailed steps.
- Дөңгөлөктү орнотуу: Attach the wheels to the axles, ensuring all washers and nuts are securely fastened. The anti-skid enlarged wheels are designed for various terrains.
- Руль дөңгөлөгү: Connect the steering column to the vehicle's chassis and attach the steering wheel. Ensure it rotates freely.
- Орнотуу: Place the two seats into their designated positions and secure them with the provided screws. Ensure the safety belts are accessible and functional.
- Батарея туташуу: Locate the battery compartment. Connect the battery terminals, ensuring correct polarity (red to red, black to black).
- Аксессуар Тиркеме: Install any additional accessories such as the roll bar, lights, or rear storage net pocket as per the diagram.
Сүрөт: деталдуу view of the UTV's rear storage net pocket, robust metal body frame, and the multifunctional control panel.
Иштөө нускамалары
Айдоо режимдери:
Image: Illustration of the two control modes: Manual mode for child operation and Remote mode for parental control.
- Кол режими: For children aged 3-8 years. The child can operate the UTV using the accelerator pedal and steering wheel.
- Алыстан башкаруу режими: For younger children or when parental supervision is desired. Parents can use the included remote control to steer, accelerate, brake, and select high/low speed.
Starting the UTV:
- Батарея толугу менен заряддалганын текшериңиз.
- Press the "Start/Stop" button on the multifunctional control console to power on the vehicle.
- Select desired speed (High/Low) using the switch on the dashboard or remote control.
- For manual mode, press the accelerator pedal. For remote mode, use the remote control.
Multifunctional Dashboard:
Сүрөт: деталдуу view of the UTV's multifunctional dashboard, highlighting controls for lights, volume, music, USB port, power switch, high/low speed, forward/reverse, and Bluetooth.
- Жарыктар: Toggle LED headlights and rear pathfinder lights.
- Көлөмү: Аудио чыгарууну тууралоо.
- Music/Story Player: Play pre-loaded tunes or connect via Bluetooth/USB for custom audio.
- USB порт: For connecting external media devices.
- Кубат которгучу: On/Off for the vehicle.
- Жогорку/Төмөн ылдамдык: Select driving speed.
- Алга/артка: Control driving direction.
- Bluetooth: Pair with a mobile phone to play music or stories.
Батареяны заряддоо
The UTV is powered by a 24V 7AH battery. For optimal performance and battery life, follow these charging guidelines:
- Connect the charger to the charging port on the UTV.
- Заряддагычты стандарттуу розеткага сайыңыз.
- Толук заряддоо үчүн кубаттоо убактысы, адатта, 8-10 саатты түзөт. Ашыкча кубаттабаңыз.
- A full charge provides approximately 50 minutes of playtime.
- Батареяны ар дайым кургак, жакшы желдетилген жерде, тез күйүүчү материалдардан алыс заряддаңыз.
Техникалык тейлөө
- Тазалоо: Wipe the UTV with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз. Сууну түздөн-түз электрдик тетиктерге чачуудан алыс болуңуз.
- Батареяга кам көрүү:
- Биринчи жолу колдонуудан мурун батарейканы толук кубаттаңыз.
- Ар бир колдонуудан кийин батареяны кайра заряддаңыз.
- If storing for extended periods, charge the battery every 30 days to maintain its life.
- Do not allow the battery to completely discharge.
- Шиналарды текшерүү: Regularly check the anti-skid enlarged wheels for wear and tear. Ensure they are free from debris that could affect performance.
- Жалпы текшерүү: Periodically check all screws, bolts, and connections to ensure they are tight and secure. Inspect the spring suspensions for any damage.
- Сактагыч: Store the UTV in a dry, cool place, away from direct sunlight and moisture.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| UTV does not move. | Battery is low or not connected; Power switch is off; Loose wire connection; Overload. | Charge the battery; Turn on the power switch; Check all wire connections; Reduce load (max 110 lbs). |
| Кыска ойноо убактысы. | Battery not fully charged; Old battery; Overloaded. | Charge battery for 8-10 hours; Replace battery if old; Ensure load is within limits. |
| Slow speed. | Low battery; Overload; Operating on rough terrain. | Charge battery; Reduce load; Operate on smoother surfaces. |
| Пульт иштебей жатат. | Remote control battery low; Not paired correctly. | Replace remote control battery (1 AAA battery required); Refer to remote pairing instructions in the full manual (if applicable). |
| Жарыктар же музыка иштебей жатат. | Loose connection; Malfunctioning component. | Check connections to the dashboard; Contact customer support if issue persists. |
Техникалык шарттар
- Модел: B0FCF6K5HJ
- Бренд: Hetoy
- Мотор: 2 x 200W (жалпысынан 400W)
- Батарея: 24V 7AH
- Ылдамдыгы: 3.10 - 4.35 миль/саат
- Жалпы өлчөмү (L x W x Y): 47.24 x 31.89 x 32.68 дюйм
- Колесен Диаметри: 12.6 дюйм
- Максималдуу жүк: 110 фунт (50 кг)
- Оюн убактысы: Болжол менен 50 мүнөт
- Заряддоо убактысы: 8-10 саат
- Элемент Салмагы: 66.7 фунт
- Сунушталган жаш: 3 жаш жана андан жогору
- Келип чыккан өлкө: Кытай
- Сертификаттар: ASTM, CPSIA
Image: Dimensional diagram of the UTV, indicating its length, width, height, and wheel diameter for size reference.
Кепилдик жана колдоо
For warranty information or technical support, please contact Hetoy customer service. Refer to the product packaging or the seller's information on the purchase platform for contact details.
This product is subject to hazardous materials regulation for transportation and is non-returnable in some cases. Please review the seller's return policy at the time of purchase.
Protection plans may be available for purchase separately. Check with your retailer for details on extended warranty options.
