1. Introduction and Overview
Thank you for choosing the Mcezdy M5C-2(BLE)-6-Pin Ebike LCD Display. This advanced cycling computer is designed to provide essential riding data, smart connectivity, and convenient features for your electric bicycle. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Figure 1: Mcezdy M5C-2 Ebike LCD Display showing current speed, pedal assist level, and battery voltage.
2. Негизги өзгөчөлүктөрү
- Vibrant Color Screen: Provides clear and easy-to-read riding data.
- Жекелештирилген башкаруу: Features walk-assist mode, cruise control, real-time trip and total mileage tracking, voltage display, and adjustable bike parameters (wheel diameter, speed limits).
- Акылдуу туташуу: Syncs with cycling applications via Bluetooth for route recording and statistics.
- Жолдо заряддоо: Integrated Type-C charging port (5V/500mA output) for mobile devices.
- Туруктуу курулуш: IPX65 waterproof rating, rugged ABS and PC housing, tempered glass screen, and nylon bracket for all-weather use.
- Wide Voltage Шайкештик: Supports 24V, 36V, 48V, and 60V battery systems.
Figure 2: ашыкview of M5C-2 display functions.
3. Шайкештик боюнча маанилүү эскертүү
This Ebike LCD display operates exclusively with controllers using the UART No. 2 protocol. It is not compatible with other UART protocols. Ensure your Ebike controller supports UART No. 2 to avoid compatibility issues.
How to Determine Your Ebike's Communication Protocol:
- Consult your Ebike's user manual or technical documentation.
- Check your existing Ebike display for protocol information.
- Contact your Ebike manufacturer for specific details.
Figure 3: Compatibility warning and connector types (5-Pin and 6-Pin).
4. Продукттун спецификациялары
| Спецификация | Деталь |
|---|---|
| Бренд | Mcezdy |
| Модель аты | M5C-2(BLE)-6-Pin |
| Дисплей түрү | LCD |
| Байланыш технологиясы | Bluetooth |
| Протокол | UART No. 2 |
| Тtage Шайкештик | 24В, 36В, 48В, 60В |
| Суу өткөрбөйт рейтинги | IPX65 |
| Материал | ABS, PC, Tempered Glass, Nylon |
| Монтаж түрү | Handlebar Mount (22.2mm, 25.4mm, 28.6mm, 31.8mm) |
| Камтылган компоненттер | LCD Display, User's Manual, Fault Code Description |

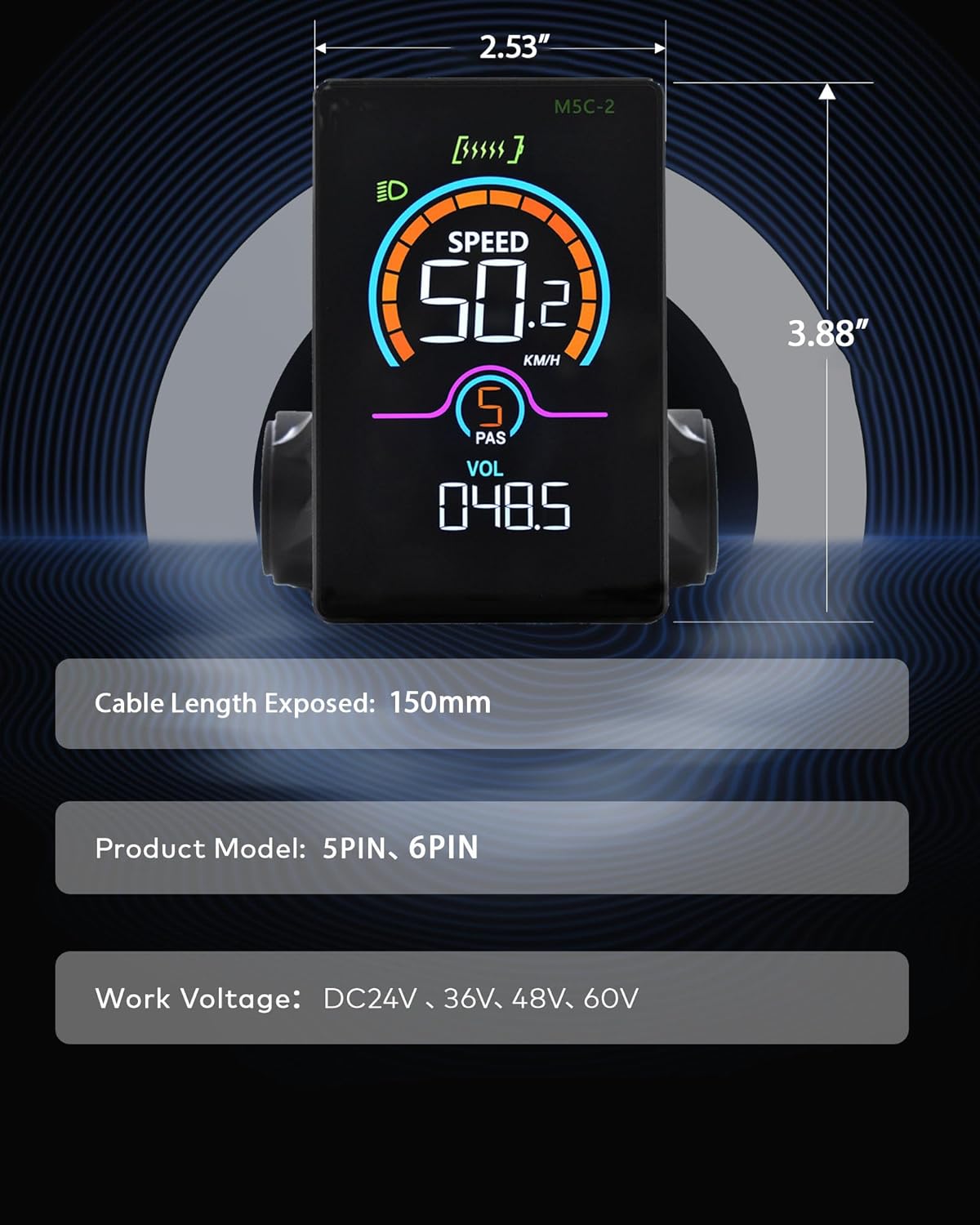

Figure 4: M5C-2 display dimensions and cable length.
5. Орнотуу жана орнотуу
Follow these steps to properly install your Mcezdy LCD Display on your Ebike.
5.1 Дисплейди орнотуу
- Loosen the screws on the display's handlebar mount.
- Position the display on your Ebike's handlebar. The adjustable mount accommodates handlebar diameters of 22.2mm, 25.4mm, 28.6mm, and 31.8mm.
- Tighten the screws securely to prevent movement during riding.
Figure 5: Display mounted on a handlebar, demonstrating adjustable fit.
5.2 Кабелдерди туташтыруу
- Identify the display's cable connector (either 5-Pin or 6-Pin).
- Locate the corresponding connector on your Ebike's controller or wiring harness.
- Carefully align and connect the display cable to the Ebike's system. Ensure a firm connection.
Video 1: This video demonstrates the physical installation and initial power-on sequence of the Mcezdy Ebike Display, including mounting and cable connections.
6. Иштөө нускамалары
Familiarize yourself with the display's controls and functions.
6.1 Күйгүзүү/өчүрүү
- Күйгүзүү үчүн: Press and hold the power button (usually marked with a power symbol) on the control pad for a few seconds until the display illuminates.
- Өчүрүү үчүн: Дисплей өчмөйүнчө кубат баскычын кайра басып, кармап туруңуз.
6.2 Switching Assistance Modes (PAS Levels)
Use the '+' and '-' buttons on the control pad to adjust the pedal assist (PAS) level. Higher numbers indicate more motor assistance.
6.3 Toggling Display Parameters
Briefly press the power button to cycle through different display parameters such as Trip Distance, Odometer (ODO), Max Speed, Average Speed, Range, Calorie Consumption, and Cadence.
6.4 App Connection (Bluetooth)
The M5C-2 display supports Bluetooth connectivity for integration with cycling applications. This allows you to record routes, track stats, and potentially adjust settings via your smartphone.
- Download the recommended cycling app (e.g., 'LINGHUI' as indicated in product images) from your smartphone's app store.
- Смартфонуңузда Bluetooth иштетилгенин текшериңиз.
- Power on the Ebike display.
- Open the cycling app and follow the in-app instructions to connect to your M5C-2 display.
Video 2: This video demonstrates the Bluetooth connection process between the Mcezdy Ebike Display and a smartphone application.
Figure 6: Smartphone app interface for M5C-2 display.
7. Өркүндөтүлгөн жөндөөлөр
The display allows for customization of various parameters to suit your riding preferences.
7.1 Accessing the Main Menu
To enter the main menu, press and hold the '+' and '-' buttons simultaneously for a few seconds. Navigate through the menu using the '+' and '-' buttons, and confirm selections with the power button.
7.2 Customizable Parameters (Exampа)
- Колесен Диаметри: Adjust for accurate speed and distance readings.
- Ылдамдыктын чеги: Set the maximum assisted speed according to local regulations or personal preference.
- Жарыктык: Дисплейдин арткы жарыгынын интенсивдүүлүгүн тууралаңыз.
- Автоматтык өчүрүү убактысы: Configure the time before the display automatically shuts off due to inactivity.
- Бирдикти тандоо: Метрикалык (км/саат) жана империялык (миль/саат) бирдиктеринин ортосунда которулуңуз.
- Сапарды баштапкы абалга келтирүү: Reset trip distance data.
8. Техникалык тейлөө
Туура тейлөө дисплейиңиздин узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.
- Тазалоо: Wipe the display screen with a soft, damp кездеме. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Суу таасири: While IPX65 rated for water resistance, avoid prolonged submersion or high-pressure water jets. Ensure the Type-C charging port cover is securely closed when not in use.
- Сактагыч: Store the Ebike and display in a dry, cool place away from direct sunlight when not in use.
- Кабелдик текшерүү: Бардык кабелдерди жана туташтыргычтарды эскирүүнүн, бузулуунун же бош байланыштардын белгилерин мезгил-мезгили менен текшерип туруңуз.
9. Кыйынчылыктарды
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
9.1 Дисплей күйбөй жатат
- Ensure the Ebike battery is charged and properly connected.
- Check all cable connections between the display and the controller for looseness or damage.
- Verify that the power button is being pressed and held for the required duration.
9.2 Incorrect Speed/Distance Readings
- Access the advanced settings menu and verify that the wheel diameter is correctly set for your Ebike.
- Ensure the speed sensor on your Ebike is properly installed and functioning.
9.3 Displaying Error Codes
If the display shows an error code, refer to the 'Fault Code Description' document included with your product for specific meanings and troubleshooting steps. Common issues may include motor, controller, or sensor malfunctions.
9.4 Bluetooth туташуу маселелери
- Ensure the display is powered on and within range of your smartphone.
- Дисплейди да, смартфонуңузду да өчүрүп-күйгүзүңүз.
- Check the app's settings to ensure it has permission to use Bluetooth.
10. Кепилдик жана колдоо
The Mcezdy M5C-2(BLE)-6-Pin Ebike LCD Display comes with a 1 жылдык Өндүрүүчүнүн Кепилдиги.
For technical support, warranty claims, or further assistance, please contact Mcezdy customer service through the retailer where you purchased the product or visit the official Mcezdy webсайт.
