YASHE SJ-2040-1 Vacuum Sealer Instruction Manual

1. Киришүү

Thank you for choosing the YASHE SJ-2040-1 Vacuum Sealer. This appliance is designed to preserve food freshness up to 6 times longer than traditional storage methods, reducing food waste and saving you money. It is ideal for meal preparation, bulk purchases, and sous vide cooking. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance of your device.

The YASHE vacuum sealer shown with various fresh foods and a vacuum-sealed salmon fillet, demonstrating its primary function.

2. Коопсуздук нускамалары

Сураныч, жаракаттарды же зыяндарды болтурбоо үчүн шайманды колдонуудан мурун бардык коопсуздук нускамаларын кылдат окуп чыгыңыз.

• Шайманды бузулган электр шнуру же сайгыч менен иштетпеңиз.
• Шайманды суудан же башка суюктуктардан алыс кармаңыз. Агрегатты сууга батырбаңыз.
• Бул шайман физикалык, сезүү же акыл-эс мүмкүнчүлүктөрү чектелүү же тажрыйбасы жана билими жок адамдар тарабынан колдонууга арналбайт, эгерде аларга көзөмөл же көрсөтмө болбосо.
• Тазалоодон мурун жана шайманды розеткадан сууруп алыңыз.
• Use only YASHE recommended accessories and bags.
• Шайманды сыртта колдонбоңуз.
• Тазалоодон же сактоодон мурун шайманды муздатып алыңыз.
• Do not wash the appliance immediately after overheating.

3. Пакеттин мазмуну

Таңгактан чыгаргандан кийин, бардык буюмдар бар экенин жана жакшы абалда экендигин текшериңиз:

• 1 x YASHE Vacuum Sealer Unit
• 5 x BPA-free Vacuum Bags (20 x 30 cm)
• 1 x Кубат кабели
• 1 x User Manual

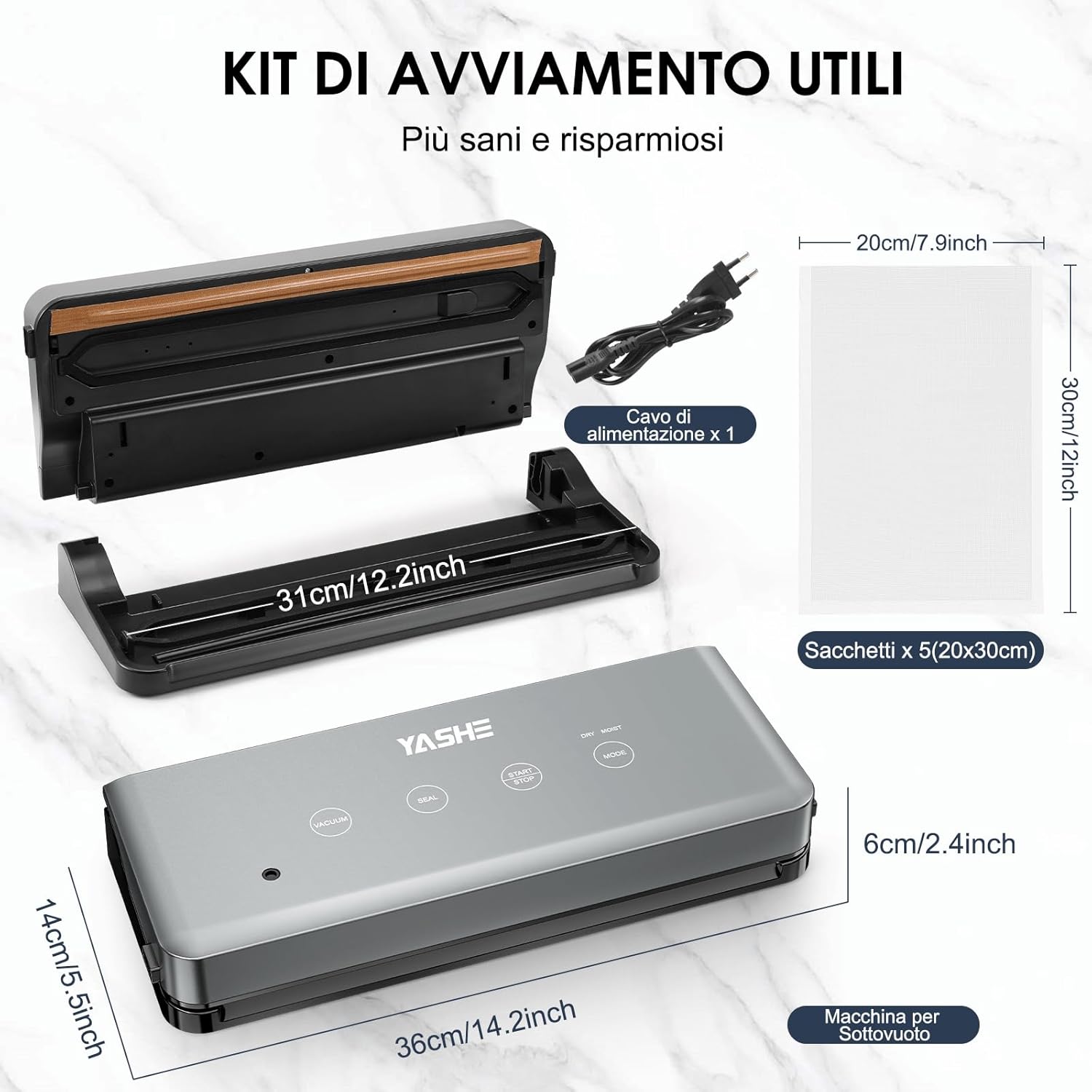

Image displaying the complete starter kit: the vacuum sealer unit, 5 BPA-free vacuum bags (20x30cm), and the power cable. Dimensions of the unit are also shown: 36cm length, 14cm width, 6cm height.

4. Продукт бүтүп калдыview

The YASHE SJ-2040-1 Vacuum Sealer features a compact design and intuitive controls for efficient food preservation.

Diagram illustrating the five functions and control buttons:

• ВАКУУМ: Manually controls the vacuum process.
• Мөөр: Seals only, without vacuum.
• DRY/MOIST: Selects mode for dry or moist foods.
• РЕЖИМ: Toggles between Dry and Moist modes.
• БАШТОО / ТОКТОТУУ: Initiates or halts the vacuum and sealing process.
• External Suction Port: For use with external vacuum accessories.

5. Орнотуу

1. Unpack the vacuum sealer and all accessories.
2. Place the unit on a flat, stable, and dry surface.
3. Ensure the power cable is securely connected to the unit and a suitable power outlet (230V).
4. Prepare your food and place it into a vacuum sealer bag, leaving at least 7-10 cm of space from the top edge for sealing.

6. Иштөө нускамалары

The YASHE vacuum sealer offers 5 essential functions for optimal food preservation.

A banner image showing the YASHE vacuum sealer on a kitchen counter with various foods like sliced oranges, meat, and corn, illustrating the preparation for sealing.

6.1. Basic Vacuum Sealing Steps

A visual guide showing four steps for vacuum sealing:

1. 1-кадам: Press the 'Release' button (if present, or unlatch side clips) and open the lid of the vacuum sealer.
2. 2-кадам: Insert the open end of the vacuum bag into the vacuum chamber, ensuring it lies flat and covers the vacuum nozzle.
3. 3-кадам: Lower the lid and press down firmly on both sides until you hear two 'clicks', indicating it is securely locked.
4. 4-кадам: Select the desired mode (Dry or Moist) and press the 'START/STOP' button to begin the vacuum and sealing process. The machine will automatically stop once complete.

6.2. 5-in-1 Multifunction Modes

A graphic highlighting the 5-in-1 intelligent automatic vacuum and sealing functions.

• КУРГАК режими: Ideal for dry foods such as nuts, cereals, and crackers. The machine automatically adjusts the sealing time for optimal results.
• НЫМДУУ режим: Suitable for moist foods like raw meat, fish, and fruits. This mode adjusts the sealing time to handle moisture, preventing incomplete seals.
• VACUUM (Manual Control): For delicate or soft foods like bread or pastries. Press and hold the 'VACUUM' button until the desired air removal is achieved, then press 'SEAL' to stop vacuuming and seal the bag. If liquid is drawn out, perform the sealing process twice: after the first 'Seal', press 'Seal' again.
• SEAL Only: Use this function to seal bags without vacuuming, perfect for snacks or creating custom-sized bags from a roll. Press the 'SEAL' button, and the machine will create a seal.
• Тышкы вакуум: This mode allows you to vacuum seal external containers, jars, or wine bottles using an accessory hose (not included). Connect the hose to the external suction port on the machine and the accessory, then select the appropriate mode or press 'VACUUM'.

Instructions for manual vacuum mode: Choose Vacuum mode for soft and moist foods. For soft foods, press and hold 'Vacuum' until desired vacuum is reached, then press 'Seal'. For moist foods, press and hold 'Vacuum' until liquid is drawn out, then release 'Vacuum' and press 'Seal'. If liquid was pumped out, perform the sealing process twice: after the first 'Seal', press 'Seal' again. Examples include marinated foods, raw meat, bread, and berries.

Image showing the external vacuum function being used with a food container and a wine bottle, indicating that the flexible tube is not included. Also shows use with a zipper bag.

7. Food Preservation Guidelines

Vacuum sealing significantly extends the shelf life of various foods. Refer to the table below for estimated preservation times.

A detailed table comparing the shelf life of various food types (Meat, Seafood, Vegetables, Fruit, Bread) at room temperature, with YASHE vacuum sealing, and with YASHE vacuum sealing plus freezing/refrigeration.

Note: These are estimated times. Actual preservation may vary based on food quality, preparation, and storage conditions.

8. Техникалык тейлөө жана тазалоо

Regular cleaning ensures the longevity and hygienic operation of your vacuum sealer.

1. Агрегатты сууруп алыңыз: Тазалоодон мурун, шаймандын розеткадан суурулганын ар дайым текшериңиз.
2. Clean the Sealing Strip: Wipe the sealing strip and vacuum chamber with a damp кездеме жана жумшак самын. кылдат кургатуу.
3. Алынуучу база: The YASHE vacuum sealer features a removable base for easy cleaning. Detach the base and rinse it under running water. Ensure it is completely dry before reattaching.
4. Тышкы тазалоо: Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
5. Кургатуу: Сактоодон же кийинки колдонуудан мурун бардык бөлүктөр толугу менен кургак экенин текшериңиз.

Маанилүү: Do not wash the appliance immediately after overheating. Allow it to cool down completely.

Image demonstrating the removable base of the vacuum sealer being easily detached and rinsed under water for cleaning.

9. Кыйынчылыктарды

If you encounter issues with your YASHE vacuum sealer, refer to the following common problems and solutions:

10. Техникалык шарттар

11. Кепилдик жана колдоо

The YASHE SJ-2040-1 Vacuum Sealer includes a 1-year worry-free warranty. For any questions, concerns, or technical support, please contact YASHE customer service. Your satisfaction is our priority.

Please refer to your purchase documentation or the YASHE official webконкреттүү байланыш маалыматы үчүн сайт.
