Kidsneed KN70V2

Kidsneed Baby Car Camera System User Manual

Model: KN70V2

1. Киришүү

The Kidsneed Baby Car Camera System (Model KN70V2) is designed to provide parents with a clear and continuous view of their child in the rear seat while driving. This system enhances safety by eliminating the need to turn around, allowing drivers to focus on the road. Featuring a 7-inch HD 1080P display and a 360-degree rotatable camera, it offers comprehensive monitoring capabilities for infants, toddlers, or even pets in the back of your vehicle.

Kidsneed Baby Car Camera System with 7-inch monitor and camera

Figure 1: Kidsneed Baby Car Camera System components, including the 7-inch monitor and the rear-facing camera.

2. Продукциянын өзгөчөлүктөрү

The Kidsneed Baby Car Camera System is equipped with several features to ensure optimal monitoring and ease of use:

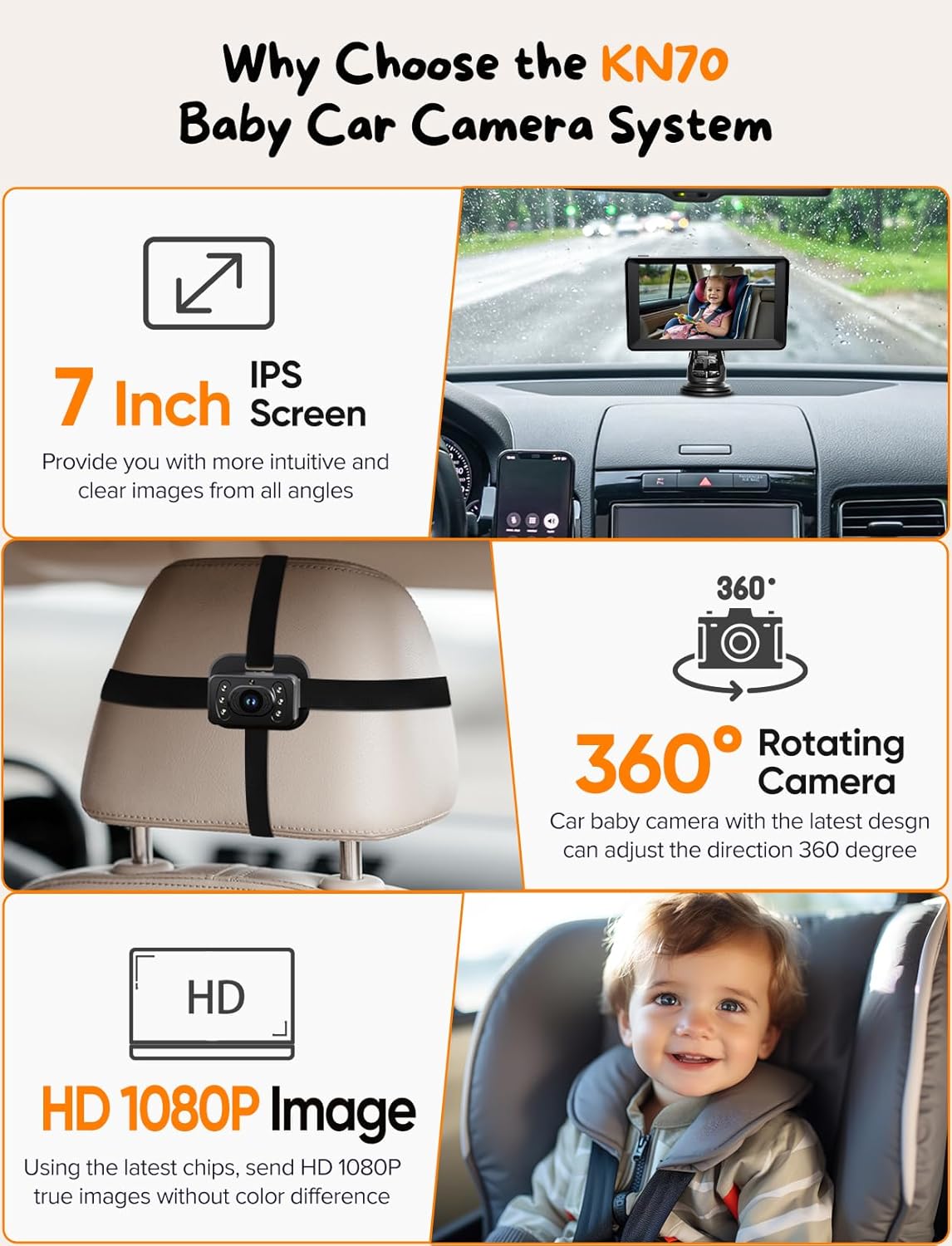

Diagram showing key features of Kidsneed KN70 Baby Car Camera System

Figure 2: ашыкview of key product features including 7-inch IPS screen, 360-degree rotating camera, and HD 1080P image quality.

Comparison of 7-inch 1080P IPS display versus a smaller 5-inch 720P LCD display

Figure 3: Visual comparison highlighting the superior clarity and size of the 7-inch 1080P IPS display.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

4. Орнотуу жана орнотуу

Тез жана оңой орнотуу үчүн бул кадамдарды аткарыңыз:

  1. Камераны орнотуу: Secure the baby car camera to the rear headrest using the provided strong Velcro straps. Ensure the camera has a clear view балаңыздан.
  2. Adjust the Camera: Rotate the camera 360 degrees to achieve the optimal viewпозиция.
  3. Кабелди туташтыруу: Connect the camera cable to the monitor. Ensure the triangular slots align for proper connection.
  4. Мониторду орнотуу: Attach the monitor to your dashboard or windshield using the sturdy suction cup mount. Press firmly to ensure it is secure.
  5. Системаны кубат: Plug the power cable into your car's cigarette lighter socket or use the USB power cable for alternative power sources.
  6. Дисплейди күйгүзүңүз: Once powered, the display should automatically turn on, showing the camera feed.
Step-by-step guide for easy installation of the baby car camera system

Figure 4: Visual guide demonstrating the simple 2-minute installation process.

Detailed steps for installing the camera, connecting cables, and powering the monitor

Figure 5: Six-step installation process, from camera placement to turning on the display.

Жакын план view of aligning triangular slots for secure cable connection

Figure 6: Proper alignment of triangular slots for connecting the camera cable to the monitor cable.

4.1. Электр схемасы

The system is designed for flexible installation, accommodating various car seat positions and vehicle types.

Wiring diagram showing camera and monitor connection to cigarette lighter in different car setups

Figure 7: Illustrates how the baby car camera and monitor connect to the car's power source, suitable for various vehicle types.

4.2. Монтаждоо параметрлери

The monitor can be securely mounted in two primary ways:

Images showing the monitor mounted on the dashboard and windshield

8-сүрөт: Мисamples of the monitor mounted on the dashboard and windshield, demonstrating flexibility.

Visual representation of two mounting options for the monitor: dashboard and windshield

Figure 9: Depicts the two main mounting options for the monitor, highlighting the 360-degree rotation capability of the bracket.

5. Иштөө нускамалары

Once installed and powered, the Kidsneed Baby Car Camera System operates automatically. The monitor will display the camera feed.

Comparison of night vision with and without harsh lights, showing the 940nm IR technology

Figure 10: Demonstration of the 940nm IR night vision, which provides clear images without harsh, visible lights.

Image showing a baby sleeping in a car seat with a clear view from the upgraded 940nm night vision camera

Figure 11: Illustrates the effectiveness of the new upgraded 940nm night vision in a dark car interior.

Two children in car seats, showing the wide 150-degree viewing angle of the cameras

Figure 12: Demonstrates the wide 150-degree viewing angle, capable of monitoring two children simultaneously.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your Kidsneed Baby Car Camera System, follow these maintenance guidelines:

7. Кыйынчылыктарды

If you encounter issues with your Kidsneed Baby Car Camera System, refer to the following common problems and solutions:

КөйгөйМүмкүн себепЧечим
Экранда сүрөт жок
  • Электр кабели туташкан жок
  • Cigarette lighter socket not active
  • Camera cable loose or disconnected
  • Электр кабели бекем сайылганын текшериңиз.
  • Check if the car's ignition is on or try another power outlet.
  • Verify camera cable is firmly connected to the monitor.
Сүрөт бүдөмүк же так эмес
  • Камеранын линзасы кир
  • Camera is not focused or positioned correctly
  • Gently clean the camera lens with a soft cloth.
  • Adjust the camera's angle and position for a clearer view.
Monitor keeps falling off dashboard/windshield
  • Suction cup not properly secured
  • Бети кир же жылмакай эмес
  • Ensure the suction cup is clean and the surface is clean and dry before attaching.
  • Press firmly on the suction cup lever to create a strong seal.
Түнкү көрүнүш иштебейт
  • Insufficient darkness for auto-activation
  • Camera obstruction
  • Ensure the environment is dark enough for the automatic night vision to engage.
  • Камеранын ишине тоскоолдук кылган нерселердин бар-жогун текшериңиз view or IR sensors.

8. Техникалык шарттар

ӨзгөчөлүкДеталь
Модель номериKN70V2
Дисплей өлчөмү7 дюйм
Display Resolution1080P AHD
Түнкү көрүнүш940nm IR (Invisible Infrared)
Камераны айландыруу360 градус
Power SourceCigarette Lighter / USB
Пакеттин өлчөмдөрү7.5 x 4.75 x 4.75 дюйм
Элемент Салмагы1.6 фунт
ӨндүрүүчүKidsneed

9. Кепилдик жана колдоо

Kidsneed products are manufactured with quality and reliability in mind. For specific warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Kidsneed webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

For technical assistance or inquiries, please contact Kidsneed customer service through the contact information provided on their official webсайт же продукт таңгак.
