1. Киришүү
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Alienware Aurora R16 Gaming Desktop. Please read this manual thoroughly before using your system to ensure optimal performance and longevity.
Figure 1.1: Alienware Aurora R16 Gaming Desktop with included keyboard and mouse.
The Alienware Aurora R16 features the new Legend 3 design, focusing on minimalism and functionality while optimizing for any desktop gaming setup.
Figure 1.2: The Alienware Aurora R16's Legend 3 design emphasizes a minimalist and functional aesthetic.
2. Кутуда эмне бар
Таңгакта бардык компоненттер бар экенин текшериңиз:
- Alienware Aurora R16 оюн иш тактасы
- Электр кабели
- Баскычтоп
- Чычкан
- Документтер (Ыкчам баштоо колдонмосу, коопсуздук маалыматы)
If any items are missing or damaged, contact Alienware support immediately.
3. Баштапкы орнотуу
Follow these steps to set up your Alienware Aurora R16 Desktop:
- Системаны ачып алыңыз: Этияттык менен анын кутусунан иш тактасын алып салыңыз.
- Перифериялык түзүлүштөрдү туташтыруу:
- Connect your monitor(s) to the appropriate display ports (DisplayPort, HDMI) on the graphics card.
- Connect the keyboard and mouse to available USB ports.
- Динамиктер, гарнитуралар же тышкы дисктер сыяктуу башка перифериялык түзүлүштөрдү туташтырыңыз.
Figure 3.1: Rear I/O ports for connecting display, USB devices, and audio.
Figure 3.2: Front I/O ports including USB 3.2 Gen 1, USB 3.2 Gen 2 Type-C, and headphone/line out.
- Кубатка туташуу: Plug the power cable into the power supply unit on the back of the desktop, then plug the other end into a wall outlet or surge protector.
- Күйгүзүү: Press the power button located on the front of the desktop. The system will boot up and guide you through the Windows 11 Pro initial setup.
4. Иш тактаңызды иштетүү
4.1 Биринчи жүктөө жана Windows орнотуу
Upon first power-on, the system will guide you through the Windows 11 Pro setup process. Follow the on-screen instructions to configure your region, language, network settings, and user account.
4.2 Alienware башкаруу борбору
The Alienware Command Center software allows you to customize your system's performance profiles, monitor thermals, and manage lighting effects. This software is pre-installed and can be accessed from the Windows Start Menu.
Figure 4.1: Alienware Command Center interface for system customization.
4.3 Аткаруу жана оюн
Your Alienware Aurora R16 is equipped with a 14th Gen Intel Core i9-14900KF processor and NVIDIA GeForce RTX 4080 SUPER graphics, designed for high-performance gaming and demanding applications. Ensure your graphics drivers are up to date for optimal performance.
Figure 4.2: The Alienware Aurora R16 is designed for immersive gaming experiences.
Сүрөт 4.3: Мурункуample of a complete gaming setup featuring the Alienware Aurora R16.
5. Техникалык тейлөө
5.1 Тазалоо
Regular cleaning helps maintain system performance and longevity:
- Use a soft, lint-free cloth to wipe down the exterior of the desktop.
- For dust accumulation in vents, use compressed air. Ensure the system is powered off and unplugged before cleaning.
- Суюк тазалагычтарды түздөн-түз компоненттерге колдонуудан алыс болуңуз.
5.2 Аба агымы жана муздатуу
The Aurora R16 features an optimized airflow design and a 240mm liquid CPU cooler to ensure efficient thermal management. Ensure the desktop is placed in a well-ventilated area and that air vents are not obstructed.
Figure 5.1: Optimized internal design for efficient airflow and cable management.

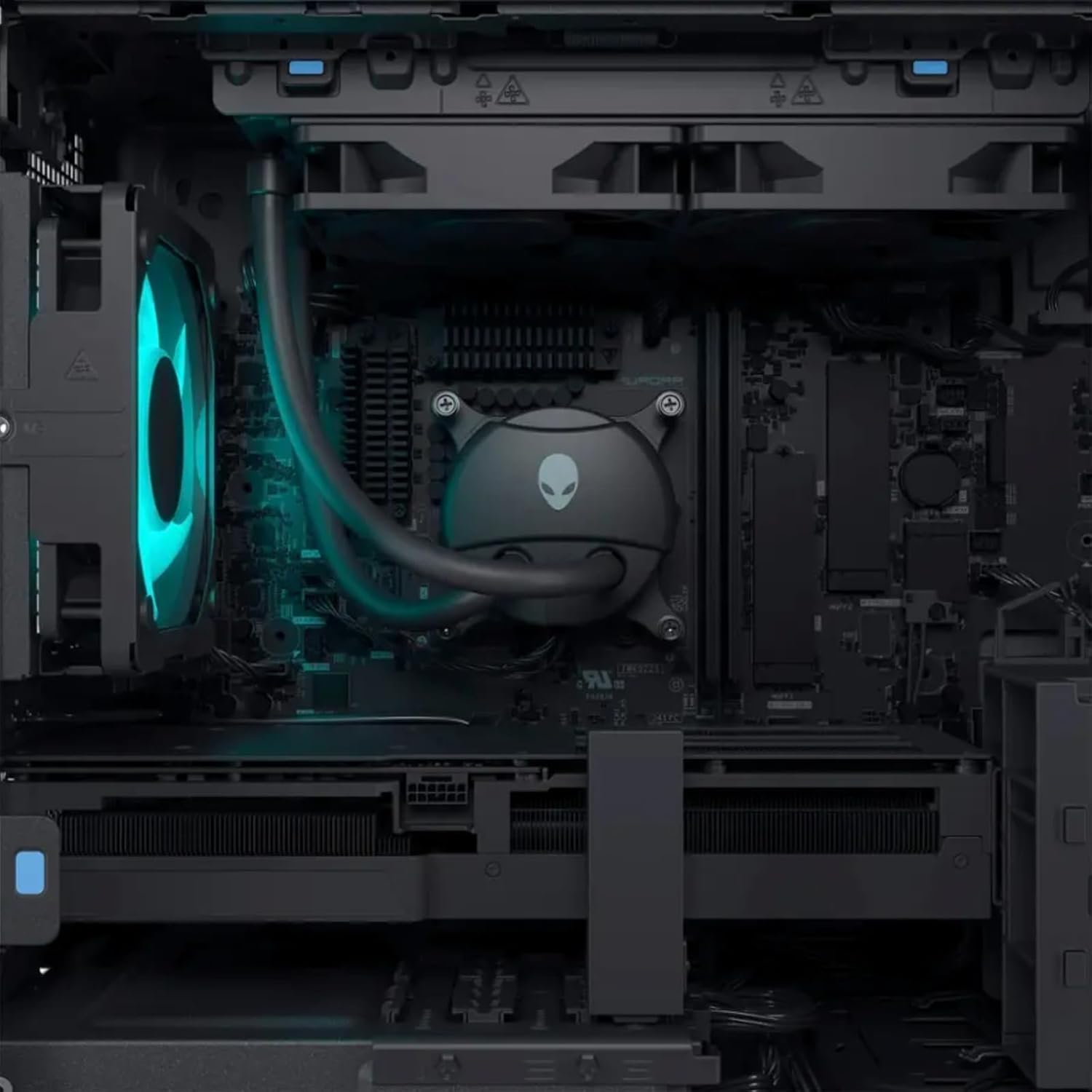

5.2-сүрөт: Ички view highlighting the liquid CPU cooling system and other components.
5.3-сүрөт: жогорудан ылдыйга view of the internal layout, showing components and fan.
Figure 5.4: Angled internal view, providing a clearer look at the internal structure.
6. Кыйынчылыктарды
This section provides solutions to common issues. For more complex problems, refer to the Alienware support webсайтка же техникалык колдоо менен байланышыңыз.
| Көйгөй | Мүмкүн чечим |
|---|---|
| Система күйбөйт. |
|
| Монитордо дисплей жок. |
|
| System is running slow or freezing. |
|
| Peripheral (keyboard/mouse) not responding. |
|
7. Техникалык шарттар
Detailed technical specifications for the Alienware Aurora R16 Gaming Desktop:
| Компонент | Спецификация |
|---|---|
| Процессор | 14th Gen Intel Core i9-14900KF (24 Cores, 32 Threads, up to 6 GHz) |
| Графикалык карта | NVIDIA GeForce RTX 4080 SUPER 16GB GDDR6X |
| RAM | Up to 64GB DDR5 RAM (5600MHz) |
| Сактагыч | Up to 8TB SSD + 2TB HDD |
| Операция системасы | Windows 11 Pro |
| Зымсыз байланыш | Wi-Fi 6E (802.11ax), Bluetooth |
| CPU Cooling System | Liquid Cooling (240mm) |
| GPU Cooling System | Аба муздатуу |
| Дисплей порттору | 4 x DisplayPort 1.4, 1 x Mini DisplayPort (Total 5 DisplayPort Outputs) |
| USB порттору | 3 x USB-C 3.2, 5 x USB-A 3.2, 4 x USB-A 2.0 (Total 12 USB Ports) |
| Өлчөмдөрү (HxWxD) | 7.76 x 18.05 x 16.5 дюйм |
| Салмагы | 33.89 фунт |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
Your Alienware Aurora R16 Gaming Desktop comes with a standard manufacturer's warranty. For detailed terms and conditions, including warranty duration and coverage, please refer to the warranty documentation included with your product or visit the official Alienware support webсайт.
8.2 Техникалык колдоо
For technical assistance, driver downloads, or further troubleshooting, please visit the official Alienware support webсайтына кириңиз же алардын кардарларды тейлөө кызматына кайрылыңыз. Колдоо кызматына кайрылганда продуктуңуздун сериялык номерин даярдап коюңуз.
Alienware колдоосу Webсайт: support.dell.com/alienware
