Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Teka RBF 78785 FI Total No Frost Integrated Combi Refrigerator. Please read these instructions carefully before using the appliance and retain them for future reference.

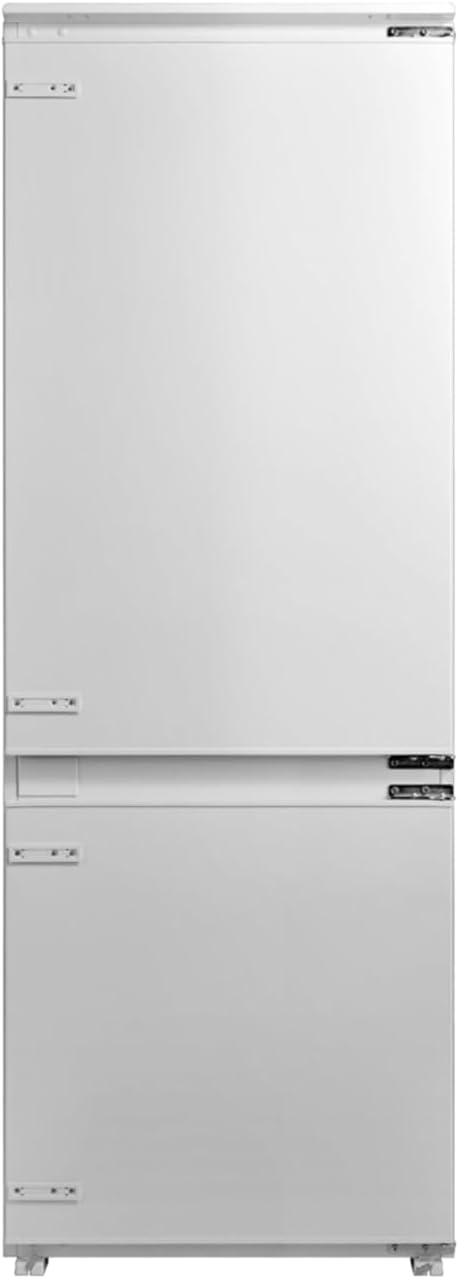

Image 1: Teka RBF 78785 FI Integrated Combi Refrigerator with closed doors, designed for seamless integration into kitchen cabinetry.
Коопсуздук маалыматы
Коопсуз иштөө үчүн төмөнкү сактык чараларын сактаңыз:
- Колдонуудан мурун шайман туура жерге туташтырылганын текшериңиз.
- Муздаткычтын схемасын бузбаңыз.
- Электр приборлорун тамак -аш сактоочу бөлүктөрдүн ичинде, эгерде алар өндүрүүчү сунуштаган типте болбосо, колдонбоңуз.
- Вентиляция тешиктерин тоскоолдуктардан алыс кармаңыз.
- Бул шайман тиричиликте гана колдонууга арналган.
- Бул шаймандын ичинде күйүүчү от жагылуучу аэрозолдук кутулар сыяктуу жарылуучу заттарды сактабаңыз.
- Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
Продукт өзгөчөлүктөрү
The Teka RBF 78785 FI refrigerator is designed with advanced features for optimal food preservation and user convenience:
- Total No Frost Technology: Prevents ice build-up in both the refrigerator and freezer compartments, eliminating the need for manual defrosting and maintaining optimal food freshness.
- Electronic Thermostat and Interior Control Display: Allows for precise temperature adjustment and monitoring within the appliance.
- VitaCare Box Drawers: Two specialized drawers designed to maintain ideal humidity levels for fruits and vegetables, extending their freshness.
- LED ички жарыктандыруу: Provides bright, energy-efficient illumination for clear visibility of contents.
- Берешен кубаттуулугу: A total net capacity of 403 liters, including 150 liters for the freezer, suitable for large households.
- Safety Glass Shelves: Five durable and easy-to-clean glass shelves in the refrigerator compartment.
- Reversible Doors with Easy 90º Opening: Offers flexibility in installation and allows for full access to drawers even when the door is only partially open.
- Акустикалык ойготкуч: Notifies the user if a door is left open, helping to maintain internal temperature and save energy.
- Energy Efficiency Class D: Натыйжалуу энергия керектөө үчүн иштелип чыккан.

Сүрөт 2: Интерьер view of a Teka refrigerator, illustrating the arrangement of safety glass shelves and VitaCare Box drawers for organized storage.
Орнотуу жана орнотуу
This appliance is designed for total integration into kitchen cabinetry. Professional installation is recommended.
- Пакеттен чыгаруу: Бардык таңгактоочу материалдарды кылдаттык менен алып салыңыз. Шайманда кандайдыр бир бузулуулар бар экенин текшериңиз.
- Жайгашкан жери: Position the refrigerator in its designated cabinet space, ensuring adequate ventilation around the unit.
- Түздөө: Adjust the integrated feet to ensure the appliance is perfectly level. This is crucial for proper door alignment and efficient operation.
- Эшиктин Reversibility: The doors are reversible. If you need to change the door opening direction, consult a qualified technician or the detailed installation guide provided with the product. The Easy 90º opening feature allows for full drawer access even in tight spaces.
- Sliding Installation: The appliance features a sliding installation system for attaching the refrigerator doors to your cabinet doors. Follow the specific instructions provided in the full installation manual for this process.
- Электр байланышы: Шайманды туура жерге туташтырылган электр розеткасына туташтырыңыз. Voltage техникалык маалымат тактасындагы спецификацияларга дал келет.
- Алгачкы операция: After installation, wait at least 4 hours before plugging in the appliance to allow refrigerants to settle.
Иштөө нускамалары
1. Температураны көзөмөлдөө
The refrigerator features an interior control display and an electronic thermostat for precise temperature management.
- Locate the control panel inside the refrigerator compartment.
- Use the designated buttons to adjust the desired temperature for both the refrigerator and freezer sections. Refer to the full manual for specific button functions.
- Recommended refrigerator temperature is between 2°C and 5°C (36°F and 41°F).
- Recommended freezer temperature is -18°C (-0.4°F).
2. Тамак-аш сактоочу жай
- Муздаткыч бөлүм: Utilize the five safety glass shelves for general food items. The door shelves are suitable for bottles and smaller items.
- VitaCare Box Drawers: Store fruits and vegetables in the two VitaCare Box drawers. These drawers are designed to maintain optimal humidity, preserving freshness longer.
- Тоңдургуч бөлүм: Use the two freezer drawers for frozen foods. Ensure packages are sealed to prevent freezer burn.
- Жалпы үшүк жок: Due to the Total No Frost system, manual defrosting is not required.
3. LED жарыктандыруу
The interior LED lighting activates automatically when the refrigerator door is opened, providing clear visibility.
Техникалык тейлөө
1. Тазалоо
- Тазалоодон мурун шайманды розеткадан ажыратыңыз.
- Ички жана тышкы беттерди жумшак чүпүрөк жана жумшак жуучу каражаттын эритмеси менен тазалаңыз. Абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз.
- Wipe down shelves and drawers regularly. These can be removed for easier cleaning.
- Clean the door seals with warm soapy water to ensure a tight seal.
- Periodically clean the condenser coils at the back or bottom of the appliance (if accessible) to maintain efficiency. Use a soft brush or vacuum cleaner.
2. Эритүү
This appliance features Total No Frost technology, meaning manual defrosting of the refrigerator and freezer compartments is not necessary.
3. Long Periods of Non-Use
- If the appliance will not be used for an extended period, unplug it.
- Empty and clean both compartments thoroughly.
- Жыттар жана көктүн пайда болушуна жол бербөө үчүн эшиктерди бир аз ачык калтырыңыз.
Проблемаларды чечүү
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди текшериңиз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман иштебейт. | Электр энергиясы жок; сайгыч туура эмес салынды; сактагыч жарылган. | Check power connection; check household fuse box. |
| Температура жетиштүү суук эмес. | Door not closed properly; frequent door opening; large amount of warm food added; thermostat setting too high; poor ventilation. | Ensure door is sealed; avoid frequent opening; allow food to cool before storing; adjust thermostat to a lower setting; ensure adequate space around the appliance for ventilation. |
| Ашыкча ызы-чуу. | Appliance not level; contact with other objects; normal operating sounds. | Adjust leveling feet; ensure appliance is not touching walls or cabinets; gurgling/humming sounds are normal for refrigeration systems. |
| Жерде суу. | Дренаждык тешик бүтөлүп калган; конденсация. | Clear the drain hole (usually at the back of the refrigerator compartment); condensation is normal, especially in humid conditions, ensure doors are closed properly. |
| Acoustic alarm sounds. | Эшик ачык калды. | эшикти бекем жаап. |
Техникалык шарттар
| Бренд | Тека |
| Модель номери | RBF 78785 FI |
| Конфигурация | Combi (Refrigerator with bottom freezer) |
| Жалпы кубаттуулугу | 403 литр |
| Тоңдургучтун кубаттуулугу | 150 литр |
| Өлчөмдөрү (W x D x H) | 55 см х 69 см х 195.3 см |
| Салмагы | 91 кг |
| Энергия эффективдүүлүгү классы | D |
| Эритүү системасы | Автоматтык (жалпы үшүксүз) |
| Эшиктердин саны | 2 |
| Түс | Ак |
| Тtage | 50.0 (Hz - assumed) |
| Өндүрүүчү | Teka Industrial |
| Келип чыккан өлкө | Испания |
Кепилдик жана колдоо
For warranty information, technical support, or service requests, please refer to the warranty card included with your appliance or visit the official Teka webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
Кутуда эмне бар:
- Teka RBF 78785 FI Refrigerator Unit
- Колдонуучунун Колдонмосу (бул документ)
- Кепилдик картасы
- Installation Accessories (e.g., sliding hinges, adjustable feet)
