Mellif Cordless Snow Shovel (Model CXJ) Instruction Manual

1. Продукт бүтүп калдыview

The Mellif Cordless Snow Shovel is a powerful and lightweight solution for efficient snow removal. Designed for compatibility with DeWalt 20V MAX batteries, this 12-inch brushless snow blower is ideal for clearing driveways, sidewalks, patios, and decks. It features a high-efficiency brushless motor, an adjustable chute, and a robust design for reliable performance in harsh winter conditions.

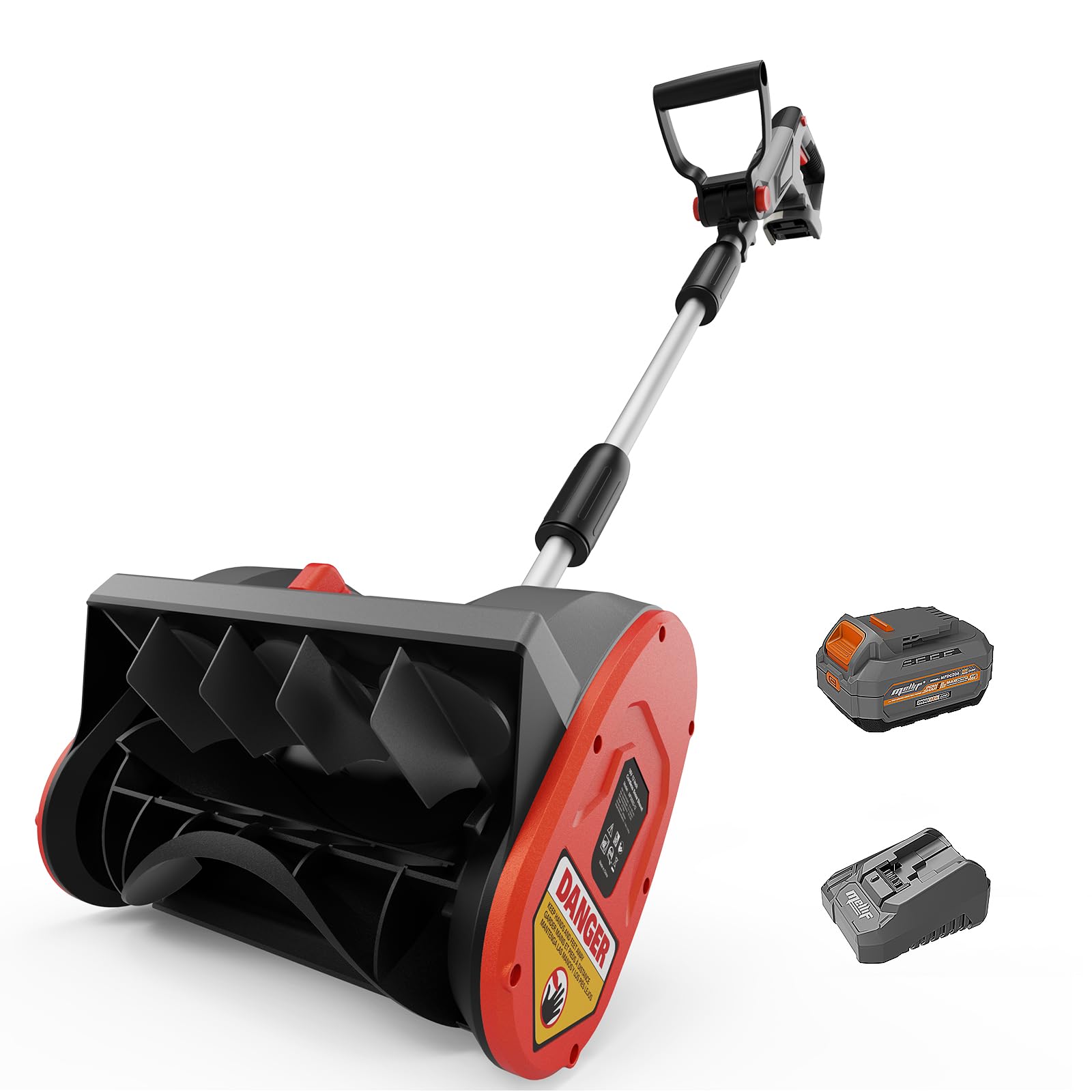

Figure 1: Mellif Cordless Snow Shovel with included 4.0Ah battery and charger kit.

2. Орнотуу

2.1 Кутудан чыгаруу жана чогултуу

Upon unboxing, ensure all components are present: the main snow shovel unit, handle sections, 4.0Ah lithium battery, and fast charger. The detachable design allows for simple assembly and compact storage. Connect the handle sections securely, ensuring electrical connections are properly aligned and tightened. The auxiliary handle can be adjusted to several locking positions for optimal comfort.

2.2 Батареяны заряддоо

The included 4.0Ah lithium battery comes with a fast charger. Before first use, fully charge the battery. The built-in smart chip provides over-voltage and over-current protection. Always ensure the battery is fully charged for optimal performance, especially in cold conditions.

Figure 2: The 4.0Ah lithium battery and fast charger included with the Mellif snow shovel.

3. Иштөө нускамалары

3.1 Powering On and Safety

To operate the snow shovel, ensure the battery is securely inserted. The unit features a dual safety switch for comfortable and safe operation. Press the safety button and then pull the trigger to activate the brushless motor. Release the trigger to stop the unit.

3.2 Кар тазалоо ыкмалары

The Mellif snow shovel provides a 12-inch clearing width and a 6-inch clearing depth, throwing snow up to 17 feet. For best results, push the shovel steadily through the snow. The 60° adjustable chute allows you to control the snow discharge direction (left, right, or straight) with ease.

Figure 3: Demonstrating the 12-inch clearing width and 6-inch clearing depth of the snow shovel.

Figure 4: The snow shovel effectively throws snow up to 17 feet, allowing for efficient clearing.

3.3 Performance in Cold Weather

This snow blower is built for harsh winters, delivering reliable performance even in extreme cold down to -20°C (-4°F). The stable motor output ensures consistent operation in freezing temperatures.

Figure 5: The Mellif snow shovel maintains stable motor output and reliable performance in temperatures as low as -20°C.

4. Техникалык тейлөө

4.1 Тазалоо жана сактоо

After each use, ensure the snow shovel is clean and free of snow and debris. The detachable design allows for simple storage. Store the unit in a dry, protected area. Remove the battery before storing for extended periods.

Figure 6: The lightweight and detachable design of the snow shovel makes it easy to store in compact spaces.

4.2 Батареяга кам көрүү

Always charge the battery in a well-ventilated area. Avoid exposing the battery to extreme temperatures. If the battery will not be used for a long period, store it in a cool, dry place with a partial charge.

5. Кыйынчылыктарды

5.1 Unit Not Starting

• Батарея толук заряддалганын жана туура салынганын текшериңиз.
• Ensure both the safety switch and trigger are engaged simultaneously.

5.2 Төмөнкү өндүрүмдүүлүк

• Verify the battery is fully charged.
• Clear any snow or ice obstructions from the auger area.
• Ensure the snow depth is within the recommended 6-inch clearing depth.

6. Техникалык шарттар

7. Кепилдик жана колдоо

The Mellif Cordless Snow Shovel comes with a 5-Year Warranty for long-term peace of mind. For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Mellif webсайт.
