Lumos Ultra электрондук велосипед туулгасы жана Firefly велосипед жарык системасынын колдонуучу колдонмосу

1. Киришүү

This manual provides essential instructions for the safe and effective use of your Lumos Ultra E-Bike Helmet and Firefly Bike Light System. Please read this manual thoroughly before using the product and retain it for future reference. The Lumos Ultra E-Bike Helmet is designed to enhance rider visibility and safety with integrated lighting and turn signals. The Lumos Firefly Bike Light System further augments visibility and communication on the road.

2. Кутуда эмне бар

Carefully unpack all components and ensure all items are present. If any items are missing or damaged, please contact Lumos support.

• 1x Lumos Ultra E-Bike Helmet
• 1x Lumos Remote (for turn signals)
• 1x Lumos Firefly Bike Light
• 1x Firefly Charging Cradle
• 1x Universal Mount (for Firefly)
• 1x Silicone Strap (for Firefly)
• 1x Low Profile Padding Set (for helmet)
• 1x Seat Post Padding Set (for Firefly)
• 2x Clips (for Firefly)
• 1x Колдонуучунун колдонмосу (бул документ)
• 1x Чаптамалар
• 1x Velcro боо

Сүрөт 2.1: The complete Lumos Ultra E-Bike Helmet and Firefly Bike Light System package, including the helmet, Firefly light, remote control, and charging cradle.

3. Коопсуздук маалыматы

Сиздин коопсуздугуңуз баарынан маанилүү. Сураныч, төмөнкү көрсөтмөлөрдү карманыңыз:

• Туулга колдонуу: Always wear your helmet correctly fitted and securely fastened when cycling. A helmet cannot protect against all possible impacts.
• Көрүнүш: While the integrated lights enhance visibility, they do not replace the need for traditional bike lights or reflectors as required by local regulations.
• Тейлөө: Regularly inspect your helmet and lights for any signs of wear or damage. Replace components as necessary.
• Заряддоо: Use only the provided charging cradle and appropriate power sources. Do not attempt to charge damaged devices.
• Суу таасири: The helmet and lights are designed to be weather-resistant, but avoid prolonged submersion or high-pressure water jets.

4. Орнотуу

4.1. Helmet Fit and Adjustment

1. Place the helmet on your head so it sits level and covers your forehead.
2. Adjust the retention system at the back of the helmet until it feels snug but comfortable.
3. Adjust the chin straps so they form a 'V' shape below your ears and the buckle is centered under your chin.
4. Tighten the chin strap until it is snug, allowing only one finger to fit between the strap and your chin.
5. Башыңызды акырын чайкаңыз; туулга олуттуу жылып кетпеши керек.

4.2. Firefly Light Mounting and Pairing

The Firefly light can be mounted in various positions using the universal mount, silicone strap, or clips.

1. Choose your desired mounting location (e.g., seat post, handlebars, helmet).
2. Secure the universal mount or silicone strap to the chosen location.
3. Attach the Firefly light to the mount using its magnetic base. Ensure it clicks securely into place.
4. To pair the Firefly with your helmet or remote, ensure both devices are charged and powered on. Follow the pairing instructions in the Lumos App.

Сүрөт 4.2.1: Lumos Firefly lights attached to a bicycle, demonstrating their versatile mounting options for front, rear, and turn signal functions.

4.3. Remote Control Pairing and Mounting

1. Mount the Lumos Remote to your handlebar in an easily accessible position using the provided strap.
2. Пульттун заряддалганын текшериңиз.
3. Power on the helmet and the remote.
4. Open the Lumos App and follow the instructions to pair the remote with your helmet.

Сүрөт 4.3.1: A cyclist demonstrating the use of the Lumos Remote to activate turn signals, indicating their intentions to other road users.

4.4. Колдонмону орнотуу жана туташуу

1. Download the Lumos App from your device's app store (iOS or Android).
2. Колдонмону ачып, каттоо эсебин түзүңүз же кириңиз.
3. Follow the in-app instructions to connect your Lumos Ultra Helmet and Firefly lights via Bluetooth.

5. Иштөө

5.1. Helmet Lights (Modes and Turn Signals)

The Lumos Ultra Helmet features integrated front and rear LED lights with multiple modes and turn signal functionality.

• Күйгүзүү/өчүрүү: Press and hold the power button on the helmet for 2 seconds.
• Жарык режимин өзгөртүү: Briefly press the power button to cycle through available light modes (e.g., Always On, Slow Flashing, Flashing).
• Бурулуш сигналдары: Use the Lumos Remote to activate left or right turn signals. The corresponding lights on the helmet will flash amber.

Сүрөт 5.1.1: Illustration of the various front and rear LED light patterns available on the Lumos Ultra Helmet, including Always On, Slow Flashing, and Flashing modes.

Сүрөт 5.1.2: A cyclist wearing the Lumos Ultra Helmet with the integrated turn signals activated, clearly indicating a change in direction.

5.2. Firefly Lights (Modes and Synchronization)

The Firefly light offers additional visibility and can synchronize with your helmet.

• Күйгүзүү/өчүрүү: Press and hold the button on the Firefly light.
• Жарык режимин өзгөртүү: Briefly press the button to cycle through modes.
• Синхрондоштуруу: Once paired via the app, the Firefly lights will automatically synchronize with the helmet's turn signals and braking lights (if enabled).

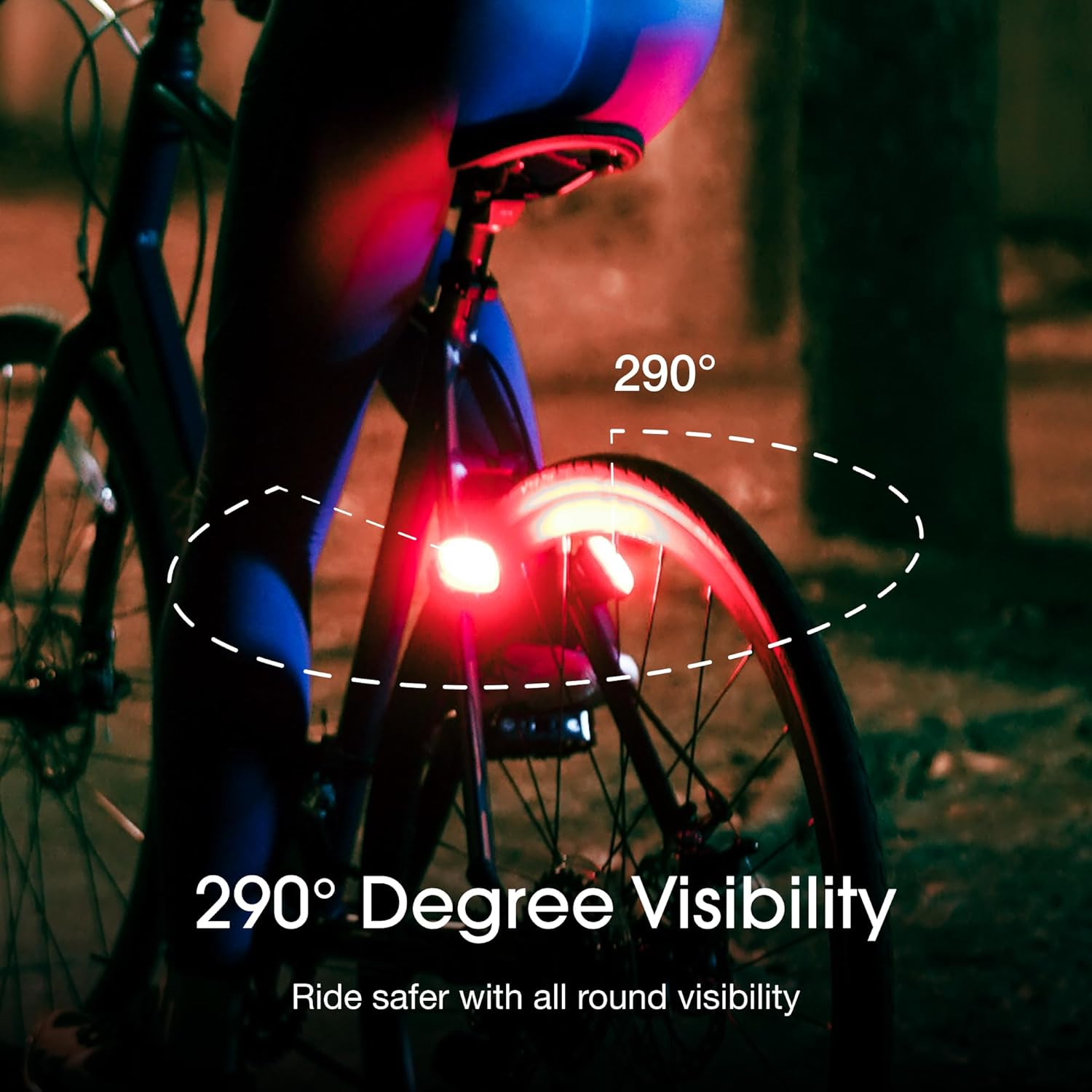

Сүрөт 5.2.1: The Lumos Firefly light providing 290-degree visibility, enhancing safety by making the rider more noticeable from various angles.

5.3. Заряддоо

• Туулга: Connect the provided charging cable to the helmet's charging port and a USB power source. The LED indicator will show charging status.
• Firefly: Place the Firefly light onto the charging cradle. The cradle supports Qi wireless charging. Ensure the light is correctly seated.
• Алыстан: Connect the remote to a USB power source using its dedicated charging cable.

5.4. Колдонмонун өзгөчөлүктөрү

The Lumos App allows for advanced customization and monitoring.

• Customize LED Patterns: Select and personalize light patterns and brightness settings.
• Батареянын иштөө мөөнөтүн текшерүү: Monitor the battery status of your helmet, Firefly, and remote.
• Ride Tracking: Track your rides and view статистика.
• Программалык камсыздоонун жаңыртуулары: Receive and install firmware updates for improved performance and new features.

Сүрөт 5.4.1: The Lumos mobile application interface, displaying options to customize light flashing patterns and check the battery life of connected devices.

6. Техникалык тейлөө

6.1. Тазалоо

• Туулга: жумшак колдонуу, damp cloth and mild soap to clean the exterior. Do not use harsh chemicals or abrasive cleaners. The internal padding can be removed and hand-washed.
• Жарыктар: Wipe the LED surfaces with a soft, dry cloth to ensure maximum light output.

6.2. Батареяга кам көрүү

• Charge your devices regularly, even if not in frequent use, to maintain battery health.
• Avoid fully discharging the batteries for extended periods.

6.3. Сактоо

Store your helmet and lights in a cool, dry place away from direct sunlight and extreme temperatures.

7. Кыйынчылыктарды

• Түзмөк күйбөй жатат: Ensure the device is fully charged. Try a different charging cable or power source.
• Жарыктар иштебейт: Check battery level. Ensure the device is powered on and not in a low-power mode.
• Remote Not Controlling Helmet/Firefly: Re-pair the remote via the Lumos App. Ensure the remote's battery is charged.
• Колдонмонун туташуу маселелери: Ensure Bluetooth is enabled on your phone. Restart the app and your Lumos devices.
• Firefly Not Charging Wirelessly: Ensure the Firefly is correctly seated on the charging cradle. Check if the cradle is powered.

For further assistance, please refer to the Lumos support webсайтка же кардарларды тейлөөгө кайрылыңыз.

8. Техникалык шарттар

Сүрөт 8.1: The Lumos Ultra E-Bike Helmet, highlighting its NTA 8776 certification for speed e-bike use, indicating protection against impacts at higher speeds.

9. Кепилдик жана колдоо

Lumos products are covered by a limited warranty against manufacturing defects. For specific warranty terms, registration, and support, please visit the official Lumos webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Lumos Support: www.lumoshelmet.co/support
