POWERTEC PRO Large Format Tile Cutter

Introduction

Thank you for choosing the POWERTEC PRO Large Format Tile Cutter. This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your new tile cutter. Designed for professional tilers and contractors, this tool is engineered to handle large tiles and slabs up to 140 inches, making it suitable for a wide range of applications including expansive flooring and intricate countertop designs. It is capable of cutting various materials such as ceramic, porcelain, marble, and granite with a thickness range of 3-12mm.

Коопсуздук маалыматы

Always read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in serious injury.

• Тийиштүү жеке коргонуу каражаттарын (ЖКК) кийиңиз: Always wear safety glasses, gloves, and sturdy footwear when operating the tile cutter.
• Жумуш аймагынын коопсуздугу: Keep your work area clean, well-lit, and free of clutter. Ensure adequate space for handling large tiles.
• Иштетилген бөлүктү бекитиңиз: Always ensure the tile or slab is stable and properly supported before scoring and breaking.
• Handle sharp components with care: The scoring wheel and broken tile edges are sharp. Exercise caution to prevent cuts.
• Балдарды жана жанындагыларды алыс кармаңыз: Do not allow unauthorized persons near the tool during operation.
• Inspect the tool before use: Check for any damaged parts, loose connections, or wear. Do not operate if the tool is damaged.
• Use the correct scoring wheel: Ensure the 114-degree titanium-coated tungsten carbide scoring wheel (22mm) is properly installed and in good condition.

Пакеттин мазмуну

Carefully unpack all components and verify that you have received all items listed below. If any parts are missing or damaged, contact POWERTEC customer support.

• 2 x 59" Base Guide Rails
• 1 x 31.5" Base Guide Rail
• 1 x Scoring Carriage with Ø22 mm Scoring Wheel
• 1 x Tile Breaker Plier
• 2 x Positioning Fixtures
• 2 x Base Guide Rail Clamps
• 1 x Ташуу сумкасы

Image: All components of the POWERTEC PRO Large Format Tile Cutter, including guide rails, scoring carriage, tile breaker, clampс, жана сумка.

Компоненттер бүттүview

Familiarize yourself with the main parts of the POWERTEC PRO Large Format Tile Cutter:

• Guide Rail: The aluminum track along which the scoring carriage glides. Composed of multiple sections for extended length.
• Scoring Carriage: The assembly that holds the scoring wheel and moves along the guide rail.
• Carriage Handle: Ergonomic handle on the scoring carriage for comfortable grip and control.
• Grip Knob: Additional knob on the scoring carriage for enhanced control during scoring.
• Tungsten Carbide Scoring Wheel: The cutting wheel (Ø22 mm, 114-degree titanium-coated) that scores the tile surface.
• Positioning Fixture: Used to secure the tile and ensure accurate alignment with the guide rail.
• Guide Rail Clamp: Secures the guide rail to the tile or work surface.
• Tile Breaker Plier: A separate tool used to cleanly separate the tile after it has been scored.

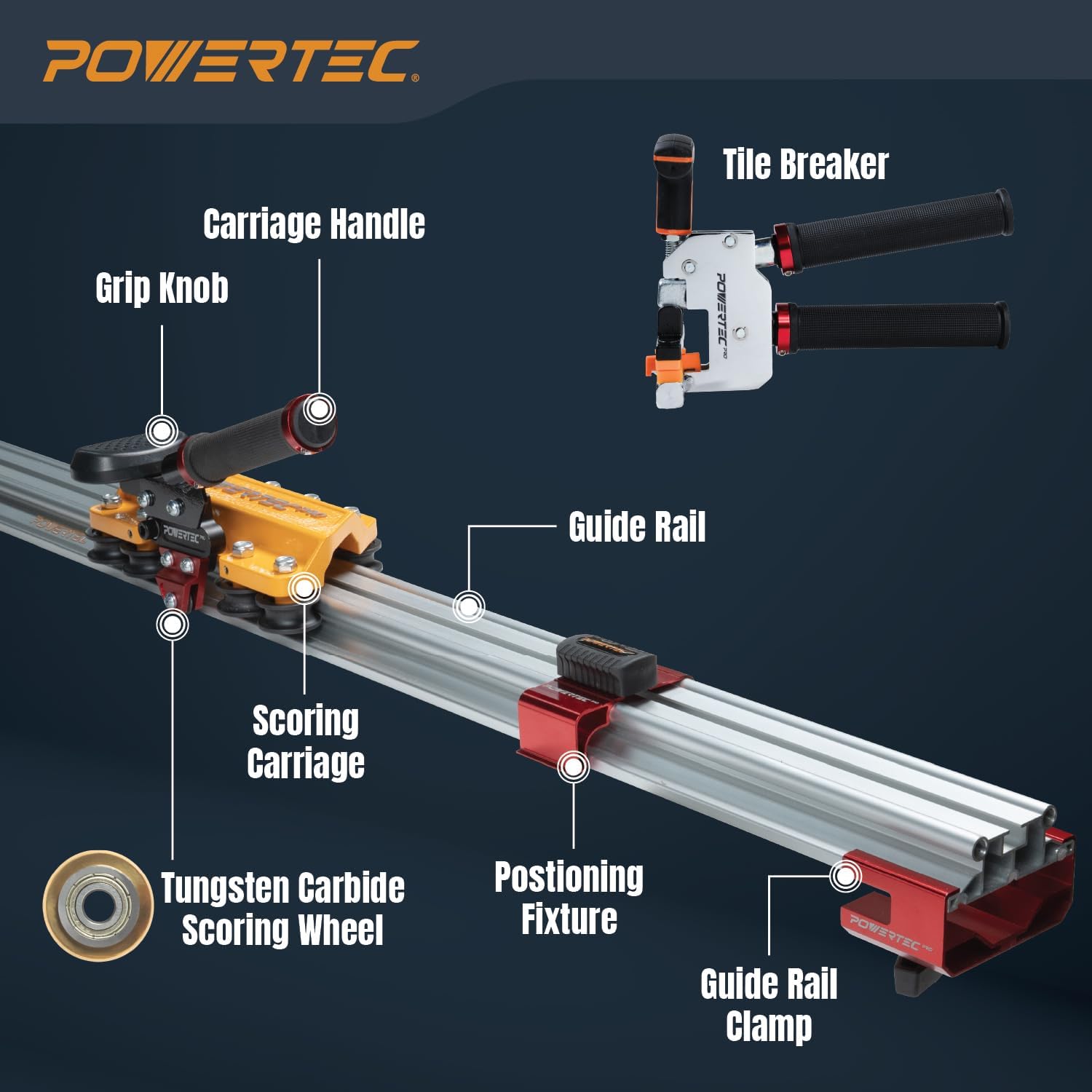

Image: Labeled diagram showing the main components of the tile cutter, including the guide rail, scoring carriage, handles, scoring wheel, positioning fixture, guide rail clamp, and tile breaker.

Орнотуу нускамалары

Follow these steps to assemble your POWERTEC PRO Large Format Tile Cutter:

1. Assemble the Guide Rails: Connect the two 59" base guide rails and the 31.5" base guide rail using the provided connectors to achieve the desired length, up to 140 inches. Ensure the connections are secure and the rails are aligned.


Сүрөт: Жакын план view of the guide rail sections being connected to form a longer track.

2. Attach the Scoring Carriage: Slide the scoring carriage onto the assembled guide rail. Ensure the seven wear-resistant rollers are properly seated in the rail grooves for smooth movement.
3. Плитканы жайгаштыруу: Place the tile or slab on a stable, flat surface. Position the guide rail on top of the tile, aligning the desired cut line with the scoring wheel's path.
4. Secure the Guide Rail: Use the guide rail clamps to firmly secure the guide rail to the tile or work surface. This prevents movement during the scoring process.
5. Use Positioning Fixtures (Optional): For repetitive cuts or added stability, attach the positioning fixtures to the guide rail and against the edge of the tile.

Иштөө нускамалары

This section details the process of scoring and breaking tiles using the POWERTEC PRO Large Format Tile Cutter.

Scoring the Tile

1. Плитканы даярдаңыз: Ensure the tile surface is clean and free of debris. Mark your desired cut line clearly.
2. Align the Scoring Wheel: Position the scoring carriage at the starting edge of the tile. Align the scoring wheel precisely with your marked cut line. The anti-slip bottom strips on the guide rail provide stability.


Image: Close-up of the anti-slip bottom strips on the guide rail, designed to provide stability during scoring.

3. Apply Pressure and Score: Grasp the carriage handle and grip knob firmly. Apply consistent, moderate downward pressure on the scoring carriage. Push the carriage smoothly and steadily along the guide rail in a single, continuous motion from one end of the tile to the other. Avoid stopping or re-scoring the same line.

Image: Demonstrates aligning the scoring line with the indicator on the scoring carriage for precise cuts.
4. Check the Score Line: A successful score will be a clean, continuous line across the tile surface.

Breaking the Tile

1. Position the Tile Breaker: After scoring, remove the guide rail. Place the tile on a flat, stable surface, ensuring the scored line is directly over a slight elevation or a breaking bar (if available).
2. Apply Pressure with Tile Breaker: Use the included tile breaker plier. Position the jaws of the plier directly over the scored line. Apply firm, even pressure until the tile cleanly separates along the score line.
3. Clean Edges: Carefully handle the broken tile pieces. The edges may be sharp.

Image: The POWERTEC PRO Large Format Tile Cutter in action, demonstrating its capability to cut large slabs up to 70" x 140" with a maximum cutting thickness of 12mm.

Техникалык тейлөө

Proper maintenance will extend the life of your POWERTEC PRO Tile Cutter.

• Тазалоо: After each use, wipe down the guide rails and scoring carriage with a clean, dry cloth to remove tile dust and debris.
• Scoring Wheel Inspection: Regularly inspect the titanium-coated tungsten carbide scoring wheel for wear or damage. Replace the wheel if it becomes dull or chipped to ensure clean cuts.
• Майлоо: Occasionally apply a light lubricant to the guide rail and scoring carriage rollers to ensure smooth operation.
• Сактагыч: Store the tile cutter in its carrying bag in a dry, clean environment to protect it from dust and moisture.

Проблемаларды чечүү

Бул бөлүмдө сиз кабылышы мүмкүн болгон жалпы көйгөйлөр жана аларды чечүү жолдору каралат.

Техникалык шарттар

• Модель номери: 71982
• Максималдуу кесүү узундугу: 140 дюймга чейин (355.6 см)
• Максималдуу кесүү калыңдыгы: 3-12мм
• Scoring Wheel: Ø22 mm, 114-degree titanium-coated tungsten carbide
• Guide Rail System: 2 x 59" base guide rails, 1 x 31.5" base guide rail (connectable)
• Роликтер: 7 wear-resistant rollers with ball bearing system
• Продукциянын өлчөмдөрү: Approximately 61.42 x 7.09 x 9.45 inches (assembled for shortest length)
• Элемент Салмагы: Болжол менен 55 фунт (24.9 кг)
• Камтылган компоненттер: Large Format Tile Cutter (assembly required), Tile Breaker, Carrying Bag

Кепилдик жана колдоо

POWERTEC PRO products are manufactured to high-quality standards. For warranty information, technical support, or to purchase replacement parts, please visit the official POWERTEC webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

For customer support, you may refer to the contact information provided with your product packaging or visit the POWERTEC store on Amazon: POWERTEC Store.
