Anderic MRAC06S1M Ceiling Fan Receiver Instruction Manual

Продукт бүттүview

The Anderic MRAC06S1M is a replacement ceiling fan receiver specifically designed for use with Harbor Breeze Mazon ceiling fans. This receiver facilitates the remote control functionality of your ceiling fan, managing fan speeds and light operation. It is engineered for a plug-and-play installation, connecting directly into the fan's motor assembly via a square plug connector.

This receiver is compatible with various Harbor Breeze Mazon models, including 0807421, 2599776, 1059534, MZ44WW3LR, MZ44MBLK3LR, and others. It also works seamlessly with existing Anderic remote models such as RRTR214D, A25-FA0138, KUJCE10311, TR214B, KUJCE10712, TR214A, KUJCE10610, and 2BB78ITLF304C.

Маанилүү коопсуздук маалыматы

• Always disconnect power to the ceiling fan at the circuit breaker before attempting any installation, maintenance, or troubleshooting.
• Installation should be performed by a qualified electrician or a person with sufficient electrical knowledge to ensure safety and proper function.
• Бардык зым байланыштары коопсуз жана туура изоляцияланганын текшериңиз.
• This receiver is designed for specific fan models and connector types. Verify compatibility before installation. If your fan uses standard wire connections at the canopy, this receiver will not be compatible for plug-and-play installation.
• Do not exceed the maximum load ratings for the motor (1.0A) and light (100W incandescent / 60W LED).

Пакеттин мазмуну

• Anderic MRAC06S1M Ceiling Fan Receiver (1 unit)
• Көрсөтмө (бул документ)

Note: Remote control is not included and must be purchased separately if needed. This receiver is designed to work with existing compatible remotes.

Орнотуу жана орнотуу

The Anderic MRAC06S1M receiver is designed for a straightforward plug-and-play installation into compatible Harbor Breeze Mazon ceiling fans. Ensure your fan's existing receiver uses a square plug connector for direct replacement.

Орнотууга чейинки текшерүү тизмеси:

1. Verify that your ceiling fan model is listed as compatible or uses a square plug connector for its receiver.
2. Ensure you have the necessary tools (e.g., screwdriver, wire strippers if any wiring adjustments are needed, though typically not for plug-and-play).
3. Confirm power is OFF at the circuit breaker before proceeding.

Орнотуу кадамдары:

1. Кубатты өчүрүү: Turn off the power to the ceiling fan at the main circuit breaker. Verify power is off using a voltage сыноочу.
2. Күйөрмандар корпусуна кирүү: Carefully lower the canopy or access the motor housing of your ceiling fan where the existing receiver is located.
3. Эски кабыл алгычты алып салуу: Disconnect the existing receiver from the fan's wiring. Note the orientation and connection points if possible, though the square plug design simplifies this.
4. Жаңы кабыл алгычты орнотуу: Connect the Anderic MRAC06S1M receiver into the fan's motor assembly. The square plug connector should fit directly into the corresponding port. Ensure it is seated firmly.
5. Коопсуз кабыл алгыч: Carefully tuck the receiver and wires back into the fan housing, ensuring no wires are pinched.
6. Күчтү калыбына келтирүү: Replace the fan canopy and turn the power back on at the circuit breaker.
7. Сыноо функциясы: Use your compatible remote control to test the fan speeds and light operation.

Сүрөт 1: Алдыңкы view of the Anderic MRAC06S1M receiver, showing its compact design and integrated wiring with the square plug connector.

2-сүрөт: Бурчтуу view of the receiver, clearly showing the distinctive square plug connector essential for plug-and-play compatibility with Harbor Breeze Mazon fans.

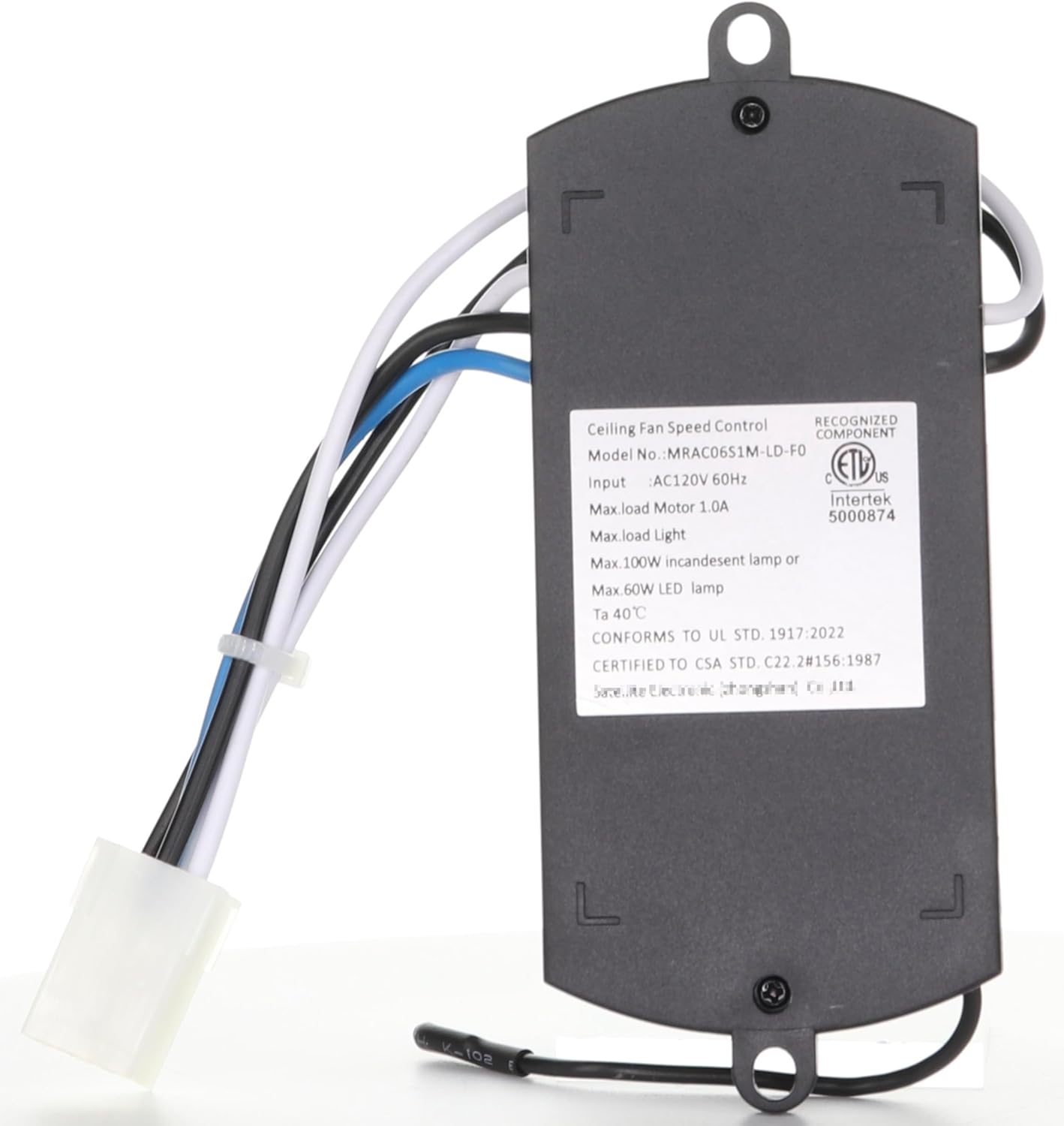

3-сүрөт: Артка view of the receiver, displaying the product label with model number MRAC06S1M-LD-F0, input voltage (AC120V 60Hz), and maximum load ratings for motor and light.

4-сүрөт: Каптал view of the receiver, showing the capacitor specifications (5+6UF/250V) and a QC Pass sticker, indicating quality control inspection.

Шайкештик боюнча маанилүү эскертүү:

This receiver is designed for fans where the receiver connects directly into the motor assembly with a square plug. If your existing receiver connects at the canopy with standard wire connections (individual wires that need to be spliced or connected via wire nuts), this MRAC06S1M receiver will жок be a plug-and-play replacement and may not be compatible without significant modification.

Иштөө нускамалары

Once the Anderic MRAC06S1M receiver is correctly installed, it will enable remote control functionality for your ceiling fan. This receiver is designed to work with specific Anderic and compatible remote models.

Compatible Remote Controls:

The MRAC06S1M receiver is fully compatible with the following remote control models:

• Anderic RRTR214D
• A25-FA0138
• KUJCE10311
• TR214B
• KUJCE10712
• TR214A
• KUJCE10610
• 2BB78ITLF304C

Note: The TR214D remote control is often required for initial pairing or full functionality and is not included with the receiver.

Pairing the Remote (if necessary):

Most compatible remotes will automatically pair or have a simple pairing procedure. Refer to your specific remote control's instruction manual for detailed pairing steps. Typically, this involves:

1. Ensure power to the fan is on.
2. Within a short timeframe (e.g., 30 seconds) of restoring power, press and hold a specific button on the remote (often a "Learn" button, "Fan Off" button, or a combination of buttons) until the fan light blinks or the fan responds.
3. Test all functions (fan speeds, light on/off, dimming if applicable).

Техникалык тейлөө

The Anderic MRAC06S1M receiver is a sealed electronic component and requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Кургак кармоо: Ensure the receiver is installed in a dry environment, protected from moisture and humidity.
• Тазалык: If accessing the receiver during fan maintenance, gently wipe away any dust or debris with a dry, soft cloth. Do not use liquid cleaners.
• Вентиляция: Ensure the fan housing allows for adequate airflow around the receiver to prevent overheating.
• Күчтүн көтөрүлүшү: Consider using surge protection for your home's electrical system to protect electronic components like the receiver from power fluctuations.

Проблемаларды чечүү

If you experience issues with your ceiling fan after installing the MRAC06S1M receiver, refer to the following common problems and solutions:

Problem: Fan or Light Does Not Respond to Remote

• Кубат жок: Вентиляторго кубат берилгенин текшерүү үчүн автоматтык өчүргүчтү текшериңиз.
• Алыскы батареялар: Replace the batteries in your remote control.
• Алыстан жупташтыруу: Attempt to re-pair the remote control with the receiver. Refer to the "Operating Instructions" section or your remote's manual.
• Incorrect Remote: Ensure you are using a compatible remote control model.
• Бошоң байланыш: Turn off power at the breaker, then re-check the square plug connection of the receiver within the fan housing to ensure it is secure.

Problem: Fan Operates Intermittently or Incorrectly

• Интерференция: Other electronic devices or nearby remote controls might cause interference. Try operating the fan from a different distance or checking for other active remotes.
• Ашыкча жүктөө: Ensure the fan motor and light wattage do not exceed the receiver's maximum load ratings (1.0A for motor, 100W incandescent / 60W LED for light).
• Damaged Receiver: If all other troubleshooting steps fail, the receiver may be faulty and require replacement.

Problem: Light Flickers or Does Not Turn On

• Лампочка маселеси: Check if the light bulb is properly screwed in or if it needs replacement.
• Ватtage Exceeded: Ensure the light bulb wattage does not exceed the receiver's maximum rating (60W for LED, 100W for incandescent).
• Зымдар: With power off, check the light wiring connection to the receiver.

If problems persist after following these steps, consult a qualified electrician or contact Anderic customer support.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and customer support regarding your Anderic MRAC06S1M Ceiling Fan Receiver, please contact Anderic directly or refer to their official webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

Anderic Official Webсайт: www.anderic.com

Көбүрөөк жардам алуу үчүн, сиз Amazon'догу продукт баракчасына кайрылсаңыз болот: Amazon продукт бети
