Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your YIQU Smart Color Changing Christmas Lights. These 66-foot string lights feature 200 RGB LEDs, offering a wide range of colors and dynamic modes controllable via remote or a smartphone application. Designed for both indoor and outdoor use, they include features like music synchronization, timer options, and memory function.
Коопсуздук маалыматы
Сураныч, бул продуктуну колдонуудан мурун бардык коопсуздук нускамаларын окуп, түшүнүңүз. Бул нускамаларды аткарбоо электр шокуна, өрткө же олуттуу жаракатка алып келиши мүмкүн.
- The Christmas lights have passed UL safety certification, ensuring high quality and safety in use.
- Operate with low voltage power to prevent overheating. The LED string lights are safe to touch.
- For outdoor use, ensure the power plug is protected from water or rain. The long leading wire assists in achieving this function.
- Do not attempt to modify or repair the product yourself. Contact customer support for assistance.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
Пакеттин мазмуну
Баардык буюмдар пакетиңизге камтылганын текшериңиз:
- 1 x Электр сайгычы
- 1 x String Lights (66 FT, 200 LED)
- 1 x Алыстан башкаруу
Жайгашуу
- Жарыктарды таңгактан чыгаруу: Carefully uncoil the string lights from their packaging. Ensure the wires are not tangled.
- Жайгашкан жери: Determine the desired location for your lights. These lights are suitable for both indoor and outdoor environments. For outdoor use, ensure the power adapter is in a dry, protected area.
- Кубат туташуу: Connect the string lights to the provided power plug. Insert the power plug into a standard 110V-120V AC outlet.
- Баштапкы күйгүзүү: Once plugged in, the lights should illuminate. You can use the remote control or the smartphone app for further customization.

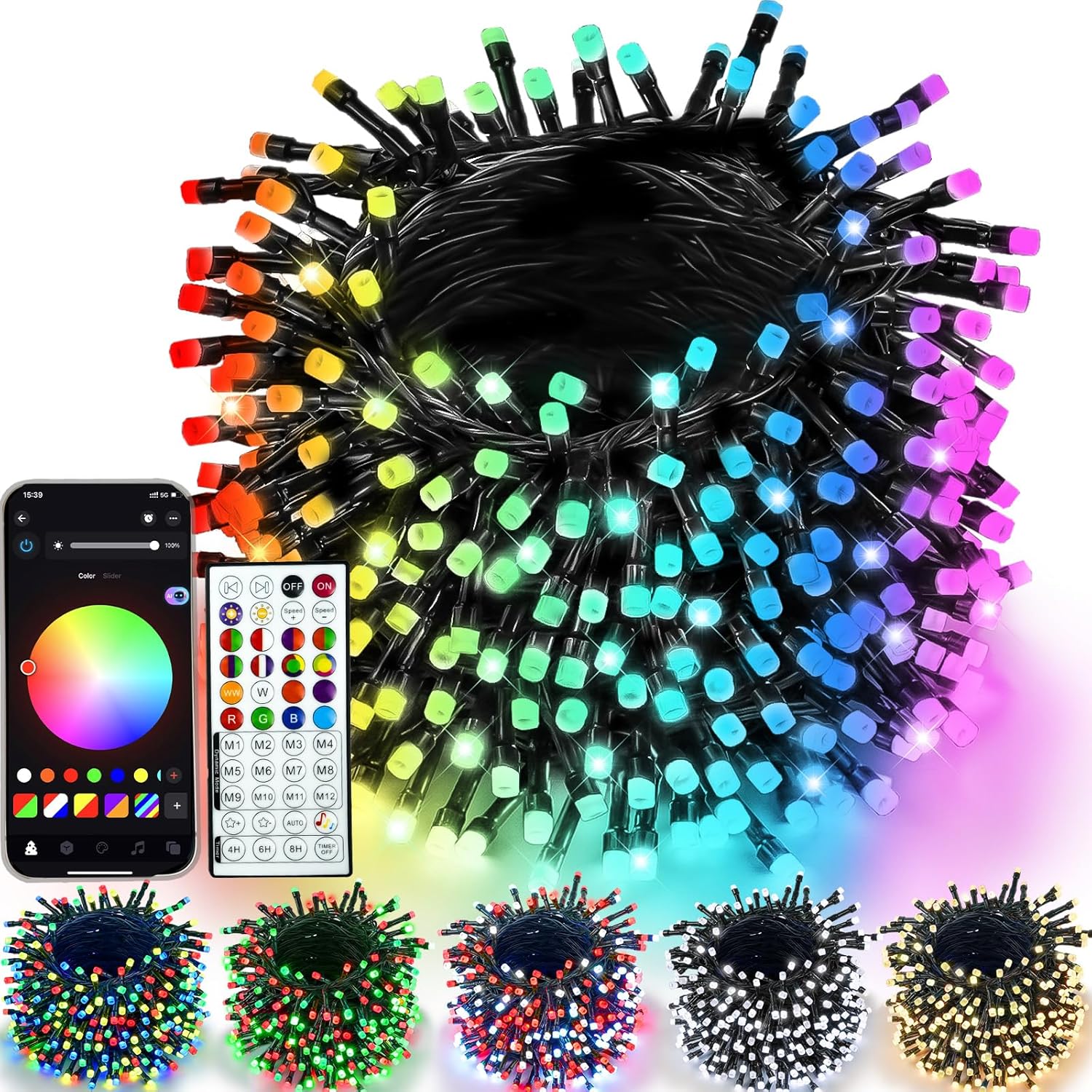

Figure 1: YIQU Smart Color Changing Christmas Lights with remote and app interface.
Иштөө нускамалары
1. Алыстан башкарууну колдонуу
The included 44-key wireless remote allows control of the lights from up to 40 meters away. Ensure the remote has a working battery and is pointed towards the light controller.
- КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Press the 'ON' or 'OFF' buttons to power the lights.
- Түс тандоо: Choose from 16 million colors using the color palette buttons.
- Динамикалык режимдер: Select from various pre-set dynamic modes (M1-M12) to create different lighting effects.
- Жарыктыкты жөндөө: Use the brightness control buttons to increase or decrease light intensity.
- Ылдамдыкты жөндөө: Ылдамдыкты башкаруу баскычтарын колдонуп, динамикалык режимдердин ылдамдыгын тууралаңыз.
- Таймер: Set the timer for 4H, 6H, or 8H using the dedicated buttons.

Figure 2: Remote control functions for the YIQU Smart Christmas Lights.
2. Смартфондун колдонмосун башкаруу
Download the dedicated smartphone application to unlock advanced control features and customization options.
- Колдонмону жүктөп алуу: Scan the QR code provided in the product packaging or search for the "YIQU Lights" app in your device's app store.
- Туташуу: Follow the in-app instructions to connect your smartphone to the string lights via Bluetooth.
- Колдонмонун өзгөчөлүктөрү:
- Color & Effect Adjustment: Easily adjust brightness, color, and lighting effects.
- Акылдуу жардамчы: Use voice commands to control light changes.
- Топтук көзөмөл: Control multiple YIQU devices simultaneously.
- Ыңгайлаштырылган таймер: Set specific on/off times.

Figure 3: Smartphone app interface for controlling YIQU Smart Christmas Lights.
3. Музыканы синхрондоштуруу
The lights can synchronize with music, creating a dynamic visual experience. This feature is primarily controlled via the smartphone app.
- Музыка режимин иштетүү: In the app, select the "Music Mode" option.
- Import Music: Click "Add Music" to import music files from your device or select from the built-in music library.
- Микрофон функциясы: The lights can react to music rhythms picked up by your phone's microphone (voice-activated version only). Adjust brightness and sensitivity as needed.

Figure 4: Music synchronization feature in action with the YIQU Smart Christmas Lights.
4. Timer Options & Memory Function
The lights include built-in timer options and a memory function to retain your last settings.
- Pre-set Timers: Use the remote to select 4H (4 hours ON, 20 hours OFF), 6H (6 hours ON, 18 hours OFF), or 8H (8 hours ON, 24 hours OFF).
- Custom Timers: Set custom on/off schedules via the smartphone app.
- Эстутум функциясы: The lights will automatically recall your last lighting setting when powered on again.

Figure 5: Timer options and memory function for convenient operation.
Өзгөчөлүктөрү
- Multiple Colors and Modes: 16 million color options with various lighting effects and adjustable speed/brightness.
- Кош башкаруу: Operate via a 44-key wireless remote or a dedicated smartphone application.
- Музыка синхрондоштуруу: Lights change with the rhythm of music, enhancing ambiance.
- Акылдуу жардамчы: Voice control functionality through the app.
- Timer & Memory: Pre-set and custom timer options, plus memory of last settings.
- Туруктуу жана коопсуз: UL certified, low voltage, and IP44 waterproof for indoor/outdoor use.
- Кеңири колдонуу: Suitable for various occasions and holidays, including Christmas, Halloween, and parties.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | YIQU |
| Модель номери | GP-SW290DC0310-IP44(US) |
| Жарык түрү | LED String Lights |
| LED саны | 200 |
| Узундук | 66 Фут |
| Түс параметрлери | RGB (16 миллион түстөр) |
| Контролдоо ыкмалары | Алыстан башкаруу, смартфон тиркемеси |
| Power Source | Электр зымдары |
| Тtage | 29 вольт |
| Ватtage | 6 Ватт |
| Суу өткөрбөйт рейтинги | IP44 (Suitable for Indoor/Outdoor) |
| Өзгөчөлүктөр | Music Sync, Timer, Memory Function, Intelligent Assistant |
Техникалык тейлөө
- Тазалоо: Тазалоодон мурун электр кубатынан сууруп коюңуз. Чырактарды жумшак, кургак чүпүрөк менен акырын сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз.
- Сактагыч: When not in use, carefully coil the string lights to prevent tangling. Store them in a cool, dry place away from direct sunlight and extreme temperatures.
- Текшерүү: Periodically inspect the lights and wiring for any damage. If any damage is found, discontinue use and contact customer support.
Проблемаларды чечүү
- Жарыктар күйбөйт:
- Ensure the power plug is securely connected to a working outlet.
- Алыстан башкаруу пультунун батареясын алмаштыруу керекпи же жокпу, текшериңиз.
- Verify the lights are not set to an "OFF" timer mode.
- Пульт иштебей жатат:
- Пульт менен жарыкты башкаруучунун ортосунда эч кандай тоскоолдуктар жок экенин текшериңиз.
- Пульттун батареясын алмаштырыңыз.
- Колдонмого туташуу маселелери:
- Смартфонуңузда Bluetooth иштетилгенин текшериңиз.
- Колдонмону өчүрүп күйгүзүп, кайра туташып көрүңүз.
- Ensure the lights are within Bluetooth range.
Расмий продукт Videos
Watch these official videos for visual guidance and demonstrations of the YIQU Smart Color Changing Christmas Lights.
Video 1: YIQU APP Christmas String Lights - A demonstration of the lights' features and app control.
Кепилдик жана колдоо
For warranty information, technical support, or any inquiries regarding your YIQU Smart Color Changing Christmas Lights, please refer to the contact information provided in your product packaging or visit the official YIQU webсайт. Кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
