Introduction
Thank you for choosing the AMZCHEF Portable Range Hood. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The AMZCHEF Portable Range Hood (Model AH003-SG) is designed to effectively remove cooking fumes and odors in various settings. Its compact and lightweight design makes it suitable for small kitchens, apartments, dormitories, RVs, and outdoor barbecue areas. Featuring a powerful 3-speed fan, integrated LED lighting, and a multi-layer filtration system, it aims to provide a cleaner and more pleasant cooking environment.
Орнотуу жана коопсуздук чаралары
Пакеттен чыгаруу жана алгачкы жайгаштыруу
- Carefully remove all packaging materials and inspect the unit for any damage.
- Place the range hood on a stable, flat surface near your cooking area. Ensure there is adequate space around the unit for proper airflow.
- This appliance is designed for plug-and-play operation and does not require complex installation.
Коопсуздук эрежелери
- Do not use the range hood with gas cooktops or open flames. It is intended for use with electric cooking surfaces.
- Maintain a minimum distance of 10 cm (approximately 4 inches) between the range hood's air intake and the cooking surface to ensure optimal performance and safety.
- Never cover the air outlet during operation. This can impede airflow and affect performance.
- Электр шнурунун бузулбагандыгын жана ысык беттерден алыс жайгашканын текшериңиз.
Иштөө нускамалары
Күйгүзүү/өчүрүү
- Электр кабелин ылайыктуу электр розеткасына туташтырыңыз.
- Press the power button (one-click switch) to turn the unit on or off.
Желдетүүчү ылдамдыкты жөндөө
The range hood features three adjustable fan speeds to accommodate different cooking intensities:
- Төмөн ылдамдык: Ideal for light cooking, simmering, or stewing.
- Орто ылдамдык: Suitable for general frying and everyday cooking.
- Максималдуу ылдамдык: Recommended for heavy frying, grilling, or when producing significant smoke and odors.
Use the intuitive touch controls to select the desired fan speed.
LED жарыктандыруу
The integrated LED light illuminates your cooking area, providing clear visibility, especially in low-light conditions. The light can be activated or deactivated independently using the touch controls.
Тейлөө жана тазалоо
Regular cleaning and maintenance ensure optimal performance and longevity of your AMZCHEF Portable Range Hood.

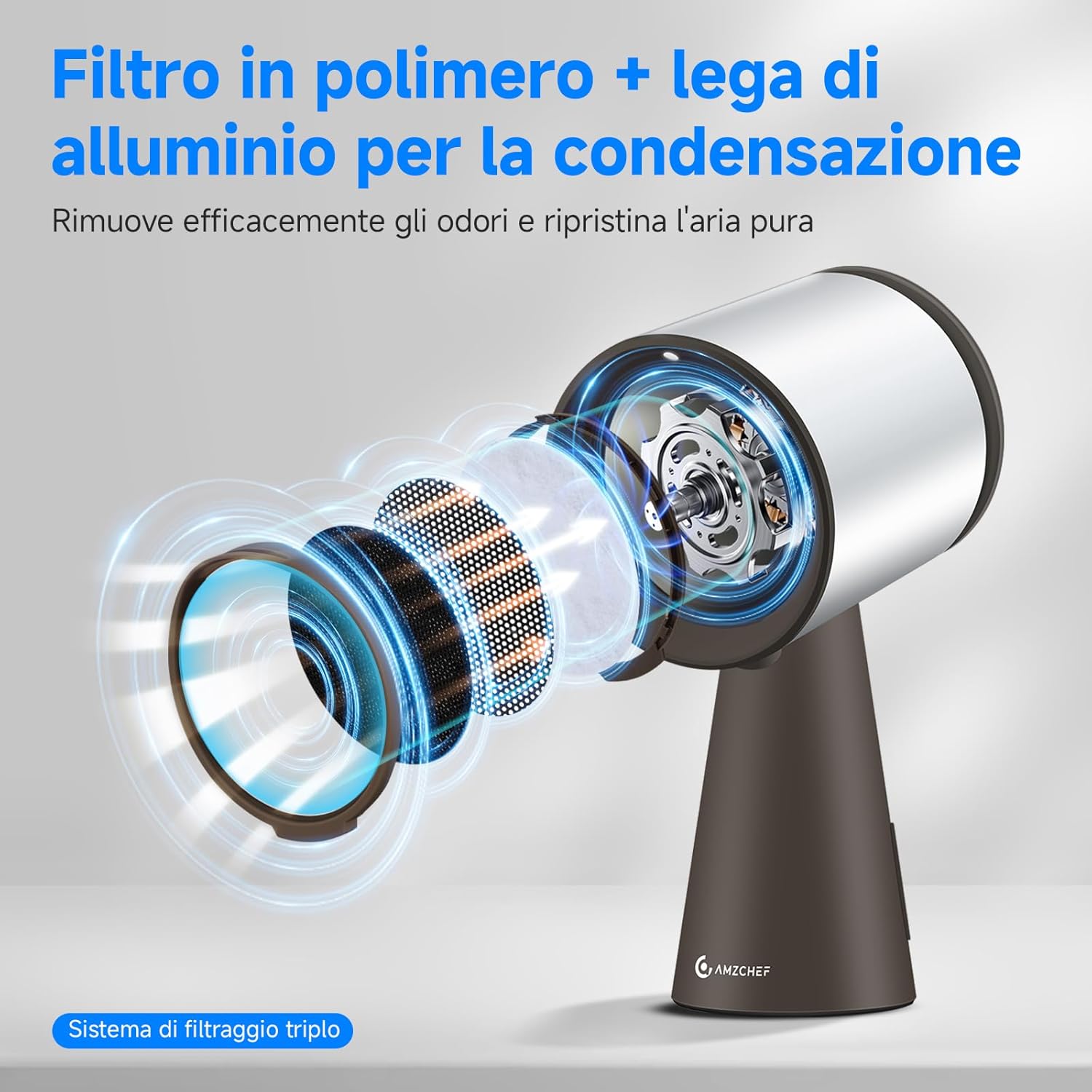

Multi-Layer Filtration System
The hood is equipped with a multi-layer filtration system, including double-layer metal aluminum filters, high-efficiency activated carbon filters, and polymer filters. These work together to effectively capture grease, solid particles, and odors.
Фильтрди орнотуу жана алып салуу
The filters are designed for easy magnetic installation and removal. To install, align the filter with the oil collector and gently push it into the air intake. Ensure the filter is correctly positioned.
Тазалоо процедуралары
- Чыпкалар: The metal aluminum filters and oil collection cup should be cleaned regularly with warm water and dish soap. Do not use water hotter than 60°C (140°F). Activated carbon filters may need periodic replacement depending on usage.
- Oil Collection Cup: The large capacity oil collection cup should be emptied and cleaned when full or after extended use.
- Сырткы: The high-quality ABS material is anti-fingerprint and easy to clean. Wipe the exterior with a soft, damp кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
Кыйынчылыктарды табуу боюнча колдонмо
If you encounter issues with your AMZCHEF Portable Range Hood, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | No power supply; Power cord damaged; Unit malfunction | Check power outlet; Inspect power cord for damage; Contact customer support if issue persists. |
| Азайтылган соруу күчү | Filters are clogged; Air outlet is blocked; Fan malfunction | Clean or replace filters; Ensure air outlet is clear; Contact customer support. |
| Иш учурунда адаттан тыш ызы-чуу | Loose components; Obstruction in fan; Unit malfunction | Check for loose parts; Ensure no foreign objects are in the fan area; Contact customer support. |
| LED жарыгы иштебейт | LED bulb failure; Electrical issue | Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз. |
If the problem persists after attempting these solutions, please contact AMZCHEF customer support for further assistance.
Продукт спецификациялары
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | AMZCHEF |
| Модель номери | AH003-SG |
| Өлчөмдөрү (L x W x Y) | 21 x 37.4 x 16.7 см |
| Салмагы | 1.8 килограмм |
| Материал | Алюминий, ABS |
| Ызы-чуу деңгээли | 66 децибел |
| Аба агымынын кубаттуулугу | 120 м³/саат |
| Күйөрмандардын ылдамдыгы | 3 |
| Controls | Touch Control |
| Жарык булагы | LED |
| Ватtage | 36 ватт |
| Тtage | 230 вольт (AC) |
| Вентиляция түрү | Filter-based recirculation |
| Монтаж түрү | Tabletop / Portable |
Кепилдик жана колдоо
Кепилдик маалымат
For information regarding product warranty, returns, or defective/damaged products, please refer to the specific warranty terms provided at the time of purchase or contact AMZCHEF customer service. Standard return policies typically allow returns within 30 days of receipt if you change your mind. For defective or damaged products, specific assistance pages are available.
Кардарларды колдоо
Should you require further assistance, have questions about your product, or need to report an issue, please contact AMZCHEF customer support. Contact details can typically be found on the official AMZCHEF webсайт же сатып алуу платформасы аркылуу.
