ATTACK SHARK G3PRO Wireless Gaming Mouse User Manual

1. Киришүү

This manual provides detailed instructions for the setup, operation, and maintenance of your ATTACK SHARK G3PRO Wireless Gaming Mouse. Please read this manual thoroughly to ensure proper use and to maximize the performance of your device.

2. Продукциянын өзгөчөлүктөрү

• Pro-Grade Precision & Speed: Equipped with PixArt PAW3311 gaming sensor and Broadcom BK52820 custom MCU for zero latency and pixel-perfect tracking. Adjustable DPI from 100 to 25000, polling rate up to 1000Hz, tracking speed 300IPS, and acceleration 40G.
• Legendary Durability & Tactile Clicks: Features genuine mechanical switches rated for 100 million clicks, providing crisp, responsive, and reliable feedback. The unique F-Switch encoder ensures precise scrolling.
• Ultra-Light Agility & Effortless Glide: Weighs only 59±3 grams, reducing wrist fatigue during extended use. Ergonomic design supports palm, claw, and finger grip styles. Double-layer premium mouse feet offer smooth, consistent glide.
• Seamless Tri-Mode Connectivity: Supports stable 2.4GHz wireless, low-latency Bluetooth, and reliable wired USB-C connections. Quickly switch between modes using the button at the bottom of the mouse. Compatible with desktops, laptops, smartphones, and tablets.
• AI Designed Driver: Utilizes an innovative cloud-driven webpage for customization, eliminating the need for traditional software installation. Allows for DPI adjustment, polling rate, competitive mode, customized buttons, macro recording, and personalized key mapping.
• RGB Backlight Charging Base: The included charging dock features cool RGB backlighting and allows for quick recharging. It also serves as a convenient passthrough for the 2.4GHz USB receiver, optimizing wireless signal reception.

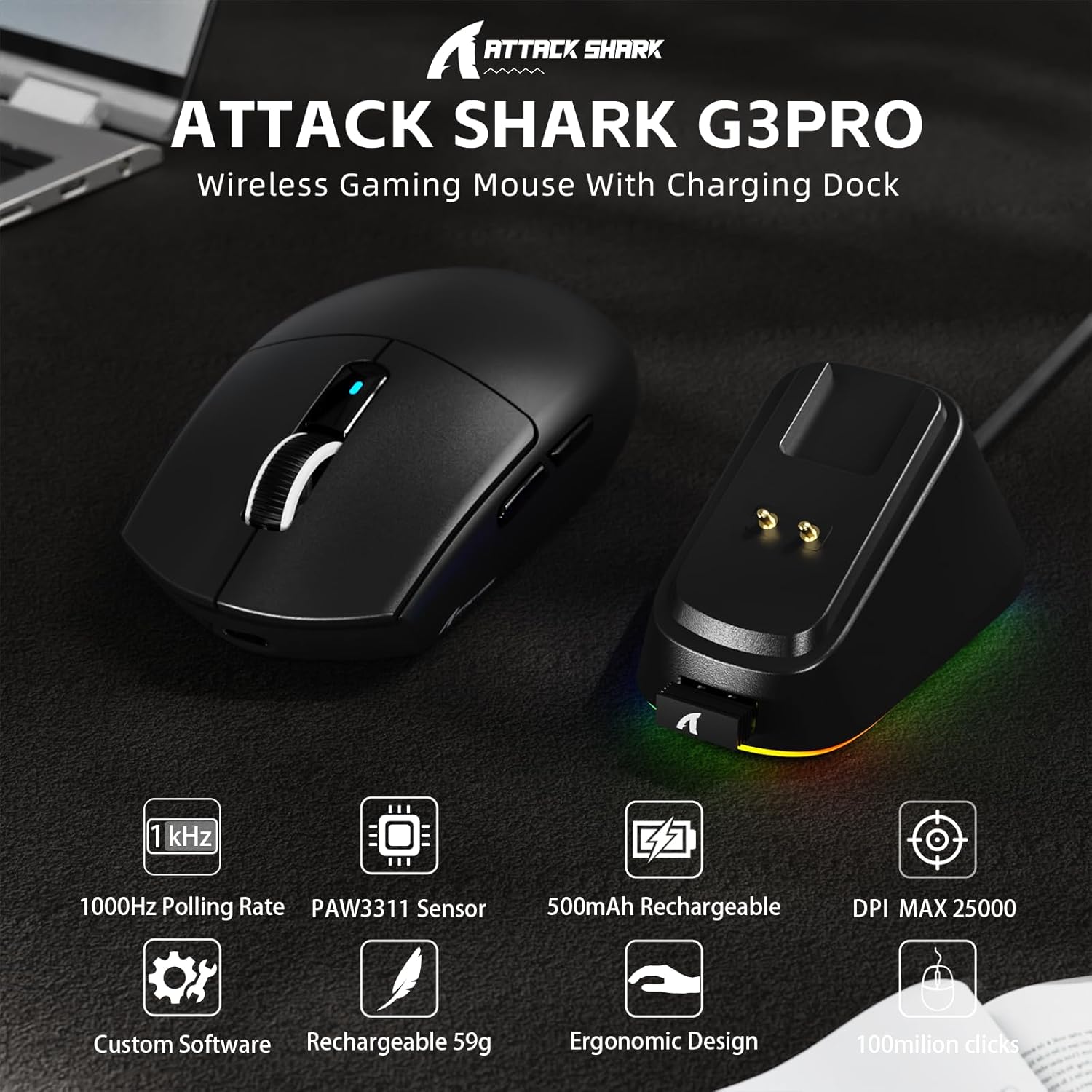

Сүрөт: бүттүview of the ATTACK SHARK G3PRO mouse and its charging dock, highlighting key features such as 1000Hz polling rate, PAW3311 sensor, 500mAh rechargeable battery, 25K DPI, custom software, lightweight design, ergonomic shape, and 100 million click lifespan.

Image: A composite image detailing the internal components and features of the G3PRO mouse, including the 1K polling rate, PixArt PAW3311 sensor, Omron microswitches, 500mAh battery, BK52820 MCU, and the web драйвер интерфейси.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• ATTACK SHARK G3PRO Wireless Gaming Mouse
• RGB Backlight Charging Dock
• USB-C - USB-A кабели
• USB 2.4GHz Wireless Receiver (often stored inside the mouse or dock)
• User Manual
• Чаптамалар (ар кандай болушу мүмкүн)
• Grip Tape (if included with your specific bundle)

4. Орнотуу

4.1 Чычканды заряддоо

Before first use, it is recommended to fully charge the mouse. Connect the USB-C cable to the charging dock and then to a power source (e.g., computer USB port, USB wall adapter). Place the mouse onto the charging dock. The RGB lighting on the dock will indicate charging status.

Image: The ATTACK SHARK G3PRO Wireless Gaming Mouse resting on its RGB backlight charging dock, connected via a USB-C cable. This illustrates the primary charging method.

4.2 Чычканды туташтыруу

The G3PRO mouse offers three connectivity modes: 2.4GHz Wireless, Bluetooth, and USB-C Wired.

Image: A visual representation of the three connectivity options for the G3PRO mouse: USB-C Wired, 2.4G Wireless, and Bluetooth, showing the mouse interacting with a charging dock and a laptop.

4.2.1 2.4 ГГц зымсыз туташуу

1. Locate the USB 2.4GHz receiver. It may be stored in a compartment on the underside of the mouse or within the charging dock.
2. Plug the receiver into an available USB port on your computer. For optimal signal, you can plug the receiver into the USB port on the charging dock, then connect the dock to your computer.
3. Switch the mode selector switch on the bottom of the mouse to the '2.4G' position.
4. The mouse should automatically connect. If not, press and hold the 'Left/Center/Right' buttons simultaneously for 3 seconds to force pairing.

4.2.2 Bluetooth байланышы

1. Switch the mode selector switch on the bottom of the mouse to the 'BT' position.
2. Компьютериңизде же түзмөгүңүздө Bluetooth жөндөөлөрүнө өтүп, Bluetooth'ту иштетиңиз.
3. Издөө new devices. The mouse should appear as 'ATTACK SHARK G3PRO' or similar.
4. Select the mouse to pair. If prompted, press and hold the 'Left/Center/Right' buttons simultaneously for 3 seconds to force pairing.

4.2.3 USB-C зымдуу туташуу

1. Connect the USB-C end of the cable to the mouse and the USB-A end to your computer.
2. Switch the mode selector switch on the bottom of the mouse to the 'OFF' position (or ensure it's not in 2.4G/BT mode). The mouse will operate in wired mode.

5. Иштөө нускамалары

The ATTACK SHARK G3PRO mouse features multiple programmable buttons and adjustable settings for enhanced gaming and productivity.

Image: A detailed diagram illustrating the multi-functional buttons on the G3PRO mouse (Left Key, Right Key, Center Key, Backward Button, Forward Button, DPI Switch) and the components of the charging dock (Type C Port, Charging Thimble, Receiver Interface, RGB Light Switch, Receiver Organizer).

5.1 Баскыч функциялары

• Сол ачкыч: Негизги чыкылдатуу функциясы.
• Оң ачкыч: Экинчи баскычты чыкылдатуу функциясы.
• Center Key (Scroll Wheel Click): Middle click function.
• Алга баскычы: Алга карай жылдырат web браузерлер же тиркемелер.
• Артка баскычы: Артка карай багыт алат web браузерлер же тиркемелер.
• DPI которуу: Алдын ала коюлган DPI деңгээлдери аркылуу айлануу.

5.2 DPI жөндөө

Press the DPI switch button (located on the top of the mouse, usually behind the scroll wheel) to cycle through different DPI sensitivity levels. The default DPI settings can be customized using the AI Designed Driver.

5.3 RGB жарыкты башкаруу

The RGB lighting on the charging dock can be controlled via a switch on the dock itself. The mouse's internal lighting (if any) and effects can be customized through the AI Designed Driver.

6. Customization (AI Designed Driver)

The ATTACK SHARK G3PRO features an innovative cloud-driven web driver for advanced customization. This eliminates the need for software installation.

Image: A screenshot of the web-based driver interface for the ATTACK SHARK G3PRO mouse, showing options for button settings, DPI settings, parameter settings, macro editing, and a personal center for customization.

6.1 Кирүү Web Айдоочу

To access the customization options, open a web браузерге өтүңүз URL provided in the product documentation or on the official ATTACK SHARK website. The driver is designed to automatically identify your computer system.

6.2 Ыңгайлаштыруу параметрлери

аркылуу web driver, you can:

• Adjust DPI levels and create custom profiles.
• Modify polling rate.
• Program individual buttons for various functions (e.g., multimedia controls, keyboard shortcuts, macros).
• Record and assign complex macros.
• Personalize key mapping.
• Configure competitive modes and other advanced functions.

7. Заряддоо жана Батарея

The G3PRO mouse is equipped with a 500mAh built-in battery for extended playtime.

7.1 Заряддоо ыкмалары

• Via Charging Dock: Simply place the mouse onto the RGB backlight charging dock. The magnetic connection will ensure proper alignment and charging.
• USB-C кабели аркылуу: Connect the mouse directly to your computer or a USB power adapter using the provided USB-C cable.

7.2 Батареянын абалы

Battery status can typically be monitored through the AI Designed Driver interface or your operating system's Bluetooth device settings.

8. Техникалык тейлөө

To ensure the longevity and optimal performance of your ATTACK SHARK G3PRO mouse, follow these maintenance guidelines:

• Тазалоо: Use a soft, dry cloth to wipe the mouse and charging dock. For stubborn dirt, a slightly damp кездемени колдонсо болот, бирок түзмөккө ным кирбешин текшериңиз. Катуу химиялык заттардан же абразивдүү материалдардан алыс болуңуз.
• Сенсорго кам көрүү: Чычкандын астындагы оптикалык сенсорду чаңдан же таштандыдан таза кармаңыз. Керек болсо кебез тампонду же кысылган абаны колдонуңуз.
• Сактагыч: Узак мөөнөткө колдонулбаганда чычканды салкын, кургак жерде сактаңыз.
• Экстремалдуу шарттарды болтурбоо: Чычканды экстремалдык температурага, түз күндүн нуруна же жогорку нымдуулукка дуушар кылбаңыз.

9. Кыйынчылыктарды

If you encounter issues with your ATTACK SHARK G3PRO mouse, please refer to the following common solutions:

10. Техникалык шарттар

• Бренд: ATTACK SHARK
• Модел: G3PRO
• Түсү: Кара
• Байланыш технологиясы: 2.4Ghz Wireless, Bluetooth, USB-C Wired
• Кыймылды аныктоо технологиясы: Optical (PixArt PAW3311 Sensor)
• DPI диапазону: 100 - 25000 DPI (Adjustable)
• Добуш берүү көрсөткүчү: 1000 Гц чейин
• Көз салуу ылдамдыгы: 300IPS
• Ылдамдатуу: 40G
• Которгучтар: Mechanical (100 million click lifespan)
• Батарея сыйымдуулугу: 500mAh
• Салмагы: 59 ± 3 грамм
• Өзгөчөлүктөр: Ergonomic Design, Lightweight, Programmable Buttons, Rechargeable, Wireless, RGB Charging Dock
• Пакеттин өлчөмдөрү: 6.57 x 4.37 x 1.93 дюйм
• Элемент Салмагы: 8.1 унция

11. Продукт видеосу

12. Кепилдик жана колдоо

Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий ATTACK SHARK сайтына кайрылыңыз webсайтына же товарды сатып алган сатуучуга кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
