Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your AWOL VISION ThunderBeat 4.1.2 All-Wireless Home Theater Sound System. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your audio experience.

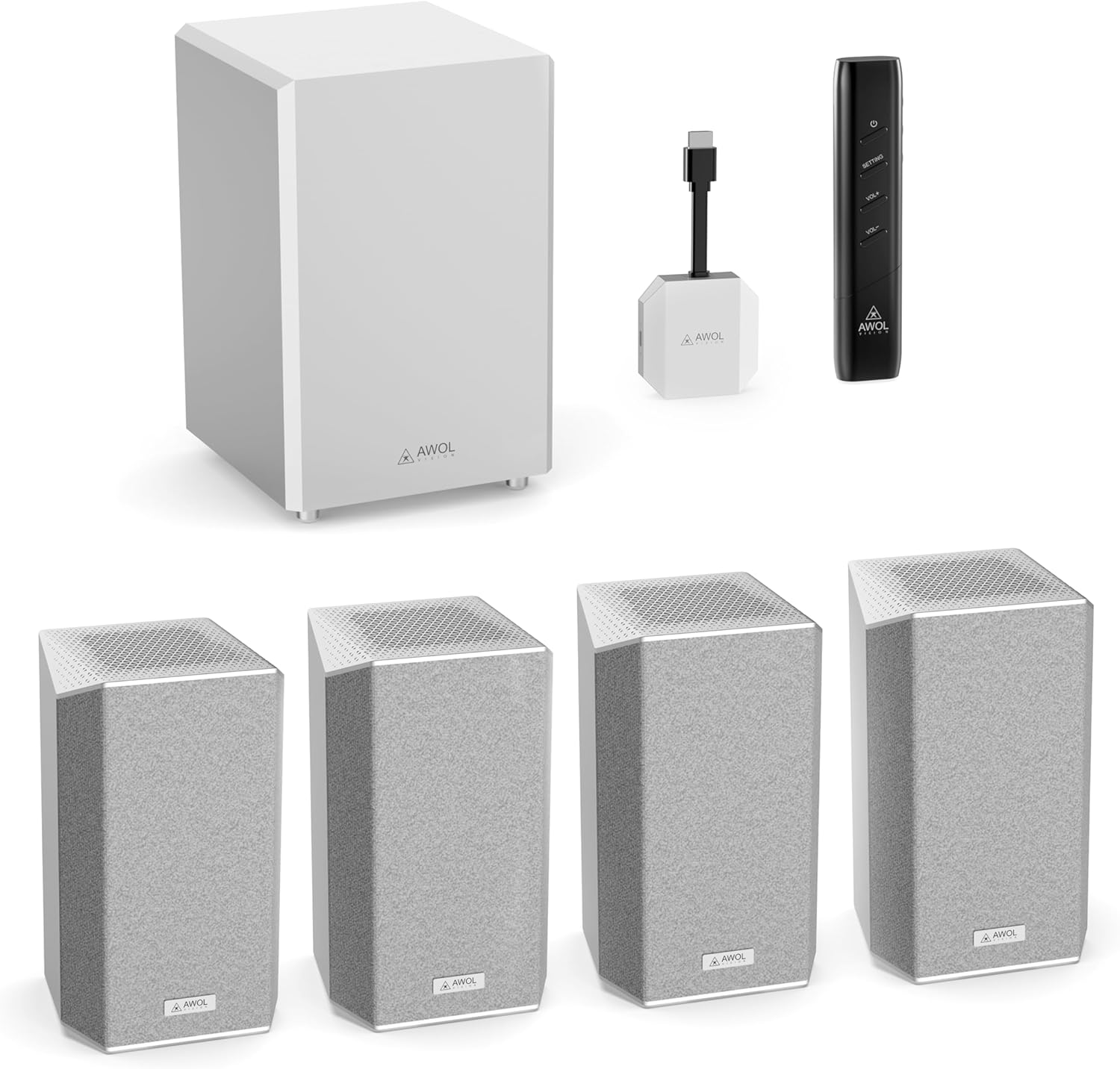

Image: The AWOL VISION ThunderBeat 4.1.2 system, including the subwoofer, four satellite speakers, wireless dongle, and remote control.
Кутуда эмне бар
Бардык компоненттерди кылдаттык менен таңгактан чыгарып, төмөнкү нерселерди алганыңызды текшериңиз:
- Зымсыз сабвуфер
- Satellite Speakers (x4)
- Wireless Dongle
- Алыстан башкаруу (2 AAA батарейкасы менен)
- AC адаптер
- AC Power Cord
- 3.5 мм аудио кабелине RCA
- 3.5 ммден 3.5 ммге чейинки аудио кабель
- HDMI узартуу кабели
- USB-C Cable
- Instruction Manual
- Дубалга орнотуу комплекти (милдеттүү эмес орнотуу)
Image: A visual representation of all items included in the ThunderBeat system packaging.
Жайгашуу
1. Компоненттерди жайгаштыруу
Optimal placement of your ThunderBeat system components is crucial for an immersive audio experience. Consider the layout of your room and the primary listening area.
- ЛГурченко: Place the subwoofer in a location that provides balanced bass response. Experiment with different positions to find the best sound for your room.
- Спутниктик динамиктер: Position the four satellite speakers around your listening area. For a 4.1.2 setup, two speakers typically go to the front-left and front-right, and two to the rear-left and rear-right. Ensure upward-firing speakers are unobstructed for Dolby Atmos effects.
Image: A diagram showing flexible speaker placement options to adapt to different room sizes and configurations.
2. Зымсыз донглду туташтыруу
The ThunderBeat system utilizes a wireless dongle for simplified connectivity, eliminating the need for extensive cabling.
- Insert the ThunderBeat Dongle into the eARC HDMI port of your AWOL VISION projector or compatible display device.
- Ensure the dongle is securely connected.
Сүрөт: жакын план view of the wireless dongle, highlighting its power and source status indicators, and available input connections including HDMI eARC, AUX, Bluetooth, and DC.
3. Күйгүзүү жана жупташтыруу
- Connect the AC adapter and power cord to the subwoofer and each satellite speaker, then plug them into a power outlet.
- Power on your AWOL VISION projector or display device.
- The ThunderBeat system is designed for instant, perfectly synchronized surround sound upon power-up, with automatic pairing between the dongle and speakers.
- Verify the pairing status indicator on the dongle. A solid light typically indicates a successful connection.
Image: A visual representation of the streamlined, all-wireless setup in a home theater environment, showing the dongle connected to a projector.
Иштөө нускамалары
1. Алыстан башкаруу функциялары
The included remote control allows you to manage all aspects of your ThunderBeat system.
- Кубат баскычы: Системаны күйгүзөт же өчүрөт.
- Үнүн жогорулатуу/төмөндөтүү: Жалпы системанын үнүн тууралайт.
- Орнотуулар баскычы: Accesses advanced audio settings, including individual speaker volume and EQ modes.
Image: The sleek remote control for the AWOL VISION ThunderBeat system, designed for intuitive control of your home theater.
2. Individual Speaker Volume Control
For a truly customized audio experience, you can adjust the volume of each speaker independently.
- басыңыз Орнотуулар алыстан башкаруудагы баскыч.
- Navigate through the on-screen menu (if available) or use the remote's directional buttons to select individual speaker channels (Left, Right, Subwoofer, Rear Left, Rear Right, Left Top Front, Right Top Front).
- Adjust the volume level for each selected speaker. The indicator light on the speaker will illuminate during adjustment and turn off after approximately 5 seconds.
Image: A graphical display demonstrating the independent volume adjustment feature for each speaker, including left, right, subwoofer, and surround channels.
3. EQ Setting Modes
Optimize your sound for different content types using the built-in EQ modes.
- басыңыз Орнотуулар алыстан башкаруудагы баскыч.
- Select the EQ settings option.
- Choose from available presets such as Концерт, Жаңылыктар, же Кино, or customize the frequency bands for a personalized sound profile.
Image: A visual representation of the EQ setting mode, offering custom sound control and preset options like Concert, News, and Movie.
Техникалык тейлөө
To ensure the longevity and optimal performance of your AWOL VISION ThunderBeat system, follow these maintenance guidelines:
- Тазалоо: Use a soft, dry cloth to clean the surfaces of the subwoofer and satellite speakers. Avoid abrasive cleaners, solvents, or chemical sprays.
- Вентиляция: Ensure that the speakers and subwoofer have adequate ventilation. Do not block any vents or place the units in enclosed spaces that could restrict airflow.
- Курчап турган чөйрө: Keep the system away from direct sunlight, heat sources, excessive dust, and moisture.
- Кабелдер: Periodically check all cable connections for security and signs of wear.
Проблемаларды чечүү
If you encounter issues with your ThunderBeat system, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамиктерден үн жок | Power not connected; Dongle not properly inserted; Speakers not paired; Incorrect audio source selected. | Check power connections for all components. Ensure the dongle is fully inserted into the eARC port. Verify speaker pairing (indicator lights). Select the correct audio input on your projector/display. |
| Бурмаланган же түшүнүксүз аудио | Volume too high; Poor audio source quality; Speaker placement issues. | Reduce volume. Test with a different audio source. Adjust speaker placement to optimize sound. |
| Пульт иштебей жатат | Dead batteries; Obstruction between remote and system; Remote out of range. | Replace AAA batteries in the remote. Ensure a clear line of sight to the system. Operate the remote within its effective range. |
| Сабвуфер бас чыгарбайт | Subwoofer not powered; Volume too low; Subwoofer settings incorrect. | Check subwoofer power connection. Increase subwoofer volume via remote. Check EQ settings to ensure bass is not reduced. |
If the problem persists after attempting these solutions, please contact AWOL VISION customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | ThunderBeat-4.1.2 |
| Көлөмдүү үн каналынын конфигурациясы | 4.1.2 (with projector as center channel, effectively 5.1.2) |
| Динамиктин максималдуу чыгаруу күчү | 720 Ватт (жалпы системанын чыгышы) |
| Сабвуфер | Dual 8-inch subwoofers (120W each) |
| Байланыш технологиясы | Wireless (5.2GHz/5.8GHz), Bluetooth, HDMI eARC, AUX |
| Аудио чыгаруу режими | Dolby Atmos, Dolby TrueHD, DTS Support |
| Frequency Response | 200 KHz (System) |
| Продукциянын өлчөмдөрү | 14.57"D x 22.44"W x 22.05"H (Жалпы) |
| Элемент Салмагы | 37.7 фунт |
| Батареялар | 2 AAA batteries (for remote, included) |
Кепилдик жана колдоо
AWOL VISION is committed to providing high-quality products and customer satisfaction.
- Продукт колдоо: Your AWOL VISION ThunderBeat system comes with 2 Years Product Support.
- Байланыш маалыматы: If you require assistance, please contact our support team:
- Телефон / WhatsApp: +1 (888) 891-6866
- Электрондук почта: support@awolvision.com
- 30-Day Price Protection: Refer to AWOL VISION's official policies for details on price protection.
