VTech Smart HQ Max Twin 7-inch WiFi Baby Monitor

Introduction

Welcome to your VTech Smart HQ Max Twin 7-inch WiFi Baby Monitor. This system is designed to help you monitor your baby with high-definition video and advanced features. This manual provides essential information for the safe and efficient use of your monitor.

Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• 1 x Parent Unit (7-inch IPS Display)
• 2 x Baby Units (1080p FHD Cameras)
• 2 х дубалга орнотулган кронштейндер
• Бурамалар жана анкерлер
• Quick Start Guide
• Power Adapters (for Parent Unit and Baby Units)

Жайгашуу

1. Parent Unit Setup

Connect the power adapter to the Parent Unit and a power outlet. The unit will automatically power on. Charge the Parent Unit for at least 12 hours before initial use.

2. Baby Unit (Camera) Setup

Place the Baby Unit in your baby's room, ensuring a clear view of the crib or play area. For optimal viewing, position the camera at least 3 feet (1 meter) away from your baby. Connect the power adapter to the Baby Unit and a power outlet.

The Baby Unit can be placed on a flat surface or wall-mounted using the included bracket.

Image: A VTech baby unit camera is shown wall-mounted, illustrating its ability to pan 360 degrees and tilt 105 degrees for comprehensive room coverage.

3. App Installation and Pairing (MyVTech Baby Plus App)

Download the "MyVTech Baby Plus" app from your smartphone's app store (iOS or Android).

Follow the in-app instructions to pair your Baby Units with your smartphone. Ensure your smartphone is connected to a 2.4GHz Wi-Fi network during the pairing process.

Image: A collage of smartphone screens displaying the MyVTech Baby Plus app interface. Features shown include live camera feeds, motion-triggered video playback, and options for sharing camera access with other users.

Мониторду иштетүү

Ата-энелик блоктун башкаруу элементтери

The Parent Unit features a 7-inch IPS display and various control buttons:

• МЕНЮ/ТАНДОО: Access menu options and confirm selections.
• Жебе баскычтары (Өйдө/Төмөн/Сол/Оң): Navigate menus and control camera pan/tilt.
• СҮЙЛӨШҮҮ: Press and hold to speak to your baby through the Baby Unit.
• VOL +/-: Динамиктин үнүн тууралаңыз.
• ZOOM: Zoom in or out on the camera feed.
• LCD КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Turn the screen on or off while audio monitoring continues.
• Кубат баскычы: Turn the Parent Unit on or off.

Image: The complete VTech Smart HQ Max Twin baby monitor system, featuring the 7-inch parent unit displaying two babies in split-screen, two baby unit cameras with night lights, and a smartphone showing the app interface.

Viewкирүү режимдери

The Parent Unit supports single camera view and split-screen view for monitoring both Baby Units simultaneously.

Image: The 7-inch IPS display of the parent unit shows a split-screen view of two different rooms. A smartphone screen next to it also displays multiple camera feeds from the MyVTech Baby Plus app.

Панорама, жантайтуу жана масштабдоо

Use the arrow buttons on the Parent Unit to remotely pan (360 degrees) and tilt (105 degrees) the Baby Unit cameras. The zoom function allows for up to 24x local zoom via the Parent Unit and 10x remote zoom via the mobile app.

Image: A VTech baby unit camera is positioned next to a crib, with arrows indicating its 360-degree panoramic rotation and 105-degree vertical tilt capabilities.

Эки тараптуу сүйлөшүү

басып, кармап туруңуз СҮЙЛӨШҮҮ button on the Parent Unit to speak to your baby. Your voice will be transmitted through the Baby Unit's speaker. This feature is also available via the MyVTech Baby Plus app.

Image: Three panels illustrate key features: a parent talking to a baby via the monitor's two-way talk, a diagram showing the secure transmission range of up to 1000ft, and the parent unit displaying the nursery temperature (77°F).

Түнкү көрүнүш

The Baby Unit automatically activates infrared night vision in low-light conditions, providing a clear black-and-white video feed.

Night Light, Lullabies, and Soothing Sounds

The Baby Unit features a touch-controlled, dimmable 7-color night light. You can also play five calming melodies and five soft ambient sounds to soothe your baby. These features can be controlled from both the Parent Unit and the mobile app.

Image: A VTech baby unit camera with a glowing multi-color night light is shown above a sleeping baby. Icons representing various lullabies and soothing sounds (music note, white noise, birds, waves, heartbeat) are displayed.

Температура мониторинги

The Baby Unit includes a temperature sensor that monitors the nursery's ambient temperature. The temperature reading is displayed on the Parent Unit and in the MyVTech Baby Plus app.

Кыймыл жана үн аныктоо

The monitor provides instant notifications for detected sound, motion, or temperature changes. Motion-triggered video clips can be played back from the MyVTech Baby Plus app. The Parent Unit also features a 3-level sound indicator.

Image: The VTech parent unit screen shows a baby sleeping in a crib, with an overlay indicating "Sound Activation Screen Mode," suggesting the screen activates upon detecting sound.

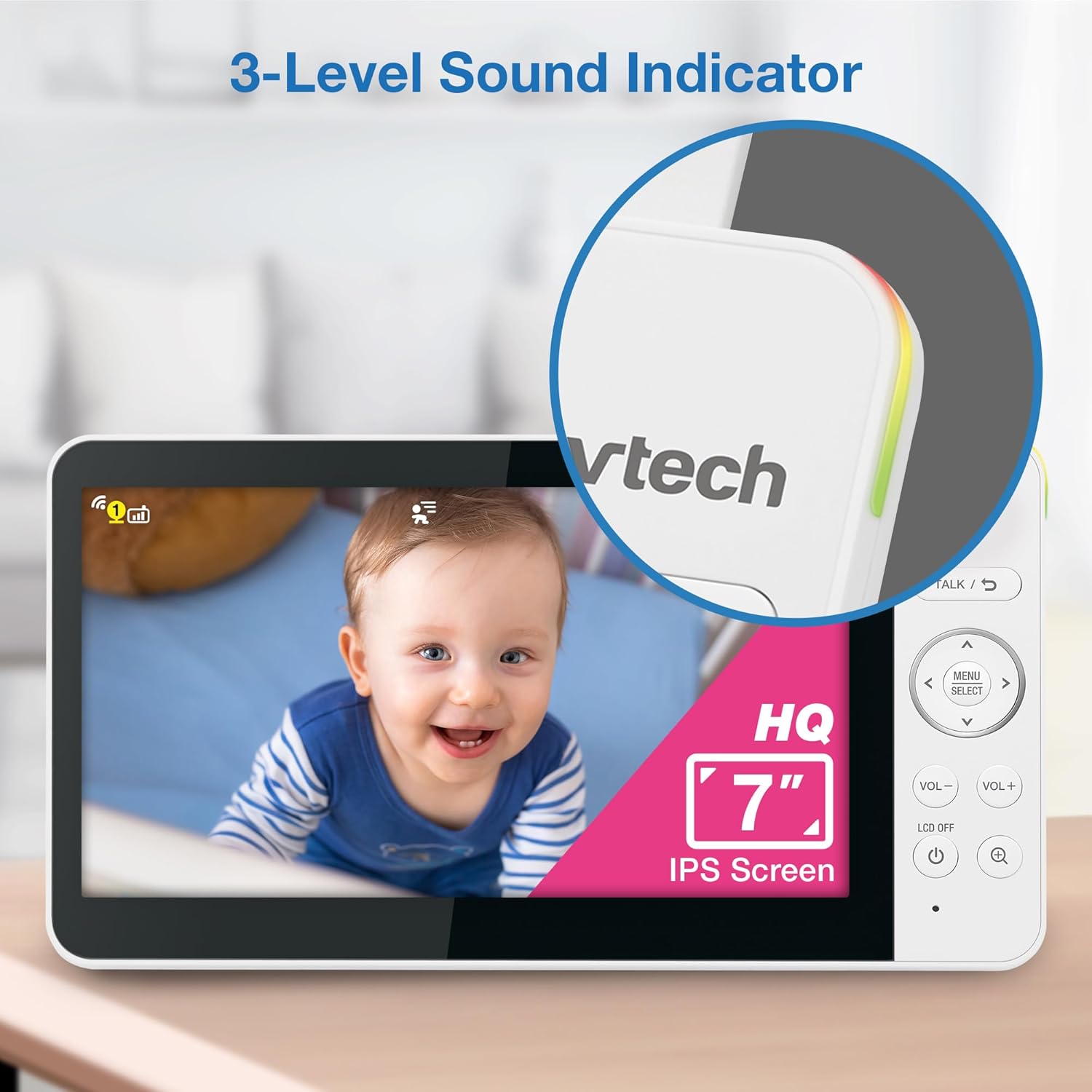

Image: The VTech parent unit displays a close-up of a smiling baby's face. On the right side of the unit, a vertical bar with three colored segments (green, yellow, red) indicates a 3-level sound indicator, showing the intensity of detected sound.

Техникалык тейлөө

Тазалоо

Wipe the Parent Unit and Baby Units with a soft, damp кездеме. Тазалоочу спрейлерди же суюк тазалоочу каражаттарды колдонбоңуз.

Батареяга кам көрүү

The Parent Unit contains a rechargeable 5,000mAh battery. For optimal battery life, fully charge the unit before first use and avoid extreme temperatures.

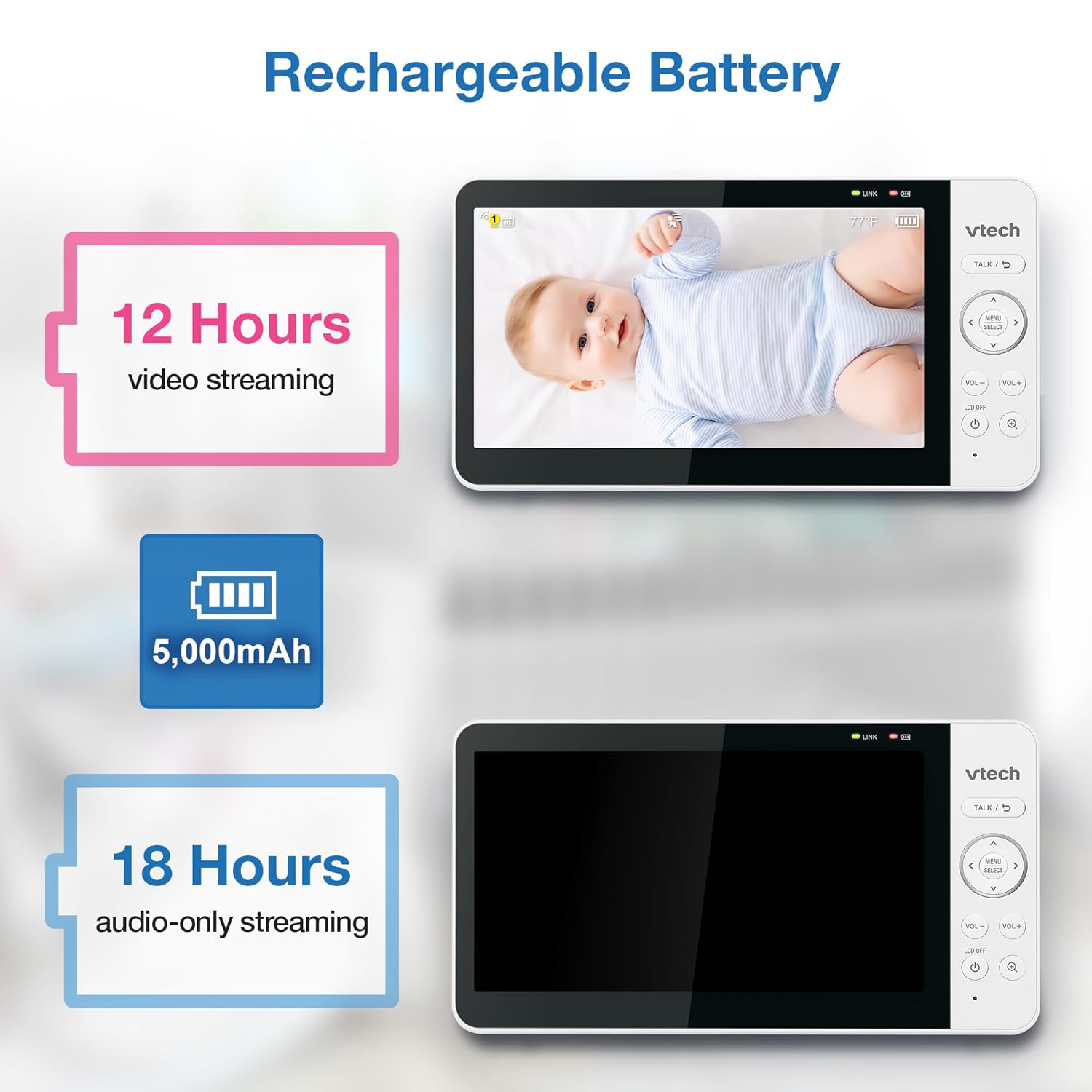

Image: A diagram illustrates the battery performance of the VTech parent unit. It shows a 5,000mAh battery providing up to 12 hours of continuous video streaming or up to 18 hours of audio-only streaming.

Проблемаларды чечүү

No Link/Signal

• Ensure both Parent Unit and Baby Units are powered on and within range.
• Ымыркай бөлүгүн ата-эне бөлүгүнө жакыныраак жылдырыңыз.
• Check for obstructions between the units (e.g., thick walls, electronic devices).
• Reset both units by disconnecting and reconnecting power.

Poor Video/Audio Quality

• Ensure Baby Unit lens is clean.
• Check for strong Wi-Fi signal if using the app.
• Reduce interference from other 2.4GHz devices.

Колдонмо туташуу маселелери

• Verify your smartphone is connected to a stable 2.4GHz Wi-Fi network.
• Ensure the MyVTech Baby Plus app is updated to the latest version.
• Restart your router and the Baby Units.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and technical support, please visit the official VTech Baby Care webсайтка же кардарларды тейлөөгө кайрылыңыз.

• Webсайт: www.vtechbabycare.com
• Электрондук почта: support@vtechbabycare.com
