Homekicen Dual Shower System User Manual

Introduction

This manual provides comprehensive instructions for the Homekicen Dual Shower System, Model WY-FG-9SS-DW3. This system combines a 9-inch ceiling-mounted rain head, a 6-inch wall-mounted rainfall head, and a handheld spray, all controlled by a 3-way diverter brass valve with a brushed gold finish. Please read these instructions carefully before installation and operation to ensure proper function and longevity of your shower system.

Продукт бүттүview жана компоненттер

The Homekicen Dual Shower System includes all necessary components for a complete shower experience. Familiarize yourself with each part before proceeding with installation.

Сүрөт 1: Бүттүview of the Homekicen Dual Shower System, showcasing the ceiling-mounted rain head, wall-mounted rainfall head, handheld spray, and the diverter valve trim kit, all in a brushed gold finish.

Камтылган компоненттер:

• 9-inch Rain Shower Head
• 12-inch Ceiling Mount Shower Arm
• 6-inch Rainfall Shower Head
• 7.87-inch Wall Mount Shower Arm
• Handheld Spray with 59-inch Hose
• 3 Way Diverter Valve (Rough-in)
• Trim Kit for Diverter Valve

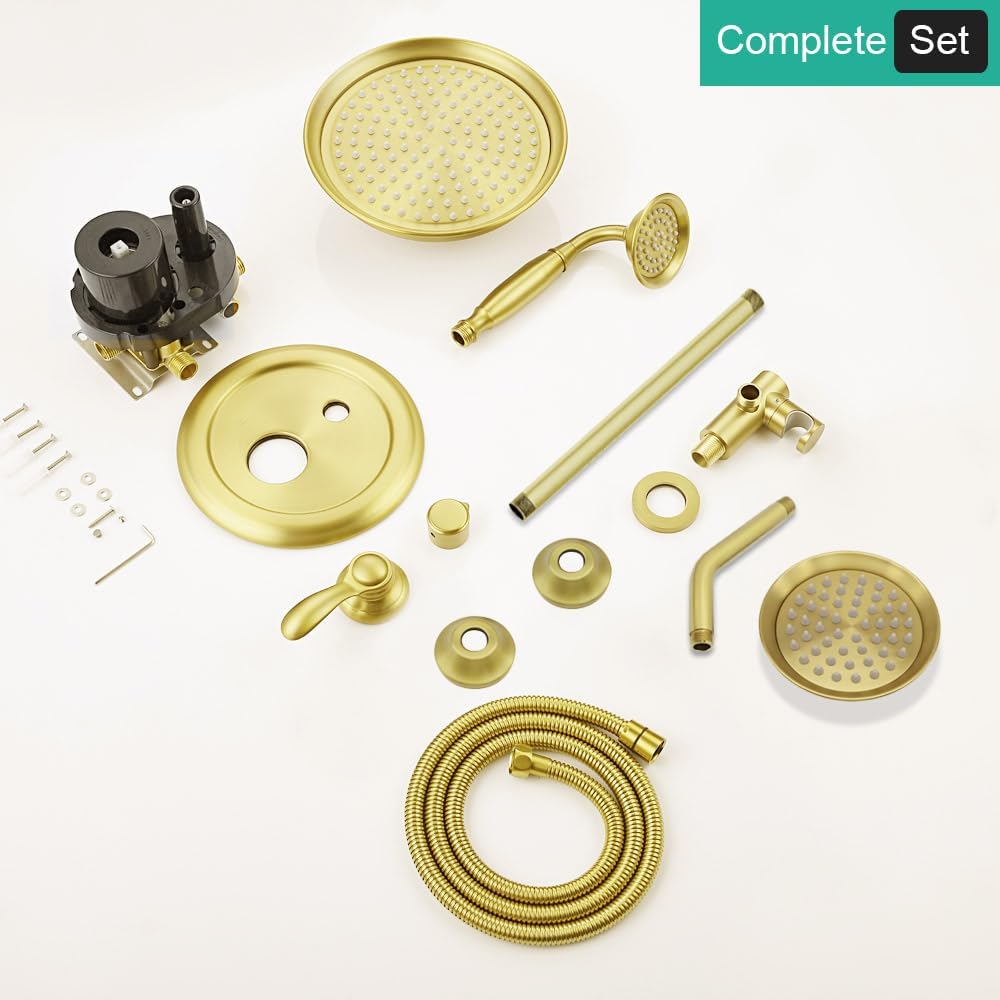

Сүрөт 2: А деталдуу view of all individual components included in the Homekicen Dual Shower System package, arranged on a white background.

Орнотуу жана орнотуу

Professional installation is recommended for this shower system. Ensure all local plumbing codes are followed. The pressure balancing valve complies with ASME A112.18.1-2018/CSA B125.1-18 standards.

Орнотууга чейинки текшерүү тизмеси:

• Бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
• Ensure water supply lines are shut off.
• Gather necessary tools (e.g., pipe wrench, sealant, measuring tape).

Орнотуу кадамдары:

1. Install the Rough-in Valve: Secure the 3-way diverter brass rough-in valve within the wall according to standard plumbing practices. Ensure hot and cold water inlets (NPT 1/2") are correctly connected. The valve features three outlets (NPT 1/2") for the ceiling shower, wall shower, and handheld spray.

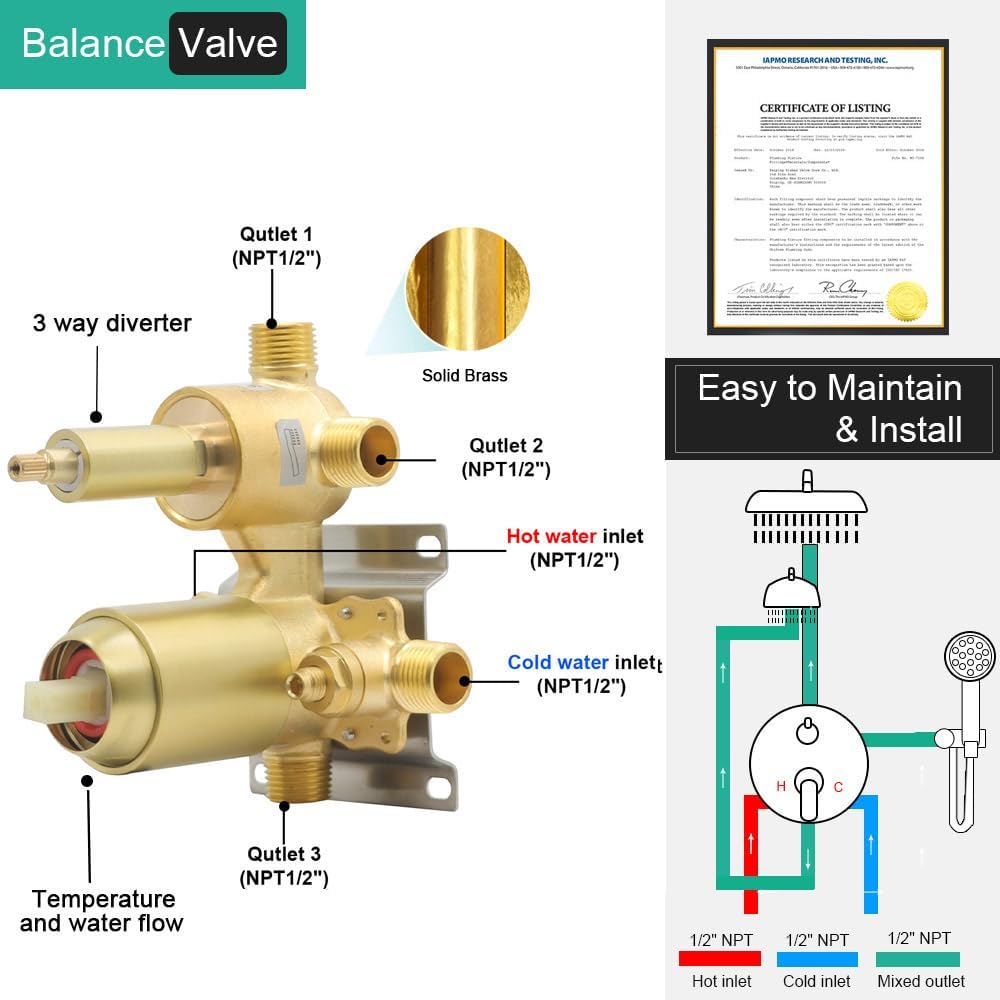

Сүрөт 3: Schematic diagram of the pressure balance valve, illustrating the hot and cold water inlets, three outlets for different shower functions, and the temperature/water flow control mechanism.

2. Connect Shower Arms: Install the 12-inch ceiling mount shower arm and the 7.87-inch wall mount shower arm to their respective outlets from the rough-in valve.
3. Attach Shower Heads: Secure the 9-inch rain shower head to the ceiling arm and the 6-inch rainfall shower head to the wall arm. Both shower heads feature touch-to-clean nozzles.

Сүрөт 4: The 9-inch ceiling-mounted rain shower head in operation, showing water distribution and a close-up of its flexible, touch-to-clean nozzles.


Сүрөт 5: The 6-inch wall-mounted rainfall shower head, demonstrating its water flow and highlighting the design of its touch-to-clean nozzles.

4. Install Handheld Spray: Connect the 59-inch shower hose to the remaining outlet from the valve and attach the handheld spray. Mount the handheld spray holder at a convenient height.


Сүрөт 6: The metal handheld shower spray, featuring its high-pressure output, 59-inch long hose, and an adjustable angle wall mount.

5. Кесүү комплектин орнотуу: Once the rough-in valve and plumbing are complete, install the decorative trim kit over the valve.
6. Агышуу үчүн сыноо: Суу менен камсыздоону күйгүзүп, бардык туташуулардын агып кетүүсүн кылдаттык менен текшериңиз.

Иштөө нускамалары

The 3-way diverter valve allows you to easily switch between the three shower functions.

1. Суунун агымы жана температурасын көзөмөлдөө: Use the main handle on the trim kit to turn the water on/off and adjust the temperature. Rotate the handle to control the mix of hot and cold water.
2. Selecting Shower Function: The diverter knob on the trim kit allows you to select your desired shower output:
   • Rotate to activate the 9-inch ceiling-mounted rain shower head.
   • Rotate to activate the 6-inch wall-mounted rainfall shower head.
   • Rotate to activate the handheld spray.
3. Pressure Balancing Feature: The integrated pressure balancing valve prevents sudden temperature fluctuations, ensuring a consistent and safe showering experience.

Техникалык тейлөө

Regular cleaning and maintenance will help preserve the finish and functionality of your Homekicen shower system.

Аягын тазалоо:

• Щеткаланган алтын түстүү бетти жумшак, d менен тазалаңызamp кездеме.
• Абразивдүү тазалагычтардан, катаал химиялык заттардан же жуугучтан алыс болуңуз, анткени алар финишке зыян келтириши мүмкүн.
• Тазалагандан кийин суу тактарынын алдын алуу үчүн кургатып сүртүңүз.

Тазалоочу саптамалар:

• The rain shower heads and handheld spray feature flexible, touch-to-clean nozzles.
• Periodically rub the rubber nozzles with your finger to dislodge mineral buildup and maintain optimal spray performance.

Компонентти алмаштыруу:

The Homekicen shower system is designed with easily replaceable parts. If any component malfunctions due to quality reasons, contact customer support for assistance.

Проблемаларды чечүү

Бул бөлүмдө душ системаңызда кездешиши мүмкүн болгон кеңири таралган көйгөйлөр каралат.

Төмөн суунун басымы:

• Суу менен камсыздоону текшерүү: Негизги суу менен камсыздоо клапаны толугу менен ачык экенин текшериңиз.
• Таза саптамалар: Mineral buildup can restrict flow. Rub the touch-to-clean nozzles to clear any blockages.
• Inspect Hoses/Pipes: Check for kinks or obstructions in the shower hose or supply lines.

Суу агып кетиши:

• Байланыштарды текшерүү: Ensure all threaded connections are tight and properly sealed with plumber's tape or sealant during installation.
• Inspect Gaskets/Washers: Worn or improperly seated gaskets/washers can cause leaks. Replace if necessary.

Температуранын өзгөрүшү:

• The pressure balancing valve is designed to prevent this. If fluctuations occur, ensure proper installation of the valve and check for consistent hot and cold water supply pressure to the valve.

Техникалык шарттар

Кепилдик жана колдоо

Homekicen offers a 5-year protection period for this shower system. If any part malfunctions due to quality reasons within this period, you will be eligible for a replacement part.

For technical assistance, replacement parts, or warranty claims, please contact Homekicen customer service through your original point of purchase or visit the official Homekicen webколдоо байланыш маалыматы үчүн сайт.
