1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your WONLINK AX1800 USB WiFi 6 Adapter NA1602. Please read this manual thoroughly before using the device to ensure proper functionality and optimal performance.
2. Продукциянын өзгөчөлүктөрү
- Dual-Band WiFi 6 (AX1800): Supports 1201Mbps on 5GHz and 574Mbps on 2.4GHz for high-speed wireless connectivity.
- USB 3.0 интерфейси: Provides ultra-high-speed data transmission up to 5Gbps, backward compatible with USB 2.0.
- External High-Gain Antennas: Enhances signal reception and penetration, improving wireless range and stability.
- WPA3 Коопсуздук: Incorporates the latest WPA3 security protocol for advanced authentication and encryption.
- MU-MIMO & OFDMA: Optimizes data transmission efficiency for multiple devices simultaneously.
- Built-in Driver: Simplifies installation with an integrated driver for Windows 10/11.
- Компакт дизайн: Portable and convenient for use with desktops and laptops.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 1x WONLINK AX1800 USB WiFi 6 Adapter
- 1x Колдонуу боюнча нускамалар (бул колдонмо)
4. Орнотуу жана орнотуу
Follow these steps to install your WONLINK AX1800 USB WiFi 6 Adapter:
- Адаптерди салыңыз: Insert the USB WiFi Adapter into an available USB 3.0 port on your desktop PC or laptop.
Image: The WONLINK AX1800 USB WiFi 6 Adapter plugged into a laptop's USB port, showing its compact design and dual antennas.
- Access the Driver: After insertion, the adapter will appear as a removable disk (USB Drive) in "My Computer" or "This PC". Double-click to open it.
Image: A visual guide demonstrating how the adapter appears as a USB drive and the subsequent steps to locate and run the driver installer.
- Орноткучту иштетиңиз: Locate and double-click the "WiFiAutoInstall.exe" file. Follow the on-screen prompts, selecting "Next" and then "Install" to complete the driver installation.
- WiFi'га туташуу: Once the driver is installed, open your computer's network settings, scan for available wireless networks, and connect to your desired WiFi network.
Эскертүү: If the built-in driver does not install automatically or you experience unstable WiFi, you can download the latest drivers from the official WONLINK webсайт.
5. Иштөө режимдери
The WONLINK AX1800 USB WiFi 6 Adapter supports two primary operating modes:
- Station Mode (Signal Receiver): In this mode, the adapter acts as a receiver, allowing your PC or laptop to connect to an existing wireless router and access the internet.
- AP Mode (Signal Transmitter): In this mode, the adapter can turn a wired internet connection on your PC or laptop into a WiFi hotspot, enabling other devices to connect wirelessly.

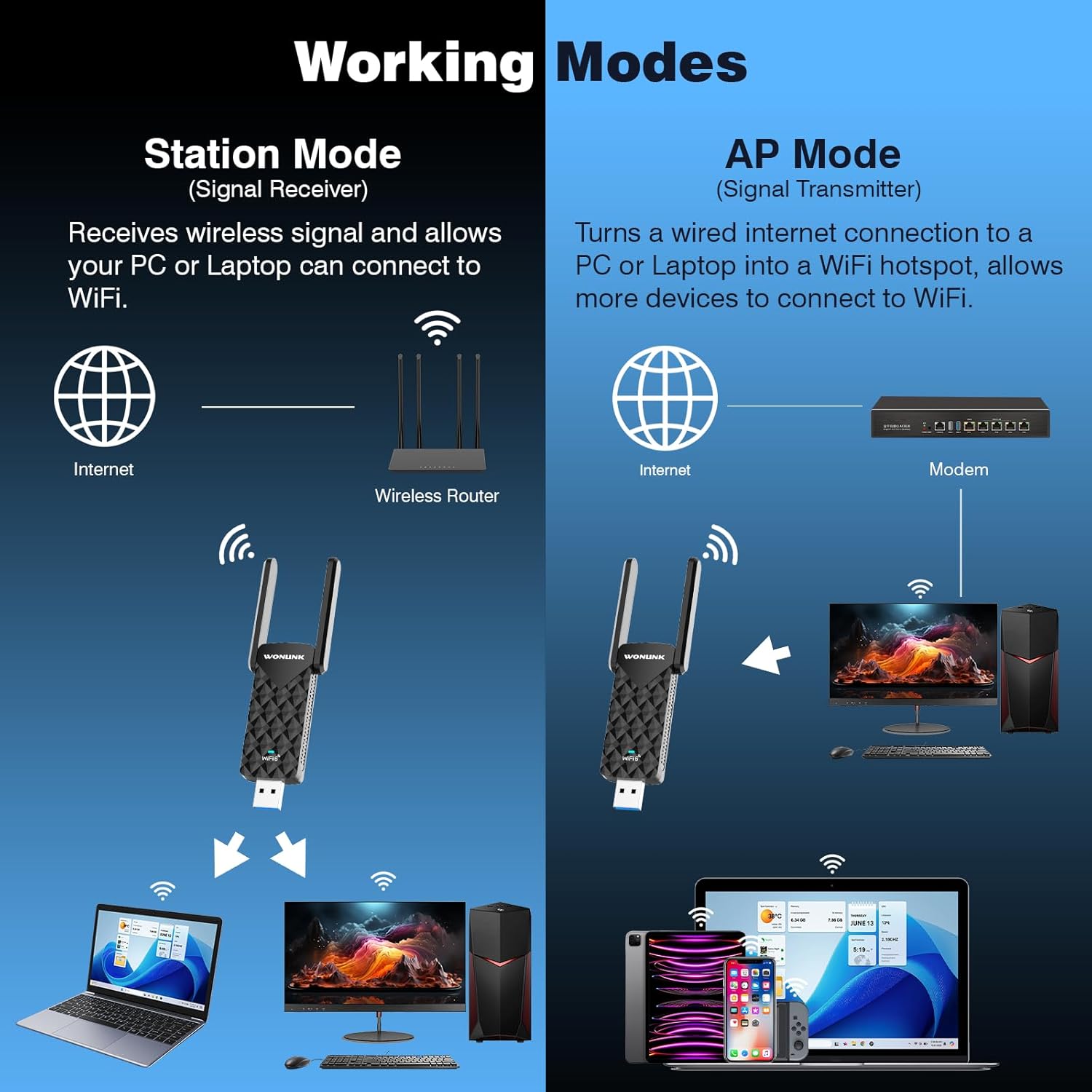

Image: A visual representation of the adapter functioning in Station Mode (receiving WiFi from a router) and AP Mode (creating a WiFi hotspot from a wired connection).
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | WONLINK |
| Модел | NA1602 |
| Аппараттык интерфейс | USB 3.0 (Backward compatible with USB 2.0) |
| Data Link Protocol | IEEE 802.11a/b/g/n/ac/ax |
| Маалыматтарды өткөрүү ылдамдыгы | Up to 1201 Mbps (5GHz), Up to 574 Mbps (2.4GHz) |
| Коопсуздук протоколдору | WPA-PSK/WPA2-PSK/WPA3 |
| Шайкеш түзмөктөр | Иш такта, ноутбук |
| Операциялык системалар | Windows 10 (32-bit/64-bit), Windows 11 (64-bit) |
| Өлчөмдөр | 78.3mm x 36.8mm x 10.5mm (Adapter body) |
| Элемент Салмагы | 2.11 унция (болжол менен 0.06 кг) |
7. Кыйынчылыктарды
If you encounter issues with your WiFi adapter, please refer to the following common solutions:
- Адаптер табылган жок:
- Ensure the adapter is fully inserted into a USB port.
- Try a different USB port (preferably a USB 3.0 port).
- Компьютериңизди өчүрүп күйгүзүңүз.
- No WiFi Networks Found:
- Verify that the adapter drivers are correctly installed (check Device Manager).
- Ensure your wireless router is powered on and broadcasting a signal.
- Check if WiFi is enabled in your computer's network settings.
- Жай туташуу ылдамдыгы:
- WiFi 6 менен шайкеш келген роутерге туташканыңызды текшериңиз.
- Try connecting to the 5GHz band for higher speeds, if available.
- Adjust the position of the adapter's antennas for optimal signal reception.
- Башка электрондук аппараттардын кийлигишүүсүн азайтыңыз.
- Update the adapter drivers from the official WONLINK webсайт.
- Тез-тез өчүрүүлөр:
- Ensure the adapter is securely connected.
- Жаңыртылган драйверлерди текшериңиз.
- Move closer to your wireless router or adjust antenna orientation.
- Роутериңиздин микропрограммасы жаңыртылганын текшериңиз.
8. Техникалык тейлөө
To ensure the longevity and optimal performance of your WONLINK AX1800 USB WiFi 6 Adapter, follow these maintenance guidelines:
- Тазалоо: Gently wipe the adapter with a soft, dry cloth. Avoid using liquid cleaners or solvents.
- Сактагыч: Колдонулбаганда, адаптерди салкын, кургак жерде, тике күндүн нурунан жана өтө температурадан алыс сактаңыз.
- Физикалык коргоо: Avoid dropping the adapter or subjecting it to strong impacts. Ensure the antennas are not bent excessively.
- Драйвер жаңыртуулары: Periodically check the official WONLINK webшайкештикти жана иштин натыйжалуулугун жакшыртууну камсыз кылуу үчүн драйвердин акыркы жаңыртуулары үчүн сайт.
9. Колдоо маалыматы
Көбүрөөк жардам же техникалык колдоо алуу үчүн, расмий WONLINK сайтына кириңиз website or contact their customer service. Refer to the product packaging or the WONLINK webконкреттүү байланыш маалыматы жана кепилдик маалымат үчүн сайт.
