HCALORY 8KW дизель жылыткычынын курал кутусу MAX колдонуучу колдонмосу

1. Киришүү

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your HCALORY 8KW Diesel Heater Toolbox MAX. Please read this manual thoroughly before using the product and retain it for future reference.

Коопсуздук эскертүүлөрү

• Көмүртек кычкылы коркунучу: Ensure adequate ventilation when operating the heater. Never use in enclosed, unventilated spaces.
• Өрт коркунучу: Keep flammable materials away from the heater. Do not block air intake or exhaust.
• Күйүк коркунучу: Heater surfaces become hot during operation. Avoid direct contact.
• Күйүүчү май иштетүү: Use only diesel fuel. Do not overfill the tank. Handle fuel in a well-ventilated area away from ignition sources.
• Электр коопсуздугу: Ensure proper power supply (110/12/24V) and connections. Do not operate with damaged cords or plugs.
• Балдар жана үй жаныбарлары: Балдарды жана үй жаныбарларын иштеп жаткан жылыткычтан алыс кармаңыз.

2. Продукт бүтүп калдыview

The HCALORY 8KW Diesel Heater Toolbox MAX is an all-in-one portable heating solution designed for RVs, garages, campers, and other outdoor or semi-enclosed spaces. It features a robust design, app control, wireless temperature sensing, and an altitude mode for reliable performance.

Негизги компоненттер

• Main Heater Unit with Integrated 7.5L Fuel Tank
• Wireless Remote Control with Temperature Sensor
• Control Panel (integrated or external, depending on setup)
• Чыгаруучу түтүк
• Аба алуучу түтүк
• Ысык аба каналы
• Power Adapter (110V AC to 12/24V DC)
• Fuel Pump (internal, silent operation)

2.1-сүрөт: HCALORY 8KW Diesel Heater Toolbox MAX and accessories.

3. Орнотуу жана орнотуу

Proper setup is crucial for safe and efficient operation. Follow these steps carefully.

3.1 Таңгактан чыгаруу жана текшерүү

1. Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Inspect all parts for any signs of damage. Contact customer support immediately if any damage is found.
3. Verify all listed components are present: Host unit, Remote Control, User Manual, Installation accessories.

3.2 Жайгаштыруу маселелери

• Place the heater on a stable, non-flammable surface.
• Ensure adequate clearance around the heater for proper airflow and to prevent fire hazards. Maintain at least 1 meter (3 feet) from walls, furniture, and other combustible materials.
• For optimal performance and safety, consider placing the main unit outside the heated space (e.g., outside a tent or RV) and directing the hot air duct inside. This allows the wireless remote to accurately sense the indoor temperature.
• Ensure the exhaust pipe is directed away from any combustible materials and areas where fumes could accumulate.

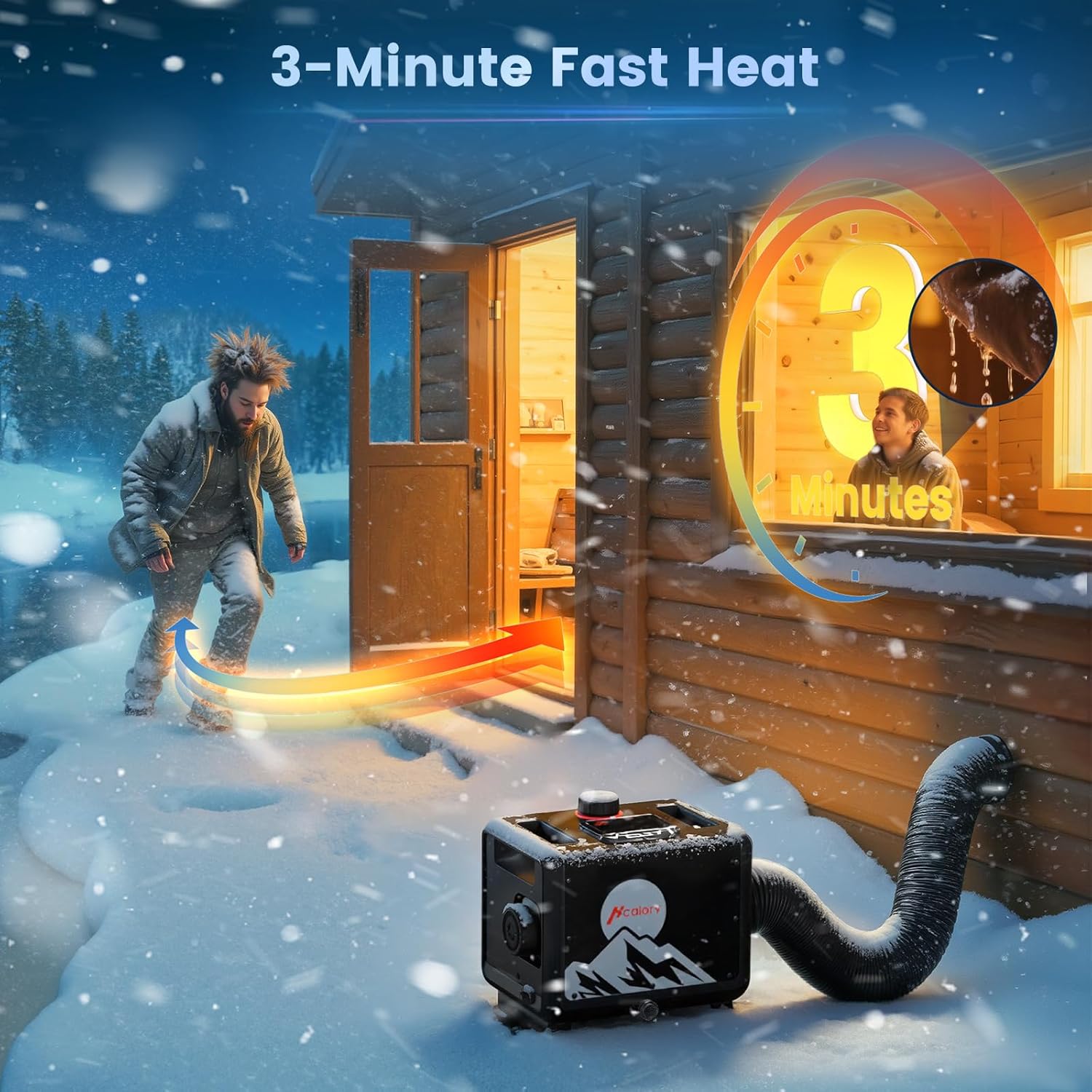

3.1-сүрөт: Example of external heater placement with hot air ducting.

3.3 Fueling the Heater

1. Ensure the heater is turned off and cool before fueling.
2. Күйүүчү май багынын капкагын ачыңыз.
3. Fill the 7.5L tank with clean diesel fuel. Do not use gasoline or other flammable liquids.
4. Do not overfill. Securely close the fuel tank cap after filling.

3.2-сүрөт: The 7.5L fuel tank provides extended operation.

3.4 Кубатты туташтыруу

• The heater supports 110V AC (via adapter), 12V DC, and 24V DC power sources.
• Connect the appropriate power cable to the heater.
• For 110V AC, use the provided power adapter.
• For 12V or 24V DC, ensure correct polarity when connecting to a battery.

4. Иштөө нускамалары

4.1 Initial Start-up (Priming)

For the first use or after running out of fuel, the system may need to be primed to ensure fuel reaches the combustion chamber. This model is designed to minimize the need for manual priming.

1. Ensure the fuel tank is filled.
2. Turn on the heater. The unit will attempt to start.
3. If it fails to ignite after a few attempts, turn it off and on again. The fuel pump will cycle to draw fuel. Repeat this process a few times if necessary.

4.2 Башкаруу панелин колдонуу

The integrated control panel allows direct operation and monitoring of the heater.

• Кубат баскычы: Press to turn the heater on or off.
• Temperature/Gear Setting: Adjust the desired temperature or heating power level.
• Режим тандоо: Cycle through various modes such as heating, fan, or altitude mode.
• Дисплей: Shows current temperature, power level, voltage, жана ката коддору.

4.1-сүрөт: Heater control panel interface.

4.3 Зымсыз Алыстан башкаруу

The wireless remote control acts as an external thermostat, providing precise temperature regulation from your heated space.

• Жупташтыруу: Refer to the remote control's specific instructions for initial pairing with the main unit.
• Температураны аныктоо: Place the remote in the area where you want to maintain the desired temperature. The heater will adjust its output based on the remote's readings.
• Функциялары: Power on/off, adjust temperature, switch modes.

4.2-сүрөт: Wireless remote control for precise temperature management.

4.4 Колдонмону башкаруу

Download the HCALORY app from your smartphone's app store to access advanced control features.

1. Колдонмону жүктөп алуу: Издөө "HCALORY" in your app store.
2. Жупташтыруу: Follow in-app instructions to connect your heater via Bluetooth or Wi-Fi.
3. Өзгөчөлүктөрү:
   • Altitude Mode activation and adjustment.
   • Precise temperature setting.
   • Timer functions for scheduled operation.
   • Fan mode control.
   • Automatic start and stop based on set parameters.

4.3-сүрөт: App control interface for advanced settings.

4.5 Altitude Mode

The heater automatically adjusts its combustion parameters for optimal performance at altitudes up to 18,000 feet, ensuring consistent heat output and fuel efficiency.

• Activate Altitude Mode via the control panel or the HCALORY app when operating at high elevations.
• The system will intelligently adjust the air-to-fuel ratio for complete combustion.

5. Техникалык тейлөө

Үзгүлтүксүз тейлөө дизелдик жылыткычыңыздын узак мөөнөттүү жана натыйжалуу иштешин камсыздайт.

5.1 Тазалоо

• Сырткы: Жарнама менен сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Аба кирүүчү/чыгаруучу түтүк: Periodically check and clear any obstructions from the air intake and exhaust pipes.
• Күйүүчү май чыпкасы: Inspect the fuel filter for debris. Clean or replace as needed.

5.2 Күйүүчү май системасы

• Use only clean, high-quality diesel fuel.
• Avoid storing the heater with old or contaminated fuel for extended periods.
• If storing for the off-season, drain the fuel tank or run the heater until the tank is empty to prevent fuel degradation.

5.3 Сактоо

• Store the heater in a dry, cool place away from direct sunlight and extreme temperatures.
• Ensure all connections are secure and the unit is clean before storage.

6. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт. Бул жерде көрсөтүлбөгөн көйгөйлөр үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact HCALORY customer service through the retailer where the product was purchased or visit the official HCALORY webсайт.

Онлайн ресурстар:

• HCALORY Official Store on Amazon
• Refer to your purchase documentation for specific warranty terms.
