1. Киришүү
This manual provides detailed instructions for the safe and effective use of your GODOX iT22S Mini TTL Wireless Camera Flash for Sony. Please read this manual thoroughly before operation to ensure optimal performance and to prevent damage to the product.
2. Продукт бүтүп калдыview
Негизги өзгөчөлүктөрү
- Smart TTL Functionality: Provides automatic light output for simplified operation.
- Компакт дизайн: Weighing approximately 45g, its small size ensures portability.
- Integrated Lithium Battery: Features a built-in 470mAh lithium battery with USB-C charging for extended use.
- Которуу режими: Easily switch between Manual (M) and TTL modes using a dedicated button. The high-definition display shows real-time settings.
- Magnetic Accessory System: Compatible with magnetic snap-on diffusers, color filters (CTO/CTB), creative gels, and honeycomb grids (accessories may be sold separately).
- Аткаруу: Offers over 700 flashes per charge with a 1.5-second recycle time at full power.
- Кубатты башкаруу: Adjust flash intensity across 6 stops (1/32 to 1/1 power) in 1/3-step increments.
Кутуда эмне бар
- Flash Body x1
- USB-C заряддоо кабели x1
- Магниттик тараткыч x1
- Magnetic Color Filter x2 (1/2 CTO, 1/1 CTO)
- Сактоочу баштык x1
Image 2.1: The GODOX iT22S Mini Flash with its complete set of accessories, including the flash unit, magnetic spreader, magnetic color filters, USB-C charging cable, and storage bag.
3. Орнотуу
3.1 Батареяны заряддоо
The GODOX iT22S features a built-in lithium battery. Before first use, fully charge the flash unit.
- Берилген USB-C кубаттоо кабелин флеш блогундагы USB-C портуна туташтырыңыз.
- USB-C кабелинин экинчи учун туура келген USB кубат адаптерине туташтырыңыз (кошумча эмес).
- The battery indicator on the display will show charging status. Charging typically takes approximately 1 hour and 10 minutes for a full charge.
Image 3.1: The GODOX iT22S flash unit being charged via its USB-C port, illustrating the charging process and battery status display.
3.2 Mounting the Flash on Your Camera
The iT22S is designed to mount onto a camera's hotshoe.
- Камераңыз өчүк экенин текшериңиз.
- Slide the flash unit's hotshoe mount into your camera's hotshoe slot until it clicks into place.
- If your camera has a locking mechanism for the hotshoe, secure the flash.

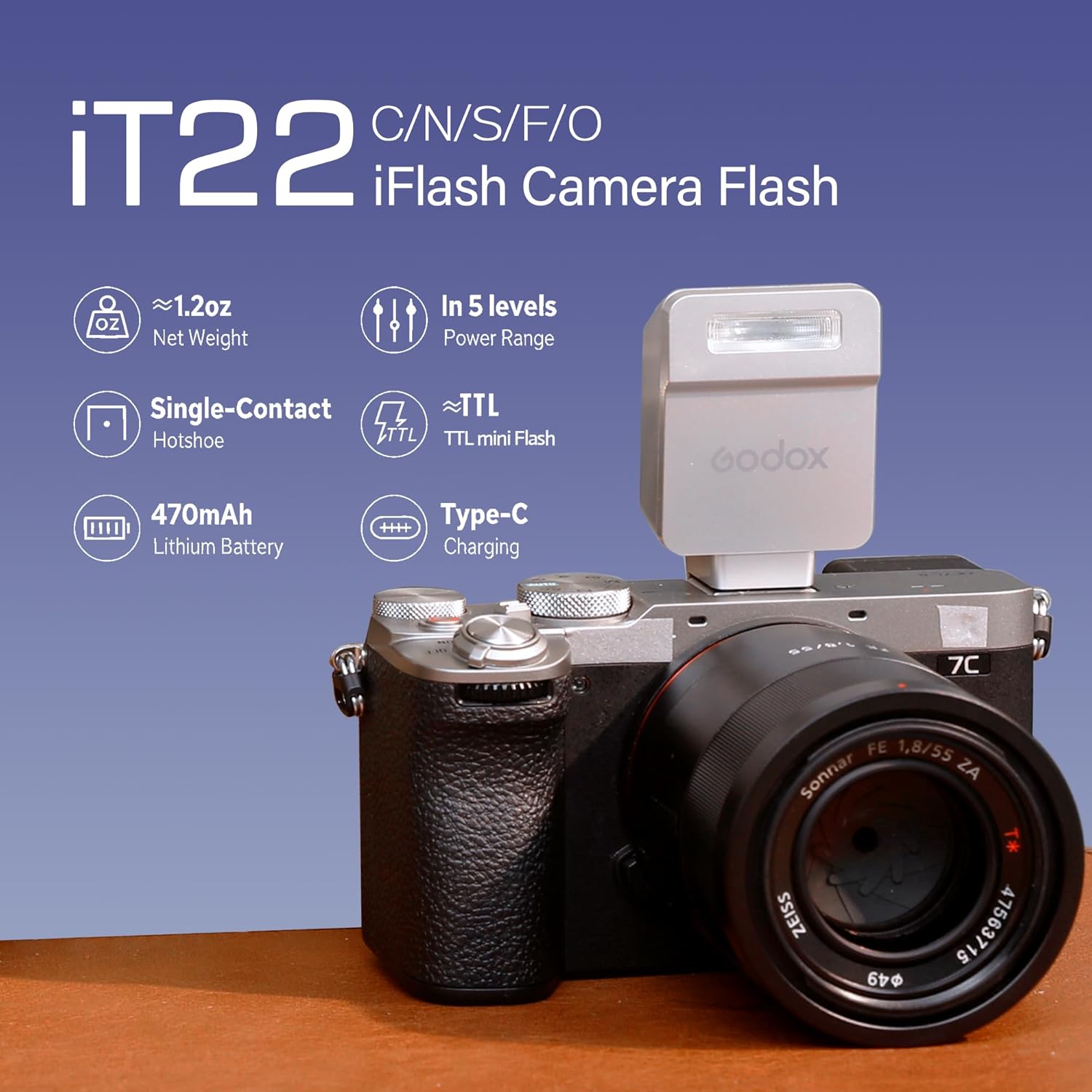

Image 3.2: The GODOX iT22S flash unit securely mounted on a Sony camera, demonstrating its compact size and hotshoe connection.
3.3 Магниттик аксессуарларды бекитүү
The iT22S features a magnetic front for quick attachment of light modifiers.
- Select the desired magnetic accessory (e.g., spreader, color filter).
- Align the accessory with the front of the flash head.
- The magnets will secure the accessory in place.
Image 3.3: The GODOX iT22S flash unit demonstrating the use of magnetic accessories, including diffusers and color filters, for creative lighting effects.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
- Күйгүзүү үчүн кубат баскычын дисплей күйгүчө басып туруңуз.
- Өчүрүү үчүн, кубат баскычын дисплей өчкүчө басып туруңуз.
4.2 Switching Between M/TTL Modes
The iT22S allows for quick switching between Manual and TTL modes.
- Press the dedicated 'MODE' button to toggle between TTL (Through-The-Lens) and M (Manual) modes.
- The current mode will be displayed on the high-definition screen.
Сүрөт 4.1: Жакын пландан view of the GODOX iT22S flash unit's control panel, highlighting the 'MODE' button for switching between TTL and Manual settings, and the clear display.
4.3 Adjusting Power Output (Manual Mode)
In Manual mode, you can precisely control the flash intensity.
- Once in M mode, use the '+' and '-' buttons to adjust the power output.
- Power can be adjusted from 1/32 to 1/1 in 1/3-stop increments.
Image 4.2: A sequence of images demonstrating the effect of different power settings (1/1, 1/2, 1/4) on a subject, illustrating the precise power control of the GODOX iT22S flash.
4.4 Using the Optional TR Hot Shoe Riser
For improved clearance with wide or protruding lenses, an optional TR Hot Shoe Riser can be used.
- Mount the TR Hot Shoe Riser onto your camera's hotshoe first.
- Then, mount the iT22S flash onto the riser.
- The riser allows for a 0-90 degree tilt adjustment for direct or bounce flash.
Note: The TR Hot Shoe Riser is recommended for use with Godox camera flashes under 300g for optimal balance and stability.
Image 4.3: The GODOX iT22S flash unit shown with the optional TR Hot Shoe Riser, demonstrating how it elevates the flash and allows for tilt adjustments from 0 to 90 degrees.
5. Техникалык тейлөө
5.1 Тазалоо
- Жарк этүүчү аппаратты тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз.
- өжөр кир үчүн, бир аз гampчүпүрөктү суу же жумшак тазалоо эритмеси менен жууп салыңыз.
- Avoid using strong solvents or abrasive cleaners.
5.2 Сактоо
- Жарыкты салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
- Узак мөөнөткө сактасаңыз, анын иштөө мөөнөтүн узартуу үчүн батареянын жарым-жартылай заряддалганын (болжол менен 50%) текшериңиз.
- Use the provided storage bag to protect the unit from dust and scratches.
5.3 Батареяга кам көрүү
- Батареяны бат-баттан толук кубаттап калуудан алыс болуңуз.
- Recharge the battery regularly, even if not in use, to maintain its health.
- Батареяны жогорку температурага калтырбаңыз же тешип албаңыз.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Flash күйбөйт. | Батарея түгөнүп калды. | Charge the flash unit using the USB-C cable. |
| Flash күйбөйт. | Flash not securely mounted; Camera settings incorrect; Flash in standby mode. | Ensure flash is fully seated in hotshoe. Check camera flash settings. Press any button on the flash to wake it from standby. |
| Flash output is inconsistent or too weak. | Incorrect power setting (M mode); TTL exposure compensation needed; Low battery. | Adjust power in M mode. Check camera's flash exposure compensation. Recharge battery. |
| Magnetic accessories do not attach properly. | Obstruction on flash head or accessory; Accessory not magnetic. | Clean flash head and accessory. Ensure you are using compatible magnetic accessories. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | MIC-GD-IT22-S-S |
| Бренд | GODOX |
| Шайкеш орнотуулар | Sony Hotshoe |
| Flash түрү | TTL Wireless Camera Flash |
| Батарея | Built-in Lithium, 470mAh |
| Заряддоо порту | USB-C |
| Кайра иштетүү убактысы | Болжол менен 1.5 секунд (толук кубаттуулукта) |
| Flashes per Charge | Over 700 (at full power) |
| Кубат чыгаруу диапазону | 1/32 to 1/1 (in 1/3-stop increments) |
| Элемент Салмагы | 4.3 унция (болжол менен 122 г) |
| Dimensions (Flash Body) | Болжол менен 40мм x 64мм x 28мм |
| Түс | Silver |
Image 7.1: The GODOX iT22S flash unit with its dimensions (40mm x 64mm x 28mm) and net weight (approximately 52g) clearly indicated.
8. Кепилдик жана колдоо
GODOX products are designed and manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official GODOX webсайт.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact GODOX customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
