TURBRO 8 kW Diesel Heater H8BP User Manual

1. Коопсуздук боюнча маанилүү маалымат

Read all safety warnings and instructions carefully before operating this diesel heater. Failure to follow these instructions may result in fire, electric shock, or serious injury.

• Чыгаруу коопсуздугу: The exhaust pipe must be fully installed and vented to the exterior of any enclosed space. Never operate the heater with the exhaust inside a vehicle, tent, or building. Carbon monoxide poisoning is a serious risk.
• Ысык беттер: Do not touch the exhaust outlet or nearby surfaces during operation or immediately after shutdown, as they can reach extremely high temperatures. Allow the unit to cool completely.
• Муздатуу цикли: After turning off the controller, wait for the fan to complete its cooling cycle before disconnecting the power supply. Interrupting the cooling cycle can damage the heater components.
• Күйүүчү май иштетүү: Use only diesel fuel. Do not overfill the fuel tank. Ensure proper ventilation when refueling.
• Электр камсыздоо: Ensure the correct power supply (DC 12V/24V or AC 220V) is used and properly connected.
• Жайгашкан жери: Place the heater on a stable, non-combustible surface. Maintain adequate clearance from combustible materials.
• Бийиктик операциясы: The heater features a high-altitude mode for safe operation up to 5,000 meters. Ensure this mode is activated when operating at high altitudes.

2. Продукт бүтүп калдыview

The TURBRO H8BP 8 kW Diesel Heater is a compact and portable heating solution designed for various indoor and outdoor applications, including trucks, RVs, boats, tents, garages, and workshops. It provides rapid and reliable heat, even in extreme cold conditions, and features multiple control options for user convenience.

Image: The TURBRO H8BP 8 kW Diesel Heater, showcasing its compact design, integrated fuel tank, and included accessories such as the control panel, remote, and power adapters.

Image: The TURBRO H8BP Diesel Heater positioned in a snowy landscape next to an RV, illustrating its use in cold outdoor conditions. Text overlays indicate 2-8 kW heat output and ≥95% combustion efficiency.

3. Пакеттин мазмуну

Verify that all components are present in the package before proceeding with installation and operation.

• TURBRO H8BP Diesel Heater Unit
• Аба чыгаруучу түтүк
• AC/DC Power Adapter (220V AC input)
• DC Power Cable (for 12V/24V DC input)
• Муфлятор
• Алыстан башкаруу
• Чыгаруучу түтүк
• Mounting Hardware (clampс, бурамалар ж.б.)

Сүрөт: жарылган view diagram showing the TURBRO H8BP Diesel Heater unit with its dimensions (35.0 cm length, 26.8 cm width, 32.0 cm height) and all included accessories: air outlet tube, AC/DC adapter, DC power cable, muffler, remote control, exhaust tube, and various mounting hardware.

4. Орнотуу жана орнотуу

Туура орнотуу коопсуз жана натыйжалуу иштөө үчүн абдан маанилүү болуп саналат.

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Кандайдыр бир зыянды текшериңиз.
2. Жайгашкан жери: Position the heater on a flat, stable, and non-combustible surface. Ensure there is sufficient clearance around the unit for proper airflow and to prevent fire hazards.
3. Чыгаруу системасы: Connect the exhaust pipe to the heater's exhaust port. Securely route the exhaust pipe to the exterior of the heated space. Ensure there are no leaks and that exhaust fumes cannot re-enter the space. Attach the muffler if desired.
4. Аба алуу/чыгаруу: Аба кирүүчү жана ысык абанын чыгуучу тешиги тоскоолсуз экенин текшериңиз.
5. Күйүүчү май: Open the fuel cap and fill the integrated 5-liter tank with clean diesel fuel. Do not use gasoline or other flammable liquids. Close the cap securely.
6. Кубат туташуу:
   • For AC 220V operation: Connect the provided AC/DC power adapter to the heater and then plug it into a standard 220V AC outlet.
   • For DC 12V/24V operation: Connect the DC power cable to the heater and then to a compatible 12V or 24V DC power source (e.g., vehicle battery). Ensure correct polarity.

Image: The YH-CZ1212 AC/DC Power Adapter, showing input specifications (100-240V, 50-60Hz) and output (12V, 12A), along with safety certifications and warnings. This adapter is used to power the heater from a standard wall outlet.

5. Иштөө нускамалары

The TURBRO H8BP offers multiple control methods for flexible operation.

5.1. Күйгүзүү / Өчүрүү

• Күйгүзүү үчүн: Press and hold the power button on the LCD control panel or the remote control. The heater will initiate a startup sequence, including preheating.
• Өчүрүү үчүн: Press and hold the power button. The heater will enter a cooling cycle, during which the fan will continue to run to cool down internal components. Do not disconnect power until this cycle is complete.

5.2. Башкаруу ыкмалары

Image: The TURBRO H8BP Diesel Heater's various control interfaces, including the color LCD control panel, the remote control, and the Bluetooth smartphone application. The image highlights the convenience of controlling the heater from a distance.

• LCD башкаруу панели: The integrated color LCD screen allows direct control over all functions. Use the rotary knob and buttons to navigate menus, adjust temperature, set power levels, and program the timer.
• Алыстан башкаруу: The included remote control provides convenient wireless operation from up to 50 meters away. It allows you to power on/off and adjust basic settings.
• Bluetooth колдонмосу: Download the dedicated smartphone application to control the heater via Bluetooth from up to 30 meters away. The app offers comprehensive control, including temperature settings, timer programming, and monitoring.

5.3. Иштөө режимдери жана орнотуулар

Image: A close-up of the TURBRO H8BP's control panel display, illustrating options for temperature mode (8-36℃), power mode (1-10 levels), timer (0.5-10 hours), fan mode (1-10 levels), screen brightness adjustment, and temperature calibration.

• Temperature Mode (Automatic): Set your desired temperature between 8℃ and 36℃. The heater will automatically adjust its output to maintain this temperature, optimizing energy consumption.
• Power Mode (Manual): Select from 10 manual power levels for a constant heat output, regardless of the ambient temperature.
• Таймер функциясы: Program the heater to turn on or off at specific times, or to operate for a set duration (0.5 to 10 hours). This allows for preheating spaces before arrival.
• Күйөрман режими: Adjust the fan speed, typically with 10 levels, to control the airflow.
• High Altitude Mode: Activate this mode when operating at altitudes up to 5,000 meters. This adjusts the fuel-air mixture for efficient combustion at reduced atmospheric pressure.

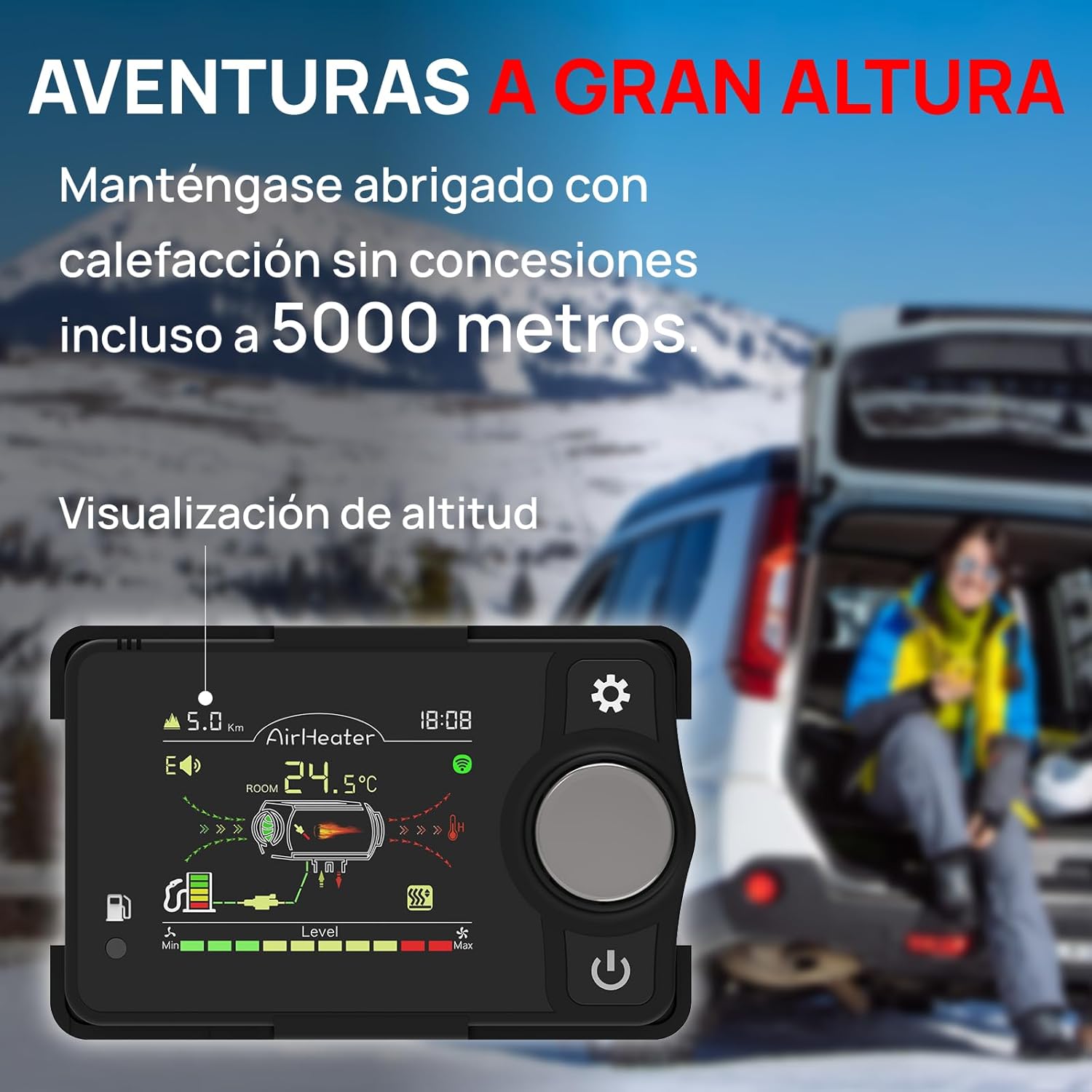

Image: The TURBRO H8BP's control panel display showing altitude visualization, indicating its capability for reliable operation at high altitudes (up to 5000 meters).

Image: The TURBRO H8BP Diesel Heater in a snowy tent setting, highlighting its 5.00 L tank capacity and efficient fuel consumption of 0.16-0.40 L/h, allowing for extended operation.

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин жылыткычыңыздын оптималдуу иштешин жана узак иштөөсүн камсыз кылат.

• Тазалоо: Мезгил-мезгили менен жылыткычтын сыртын жумшак, гamp cloth. Ensure the air intake and outlet grilles are free from dust and debris. Do not use abrasive cleaners or solvents.
• Күйүүчү май чыпкасы: Check the fuel filter regularly for blockages or contamination. Replace if necessary.
• Чыгаруу системасы: Inspect the exhaust pipe and muffler for any damage, blockages, or leaks. Ensure all connections are secure.
• Сактагыч: When storing the heater for extended periods, ensure the fuel tank is empty and clean. Store in a dry, cool place away from direct sunlight and extreme temperatures.

7. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

• Жылыткыч ишке кирбей жатат:
  • Check power connection and ensure it's secure.
  • Verify sufficient fuel in the tank.
  • Күйүүчү май түтүкчөлөрү тосулуп же ийилип калбагандыгын текшериңиз.
• Төмөн жылуулук чыгаруу:
  • Check the selected power level or temperature setting.
  • Ensure air intake and outlet are not obstructed.
  • Clean any dust or debris from the fan and grilles.
• Unusual Noise or Smoke:
  • Дароо блокту өчүрүңүз.
  • Inspect the exhaust system for blockages or leaks.
  • Check for foreign objects in the fan or combustion chamber.
• Ката коддору: The intelligent protection system will display error codes on the LCD screen if a malfunction occurs (e.g., overheating, sensor failure). Refer to the specific error code in the full product manual (if available) for detailed solutions. Generally, power cycling the unit after ensuring safety can resolve minor issues.

8. Техникалык шарттар

9. Кепилдик жана колдоо

The TURBRO H8BP Diesel Heater comes with a 12 айлык кепилдик сатып алынган күндөн тартып өндүрүш кемчиликтерин жабуу. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

For technical support, troubleshooting assistance, or warranty inquiries, please contact TURBRO customer service. Refer to the product packaging or the official TURBRO webбайланыш маалыматы үчүн сайт.
