ATTACK SHARK X820 Ultra Mechanical Keyboard User Manual

1. Киришүү

The ATTACK SHARK X820 Ultra is a 75% wireless gaming mechanical keyboard designed for versatility and performance. It features a hot-swappable gasket mount, RGB backlighting, and tri-mode connectivity (Bluetooth, 2.4G wireless, and wired USB-C). A unique Smart TFT Display and a multi-functional knob provide intuitive control and real-time information. This manual provides detailed instructions for setting up, operating, and maintaining your keyboard.

Figure 1: The ATTACK SHARK X820 Ultra Mechanical Keyboard in Starlight White.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:

• X820Ultra Keyboard (x1)
• USB-C кабели (x1)
• 2-in-1 Key Puller (x1)
• Колдонуучунун колдонмосу (x1)
• ATTACK SHARK Mascot Stickers (x2)
• Switches (x2)

Figure 2: All components included in the ATTACK SHARK X820 Ultra package.

3. Орнотуу

3.1 Алгачкы заряддоо

Before first use, connect the keyboard to a USB power source using the provided USB-C cable to ensure it is fully charged. The Smart TFT Display will indicate the battery status.

3.2 Байланыш режимдери

The X820 Ultra supports three connection modes: wired, 2.4GHz wireless, and Bluetooth. You can switch between modes using the dedicated switch on the keyboard or via the Smart TFT Display.

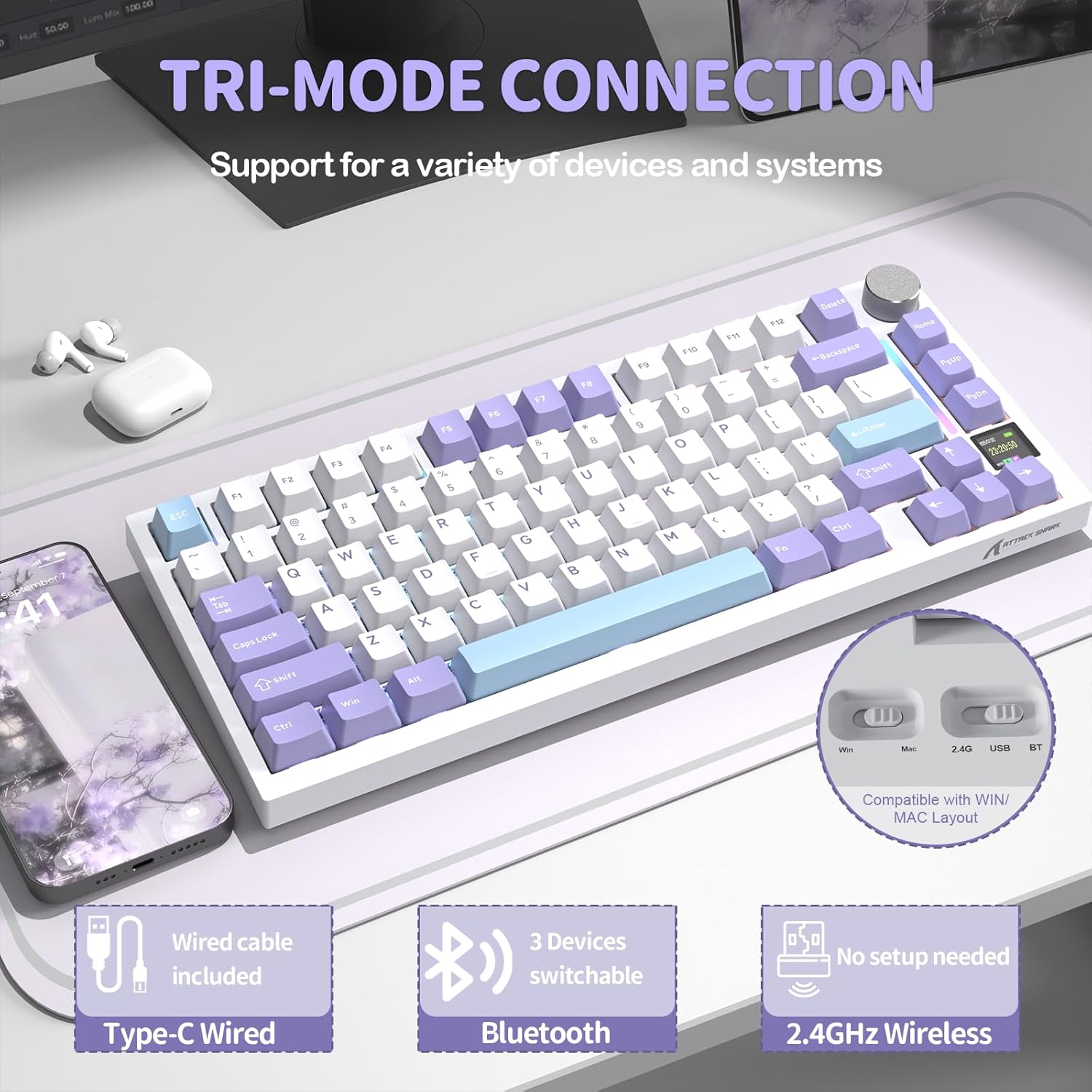

Figure 3: ашыкview of the keyboard's tri-mode connectivity options.

3.2.1 Зымдуу туташуу

Connect the USB-C cable from the keyboard to your computer's USB port. The keyboard will automatically switch to wired mode.

3.2.2 2.4 ГГц зымсыз туташуу

Insert the 2.4GHz USB receiver into an available USB port on your computer. Switch the keyboard to 2.4G mode. The keyboard should connect automatically. For optimal performance, ensure the receiver is close to the keyboard.

3.2.3 Bluetooth байланышы

Switch the keyboard to Bluetooth mode. On your device, search for Bluetooth devices and select "ATTACK SHARK X820 Ultra" to pair. The keyboard can store up to three Bluetooth connections, allowing for easy switching between devices.

4. Иштөө нускамалары

4.1 Smart TFT Display & Metal Control Knob

The integrated TFT smart screen and precision metal knob provide real-time information and intuitive control over various keyboard functions.

• реалдуу убакыт маалымат: View battery level, connection status, date, and time.
• RGB Adjustment: Instantly change RGB lighting effects and colors.
• OS Mode Switching: Easily switch between Windows and macOS modes.
• Үндү көзөмөлдөө: Press Fn + Knob to activate volume control, then scroll the knob to adjust volume.
• Меню навигациясы: Scroll the knob to navigate menu pages on the display. Short press the knob to select or confirm.

4-сүрөт: Детальдуу view of the Smart TFT Display and Metal Control Knob functionalities.

4.2 Динамикалык RGB жарыктандыруу

Personalize your typing experience with 16.8 million colors and over 19 lighting presets. The south-facing LEDs ensure vivid and even backlighting, especially through PBT keycaps. Adjust effects directly via the knob or screen, or use key combinations:

• Fn + { : Turn on/off RGB lighting.
• Fn + Enter: Change lighting color.
• Fn + }: Cycle through custom light effects.

Figure 5: Customization options for the keyboard's dynamic RGB backlight.

4.3 Hot-Swappable Design

The X820 Ultra features hot-swappable sockets, supporting both 3-pin and 5-pin mechanical switches. This allows you to easily change switches without soldering, customizing your typing feel. The keyboard comes with custom linear Shark switches for smooth keystrokes and fast response. Precision-tuned stabilizers ensure firm, rattle-free large keys with satisfying rebound.

Figure 6: Components illustrating the hot-swappable PCB design, including pre-lubed linear switches, hot-swap sockets, and plate-mounted stabilizers.

4.4 Gasket Structure & Advanced Acoustic Tuning

The keyboard is built with a soft gasket-mounted structure, combining a 1.2mm FR4 fiberglass dual-layer PCB with individual switch slots for improved flex and keystroke uniformity. This design, paired with upgraded acoustic tuning layers (PORON foam, IXPE pad, PET sheet, DEPDM, and molded silicone), results in a deeper sound profile, softer touch, and enhanced typing feedback.

7-сүрөт: жарылган view of the keyboard's gasket structure, showing the various dampening and acoustic layers.

4.5 Web Драйверди ыңгайлаштыруу

The X820 Ultra offers extensive customization without the need for software installation. You can adjust macros, lighting, DPI, and key remapping directly through your browser using the cloud driver. Full QMK web driver support is also available at qmk.top for deeper customization and advanced key mapping options.

Figure 8: Screenshots of the web driver interface for customizing keyboard settings.

5. Техникалык тейлөө

Үзгүлтүксүз тейлөө клавиатураңыздын иштөө мөөнөтүн жана иштөөсүн узартууга жардам берет.

• Клавиатураны тазалоо: Use the provided key puller to remove keycaps. Clean them with a soft cloth dampжумшак самын жана суу менен бүттү. Кайра жабыштыруудан мурун алар толугу менен кургатылганын текшериңиз.
• Баскычтоптун корпусун тазалоо: Баскычтоптун корпусун сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. өжөр кир үчүн, бир аз гamp кездеме колдонсо болот, бирок ашыкча нымдуулуктан алыс болуңуз.
• Тазалоочу өчүргүчтөр: Use compressed air to remove dust and debris from around the switches. If switches are removed, clean the sockets carefully.
• Сактагыч: Узак мөөнөткө колдонулбаганда, клавиатураны кургак, салкын жерде күн тийбеген жерде сактаңыз.

6. Кыйынчылыктарды

If you encounter issues with your ATTACK SHARK X820 Ultra keyboard, refer to the following common problems and solutions:

• Keyboard not connecting (Wireless/Bluetooth):
  • Баскычтоп кубатталганын текшериңиз.
  • Verify the correct mode (2.4G/BT) is selected on the keyboard.
  • For 2.4G, ensure the USB receiver is securely plugged in and close to the keyboard.
  • Bluetooth үчүн, түзмөгүңүздө Bluetooth иштетилгенин текшерип, кайра жупташтырып көрүңүз.
  • Try connecting via wired USB-C to confirm keyboard functionality.
• RGB жарыгы иштебейт же шайкеш келбейт:
  • Check if RGB is turned off via the knob or Fn key combination.
  • Ensure the keyboard firmware is up to date via the web айдоочу.
  • Perform a factory reset if customization settings are causing issues.
• Ачкычтар жооп бербейт:
  • Ensure the keyboard is properly connected in the selected mode.
  • If only specific keys are affected, try reseating the keycap and switch. Use the key puller to gently remove and reinsert the switch.
  • Test with a different switch if available (from the included spare switches).
• Smart TFT Display is blank or frozen:
  • Баскычтопту кайра заряддаңыз.
  • Аны өчүрүү жана күйгүзүү менен баскычтопту кайра иштетиңиз.
  • Эгер көйгөй чечилбесе, кардарларды колдоо менен байланышыңыз.

7. Техникалык шарттар

8. Кепилдик жана колдоо

ATTACK SHARK products are designed and manufactured to the highest quality standards. For information regarding warranty coverage and support, please refer to the warranty card included in your package or visit the official ATTACK SHARK website. If you require technical assistance or have questions not covered in this manual, please contact ATTACK SHARK customer support through their official channels.
