PETNF Chicken Coop Heater & Chick Heat Plate

Introduction

This manual provides comprehensive instructions for the safe and efficient use of your PETNF Chicken Coop Heater & Chick Heat Plate, Model CH-R4030. Designed for both adult poultry and young chicks, this device offers adjustable warmth and versatile placement options to ensure the well-being of your flock. Please read this manual thoroughly before installation and operation.

Image: The PETNF Chicken Coop Heater and Chick Heat Plate in use, providing warmth to a group of young chicks.

Маанилүү коопсуздук маалыматы

• Always ensure the device is properly installed and stable before use.
• Do not immerse the heating plate in water or expose it to excessive moisture.
• Keep the power cord away from chewing animals and ensure it is not a tripping hazard.
• Regularly inspect the device for any signs of damage or wear. Discontinue use if damage is found.
• This device is designed as a safer alternative to traditional heat lamps, minimizing fire risks. However, always use it in a well-ventilated area and away from flammable materials.
• Ensure proper height adjustment for chicks to prevent overheating or insufficient warmth.
• Тазалоодон же техникалык тейлөөдөн мурун блокту электр розеткасынан сууруп алыңыз.

Пакеттин мазмуну

Пакетти ачканда бардык буюмдар бар экенин жана бузулбаганын текшериңиз:

• PETNF Chicken Coop Heater & Chick Heat Plate (Model CH-R4030)
• Adjustable Stand/Legs (for horizontal, vertical, or wall-mounted setup)
• Электр кабели
• Anti-Roost Cover (optional accessory, may vary by package)
• Mounting Hardware (for wall installation)
• User Manual

Орнотуу нускамалары

The PETNF Chicken Coop Heater offers versatile setup options to suit your needs:

1. Horizontal Setup (for chicks)

1. Attach the adjustable stand legs to the corners of the heating plate.
2. Adjust the height of the plate to allow chicks to comfortably move underneath and press against the heated surface. Younger chicks require a lower height.
3. Place the assembled unit on a flat, stable surface within the brooder or coop.

Image: The PETNF Chick Heat Plate demonstrating its adjustable height settings, allowing it to grow with your chicks.

2. Vertical or Wall-Mounted Setup (for hens/coop heating)

1. For vertical freestanding use, attach the stand legs to provide a stable base, allowing the plate to stand upright.
2. For wall-mounting, use the provided mounting hardware. Securely attach the plate to a sturdy wall in your coop, ensuring the heated surface faces the area where warmth is desired.
3. Ensure the plate is positioned at a safe distance from any flammable materials.

Image: This image demonstrates the three versatile ways to use the heater: laying flat for young chicks, angled for growing chicks, and securely wall-mounted for adult hens in a coop.

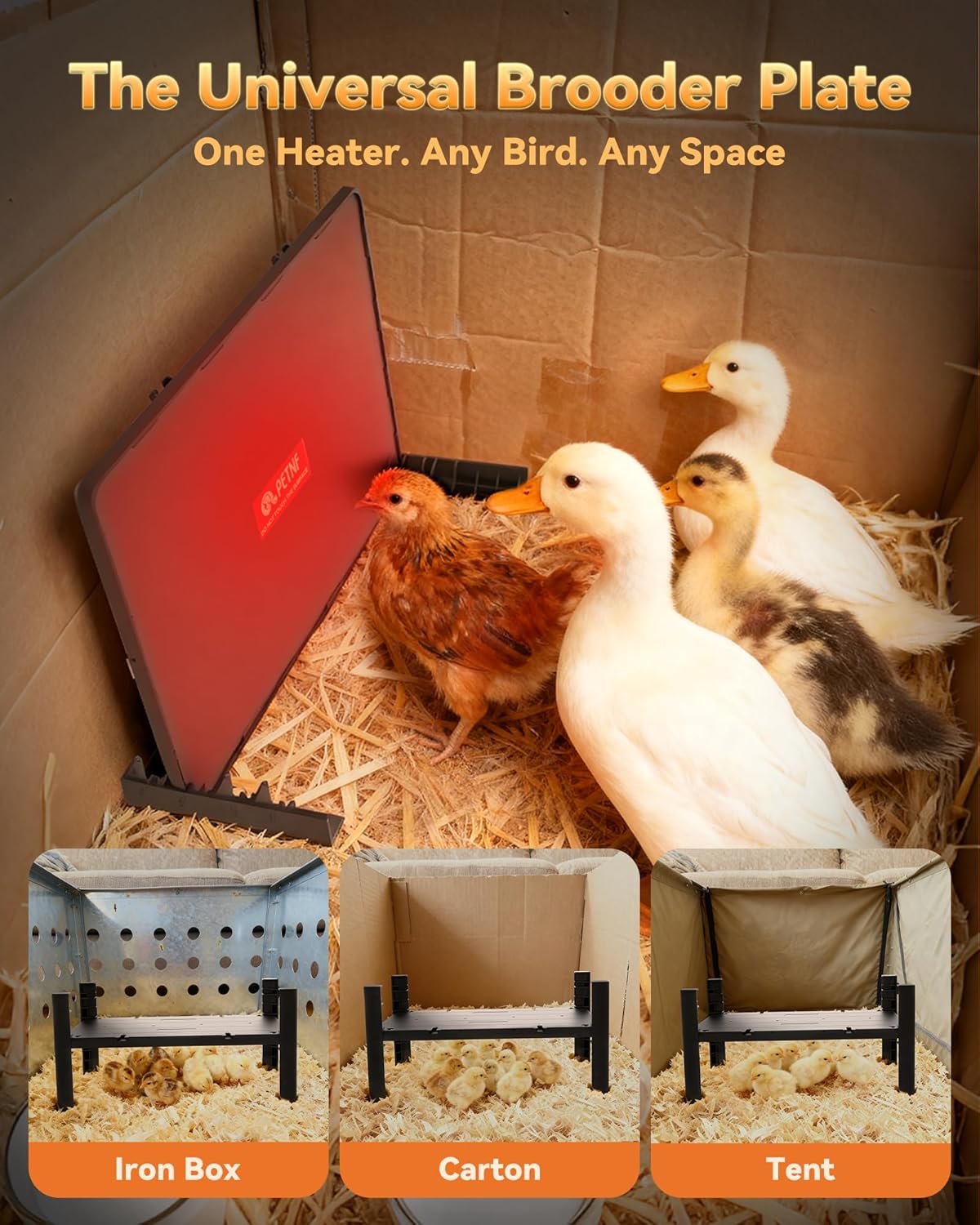

Image: The Universal Brooder Plate is shown adapting to different environments, including an iron box, a cardboard carton, and a tent, highlighting its versatility.

3. Anti-Roost Cover Installation (if included)

If your package includes an anti-roost cover, install it on top of the heating plate to prevent poultry from perching on it and soiling the surface. This helps maintain hygiene and device longevity.

Видеону орнотуу

Иштөө нускамалары

1. Powering On and Temperature Adjustment

1. Электр шнурын ылайыктуу электр розеткасына сайыңыз.
2. The device features a temperature control knob or digital display (depending on model) to set the desired temperature between 95°F and 167°F. Adjust according to the age and needs of your poultry.
3. Observe the visual working indicators: a temperature-sensitive sticker turns red when active, and an LED indicator light glows during operation, confirming the unit is heating.

Image: This graphic illustrates the rapid and stable heating capability of the chick heat plate, reaching 160°F within 10 minutes.

2. Dual-Sided Heating (if applicable)

Some models may feature dual-sided heating, providing warmth from both the top and bottom surfaces. This enhances efficiency and ensures consistent heat distribution for your poultry.

Image: Chicks are shown comfortably gathered under the expansive and comfortable heating plate, highlighting its spacious design.

3. Timer Function (if available)

If your model includes a timer function, you can set the device to operate for specific durations (e.g., 6, 8, 10, or 12 hours) to conserve energy and manage heating cycles.

Операция видео

Техникалык тейлөө

• Тазалоо: Disconnect the power before cleaning. Wipe the surface of the heating plate with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the unit is completely dry before reconnecting power.
• Anti-Roost Cover: If an anti-roost cover is used, clean it regularly to prevent accumulation of droppings, which can affect hygiene and heat transfer.
• Сактагыч: When not in use, store the heater in a clean, dry place away from direct sunlight and extreme temperatures.

Image: Chicks are shown in a clean, evenly heated environment under the PETNF Chick Heat Plate, emphasizing comfort and hygiene.

Проблемаларды чечүү

Техникалык шарттар

• Модел: CH-R4030
• Бренд: PETNF
• Өлчөмдөрү (LxWxH): 15.8" x 6.7" x 11.8"
• Элемент Салмагы: 2.1 фунт
• Күч: 140 Вт
• Температура диапазону: 95-167°F
• Сыйымдуулугу: Suitable for 10-20 chicks
• Материал: Металл
• Түсү: Кара
• Жайгаштыруу параметрлери: Horizontal, Vertical, Wall-Mounted
• Максаттуу аудитория: Chickens, Ducklings, Goslings, Poults, Chick Quail, Keets, Chick Pheasants, Squab, Chick Ostriches, Chick Emus, Cygnets, Peachicks

Кепилдик жана колдоо

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official PETNF webсайт. Кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
