NEWFAST RE516 N300 WiFi Extender 2.4GHz Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your NEWFAST RE516 N300 WiFi Extender. Please read this manual carefully before using the device to ensure proper setup and optimal performance. Keep this manual for future reference.

2. Продукт бүтүп калдыview

2.1 Пакеттин мазмуну

• 1 x NEWFAST RE516 N300 WiFi Extender
• 1 x Multi-language Instruction Manual

2.2 Түзмөктүн өзгөчөлүктөрү

The NEWFAST RE516 N300 WiFi Extender is designed to expand your existing Wi-Fi coverage and eliminate dead zones. Key features include:

• N300 Wireless Speed: Provides up to 300 Mbps data transfer rate on the 2.4GHz band.
• Төрт тышкы антенна: Enhances signal stability and coverage.
• Бир нече иштөө режимдери: Supports Repeater, Access Point, Router, and Client modes to suit various networking needs.
• Кеңири шайкештик: Works with any standard Wi-Fi router or gateway.

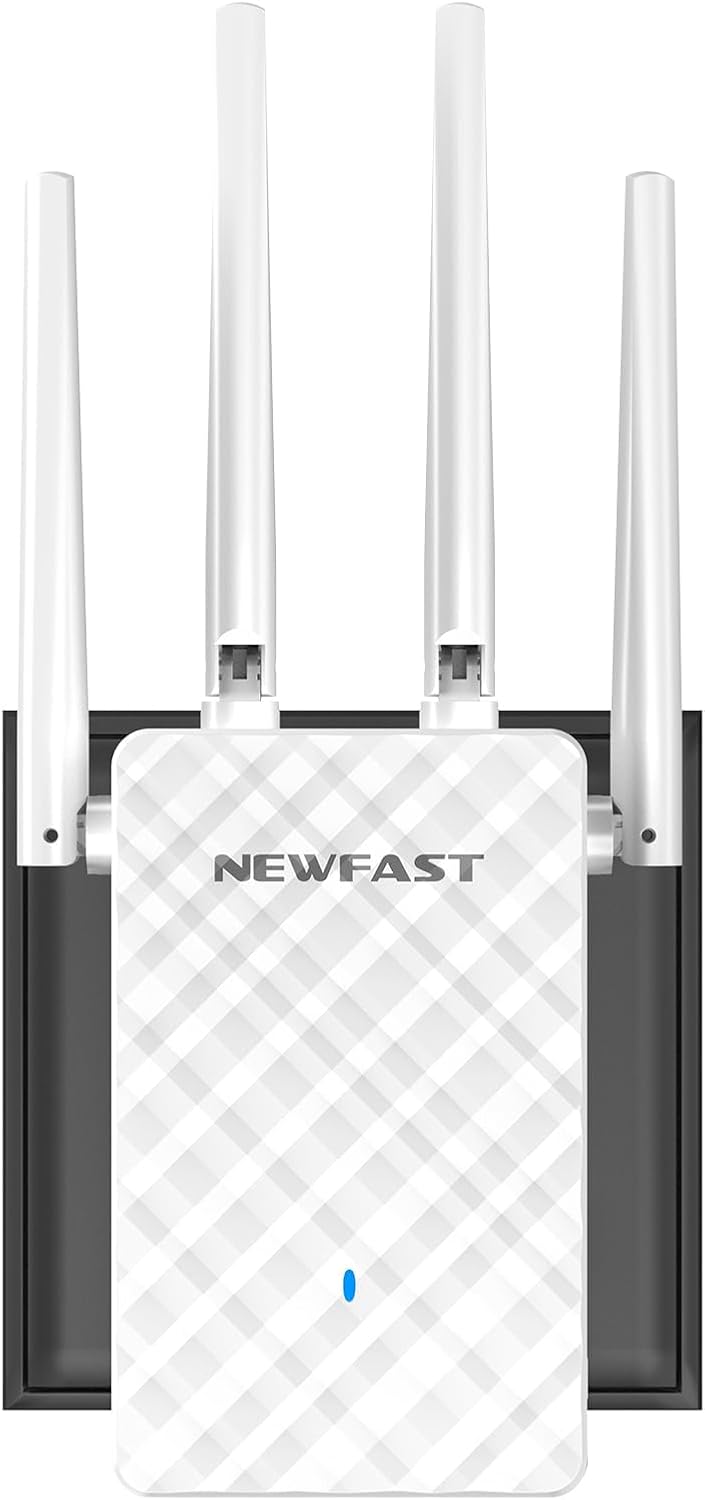

Сүрөт 1: Алдыңкы view of the NEWFAST RE516 N300 WiFi Extender, showcasing its four external antennas and compact design.

Image 2: A diagram showing how the WiFi extender can improve wireless coverage throughout a house, eliminating dead zones.

3. Орнотуу нускамалары

Follow these general steps to set up your NEWFAST RE516 WiFi Extender. Specific configuration details may vary based on your chosen operating mode.

3.1 Аппаратты күйгүзүү

1. Plug the NEWFAST RE516 into an electrical outlet near your existing Wi-Fi router.
2. Wait for the power indicator light to turn on and stabilize.

3.2 Connecting to the Extender

You can connect to the extender via Wi-Fi or an Ethernet cable.

• Wi-Fi туташуусу: On your computer or mobile device, search for available Wi-Fi networks. Connect to the network named similar to "NEWFAST_Extender" or "NEWFAST_XXXX" (where XXXX are the last four digits of the MAC address).
• Ethernet туташуусу: Connect an Ethernet cable from your computer to the LAN port on the extender.

3.3 аркылуу конфигурациялоо Web Браузер

1. ачуу а web браузер (мисалы, Chrome, Firefox, Edge).
2. Демейки IP дарегин киргизиңиз (адатта 192.168.10.1 or 192.168.0.1) or the default web address (e.g., re.newfast.com) into the address bar and press Enter. Refer to the included quick start guide for the exact address.
3. Log in using the default username and password (typically admin экөө үчүн тең).
4. Follow the on-screen wizard to select your desired operating mode (Repeater, Access Point, or Router) and configure the network settings.
5. For Repeater mode, select your existing Wi-Fi network and enter its password.
6. Once configured, the extender will restart. Relocate the extender to a suitable position between your router and the desired coverage area.

4. Иштөө режимдери

The NEWFAST RE516 supports four primary operating modes:

• Кайталоо режими: Extends the range of an existing wireless network. This is the most common mode for eliminating Wi-Fi dead zones.
• Кирүү чекити (AP) режими: Transforms a wired network connection into a wireless one. Ideal for adding Wi-Fi capability to a wired-only router.
• Багыттоочу режим: Functions as a primary router, creating a new private network. This mode is typically used when you have a modem but no router.
• Кардар режими: Allows wired-only devices (like smart TVs or gaming consoles) to connect to a wireless network. The extender acts as a wireless adapter for the wired device.

5. Техникалык тейлөө

Regular maintenance helps ensure the longevity and optimal performance of your NEWFAST RE516 WiFi Extender.

• Тазалыкты сактоо: Gently wipe the device with a dry, soft cloth. Avoid using liquid cleaners or aerosols.
• Вентиляция: Ensure the device is placed in a well-ventilated area, free from obstructions that could block airflow.
• Программалык камсыздоонун жаңыртуулары: Periodically check the NEWFAST official webмикропрограммаларды жаңыртуу үчүн сайт. Микропрограмманы жаңыртуу ишти жакшыртууга, жаңы функцияларды кошууга жана мүчүлүштүктөрдү оңдоого жардам берет.
• Экологиялык шарттар: Аппаратты экстремалдык температурага, нымдуулукка же тике күн нуруна тийгизүүдөн сактаңыз.

6. Кыйынчылыктарды

If you encounter issues with your NEWFAST RE516, refer to the following common problems and solutions:

• Кубат жок:
  Чечим: Ensure the extender is securely plugged into a working electrical outlet. Check if the power indicator light is on.
• Кирүү мүмкүн эмес Web Башкаруу баракчасы:
  Чечим: Verify that your device is connected to the extender's Wi-Fi network or via Ethernet. Ensure you are using the correct IP address or web address. Try clearing your browser's cache or using a different browser.
• Орнотуудан кийин интернетке кирүү мүмкүн эмес:
  Чечим: Check if your main router has internet access. Reconfigure the extender, ensuring you selected the correct host network and entered the correct password. Try moving the extender closer to your main router.
• Алсыз сигнал же тез-тез үзгүлтүккө учуроолор:
  Чечим: Relocate the extender to a position that is roughly halfway between your main router and the area with poor coverage. Avoid placing it near large metal objects, concrete walls, or other electronic devices that may cause interference.
• Forgot Login Password:
  Чечим: Perform a factory reset on the extender. Locate the reset button (usually a small pinhole) and press and hold it for 5-10 seconds until the lights flash. The device will revert to factory default settings, and you can log in with admin.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, please refer to the documentation included with your product or visit the official NEWFAST website. For technical support or further assistance, you may visit the NEWFAST Store on Amazon or contact NEWFAST customer service directly.
