1. Киришүү
Thank you for choosing the NOVSIGHT X Series LED Fog Light. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new LED fog lights. Please read this manual thoroughly before use and retain it for future reference.
Image: NOVSIGHT X Series LED Fog Light with Amber Cover.
2. Продукциянын өзгөчөлүктөрү
- Унаанын көрүнүшүн жакшыртуу: The unique X-line design not only improves vehicle aesthetics but also provides clear road illumination.
- Exceptional Lighting Performance: Delivers powerful brightness for clear visibility in challenging conditions such as night, rain, or fog. Illuminates dark off-road trails, enhancing night driving safety.
- Wide-Angle Off-Road Illumination: Designed for broad coverage, providing extensive illumination and comprehensive visibility for safe and exhilarating off-road adventures.
- Суу өткөрбөйт жана бекем курулуш: Features an IP68 waterproof rating, ensuring reliable performance in harsh environments and all off-road challenges.
- Оңой орнотуу: Includes a removable amber cover for enhanced safety in adverse weather and a plug-and-play wiring harness for straightforward setup and immediate use.
3. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- Pod Light x 2
- Wiring Harness x 1 set
- X 1 бурагыч
- Standing Bracket x 2
- Big Screw x 2
- Big Spacer x 2
- Cover (Amber) x 2
- Бурама x 4
- Боштук x 4
- Гайка x 2
- Big Screw Washer x 2
- Screw Washer x 4
Image: All components included in the NOVSIGHT X Series LED Fog Light package.
4. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | NOVSIGHT |
| Модел | X |
| Түс | Ак/Сары |
| Продукт колдонуу | Сырткы |
| Жарык булагы түрү | LED |
| Шайкеш келген унаа түрлөрү | Off-road vehicles, Trucks, Jeeps, Passenger cars, 4WD, SUV, UTV, ATV |
| Модель жылы | 2025 |
| Ассамблея талап кылынат | Ооба |
| Vehicle Mounting Type | Universal Fit |
| Өндүрүүчү | NOVSIGHT |
| Камтылган компоненттер | LED light unit, Amber cover, Bracket, Mounting hardware |
| Келип чыккан өлкө | Кытай |

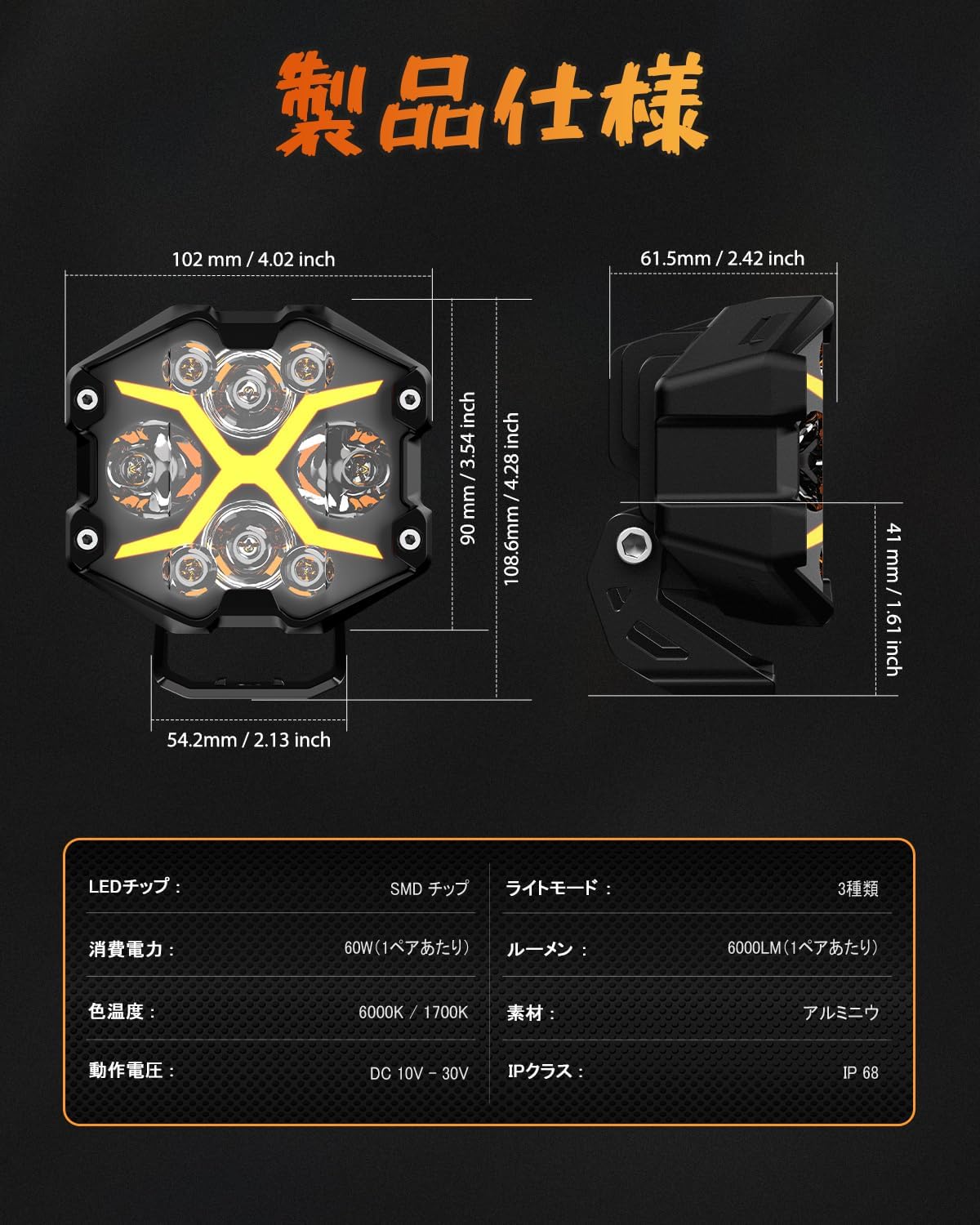

Image: Detailed product dimensions and specifications for the NOVSIGHT X Series LED Fog Light.
5. Орнотуу жана орнотуу
Follow these steps to install your NOVSIGHT X Series LED Fog Lights:
- Step 1: Prepare and Mount the Lights
Ensure all accessories are present. Install the pod light at your desired location on the vehicle using the provided brackets and hardware. Securely fasten all screws and nuts. - Step 2: Identify Wiring Harness Connections
Locate the four different color link wires at the end of the wiring harness. Confirm that the harness insulation is intact and ready for connection. - Step 3: Connect Link Wires
Connect and match the four color link wires. Each color corresponds to a different light type (e.g., amber, white DRL, main light). Ensure proper connections for correct functionality. - 4-кадам: Кубат булагына туташуу
Install the link wires to the positive (+) and negative (-) terminals of your vehicle's power supply (battery). Pay close attention to the color coding and polarity of the wires to prevent damage. - 5-кадам: Функционалдыкты текшерүү
After installation, check if the light turns on normally. Verify that the light type control button functions correctly and switches between the different light modes as expected.
Video: This video demonstrates the unboxing, installation, and operation of the NOVSIGHT X Series LED Fog Light, including mounting, wiring connections, and testing light modes.
6. Иштөө нускамалары
Your NOVSIGHT X Series LED Fog Lights are designed for ease of use. Once installed, operate them as follows:
- Күйгүзүү/өчүрүү: Use the designated control button on the wiring harness to turn the lights on or off.
- Жарык режимдерин которуу: Press the mode selection button to cycle through the available light types: Amber DRL, Main Light (White), and White DRL. The lights will change accordingly.
Image: Comparison of amber (1700K) and white (6000K) light modes.
Image: Control button for switching between amber, main, and white DRL modes.
7. Техникалык тейлөө
To ensure the longevity and optimal performance of your NOVSIGHT X Series LED Fog Lights, follow these maintenance guidelines:
- үзгүлтүксүз тазалоо: Clean the light lenses and housing periodically with a soft cloth and mild soap solution. Avoid abrasive cleaners that could scratch the lens.
- Зымдарды текшерүү: Regularly check the wiring harness for any signs of wear, fraying, or damage. Ensure all connections remain secure.
- Монтаждоону текшерүү: Periodically inspect the mounting brackets and hardware to ensure they are tight and secure. Re-tighten if necessary.
- Жогорку басымдагы жуудан алыс болуңуз: While the lights are waterproof, avoid directing high-pressure water jets directly at the light housing or wiring connections, as this could potentially compromise seals over time.
8. Кыйынчылыктарды
If you encounter issues with your NOVSIGHT X Series LED Fog Lights, refer to the following common troubleshooting steps:
- Жарыктар күйбөйт:
Мүмкүн болгон себеп: Loose wiring connection or no power.
Чечим: Check all wiring connections, especially to the vehicle's battery. Ensure the battery has sufficient charge. Verify the fuse in the wiring harness is not blown. - Incorrect Light Mode:
Мүмкүн болгон себеп: Incorrect wiring of the color-coded link wires.
Чечим: Review Step 3 of the installation instructions and ensure the link wires are correctly matched to their corresponding light types. - Жаркылдаган жарыктар:
Мүмкүн болгон себеп: Туруксуз электр менен камсыздоо же байланыштын үзгүлтүккө учурашы.
Чечим: Check battery terminals for corrosion and ensure they are tight. Inspect all wiring for secure connections and proper insulation. - Water Inside Lens:
Мүмкүн болгон себеп: Damage to the housing or seals.
Чечим: Although rated IP68, extreme conditions or physical damage can compromise seals. If water ingress occurs, contact customer support.
If these steps do not resolve the issue, please contact NOVSIGHT customer support for further assistance.
9. Кепилдик жана колдоо
Your NOVSIGHT X Series LED Fog Light comes with a Эки жылдык өндүрүүчүнүн кепилдиги сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.
Кепилдик төмөнкүлөрдү камтыбайт:
- Туура эмес орнотуудан же туура эмес колдонуудан келип чыккан зыян.
- Damage caused by accidents, abuse, or neglect.
- Кадимки эскирүү.
- Уруксатсыз оңдоолор же өзгөртүүлөр.
For warranty claims or technical support, please contact NOVSIGHT customer service through your retailer or the official NOVSIGHT website. Please have your proof of purchase and product model information ready.
