Greesum Automatic Self-Cleaning Litter Box User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Greesum Automatic Self-Cleaning Litter Box. Please read this manual thoroughly before using the product to ensure proper function and safety.

The Greesum Smart Electric Litter Box is designed to provide a clean and comfortable environment for your cats while simplifying litter box maintenance for you. It features advanced sensor technology, smart app control, and an open-top design for ease of use and safety.

Коопсуздук маалыматы

Маанилүү коопсуздук чаралары:

• Таштанды кутусунун туруктуу, тегиз жерге коюлганын текшериңиз.
• Негизги блокту сууга же башка суюктуктарга салбаңыз.
• Keep children and pets away from the device during cleaning cycles.
• For safety, cats should weigh a minimum of 2.6 lbs (1.2 kg) to activate sensors correctly.
• Тазалоодон же техникалык тейлөө жүргүзүүдөн мурун аппаратты розеткадан сууруп алыңыз.
• Берилген кубат адаптерин гана колдонуңуз.

Image: The Greesum Automatic Self-Cleaning Litter Box highlighting its multi-sensor safety system, which includes gravity sensors and infrared detectors to ensure safe operation by pausing when a cat is detected.

The device is equipped with multiple groups of infrared sensors and weight sensors to accurately detect the presence and activity of cats. The self-cleaning process will automatically pause if a cat approaches or enters the litter box, resuming only after the cat has left the area.

Пакеттин мазмуну

• Greesum Automatic Self-Cleaning Litter Box Main Unit
• Таштанды кутусу
• Кубаттуу адаптер
• Trash Bags (starter pack)
• Litter Mat
• Колдонуучунун Колдонмосу (бул документ)

Орнотуу нускамалары

1. Аппаратты таңгактан чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Таштанды кутучасын жайгаштыруу: Place the main unit on a firm, level surface in a suitable location, away from direct sunlight or heat sources. Ensure there is enough space around the unit for easy access and ventilation.
3. Install the Waste Bin: Slide the waste bin into the designated compartment at the bottom front of the main unit until it clicks into place. Line the waste bin with a trash bag.
4. Add Cat Litter: Pour clumping cat litter into the litter compartment. The Greesum litter box is compatible with various types of clumping litter, including bentonite, mineral, and mixed litters. Fill to the indicated maximum fill line, typically about 3-4 inches deep.
5. Туташуу кубаты: Plug the power adapter into the power port on the back of the unit, then plug the adapter into a wall outlet. The device will perform an initial calibration cycle.
6. Place Litter Mat: Position the included litter mat in front of the litter box to help catch any stray litter.

Image: Illustration demonstrating the Greesum Automatic Self-Cleaning Litter Box's compatibility with different cat litter materials, including Tofu, Bentonite, Spherical, and Crushed litters.

Колдонмо туташуусу (кошумча)

1. Колдонмону жүктөп алыңыз: Издөө the "Greesum Smart" app (or similar, based on common smart home device naming conventions) on your smartphone's app store (iOS or Android).
2. Эсеп түзүү: Колдонмону ачып, жаңы колдонуучу каттоо эсебин түзүү үчүн экрандагы нускамаларды аткарыңыз же сизде мурунтан эле бар болсо кириңиз.
3. Түзмөк кошуу: In the app, select "Add Device" or the "+" icon. Follow the app's instructions to connect your litter box to your home's 2.4G WiFi network. You may need to put the litter box into pairing mode (refer to the app for specific instructions, usually involving pressing and holding a button on the unit).
4. Толук орнотуу: Once connected, you can name your device and access its features through the app.

Image: A visual representation of the Greesum Automatic Self-Cleaning Litter Box's smart app remote monitoring capabilities, showing icons for safety protection, automatic cleaning, remote control, and health monitoring.

Иштөө нускамалары

Automatic Cleaning Cycle

The Greesum Automatic Self-Cleaning Litter Box is designed to automatically detect when your cat has used the litter box and left. After a preset delay (typically a few minutes to allow litter to clump), the internal mechanism will rotate, sifting the clean litter and depositing waste into the sealed waste bin below.

Image: A diagram illustrating the automatic self-cleaning process of the Greesum litter box, where the internal grate sifts through the litter, separating waste into the collection bin.

Manual Cleaning (via App or Device)

• Колдонмону башкаруу: Use the Greesum Smart app to initiate a cleaning cycle manually at any time. The app also allows you to set cleaning schedules and monitor the device status.
• Түзмөктү башкаруу: The litter box may have physical buttons for manual cleaning or other functions. Refer to the device's control panel for specific button functions (e.g., a "Clean" button).

Waste Bin Full Alert

The device will notify you via the app when the 15L waste bin is full and requires emptying. This feature helps maintain odor control and ensures continuous operation.

Техникалык тейлөө

Таштанды кутусун бошотуу

1. When the app indicates the waste bin is full, or you notice it needs emptying, unplug the device from the power outlet.
2. Carefully pull out the waste bin from the front of the unit.
3. Tie off the trash bag and dispose of it according to local regulations.
4. Clean the waste bin with mild soap and water if necessary, then dry thoroughly.
5. Insert a new trash bag and slide the waste bin back into the unit.
6. Аппаратты кайра сайыңыз.

Негизги блокту тазалоо

• Тазалоодон мурун аппаратты сууруп алыңыз.
• Сырткы беттерин жарнама менен сүртүңүзamp кездеме жана жумшак, үй жаныбарлары үчүн коопсуз тазалагыч. Катуу химиялык заттардан алыс болуңуз.
• Periodically, the interior of the litter compartment may need cleaning. Remove all litter, then wipe down the interior with a damp cloth. Ensure all parts are completely dry before adding new litter and plugging the unit back in.
• Do not spray water directly onto the electronic components.

Проблемаларды чечүү

If you encounter issues not listed here, please contact Greesum customer support.

Техникалык шарттар

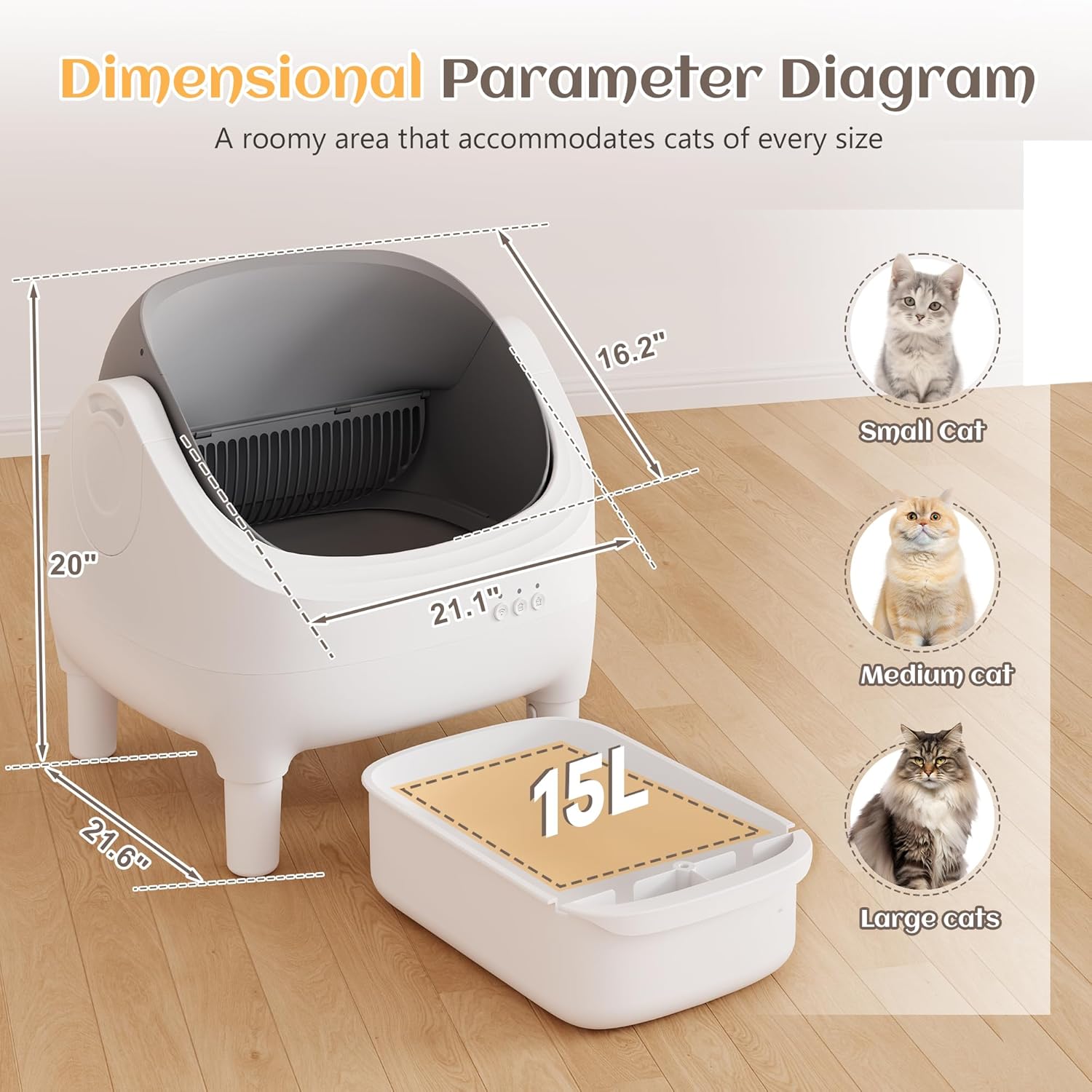

Image: A dimensional parameter diagram of the Greesum Automatic Self-Cleaning Litter Box, showing its overall dimensions (21.6"L x 21.1"W x 20"H) and the 15L waste bin capacity, alongside illustrations of small, medium, and large cats for scale.

Кепилдик жана колдоо

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Greesum website. You can also contact Greesum customer service directly for assistance with product issues or inquiries.

Greesum Customer Service: Visit the Greesum Store on Amazon
