Ransanx 200A 100V High Precision Watt Meter Power Analyzer

1. Киришүү

The Ransanx 200A 100V High Precision Watt Meter Power Analyzer is a versatile and essential tool designed for accurately measuring voltage, current, power, and energy consumption in various electrical systems. This device is ideal for applications in remote control models, solar energy systems, and other battery-powered devices, providing critical data for performance evaluation, equipment debugging, and system optimization. Its backlit digital LCD screen ensures clear readings in diverse lighting conditions.

Figure 1.1: Two Ransanx 200A 100V High Precision Watt Meters.

2. Коопсуздук чаралары

To ensure safe operation and prevent damage to the device or connected equipment, please observe the following safety guidelines:

• Тtage жана учурдагы чектөөлөр: This watt meter is designed for systems operating below 100V and carrying currents up to 200A. Do not exceed these limits. Exceeding 100V or 200A can damage the device and connected components.
• Туура зымдар: Always ensure correct polarity when connecting the meter. Connect the 'SOURCE' side to the power source (e.g., battery) and the 'LOAD' side to the device or system being measured. Incorrect wiring can lead to malfunction or damage.
• Коопсуз байланыштар: Ensure all connections are tight and secure to prevent loose contacts, which can cause arcing, overheating, or inaccurate readings.
• Экологиялык шарттар: Operate the device in a dry environment. Avoid exposure to moisture, extreme temperatures, or corrosive substances.
• Вентиляция: The device features an exhaust port for internal heat dissipation. Ensure this port is not obstructed during operation to prevent overheating.
• Auxiliary Battery: For systems operating below 12V, an optional auxiliary battery (e.g., a receiver battery of 4.8-60V) connected to the SOURCE 3-pin connector is required to power the meter.

3. Продукт бүтүп калдыview

The Ransanx Watt Meter is a compact and robust device designed for ease of use and durability. Key components include:

• Digital LCD экран: A 16x2 backlit display provides clear, real-time readings of various electrical parameters.
• High-Quality Copper Wire Material: Ensures low resistance and stable function for accurate measurements.
• Cooling Exhaust Hole Design: An integrated exhaust port helps dissipate internal heat, extending the device's lifespan.
• Тышкы электр менен жабдуу порту: Allows for an optional auxiliary battery connection for low-voltage системалары.

Figure 3.1: Key features and components of the Watt Meter.

4. Орнотуу

Setting up the Ransanx Watt Meter involves connecting it inline between your power source and the load. The meter is designed to be simple to use with no buttons or complex configurations.

4.1 Зымдарды туташтыруу

The watt meter has two main connection points: 'SOURCE' and 'LOAD'.

• БУЛАК: Connect the positive (+) and negative (-) wires from your power source (e.g., battery, power supply) to the 'SOURCE' terminals of the watt meter.
• ЖҮК: Connect the positive (+) and negative (-) wires from the 'LOAD' terminals of the watt meter to the device or system you wish to measure (e.g., motor, ESC, battery charger).

Ensure that the red wire connects to the positive terminal and the black wire connects to the negative terminal on both the source and load sides. The meter will automatically power on once connected to a voltage source within its operating range.

4.1-сүрөт: Ар кандай колдонмолор үчүн зым схемалары.

4.2 Auxiliary Battery Connection (for systems below 12V)

If you are measuring a system with a voltage below 12V (down to 0V), an auxiliary battery is required to power the watt meter's display. Connect a 4.8V-60V receiver battery to the 3-pin connector on the 'SOURCE' side of the watt meter.

5. Иштөө нускамалары

Once properly connected, the Ransanx Watt Meter will automatically display real-time measurement data on its backlit LCD screen. There are no buttons to press or settings to configure; the device continuously cycles through various measurement parameters.

5.1 Displayed Parameters

The LCD screen displays the following parameters, cycling every two seconds:

• Тtage (V): Instantanous voltagсистеманын э.
• Учурдагы (A): Instantaneous current flowing through the system.
• Күч (Вт): Instantaneous power consumption (Voltagex Current).
• Amp-hours (Ah): Accumulated charge transferred. This value resets when the meter is disconnected or power is lost.
• Watt-hours (Wh): Accumulated energy consumed. This value also resets when the meter is disconnected or power is lost.
• Чоку Amps (Ap): The highest current recorded since the meter was powered on.
• Peak Watts (Wp): The highest power recorded since the meter was powered on.
• Minimum Volts (Vm): Эң төмөнкү томtage recorded since the meter was powered on.

The display provides a comprehensive overview of your system's electrical performance, allowing for real-time monitoring and analysis.

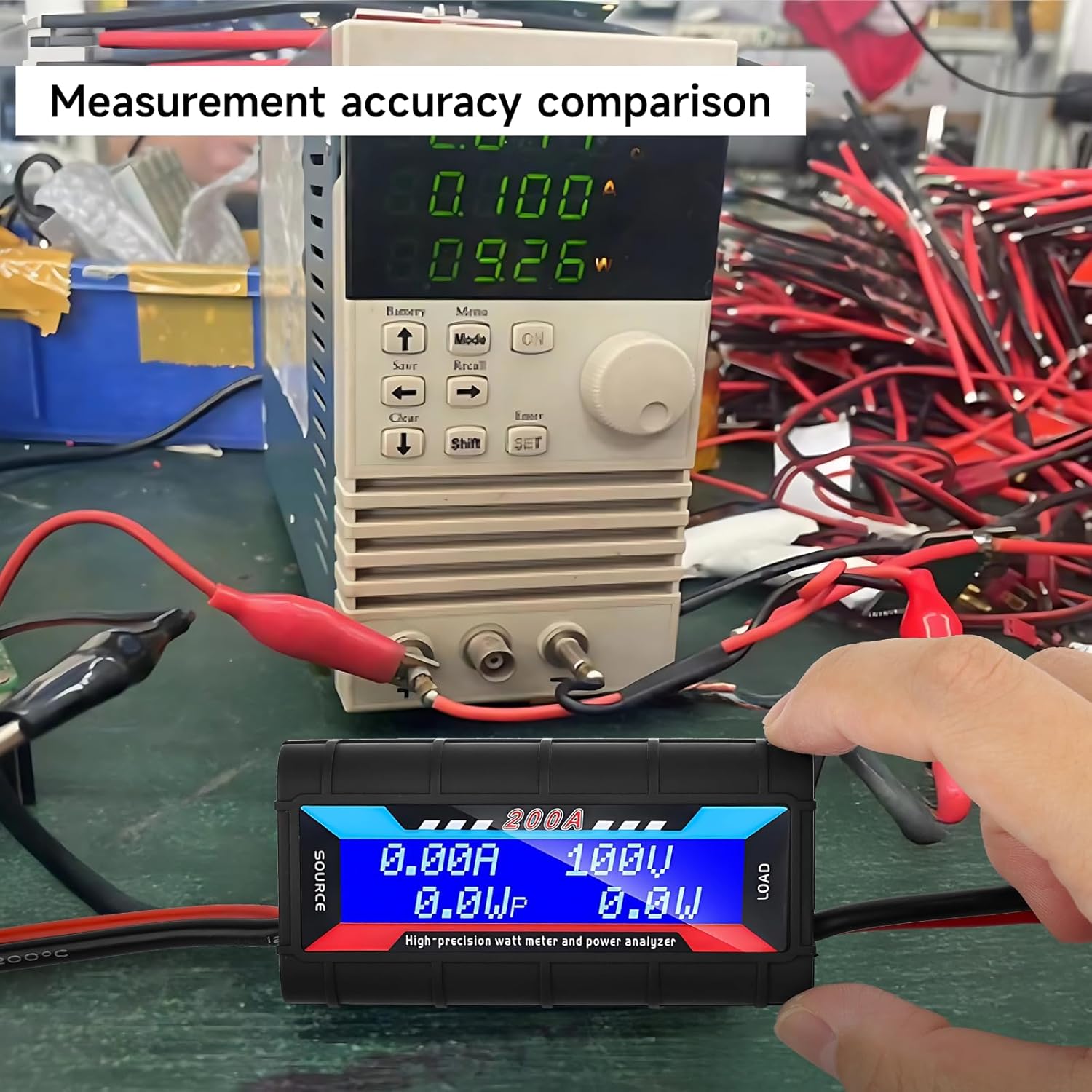

Figure 5.1: Watt Meter in operation, displaying measurements.

6. Колдонуу сценарийлери

The Ransanx Watt Meter is highly versatile and can be used in a variety of applications:

6.1 Remote Control Model (RC) Field

• Battery Performance Evaluation: Accurately measure voltage, current, and power consumption of batteries in RC cars, airplanes, and boats under different operating conditions. This helps in understanding battery discharge curves, endurance, and selecting appropriate battery models and capacities.
• Equipment Debugging and Optimization: Monitor current and power changes of motors, electronic speed controllers (ESCs), and other components to adjust parameter settings for optimal performance and prevent overload damage.

6.2 Solar Energy Application Scenarios

• Solar Panel Performance Monitoring: Чыгаруу көлөмүн өлчөөtage, current, and power of solar panels under varying lighting conditions to evaluate power generation efficiency and stability. This helps determine if solar panels are functioning correctly and if maintenance is required.
• Solar Charging System Management: Monitor charging voltage, current, and power of batteries in solar charging systems to understand charging efficiency, prevent overcharging or undercharging, extend battery life, and optimize system configuration.

6.3 Other Battery Application Scenarios

• Portable Electronic Devices: Monitor battery charging and discharging processes for devices like mobile power supplies and power tools to assess battery health and remaining power, ensuring timely charging or replacement.
• Energy Storage Systems: In small energy storage systems (e.g., household batteries), monitor voltage, current, and power in real-time to manage and control the system effectively, improving safety and reliability.

Figure 6.1: Wide range of applications for the Watt Meter.

7. Техникалык шарттар

The following are the technical specifications for the Ransanx 200A 100V High Precision Watt Meter Power Analyzer:

Figure 7.1: Physical dimensions of the Watt Meter.

8. Техникалык тейлөө

Proper maintenance ensures the longevity and accuracy of your Ransanx Watt Meter:

• Тазалоо: Use a soft, dry cloth to clean the device. Do not use abrasive cleaners or solvents, as they may damage the casing же экран.
• Сактагыч: Store the meter in a cool, dry place away from direct sunlight, high humidity, and extreme temperatures.
• Колдонуу: Түзмөктү этияттык менен колдонуңуз. Аны түшүрүп албоодон же катуу соккуга дуушар кылбоо керек, анткени алар ички компоненттерге зыян келтириши мүмкүн.
• Байланыштары: Regularly inspect the wires and connectors for any signs of wear, fraying, or corrosion. Replace damaged wires immediately.

9. Кыйынчылыктарды

If you encounter issues with your Ransanx Watt Meter, refer to the following troubleshooting guide:

• Дисплей жок:
  • Текшерүү томtage of the connected system is within the operating range (12V-100V).
  • Эгерде система томtage is below 12V, ensure an auxiliary battery (4.8V-60V) is properly connected to the 3-pin port on the 'SOURCE' side.
  • Verify that all connections are secure and that polarity is correct (red to positive, black to negative).
• Туура эмес окуулар:
  • Ensure the meter is connected correctly in series with the load.
  • Check for loose connections or damaged wires that might introduce resistance.
  • Учурдагы жана көлөмдү текшериңизtage of your system do not exceed the meter's maximum limits (200A, 100V). Overloading can cause inaccurate readings or damage.
• Display Freezes or Behaves Erratically:
  • Disconnect and reconnect the meter to reset it.
  • Ensure the device is not exposed to extreme temperatures or excessive moisture.
• Аппараттын ысып кетиши:
  • Ensure the cooling exhaust hole is not obstructed.
  • Verify that the current draw does not consistently exceed the recommended limits for prolonged periods.

10. Кепилдик жана колдоо

Ransanx products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For technical support, troubleshooting assistance, or inquiries regarding your Ransanx Watt Meter, please contact the seller or refer to the product listing page for available support channels.
