1. Киришүү
Thank you for choosing the Caroma Electric Scooter Model E32. This manual provides essential information for the safe assembly, operation, and maintenance of your scooter. Please read this manual thoroughly before first use and retain it for future reference. Ensure all users understand the instructions and safety warnings.
Маанилүү коопсуздук маалыматы
Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding. Adult supervision is recommended for children. This scooter is designed for recreational use and short-distance transportation for children aged 6-14, with a maximum weight limit of 110 pounds. The Caroma E32 electric scooter has passed UL 2272 certification, ensuring greater safety.
WARNING: Failure to follow the instructions in this manual may result in serious injury or property damage.
2. Пакеттин мазмуну
Кутучаны этияттык менен ачып, бардык буюмдардын бар экенин жана жакшы абалда экенин текшериңиз. Эгерде кандайдыр бир буюмдар жок болсо же бузулуп калса, кардарларды тейлөө кызматына кайрылыңыз.
- 1x Caroma Electric Scooter (Main Unit)
- 1x заряддагыч
- 1x Колдонуучунун колдонмосу (бул документ)
- 1x Tool Kit (including Allen wrenches)
Image: Caroma Electric Scooter Model E32 in Pattern Pink, showcasing its design and LED lights.
3. Монтаждоо боюнча нускамалар
The Caroma E32 electric scooter comes partially assembled. Follow these steps to complete the assembly:
- Кутудан чыгаруу: Таңгактан бардык компоненттерди этияттык менен алып салыңыз. Таңгакты келечекте сактоо же ташуу үчүн сактап коюңуз.
- Рулду орнотуу:
- Remove the protective plug from the top of the front tube.
- Slip the handlebar into the front tube, aligning the holes.
- Tighten the two screws on the handlebar clamp using the provided Allen wrench until secure.
- Байланыштарды текшерүү: Ensure all cables are securely connected and not pinched.
- Баштапкы төлөм: Before first use, fully charge the scooter's battery. Refer to the 'Charging Instructions' section for details.
Video: Caroma E32 Electric Scooter for Kids Unboxing. This video demonstrates the unboxing process and initial assembly steps for the scooter.
Image: Handlebar and front tube components, ready for assembly.
Image: Securing the handlebar to the front tube using the provided Allen wrench.
4. Иштөө нускамалары
Күйгүзүү/өчүрүү
- To power on: Press and hold the power button on the handlebar display until the display illuminates.
- To power off: Press and hold the power button until the display turns off. The scooter also features an auto power-off function after one minute of inactivity.
Non-Zero Start Function (Safety Feature)
For safety, the Caroma E32 electric scooter is equipped with a non-zero start function. The motor will only activate when the scooter reaches a speed of approximately 1.8 mph (3 km/h) by pushing off with your foot. This prevents accidental acceleration from a standstill.
Ылдамдык режимдери
The scooter offers two speed modes to accommodate different skill levels and preferences:
- Mode 1 (Economical): Max speed of 4 mph. Ideal for beginners or relaxed rides.
- Режим 2 (Нормалдуу): Max speed of 8 mph. For more experienced riders.
To switch between speed modes, press the mode button on the handlebar display. The current speed mode will be indicated on the LED display.

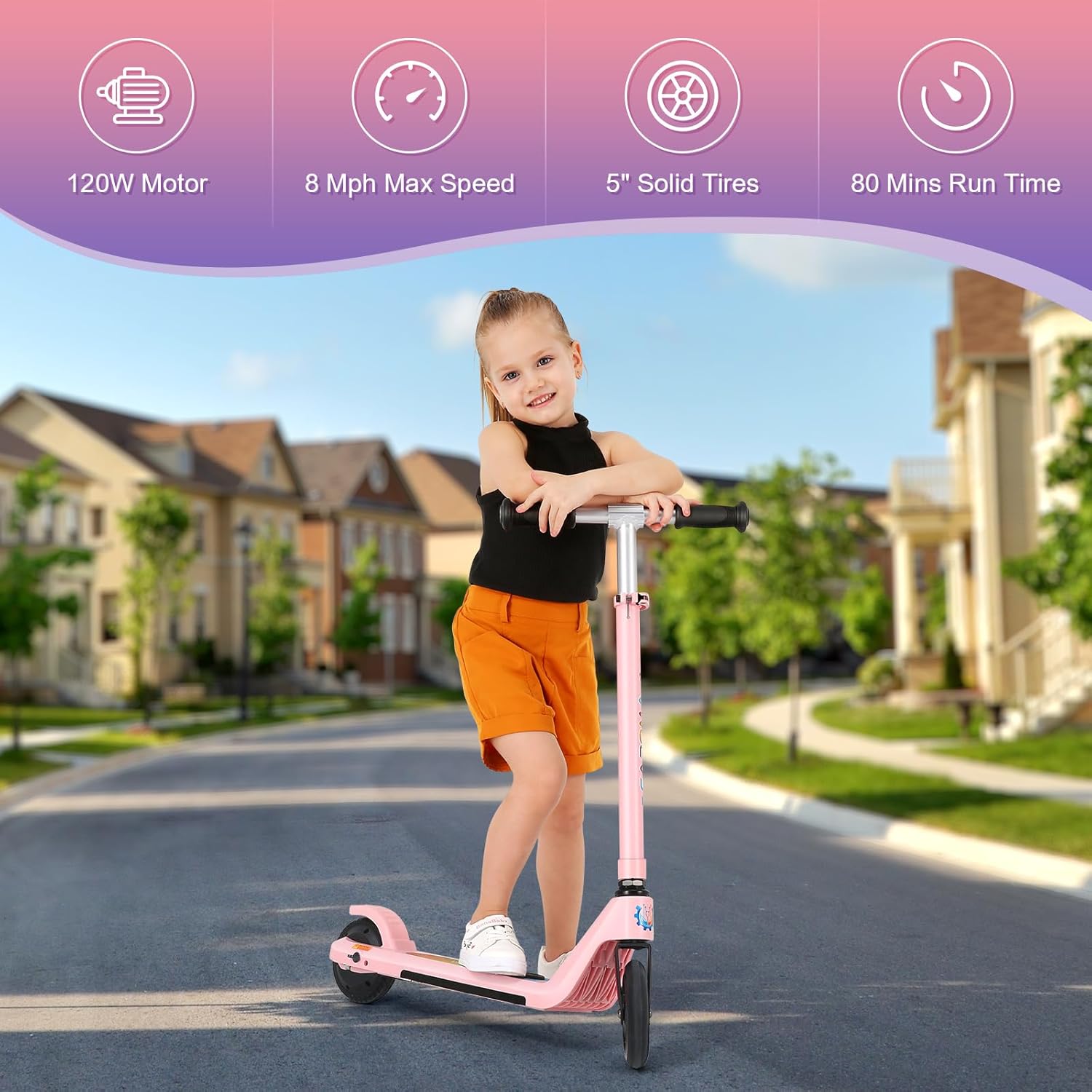

Image: Key features of the Caroma E32, including motor, speed, tires, and battery life.
Скутерге минүү
- Бир бутуңузду скутер палубасына коюңуз.
- Push off with your other foot to gain initial speed (activate non-zero start).
- Кыймылдагандан кийин, эки бутуңузду тең палубага коюңуз.
- Use the throttle on the handlebar to accelerate.
- To brake, press down on the rear fender brake with your foot.
Video: Caroma Electric Scooter for Kids age 6-10. This video demonstrates children riding the scooter, showcasing its ease of use and features like the non-zero start and LED lights.
Жөнгө салынуучу бийиктик
The handlebar height can be adjusted to four different levels: 26", 28", 30", and 36". To adjust, open the quick-release clamp, pull or push the handlebar to the desired height, ensuring the locking pin clicks into place, and then close the quick-release clamp коопсуз.
Image: Illustration of the 4-level adjustable handlebar height feature.
LED Lights and Light-Up Wheels
The scooter features flashing rainbow LED lights next to the pedals and durable PU light-up front wheels. These lights enhance visibility and add a fun element to the ride. The lights can be activated/deactivated via a button on the deck.
Image: The scooter's colorful LED lights and light-up wheels in action.
5. Коопсуздук боюнча көрсөтмөлөр
- Ар дайым каска жана коргоочу шаймандарды кийиңиз.
- Ар бир сапардан мурун скутердин толук заряддалганын текшериңиз.
- Check all screws and connections are tight before riding.
- Do not ride in wet conditions, on uneven surfaces, or at night without adequate lighting.
- Adhere to the maximum weight limit of 110 pounds.
- Жөө адамдардан жана башка унаалардан коопсуз аралыкты сактаңыз.
- Жогорку ылдамдыкта кескин бурулуштардан же маневрлерден алыс болуңуз.
- Do not allow more than one rider on the scooter at a time.
- Электр скутерлерин колдонууга байланыштуу жергиликтүү мыйзамдар жана жоболор менен таанышып алыңыз.
Сүрөт: деталдуу view of the scooter's safety and comfort features.
6. Заряддоо инструкциясы
To ensure optimal battery life and safe operation, follow these charging guidelines:
- Заряддоодон мурун скутердин өчүрүлгөнүн текшериңиз.
- Locate the charging port on the scooter (typically near the front of the deck).
- Connect the charger to the charging port, then plug the charger into a standard electrical outlet.
- Кубаттоочу түзүлүштөгү индикатор жарыгы, адатта, кубаттоо учурунда кызыл түстө күйүп, толук кубатталганда жашыл түскө айланат.
- Батареяны ашыкча заряддабаңыз. Батарея толгондон кийин заряддагычты ажыратыңыз.
- Charging time is approximately 3-4 hours for a full charge, providing up to 80 minutes of continuous ride time.
Image: The Caroma E32 scooter connected to its charger.
7. Техникалык тейлөө
Тазалоо
Скутерди жарнама менен тазалаңызamp cloth after each use. Avoid using harsh chemicals or abrasive cleaners. Do not use high-pressure water jets to clean the scooter, as this can damage electronic components.
Сактагыч
Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is charged to approximately 50-70% and recharge it every 30-60 days to prevent battery degradation.
Tire Care
The Caroma E32 uses 5-inch solid tires, which require minimal maintenance. Regularly inspect tires for wear and tear. While solid tires are puncture-proof, excessive wear can affect performance.
8. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скутер күйбөйт | Low battery; Power button not pressed correctly; Loose connection | Charge the battery; Press and hold the power button; Check all cable connections. |
| Мотор иштебейт | Non-zero start not activated; Low battery; Faulty motor/throttle | Push off to reach 1.8 mph; Charge the battery; Contact customer support. |
| Short ride time | Battery not fully charged; Old battery; Riding conditions (hills, heavy load) | Fully charge the battery; Consider battery replacement if old; Adjust riding style. |
| LED жарыктары иштебейт | Light button off; Loose connection; Faulty LED strip | Press the light button; Check connections; Contact customer support. |
9. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | E32 |
| Мотор күчү | 120 Вт |
| Максималдуу ылдамдык | 8 mph (2 speed modes: 4 mph, 8 mph) |
| Айдоо убактысы | 80 мүнөткө чейин |
| Салмагы Limit | 110 фунт |
| Жаш аралыгы | Kids (6-14 years old recommended) |
| Жөнгө салынуучу рулдун бийиктиги | 26", 28", 30", 36" |
| Дөңгөлөк материалы | Резина (катуу) |
| Wheel Size | 5 дюйм |
| Frame Material | Алюминий |
| Тормоз стили | Rear Braking (Fender Brake) |
| Өзгөчөлүктөр | Adjustable Handlebar Height, Light Up Wheels, LED Lights, Lightweight, Non-Slip Deck, Non-Zero Start, UL 2272 Certified |
| Продукциянын өлчөмдөрү | 27.6"L x 13.8"W x 31.9"H |
10. Кепилдик жана колдоо
Кепилдик маалымат
The Caroma Electric Scooter Model E32 comes with a one-year warranty on main components and a 180-day warranty on other parts. Please retain your proof of purchase for warranty claims.
Кардарларды колдоо
For any questions, concerns, or warranty claims, please contact Caroma customer service. Our dedicated team is available to assist you.
Contact information can typically be found on the product packaging or the official Caroma webсайт.
