1. Киришүү

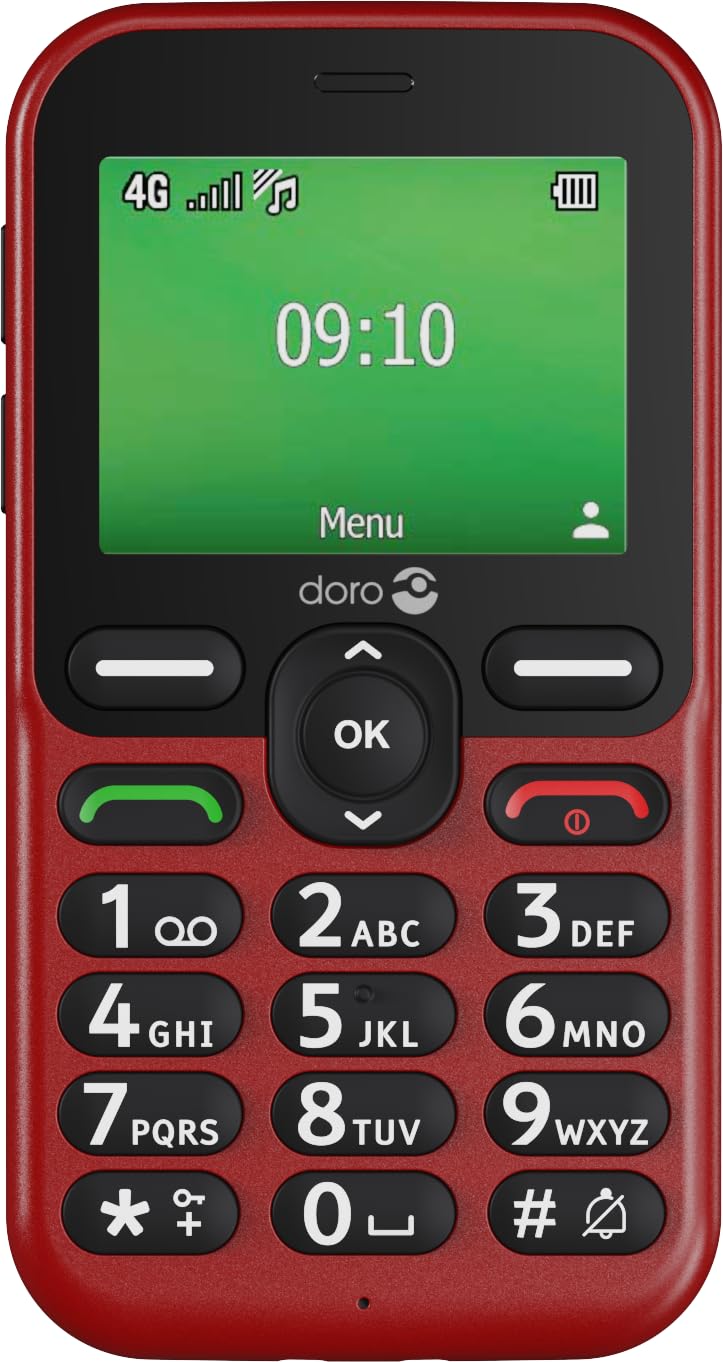

Welcome to the user manual for your Doro Leva E11 4G mobile phone. This guide provides essential information on setting up, operating, maintaining, and troubleshooting your device. The Doro Leva E11 is designed for ease of use, featuring a 2.4-inch display, high-contrast buttons, clear sound quality, and a dedicated security button, making it ideal for seniors.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Intuitive design with a 2.4-inch landscape display.
- Clearly spaced, high-contrast buttons for easy dialing and texting.
- HD Voice for particularly clear sound quality.
- Integrated camera for taking and sending photos.
- Dedicated security button for emergencies.
- 4G connectivity for reliable calls and messages.
- Includes a convenient charging station.
2. Баштоо
2.1 Пакеттен чыгаруу
Пакетте бардык компоненттер бар экенин текшериңиз:
- Doro Leva E11 Mobile Phone
- Кубаттоочу станция
- USB кабели
- Батарея (алдын ала орнотулган же өзүнчө болушу мүмкүн)
2.2 Батареяны салуу
If the battery is not pre-installed, carefully remove the back cover of the phone. Align the battery contacts with the phone's terminals and gently press the battery into place. Replace the back cover, ensuring it clicks securely.
2.3 SIM картаны салуу
Your Doro Leva E11 requires a SIM card to make calls and send messages. With the phone turned off and the battery removed (if necessary), locate the SIM card slot. Insert your SIM card according to the diagram usually found near the slot, ensuring the gold contacts face down. Reinsert the battery and back cover.
2.4 Телефонду кубаттоо
Before first use, fully charge your Doro Leva E11. Connect the USB cable to the charging station and then to a power adapter (not always included) or a computer USB port. Place the phone in the charging station. The charging indicator on the phone will show when it is charging. A full charge typically takes a few hours.
3. Operating Your Doro Leva E11
3.1 Күйгүзүү/өчүрүү
To turn on the phone, press and hold the red End Call/Power button until the screen lights up. To turn off, press and hold the same button, then follow the on-screen prompts.
3.2 Чалууларды жасоо
Enter the phone number using the keypad. Press the green Call button to initiate the call. To end a call, press the red End Call button.
3.3 Чалууларга жооп берүү
When the phone rings, press the green Call button to answer. To reject a call, press the red End Call button.
3.4 SMS билдирүүлөрдү жөнөтүү
Navigate to the 'Messages' menu. Select 'New Message'. Enter the recipient's number or select from contacts. Type your message using the keypad. Press 'Send'.
3.5 Камераны колдонуу
Access the camera from the main menu. Point the camera at your subject. Press the 'OK' button to take a photo. Photos can be viewed in the 'Gallery' and sent via MMS.
3.6 The Security Button
The Doro Leva E11 features a dedicated security button on the back. In an emergency, press and hold this button to automatically alert pre-set contacts. Ensure emergency contacts are configured in the phone settings.
4. Техникалык тейлөө жана кам көрүү
To ensure the longevity of your Doro Leva E11, follow these guidelines:
- Тазалоо: Телефондун бетин тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалагычтардан же аэрозолдордон алыс болуңуз.
- Суу каршылык: The phone is splash-proof (IP54 rated), meaning it can withstand light splashes of water. Do not immerse the phone in water or expose it to heavy rain.
- Температура: Avoid exposing the phone to extreme temperatures, direct sunlight, or very humid environments.
- Батареяга кам көрүү: Do not attempt to replace the battery yourself unless it is designed for user replacement. Use only Doro-approved chargers and batteries.
- Сактагыч: When not in use for extended periods, store the phone in a cool, dry place.
5. Кыйынчылыктарды
If you encounter issues with your Doro Leva E11, try the following solutions:
5.1 Phone Does Not Turn On
- Батарея туура салынганын жана толук заряддалганын текшериңиз.
- Connect the phone to the charger and wait a few minutes before attempting to turn it on again.
5.2 Cannot Make or Receive Calls/SMS
- SIM карта туура салынганын текшериңиз.
- Verify that you have network coverage.
- Ensure your SIM card is active and has sufficient credit/plan.
- Телефонду кайра күйгүзүңүз.
5.3 Үн сапаты начар
- Adjust the volume settings during a call.
- Ensure the speaker and microphone are not obstructed.
- If using a hearing aid, ensure the phone's hearing aid compatibility feature is enabled (if applicable).
5.4 Батарея бат эле түгөнөт
- Экран жарыктыгын азайтыңыз.
- Колдонулбаган колдонмолорду жабуу.
- Ensure the phone is not in an area with very poor network signal, as this can increase battery consumption.
- Consider replacing the battery if it is old and consistently performing poorly.
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Доро |
| Модель аты | Доро Лева E11 |
| Элемент моделинин номери | 8996 |
| Операция системасы | Mocor RTOS |
| Уюлдук технология | 4G |
| Screen Size | 2.4 дюйм |
| Дисплей түрү | LCD |
| Резолюция | 320x240 |
| Процессордун түрү | Кортекс A7 |
| Процессордун ылдамдыгы | 1 ГГц |
| RAM эстутум орнотулган өлчөмү | 64 MB |
| Flash эстутум орнотулган өлчөмү | 64 MB |
| Санариптик сактоо сыйымдуулугу | 128 MB (Internal), supports up to 128 GB external memory card |
| Батарея кубаттуулугунун рейтинги | 1150 мАч |
| Форма фактору | Бар |
| Камтылган компоненттер | USB Cable, Charging Station |
| Өзгөчөлүктөр | Contrast-rich buttons, HD Voice, Camera, Security button, Splash-proof (IP54), Hearing aid compatible, Flashlight |
7. Кепилдик жана колдоо
Your Doro Leva E11 is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, service, or to find more information, please visit the official Doro website or contact Doro customer service.
Doro Official Webсайт: www.doro.com
