Lerat Electric Space Heater User Manual

1. Маанилүү коопсуздук нускамалары

Please read all instructions carefully before using this electric space heater. Failure to follow these instructions may result in fire, electric shock, injury, or property damage. Keep this manual for future reference.

• Электр коопсуздугу: Ensure the power cord is not damaged. Do not use the heater if the cord or plug is damaged. Plug the heater directly into a wall socket; do not use extension cords or portable power strips, as this can lead to overheating or deformation. Avoid overloading circuits by not connecting other high-voltagтүзмөктөрдү бир розеткага.
• Жайгашкан жери: Place the heater on a firm, level surface. Keep the heater away from walls, furniture, curtains, and other combustible materials to prevent blocked air inlets/outlets and overheating. Maintain at least 3 feet (0.9 meters) clearance from all sides.
• Операция: Never cover the heater or run the power cord under carpets, furniture, or appliances. Do not use the heater in wet or damp locations, such as bathrooms or laundry areas, or near water sources.
• Көзөмөл: Бул шайман физикалык, сенсордук же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) тарабынан колдонууга арналбайт, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмө болбосо . Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
• Overheat & Tip-Over Protection: The heater is equipped with automatic shut-off features for overheating and tip-over events. If the heater tips over by more than 45 degrees, it will automatically power off. Ensure the heater is placed upright on a stable surface for continuous operation.
• Материалдык коопсуздук: The heater is constructed with V-0 flame-retardant materials for enhanced safety.

Figure 1: How to Use More Safely

2. Продукт бүтүп калдыview

2.1 Компоненттер

The Lerat Electric Space Heater features a compact design with essential components for efficient and safe heating.

• Башкаруу баскычы: Located on the top, used to select operating modes.
• Air Inlet/Outlet Grille: Front grille for heat emission, rear grille for air intake.
• Электр кабели: Электр розеткасына туташтыруу үчүн.
• Anti-Tilt Switch: Located at the bottom, activates tip-over protection.
• Тайгаланбаган резина негизи: Provides stability.

Figure 2: Lerat Electric Space Heater (Front View)

Figure 3: Automatic Anti-Tilt Switch and Non-Slip Rubber Base

2.2 Негизги өзгөчөлүктөрү

• Rapid PTC Ceramic Heating: Equipped with 1200W PTC ceramic heating elements for quick warmth in approximately 2 seconds.
• Компакт жана көчмө: Measuring 6.02"L x 4.72"W x 8.66"H and weighing 2.4 pounds, designed for easy portability.
• Бир нече режимдер: Offers Fan Only, Low Heat (600W), and High Heat (1200W) settings for year-round use.
• Тынч иштөө: Operates at a low noise level of approximately 35dB, suitable for sleeping, reading, or working environments.
• Комплекстүү коопсуздук: Includes Overheat Protection, 45° Tip-Over Protection, and V-0 Flame Retardant Material construction.

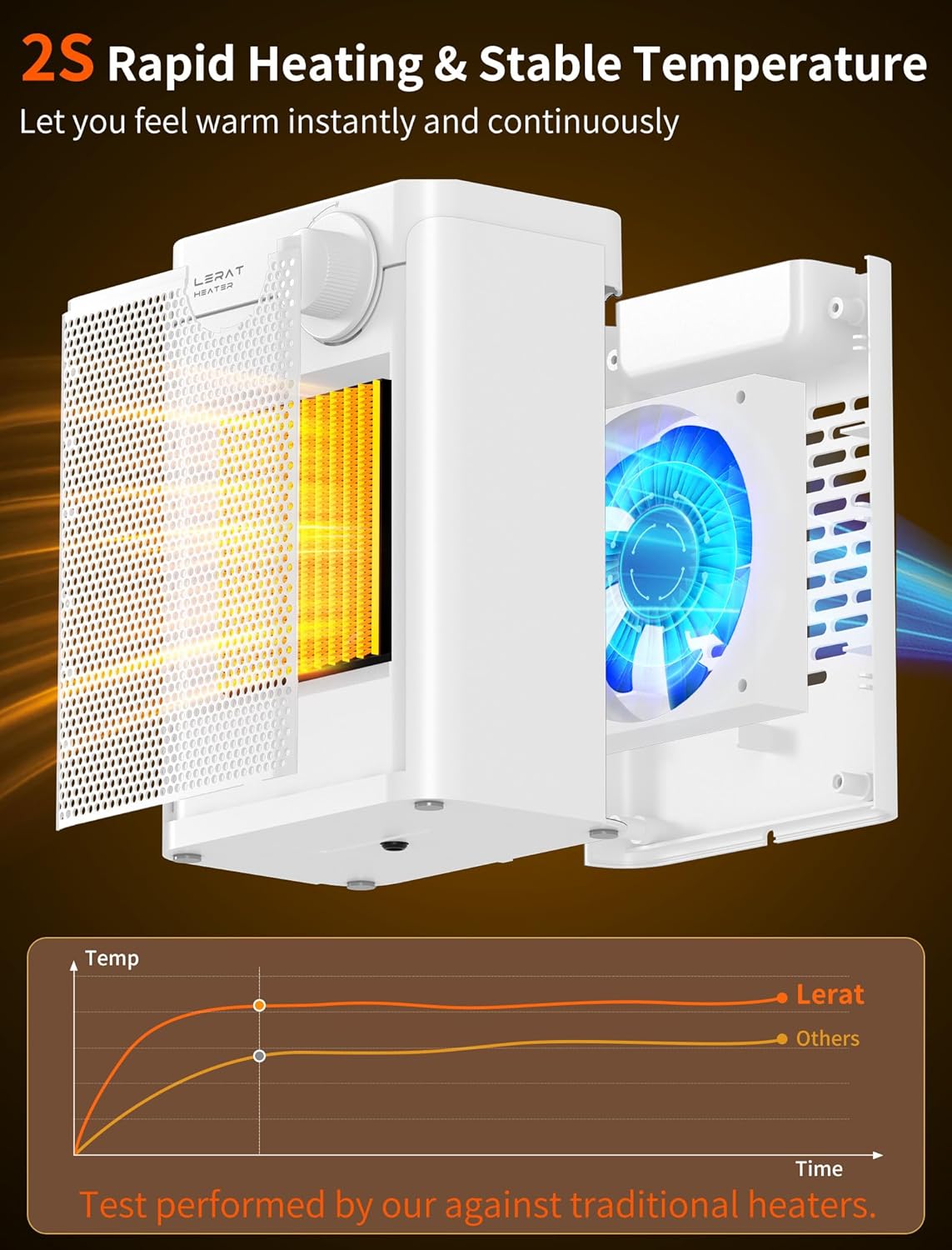

Figure 4: Rapid Heating Mechanism

Figure 5: Temperature Settings and Control

3. Орнотуу

1. Таңылганын ачуу: Жылыткычты анын таңгагынан кылдаттык менен чыгарыңыз. Зарыл болсо, таңгакты сактоо үчүн сактаңыз.
2. Жайгашкан жери: Place the heater on a stable, flat, and heat-resistant surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater from any walls, furniture, or flammable materials. Do not place it directly under a power outlet.
3. Кубат туташуу: Ensure the heater's control knob is in the 'OFF' position. Plug the power cord directly into a standard 120V AC electrical wall outlet. Do not use extension cords or adapters.

4. Иштөө нускамалары

The Lerat Electric Space Heater is designed for simple, one-button control.

1. Күйгүзүү: Ensure the heater is placed upright on a stable surface. Rotate the control knob clockwise from the 'OFF' position to select your desired mode.
2. Режимди тандоо:
   • Күйөрмандар гана: Rotate the knob to the fan icon for cool air circulation without heat.
   • Төмөн жылуулук (600 Вт): Rotate the knob to the single flame icon for moderate heating.
   • Жогорку жылуулук (1200 Вт): Rotate the knob to the double flame icon for maximum heating.
3. Ашыкча коргоо: If the heater is tilted or knocked over by more than 45 degrees during operation, the automatic tip-over protection will activate, and the unit will shut off. To resume operation, place the heater back on a stable, upright surface and select your desired mode again.
4. Өчүрүү: To turn off the heater, rotate the control knob counter-clockwise to the 'OFF' position. Unplug the heater from the wall outlet when not in use.

Figure 6: Tip-Over Protection in Action

5. Техникалык тейлөө жана тазалоо

Regular cleaning helps maintain the heater's performance and extends its lifespan.

1. Тазалоодон мурун: Always turn off the heater and unplug it from the power outlet. Allow the heater to cool down completely before cleaning.
2. Тышкы тазалоо: жумшак колдонуу, damp cloth to wipe the exterior surfaces of the heater. Do not use abrasive cleaners, waxes, or polishes, as these may damage the finish.
3. Аба кириш/чыгаруу: Use a vacuum cleaner with a brush attachment to gently remove dust and debris from the air inlet and outlet grilles. Do not insert any objects into the grilles.
4. Сактагыч: Колдонулбаган учурда, жылыткычты салкын, кургак жерде, мүмкүн болсо баштапкы таңгагында, күн нуру түз тийбеген жана нымдуулуктан алыс сактаңыз.
5. Бөлүнбөңүз: Do not attempt to disassemble or repair the heater yourself. Refer all servicing to qualified service personnel.

6. Кыйынчылыктарды

Эгерде жылыткычыңыз туура иштебей жатса, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation included with your purchase or contact Lerat customer service. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the official Lerat store online: Lerat Store on Amazon
