Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your ID-COOLING FX360 TD CPU Liquid Cooler. Please read this manual thoroughly before installation to ensure proper setup and optimal performance. Retain this manual for future reference.

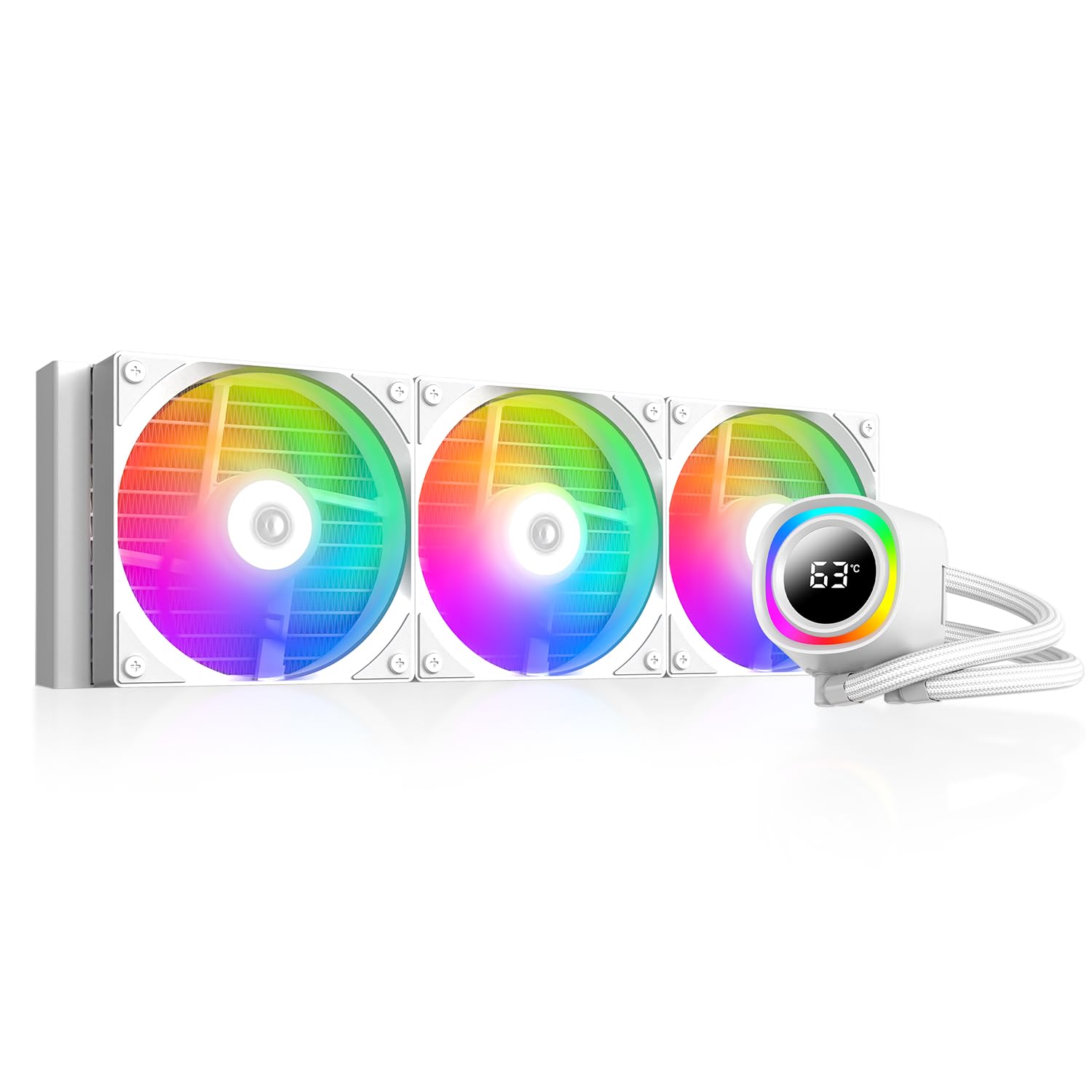

Figure 1: ID-COOLING FX360 TD CPU Liquid Cooler installed in a PC case, showcasing its integrated temperature display and ARGB lighting.
Коопсуздук маалыматы
- Орнотуудан мурун тутумуңуздун өчүрүлгөнүн жана розеткадан ажыратылганын текшериңиз.
- Зыяндын алдын алуу үчүн компоненттерди кылдаттык менен колдонуңуз.
- Avoid contact with the liquid coolant. In case of contact, rinse thoroughly with water.
- Do not modify the cooler or its components. Unauthorized modifications may void the warranty and pose safety risks.
- Балдар жетпеген жерде сактаңыз.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 1x Radiator with Integrated Pump and Tubing
- 3x 120мм ARGB күйөрмандары
- 1x Intel Mounting Bracket Kit (LGA1851/1700/1200/115x)
- 1x AMD Mounting Bracket Kit (AM5/AM4)
- 1x Backplate (Universal)
- 1x термикалык паста түтүгү
- Вентилятор бурамалары жана орнотуучу жабдыктар
- ARGB and Fan Splitter Cables

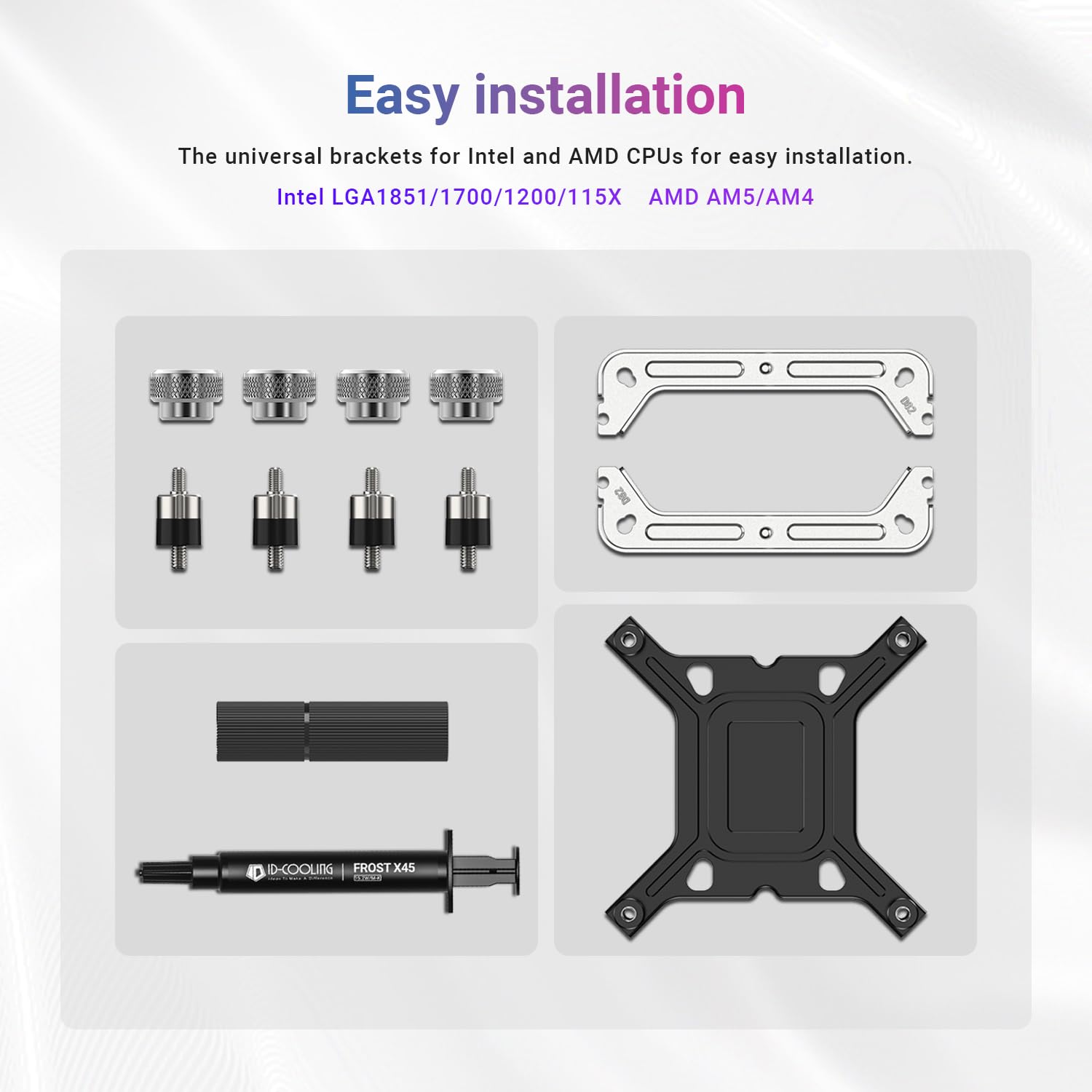

Figure 2: ашыкview of mounting hardware and accessories for Intel and AMD platforms.
Орнотуу
Follow these general steps for installing the ID-COOLING FX360 TD. Refer to your motherboard and PC case manuals for specific guidance on component placement.
- CPU розеткасын даярдаңыз: Install the appropriate backplate for your Intel or AMD motherboard. Secure the standoffs onto the backplate.
- Термикалык пастаны колдонуу: Clean the CPU surface. Apply a small amount of the provided thermal paste to the center of the CPU.
- Mount the Pump: Place the pump head onto the CPU, aligning it with the standoffs. Secure it with the correct mounting brackets and thumb screws.
- Радиатор жана желдеткичтерди орнотуу: Mount the three 120mm fans to the radiator using the provided screws. Install the radiator assembly into your PC case, typically at the top or front, ensuring adequate airflow.
- Кабелдерди туташтыруу:
- Насостун 4-пиндүү кубат кабелин энелик платадагы CPU_FAN же AIO_PUMP колонкасына туташтырыңыз.
- Connect the fan power cables to the fan headers on your motherboard, using the splitter cable if necessary.
- Connect the ARGB cables from the pump and fans to a compatible 5V 3-pin ARGB header on your motherboard.
Figure 3: Universal brackets and thermal paste for Intel and AMD CPU installation.
Figure 4: High-performance thermal paste for efficient heat transfer.
Иштөө нускамалары
Once installed and powered on, the ID-COOLING FX360 TD will begin cooling your CPU. The integrated features provide real-time monitoring and customizable aesthetics.
Real-Time CPU Temperature Display
The pump head features a built-in LCD that displays the CPU temperature in real-time. This allows for immediate monitoring of your CPU's thermal status without additional software. Ensure all necessary cables are connected for the display to function.
Figure 5: The pump head's LCD screen showing real-time CPU temperature.
Addressable RGB (ARGB) Lighting
The pump head and fans are equipped with ARGB lighting. This lighting can be synchronized with your motherboard's ARGB software (e.g., ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync) for unified system lighting effects. Connect the ARGB cables to the appropriate motherboard header.
Figure 6: The pump head displaying ARGB lighting and CPU temperature.
Күйөрмандар операциясы
The three 120mm fans are designed for high airflow and quiet operation. Their speed is typically controlled by the motherboard based on CPU temperature, which can be configured in the BIOS or through motherboard software.
Figure 7: Details of the 120mm fans, highlighting airflow and noise levels.
Видео 1: Бүттүview of the ID-COOLING FX360 TD CPU Liquid Cooler, demonstrating its features and appearance within a PC build.
Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин суюк муздаткычыңыздын узак иштөөсүн жана оптималдуу иштешин камсыз кылууга жардам берет.
- Чаңды тазалоо: Кысылган аба же жумшак щетка менен радиатордун сүзгүчтөрүнүн жана желдеткичтеринин чаңын мезгил-мезгили менен тазалап туруңуз. Тазалоо учурунда желдеткичтер айланбагандыгын текшериңиз.
- Түтүктөрдү жана байланыштарды текшерүү: Inspect the tubing and connections for any signs of leaks or damage. Ensure all connections are secure.
- Температураны көзөмөлдөө: Regularly check the CPU temperature display to ensure the cooler is functioning effectively. Significant increases in idle temperatures may indicate an issue.
Проблемаларды чечүү
If you encounter issues with your ID-COOLING FX360 TD, refer to the following common troubleshooting steps:
- Кубат жок/Желдеткичтер айланбай жатат: Check all power connections to the pump and fans. Ensure they are securely plugged into the correct motherboard headers. Verify power supply connections.
- Жогорку CPU температурасы:
- Ensure the pump is running (you may feel a slight vibration or hear a faint hum).
- Насостун башы процессорго бекем орнотулганын жана термикалык паста туура колдонулганын текшериңиз.
- Check for obstructions to airflow through the radiator.
- Confirm fan orientation for proper airflow (typically pushing air through the radiator).
- Температура дисплейи иштебейт: Ensure the display's power and data cables are correctly connected to the motherboard. Check for any software requirements from ID-COOLING for display functionality.
- ARGB Lighting Not Working/Incorrect: Verify ARGB cable connections to the motherboard's 5V 3-pin header. Ensure your motherboard's ARGB software is installed and configured correctly.
- адаттан тыш үндөр: A slight hum from the pump is normal. Excessive gurgling or grinding noises may indicate air in the loop or a pump issue. Ensure the radiator is mounted higher than the pump if possible to allow air to collect in the radiator.
Техникалык шарттар
| Бренд | ID-COLING |
| Модель номери | FX360 TD |
| Муздатуу ыкмасы | Суюктук |
| Шайкеш түзмөктөр | Desktop CPUs (Intel LGA1851/1700/1200/115x, AMD AM5/AM4) |
| Радиатор материалы | Алюминий |
| Муздак плитанын материалы | Жез |
| Ызы-чуу деңгээли (Макс) | 27.2 Decibels (Fans) |
| Кубат туташтыргычынын түрү | 4-Pin (Pump), 4-Pin (Fans) |
| Насостун ылдамдыгы | 2,900 RPM (±10%) чейин |
| Fan өлчөмдөрү | 120 x 120 x 25 мм |
| Fan Airflow (Max) | 58 CFM |
| Fan Static Pressure (Max) | 1.94 ммН2О |
| TDP колдоосу | 350 Вт чейин |
Figure 8: High-efficiency radiator design for superior heat dissipation.
Figure 9: The pump's internal structure, featuring a micro-channel cold plate and high-flow design.
Кепилдик жана колдоо
ID-COOLING products are manufactured to high standards and come with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ID-COOLING website. For technical support, product inquiries, or warranty claims, please contact ID-COOLING customer service through their official channels.
Эскертүү: Кепилдик үчүн сатып алуу дүмүрчөгүн сатып алуунун далили катары сактаңыз.
