HAKINAKU HD11 5-бирде түтүн, көмүртек кычкылы жана күйүүчү газ детекторунун колдонуучу колдонмосу

1. Киришүү

This manual provides essential information for the proper installation, operation, and maintenance of your HAKINAKU HD11 5-in-1 Detector. This device is designed to monitor for carbon monoxide (CO), smoke, and combustible gases, while also displaying temperature and humidity levels. Please read this manual thoroughly before using the product to ensure safe and effective operation.

2. Коопсуздук маалыматы

WARNING: This device is not a substitute for proper fire safety practices or professional gas leak detection equipment. It is intended to provide early warning of potential hazards.

• Do not paint the detector. Paint can clog the sensing vents and interfere with the unit's ability to detect CO, smoke, or gas.
• Do not block the vents on the detector. Ensure proper airflow for accurate readings.
• Do not install in areas with extreme temperatures or humidity, as this can affect performance.
• Regularly test the detector as instructed in this manual.
• In case of an alarm, follow emergency procedures immediately.

3. Продукт бүтүп калдыview

The HAKINAKU HD11 is a versatile 5-in-1 detector designed for comprehensive environmental monitoring. It integrates sensors for carbon monoxide, smoke, and combustible gases, alongside temperature and humidity displays. The device features a plug-in design with a built-in backup battery for continuous operation during power outages.

Негизги өзгөчөлүктөрү:

• 5-бирде аныктоо: Monitors Carbon Monoxide (CO), Smoke, Combustible Gas (e.g., natural gas, propane, methane), Temperature, and Humidity.
• Плагиндин дизайны: Compatible with standard 110V-220V AC outlets.
• Камдык батарея: Built-in 2000mAh rechargeable lithium battery provides approximately 18-20 hours of operation during power interruptions.
• HD Screen Display: A 2.1-inch high-definition screen dynamically shows real-time data including CO ppm, smoke indication bar, combustible gas warning icon, humidity, and temperature.
• Үн жана визуалдык ойготкучтар: Features an 85 dB alarm and visual indicators for detected hazards.

Компоненттери:

• HAKINAKU HD11 Detector Unit
• Колдонуучунун Колдонмосу (бул документ)

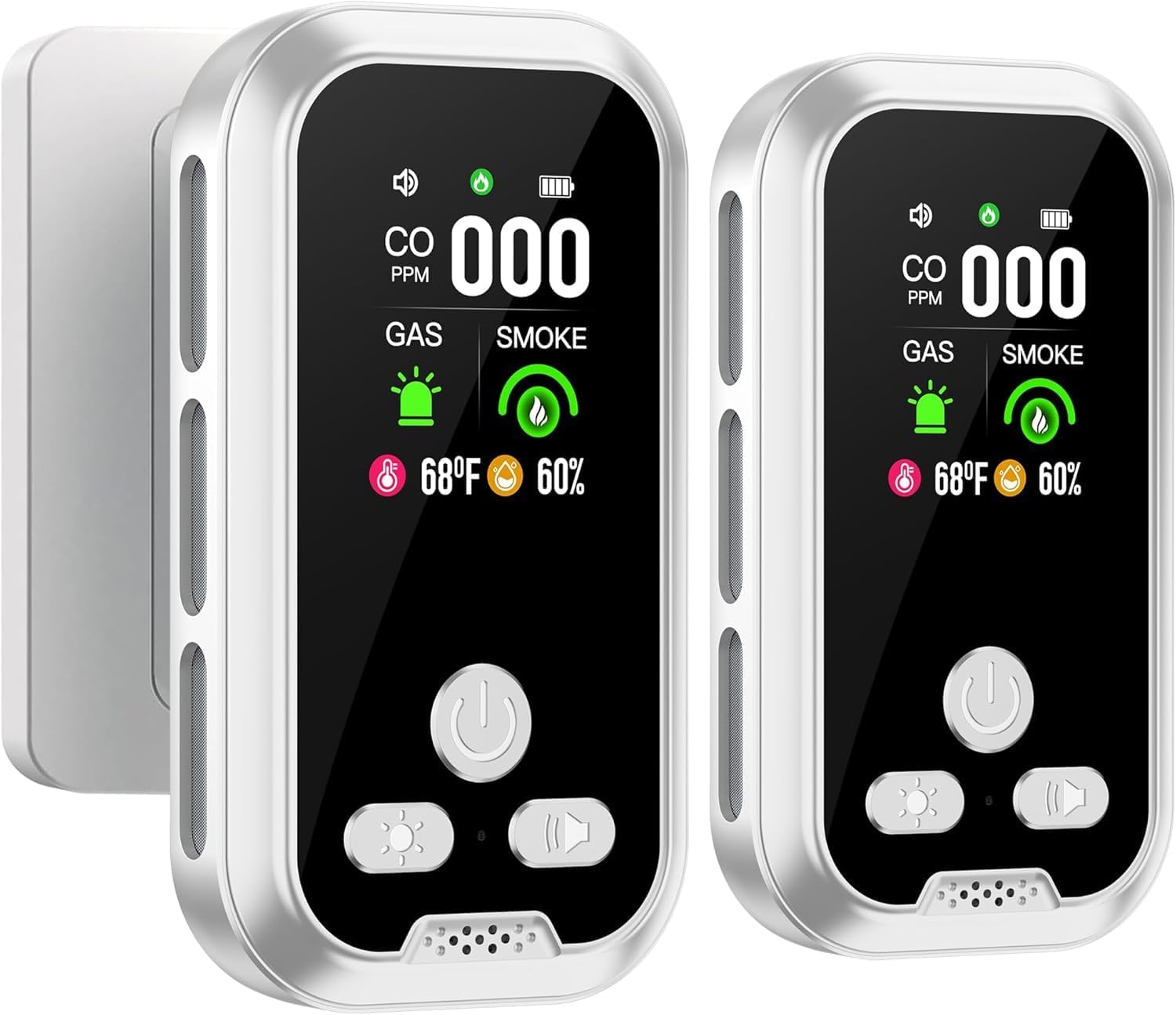

Сүрөт: алдыңкы view of two HAKINAKU HD11 detectors, showcasing their digital displays and compact design when plugged into a wall outlet.

Image: The HAKINAKU HD11 detector unit shown alongside its detachable plug-in base, illustrating the two main components of the device.

4. Орнотуу

4.1 кутудан чыгаруу

Carefully remove the detector unit and any included accessories from the packaging. Inspect the device for any visible damage. If damage is found, do not proceed with installation and contact customer support.

4.2 Жайгаштыруу боюнча сунуштар

Оптималдуу иштөө жана коопсуздук үчүн төмөнкү жайгаштыруу көрсөтмөлөрүн карап чыгыңыз:

• Carbon Monoxide (CO) Detection: Install at least 5 feet (1.5 meters) from fuel-burning appliances to avoid false alarms from their normal operation. Place at knee level or higher, but not on the ceiling, as CO mixes with air.
• Түтүн аныктоо: Install on a wall or ceiling. For wall mounting, the top of the detector should be 4 to 12 inches (10 to 30 cm) from the ceiling. Avoid placing near windows, doors, or air vents where drafts could interfere with smoke reaching the sensor.
• Combustible Gas Detection: Since many combustible gases (like natural gas) are lighter than air, install the detector higher up on a wall, near the ceiling. For heavier-than-air gases (like propane), install closer to the floor. If monitoring both, a mid-level placement may be necessary, or consider multiple units.
• General Placement: Plug the detector into a standard AC outlet in areas such as bedrooms, kitchens, living rooms, or basements. Avoid placing in direct sunlight, near sources of steam or cooking fumes, or in extremely dusty environments.

Сүрөт: Мисamples of suitable locations for the HAKINAKU HD11 detector, illustrating its adaptability for different rooms and environments.

4.3 Баштапкы кубаттуулук

Plug the detector directly into a functional AC outlet. The device will automatically power on and begin its self-test sequence. The HD screen will illuminate, and the unit will display initial readings. The built-in battery will also begin charging.

Image: Visual representation of the detector's internal 2000mAh backup battery, highlighting its role in providing continuous power.

5. Иштөө нускамалары

5.1 Дисплейди түшүнүү

The 2.1-inch HD screen provides real-time information:

• CO PPM: Displays the concentration of carbon monoxide in parts per million.
• GAS Icon: Indicates the presence of combustible gas.
• SMOKE Bar: A visual bar or icon indicating smoke levels.
• Температура: Shows the ambient temperature (e.g., in °F or °C).
• Нымдуулук: Displays the relative humidity percentage.
• Батарея көрсөткүчү: Shows the charge level of the backup battery.
• Speaker Icon: Indicates alarm sound status.

Сүрөт: деталдуу view of the detector's HD screen, illustrating the various data points displayed for environmental monitoring.

5.2 Ойготкуч шарттары

The detector will activate an audible alarm (85 dB) and visual indicators on the screen when hazardous levels of CO, smoke, or combustible gas are detected.

• Көмүртек кычкылы сигнализациясы: The CO PPM reading will increase, and an alarm will sound.
• Түтүн сигнализациясы: The smoke indicator will activate, and an alarm will sound.
• Combustible Gas Alarm: The GAS icon will activate, and an alarm will sound.

Upon alarm activation, evacuate the premises immediately and contact emergency services.

Image: The detector's screen showing an active alarm state for carbon monoxide, with a high PPM reading and visual alerts.

5.3 Testing the Unit

It is recommended to test the detector weekly to ensure proper functionality. Press and hold the test button (usually marked with a power symbol or 'Test') on the device. The alarm will sound briefly, and the display will show a test sequence. Release the button to stop the test.

6. Техникалык тейлөө

6.1 Тазалоо

Dust and debris can accumulate on the detector, potentially affecting its performance. Clean the exterior of the detector at least once a month using a soft, damp cloth. Do not use cleaning solvents or chemicals. Gently vacuum around the vents to remove any dust buildup.

6.2 Батарея маалыматы

The HAKINAKU HD11 features a built-in rechargeable lithium-ion battery. When the device is plugged into an AC outlet, the battery charges automatically. In the event of a power outage, the battery provides backup power for approximately 18-20 hours. A low battery indicator will appear on the screen when the battery needs recharging.

6.3 Үзгүлтүксүз тестирлөө

Perform the self-test function (as described in Section 5.3) weekly to confirm the alarm and display are working correctly.

7. Кыйынчылыктарды

If you encounter issues with your HAKINAKU HD11 detector, refer to the following table:

If the problem persists after attempting these solutions, please contact HAKINAKU customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

The HAKINAKU HD11 detector comes with a 5-Year Free Exchange Warranty for any quality issues. Please retain your proof of purchase for warranty claims.

9.2 Кардарларды колдоо

For technical assistance, warranty claims, or any questions regarding your HAKINAKU HD11 detector, please refer to the contact information provided with your product packaging or visit the official HAKINAKU website. When contacting support, please have your model number (HD11) and purchase date available.
