MINIX ER937-AI Mini PC User Manual

1. Киришүү

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your MINIX ER937-AI Mini PC. Please read this guide thoroughly before using the device to ensure optimal performance and longevity.

Пакеттин мазмуну

• MINIX Elite ER937-AI Mini PC x 1
• VESA Mount x 1
• 19V/6.32A кубат адаптери x 1
• Жогорку сапаттуу Cable X 1

2. Продукт бүтүп калдыview

The MINIX ER937-AI is a high-performance Mini PC designed for demanding tasks, including business applications, gaming, 3D rendering, and AI computing. It features an AMD Ryzen AI 9 HX 370 processor, Radeon 890M graphics, and advanced connectivity options.

Front and Rear Panel Interfaces

Familiarize yourself with the ports and buttons on your Mini PC.

Сүрөт 2.1: Front and Rear Panel Interfaces. The front panel includes USB 4.0, USB 3.2, Microphone, Audio Jack, and Power Button/LED. The rear panel features Power Jack, USB 4.0, 2.5G RJ45 LAN, DP 2.0, HDMI 2.1, USB 3.2, and Kensington Lock.

• Алдыңкы панели: USB-C 4.0 (x2), USB-A 3.2 Gen2 (x2), Audio Jack, Microphone, Power Button with Fingerprint Sensor, Clear CMOS Button.
• Арткы Panel: Power Jack, USB-A 3.2 Gen2 (x1), HDMI 2.1, DisplayPort 2.0, Dual 2.5G RJ45 LAN ports, Kensington Lock.

3. Орнотуу колдонмосу

3.1 Баштапкы туташуу

1. Перифериялык түзүлүштөрдү туташтыруу: Connect your monitor(s) to the HDMI 2.1 and/or DisplayPort 2.0 ports. For multi-monitor setups, utilize the USB-C 4.0 ports which also support 8K@60Hz display output. Connect your keyboard and mouse to the available USB-A ports.
2. Кубат туташуу: Connect the provided 19V/6.32A power adapter to the Mini PC's power jack and then to a power outlet.
3. Тармакка туташуу (милдеттүү эмес): For a wired connection, connect an Ethernet cable to one of the 2.5G RJ45 LAN ports. For wireless, Wi-Fi 7 is available after initial setup.

3.2 Биринчи жүктөө

1. Press the power button located on the front panel. The power LED will illuminate.
2. The system will boot into Windows 11 Pro. Follow the on-screen instructions to complete the initial Windows setup, including language, region, network configuration, and user account creation.
3. During setup, you can configure the fingerprint sensor for secure and fast logins using Windows Hello.

3.3 VESA орнотуусун орнотуу

The included VESA mount allows you to attach the Mini PC to the back of a compatible monitor or TV, saving desk space.

1. Attach the VESA mount bracket to the back of your monitor using the screws provided with your monitor (or the VESA mount if included). Ensure the mount is securely fastened.
2. Slide the MINIX ER937-AI Mini PC onto the VESA mount until it clicks into place.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү жана кайра иштетүү

• Күйгүзүү: Кубат баскычын басыңыз.
• Өчүрүү: Windows'тун Start баскычын чыкылдатып, андан кийин Кубат > Өчүрүү дегенди тандаңыз.
• Кайра баштоо: Windows'тун Start баскычын чыкылдатып, андан кийин Кубат > Кайра баштоону тандаңыз.
• Мажбурлап өчүрүү: Эгерде система жооп бербесе, түзмөк өчкөнгө чейин кубат баскычын болжол менен 5-7 секунд басып туруңуз. Муну акыркы чара катары гана колдонуңуз.

4.2 Тармакка туташуу

• Wi-Fi 7: Access network settings in Windows to connect to available Wi-Fi 7 (2.4GHz/5GHz/6GHz) networks.
• 2.5G LAN: Plug an Ethernet cable into either of the two 2.5G RJ45 LAN ports for a high-speed wired connection.
• Bluetooth 5.4: Enable Bluetooth in Windows settings to pair with compatible devices such as keyboards, mice, or audio peripherals.

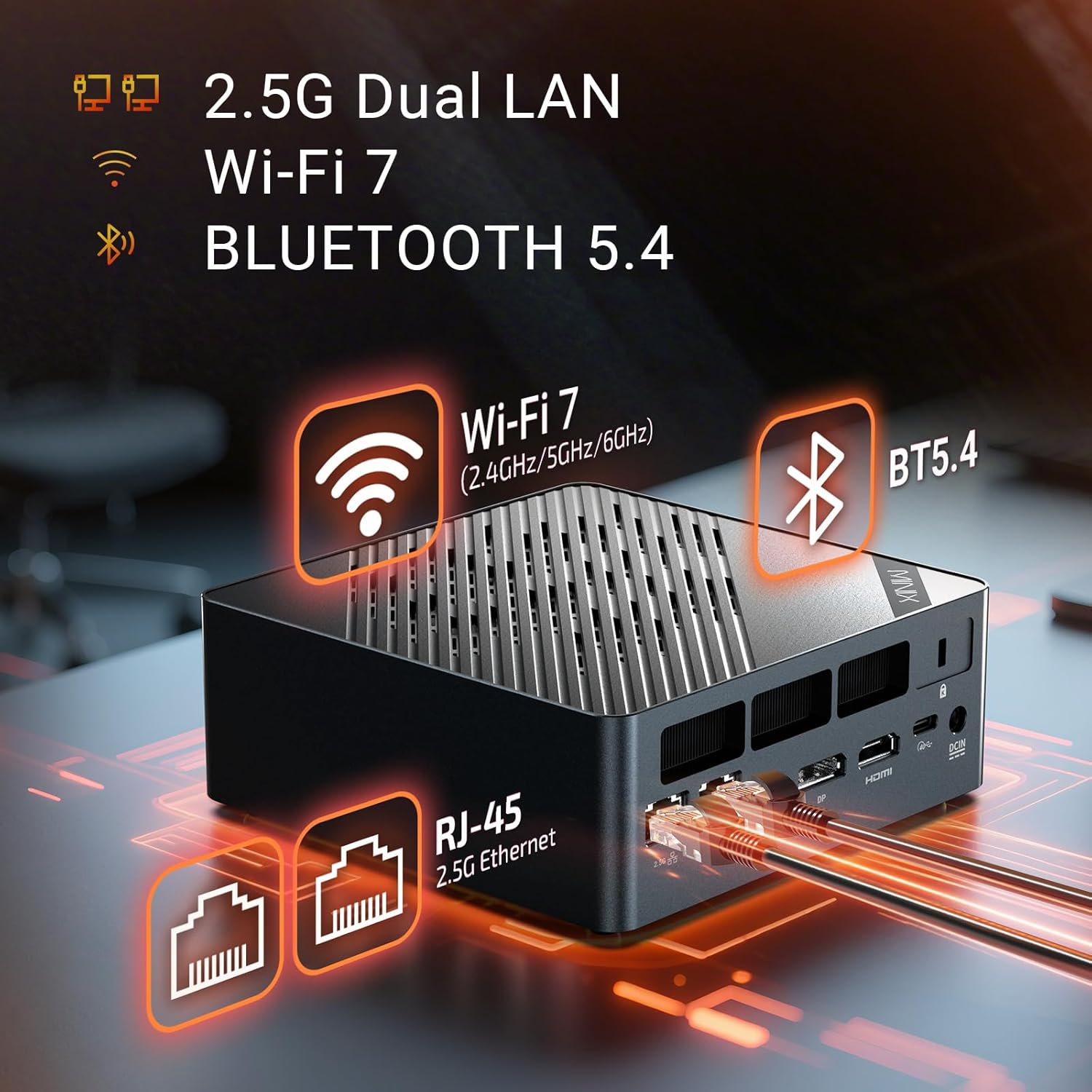

Сүрөт 4.1: Ultra-Fast Connections. The Mini PC supports Wi-Fi 7, Bluetooth 5.4, and dual 2.5G Ethernet for robust network performance.

4.3 Дисплейдин конфигурациясы

The MINIX ER937-AI supports up to four 8K@60Hz displays simultaneously.

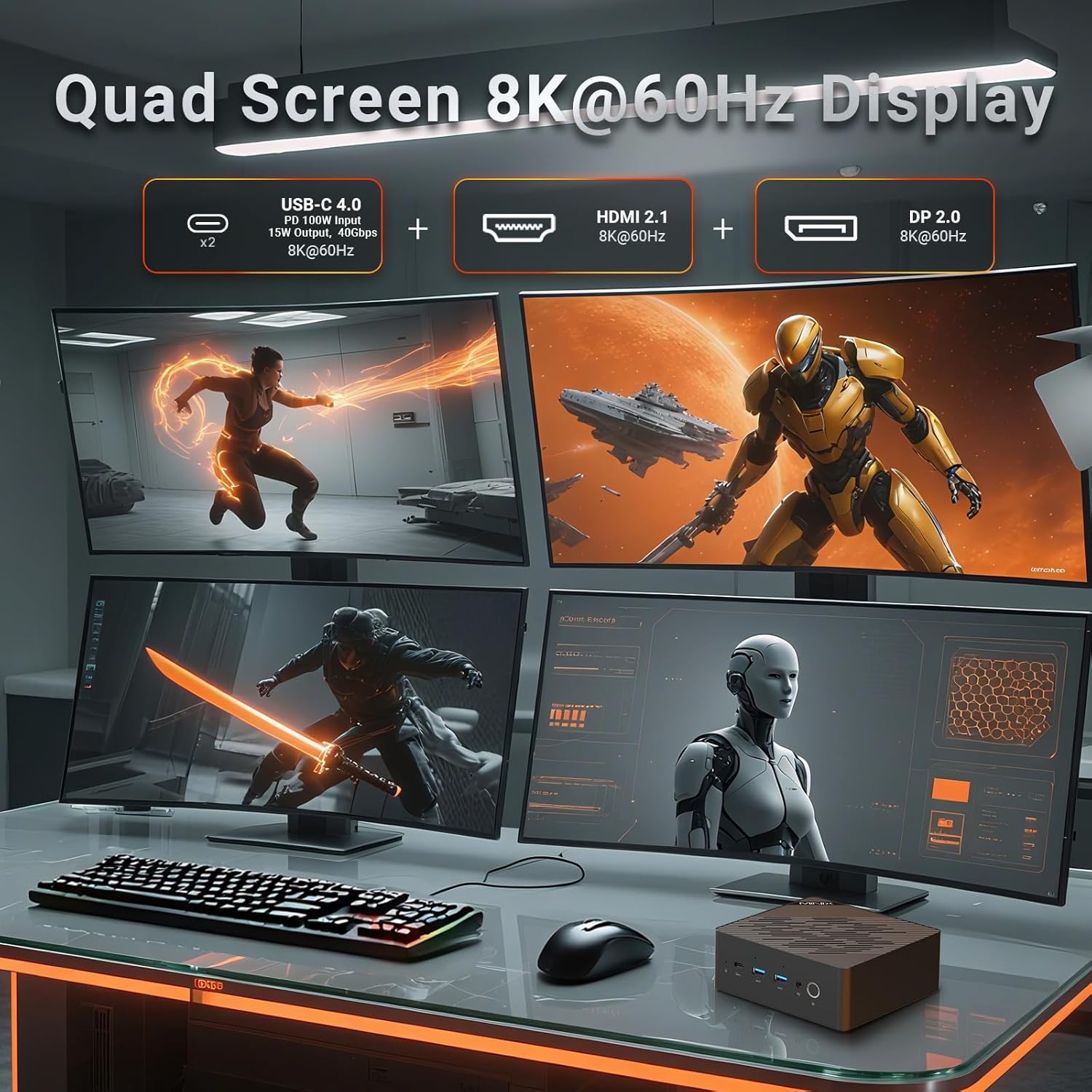

Сүрөт 4.2: Quad Screen 8K@60Hz Display. The Mini PC can drive up to four 8K monitors via USB-C 4.0, HDMI 2.1, and DisplayPort 2.0.

• Connect monitors using the HDMI 2.1, DisplayPort 2.0, and two USB-C 4.0 ports.
• In Windows Display Settings, you can configure display arrangement, resolution, and orientation.

4.4 USB-C 4.0 Functionality

The two USB-C 4.0 ports offer versatile functionality:

• Power Delivery (PD) Input: Supports 100W power input.
• Power Delivery (PD) Output: Provides 15W power output for charging compatible devices.
• Маалыматтарды өткөрүү: Up to 40Gbps for high-speed data transfer.
• Дисплей чыгаруу: Supports 8K@60Hz video output.

4.5 AI өзгөчөлүктөрү

Leverage the AMD Ryzen AI 9 HX 370 processor's NPU for enhanced AI capabilities:

• Windows Copilot: Utilize AI-powered features within Windows 11 Pro, such as Recall and real-time translation.
• AI Acceleration: Benefit from up to 80 TOPS (Trillions of Operations Per Second) for AI tasks like drawing and voice interaction in compatible applications.

5. Техникалык тейлөө жана жаңылоо

5.1 Муздатуу системасы

The Mini PC features dual independent fans for efficient cooling of the CPU and SSD, ensuring stable performance under heavy loads.

Сүрөт 5.1: Dual Cooling Fans. Separate fans cool the CPU and SSD to prevent overheating and maintain performance.

To maintain optimal cooling, ensure the ventilation grilles are not obstructed. Periodically clean dust from the chassis using compressed air. The magnetic quick-release chassis allows for easy access for cleaning.

5.2 Сактагычты кеңейтүү

The Mini PC comes with a 1TB M.2 2280 PCIe 4.0x4 NVMe SSD and includes a second M.2 2280 PCIe 4.0x4 NVMe slot for additional storage, supporting up to 8TB.

Сүрөт 5.2: Ample Memory & Storage. The Mini PC supports 32GB DDR5 RAM and a 1TB PCIe 4.0 NVMe SSD, with expansion options.

To install an additional SSD:

1. Мини компьютерди өчүрүп, бардык кабелдерди ажыратыңыз.
2. Carefully open the chassis (refer to the magnetic quick-release mechanism).
3. Locate the empty M.2 slot. Insert the new M.2 NVMe SSD at an angle and secure it with the provided screw.
4. Close the chassis and reconnect cables. The new SSD will need to be initialized and formatted in Windows Disk Management.

5.3 RAM Upgrade

The device is equipped with 32GB dual-channel DDR5-5600 RAM (2x DDR5 SO-DIMM slots) and is expandable up to 96GB.

To upgrade RAM:

1. Мини компьютерди өчүрүп, бардык кабелдерди ажыратыңыз.
2. Carefully open the chassis.
3. Locate the DDR5 SO-DIMM slots. If replacing existing modules, gently push the clips on either side of the module outwards to release it.
4. Insert new DDR5 SO-DIMM modules at an angle and push down until the clips snap into place.
5. Close the chassis and reconnect cables.

5.4 Clear CMOS баскычы

A Clear CMOS button is available on the front panel. This button can be used to reset BIOS settings to their default values if you encounter boot issues related to BIOS configuration. Consult technical support before using this feature.

6. Кыйынчылыктарды

If you encounter issues with your MINIX ER937-AI Mini PC, refer to the following common solutions:

• Кубат жок:
  • Кубат адаптери Мини компьютерге жана иштеген электр розеткасына бекем туташып турганын текшериңиз.
  • Башка аспапка сайып, розетка иштеп жатканын текшериңиз.
• Дисплей жок:
  • Check that the monitor is powered on and the correct input source is selected.
  • Ensure display cables (HDMI, DisplayPort, USB-C) are securely connected to both the Mini PC and the monitor.
  • Try connecting to a different display port or using a different cable.
• Тармакка туташуу маселелери:
  • For Wi-Fi, check Windows network settings, ensure Wi-Fi is enabled, and try reconnecting to your network.
  • For wired LAN, ensure the Ethernet cable is properly connected and your router/modem is functioning.
  • Роутериңизди/модемиңизди жана мини-компьютериңизди өчүрүп-күйгүзүңүз.
• Манжа изинин сенсору иштебей жатат:
  • Манжаңыздын таза жана кургак экенине ынаныңыз.
  • Re-register your fingerprint in Windows Hello settings.
• System Performance Issues:
  • Ensure the Mini PC has adequate ventilation and is not placed in an enclosed space.
  • Check for excessive background processes in Task Manager.
  • Update drivers and Windows 11 Pro to the latest versions.

If problems persist, refer to the Support section for further assistance.

7. Техникалык шарттар

Detailed technical specifications for the MINIX ER937-AI Mini PC.

8. Кепилдик жана колдоо

8.1 Кепилдик маалыматы

For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official MINIX webсайт. Кепилдик камтуу адатта материалдардын жана нормалдуу колдонуудагы чеберчиликтин кемчиликтерин камтыйт.

8.2 Техникалык колдоо

If you require technical assistance or have questions not covered in this manual, please use the following resources:

• Онлайн колдоо: Visit your Amazon account, navigate to "Your Orders," and select "Ask Product Question" for the MINIX ER937-AI Mini PC.
• Официалдуу Webсайт: For offline maintenance services and additional support resources, please visit the official MINIX webсайт.
