1. Киришүү
Thank you for choosing the Sharmeal 6000A 12V Car Battery Jump Starter M10. This device is designed to provide a reliable solution for starting dead vehicle batteries, offering powerful performance and multiple functionalities in a compact design. Please read this manual thoroughly before use to ensure safe and optimal operation.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- 1 x Sharmeal Jump Starter M10 Unit
- 1 x Smart Jumper кабелдери
- 1 x Type-C заряддоо кабели
- 1 x User Manual
- 1 x Көчмө көтөрүүчү сумка

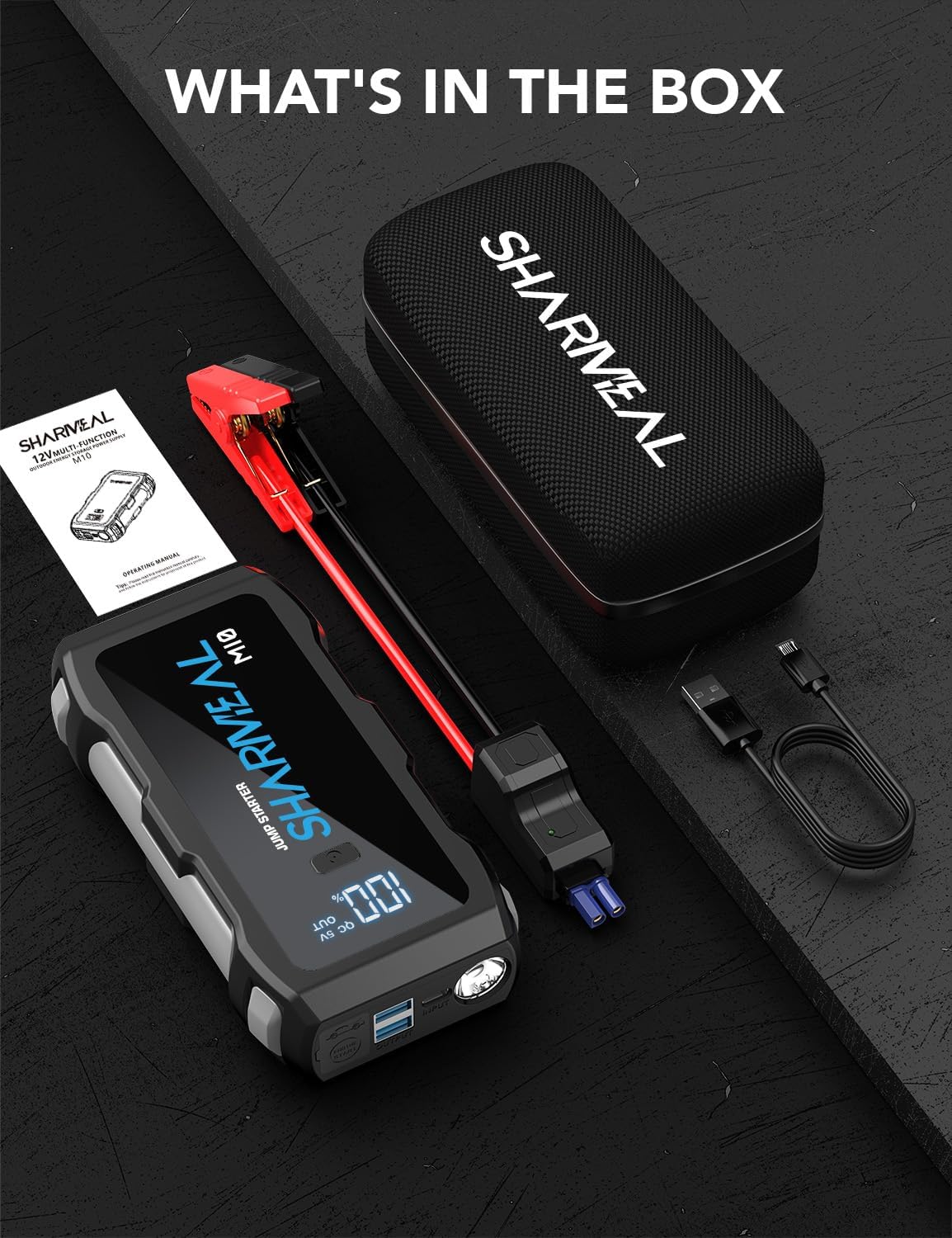

Image: Sharmeal Jump Starter M10, smart jumper cables, Type-C charging cable, user manual, and portable carrying case.
3. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Чоку Ampөчүрүү | 6000 Amps |
| Батарея түрү | S-class intelligent ternary lithium battery (4 Lithium Ion batteries included) |
| Мотор шайкештиги | Up to All gasoline engines or 10.0L diesel engines |
| Продукциянын өлчөмдөрү | 1.4 x 3.2 x 7 дюйм |
| Элемент Салмагы | 1.5 фунт |
| Жарык режимдери | Flashlight, Strobe Light, SOS Light |
| USB чыгышы | QC 5V OUT (2 ports) |
| Type-C киргизүү | 5V/2A |
| Күтүү убактысы | Up to 24 months (under moderate conditions) |
4. Коопсуздук маалыматы
The Sharmeal Jump Starter M10 incorporates 14 integrated safety protections to ensure safe operation. These include:
- Полярдуулукту кайтаруу
- Reverse Connection Protection
- Ашыкча ток коргоо
- Overvoltage Коргоо
- Ашыкча жүктөн коргоо
- Ашыкча заряддан коргоо
- Ашыкча разряддан коргоо
- Кыска туташуулардан коргоо
- Spark Resistance
- Impedance Match
- Шокту абсорбциялоо
- Төмөн температурадан коргоо
- Ашыкча температурадан коргоо
- Ашыкча кубаттуулуктан коргоо
Always follow these general safety guidelines:
- Агрегатты сууга салбаңыз.
- Эгерде ал бузулган болсо, аны иштетпеңиз.
- Балдар жетпеген жерде сактаңыз.
- Колдонуу учурунда туура желдетүүнү камсыз кылыңыз.
- Оң жана терс кл байланыштырбаampбирге.
Image: Visual representation of the 14 integrated safety protections.
5. Орнотуу
5.1 Стартерди кубаттоо
- Connect the Type-C charging cable to the input port on the jump starter.
- Connect the other end of the charging cable to a suitable USB power adapter (not included) or a USB port.
- Санарип дисплейде заряддоо пайызын көрсөтөтtage. Ensure the unit is fully charged (100%) before its first use and before jump starting a vehicle.
Tip: To extend its life, charge the product every six months.

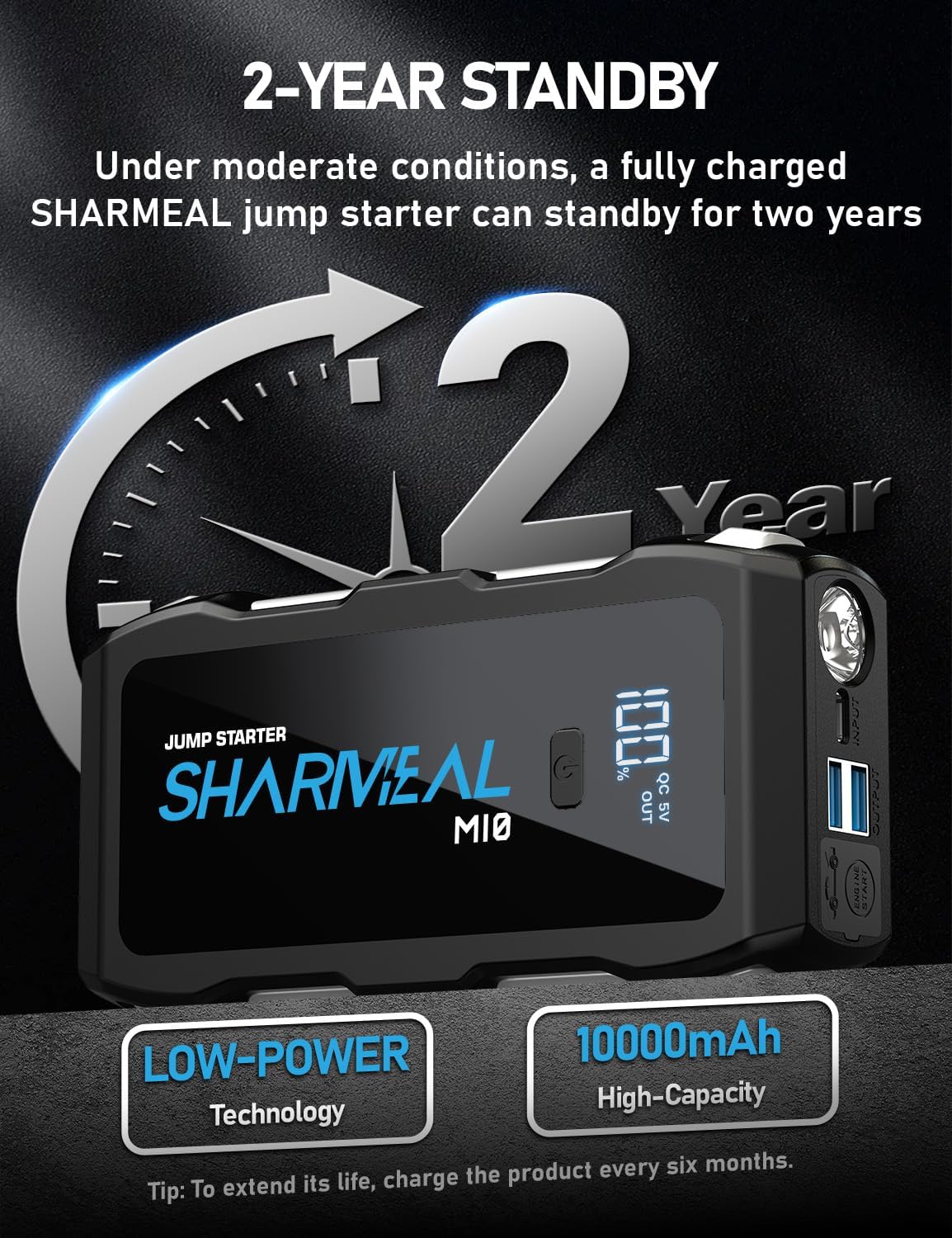

Image: Sharmeal Jump Starter M10 showing full charge and highlighting its long standby time.
6. Иштөө нускамалары
6.1 Унаанын секирип от алдыруу
- 1-кадам: киргизүү - Ensure the jump starter is fully charged. Open the protective cap on the jump starter and firmly insert the smart jumper cable connector into the jump starter's port. The indicator light on the smart cable should flash red and green.
- 2-кадам: Туташуу - Connect the red (+) clamp to the positive (+) terminal of the vehicle's battery. Connect the black (-) clamp to the negative (-) terminal of the vehicle's battery. The smart cable indicator light should turn solid green, indicating a safe connection. If it flashes red and green, check connections or if the battery is too low, use the force start function.
- 3-кадам: Баштоо - Once the smart cable indicator is solid green, start your vehicle's engine within 30 seconds.
- 4-кадам: алып салуу - After the engine starts, immediately remove the smart jumper cables from the vehicle battery terminals, then disconnect the smart cable from the jump starter.
Note: If the vehicle battery is extremely low and the smart cable does not show a solid green light, press the 'Force Start' button on the jump starter to manually activate it.
Image: Step-by-step guide for jump starting a vehicle using the Sharmeal M10.
Image: Close-up of the 'Force Start' button on the Sharmeal Jump Starter M10.
7. Multi-Function Features
7.1 LED чырак
The Sharmeal Jump Starter M10 features a built-in LED work light with three modes:
- Кол чырак: Provides continuous illumination.
- Strobe Light: Emits a flashing light for signaling.
- SOS жарыгы: Flashes the international SOS distress signal.
To activate the flashlight, press and hold the power button. Press the power button again to cycle through the modes.
7.2 Portable Power Bank
The unit also functions as a portable power bank to charge your electronic devices.
- Түзмөгүңүздүн USB кубаттоочу кабелин стартердеги USB чыгаруу портторунун бирине туташтырыңыз.
- Секирип баштоочу түзмөгүңүздү автоматтык түрдө кубаттай баштайт.
Image: Sharmeal Jump Starter M10 showcasing its multiple functions.
8. Техникалык тейлөө
- Store the jump starter in its portable carrying case in a cool, dry place.
- Recharge the unit every six months to maintain optimal battery health and extend its lifespan.
- Clean the exterior of the unit with a soft, dry cloth. Do not use harsh chemicals or abrasives.
9. Кыйынчылыктарды
9.1 Түзмөк кубатталбай жатат
- Ensure the Type-C charging cable is securely connected to both the jump starter and the power source.
- Кубат адаптери же USB порту иштеп жатканын текшериңиз.
- Allow sufficient time for charging. The unit may take several hours to fully charge, especially if completely depleted.
9.2 Smart Jumper Cable Indicator Not Solid Green
- cl экенин текшериңизamps туура батарея терминалдарына (кызылдан оңго, карадан терске) бекем туташтырылган.
- If the vehicle battery is extremely low, the smart cable may not detect it immediately. Use the 'Force Start' button on the jump starter to override this.
- Ensure the jump starter itself is adequately charged.
9.3 Vehicle Does Not Start
- Confirm all connections are secure and the smart cable indicator is solid green.
- Attempt to start the vehicle again after waiting a few minutes.
- If the vehicle still does not start, there may be an issue beyond the battery, such as a starter motor problem. Consult a professional mechanic.
10. Кепилдик жана колдоо
Sharmeal specializes in vehicle emergency starters and offers a 24 айлык кепилдик on this product. For warranty claims, technical support, or any inquiries, please refer to the contact information provided on the product packaging or the official Sharmeal webсайт.
